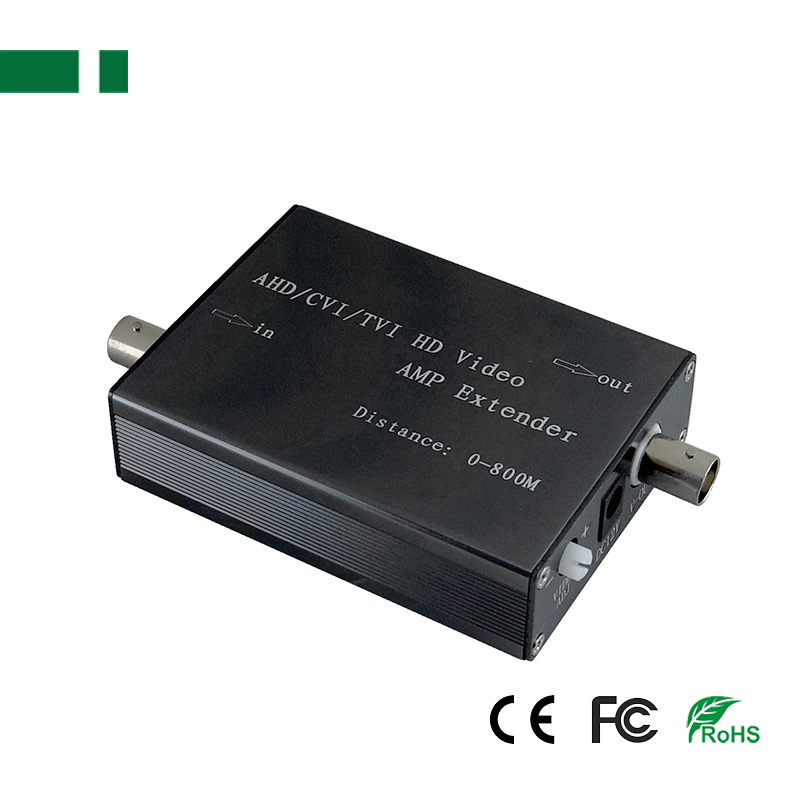

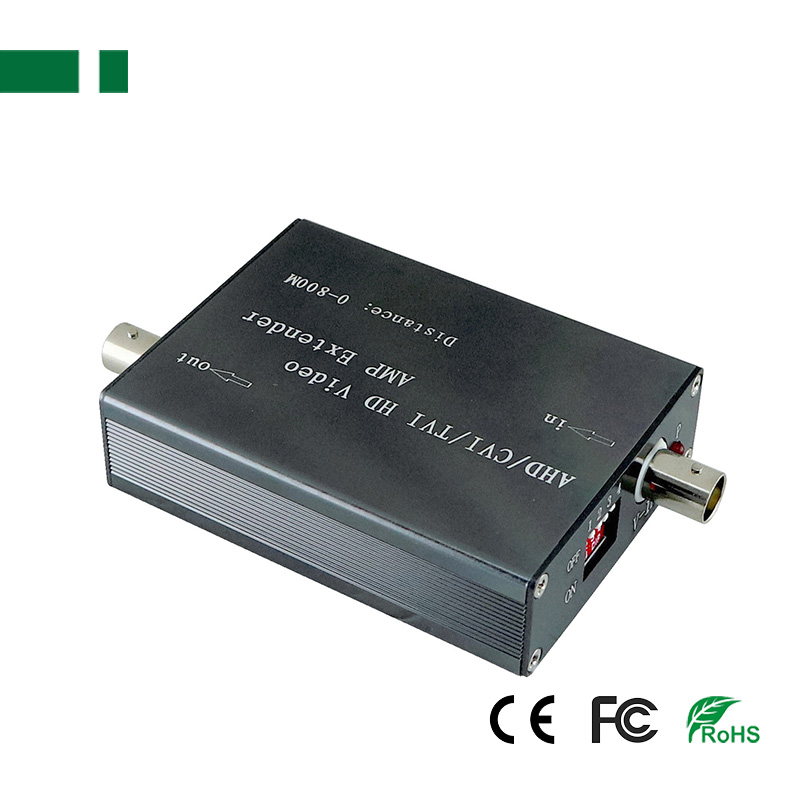

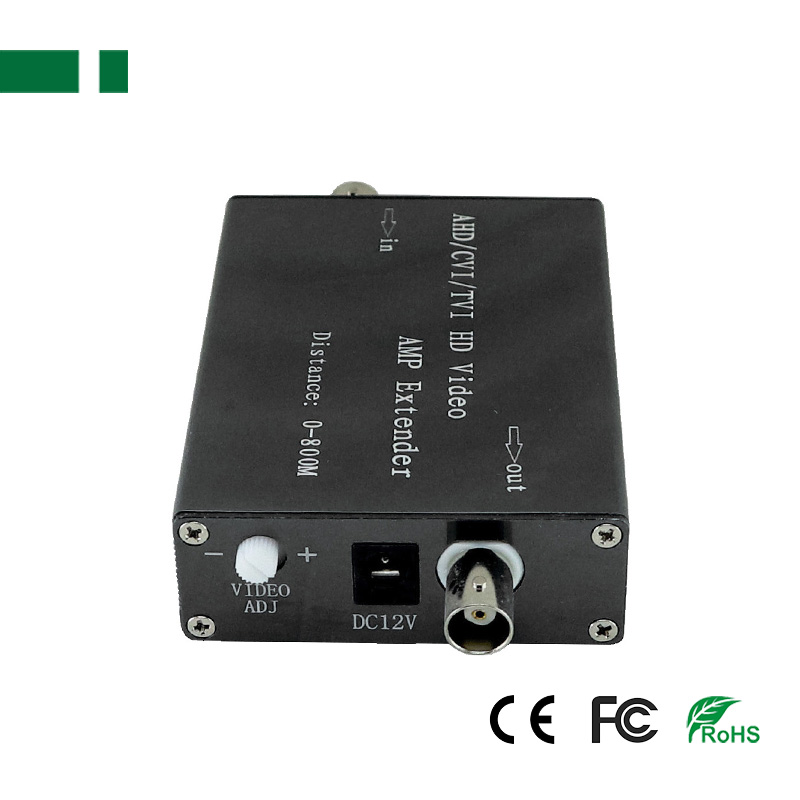

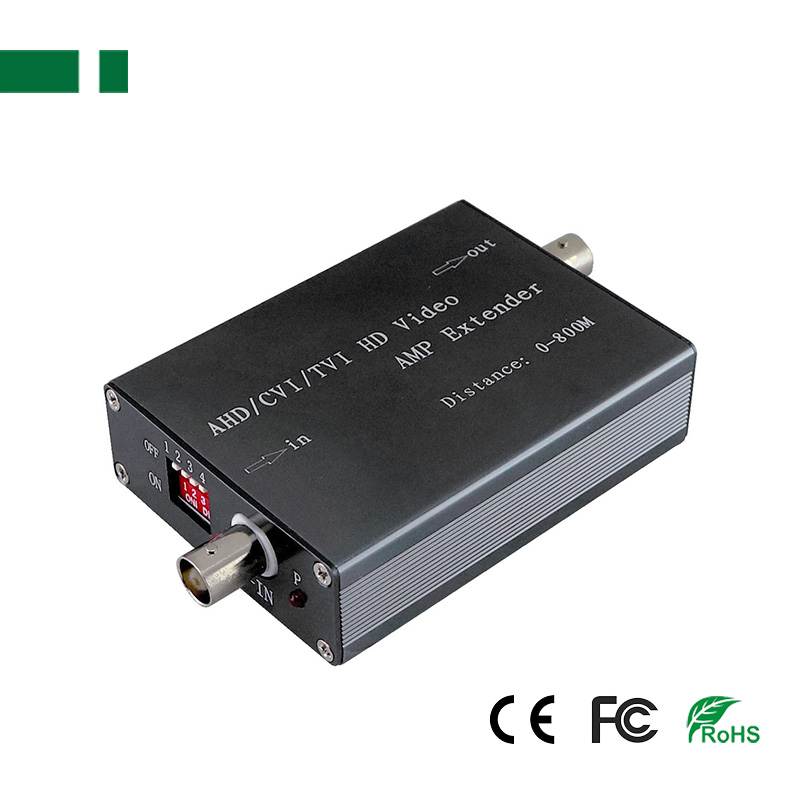

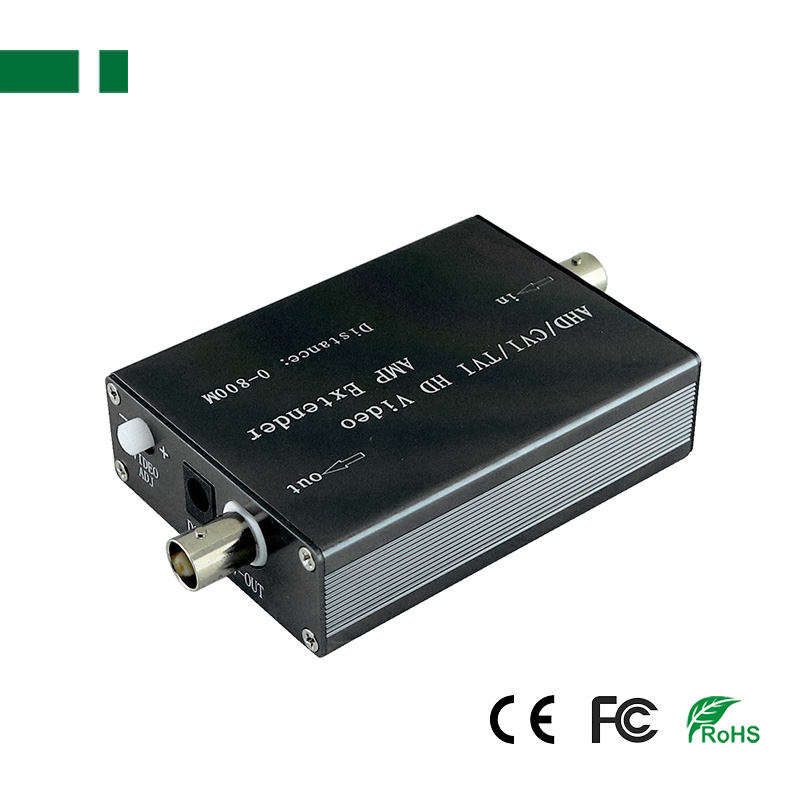

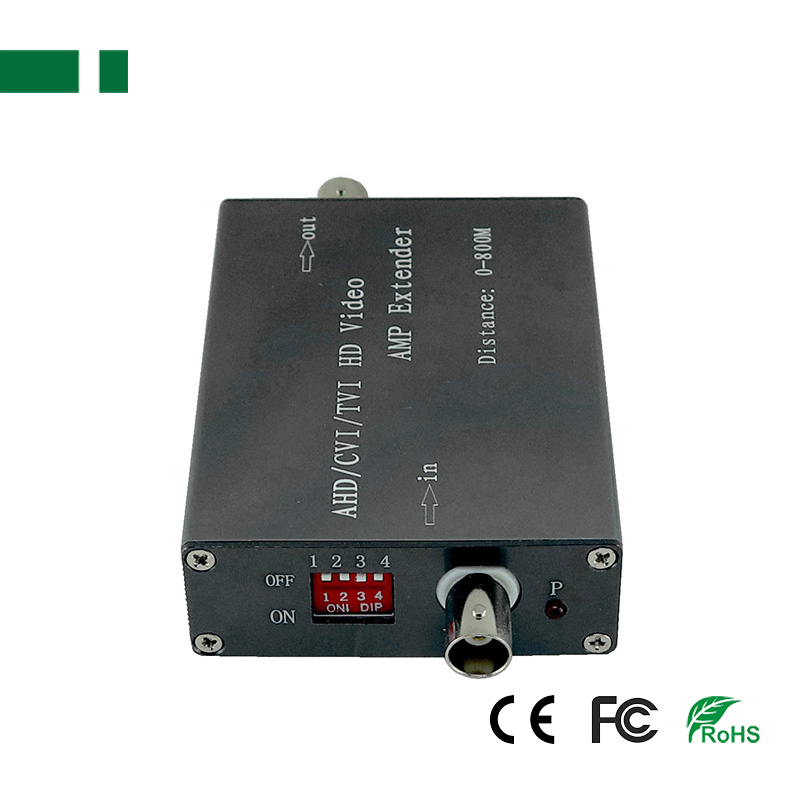

CVA-H005 800M 1080P HD Video Amplifier Extender

800M 1080P HD Video Signal Amplifier Extender via Coaxial Cable for Security CCTV Camera

Introduction:
This video amplifier amplify video signals to thousands times and extend distance to 1.2KM during  Coaxial Cable transmission. The device is to converter the video signals to RF signals at the beginning of transmission, then the video signals transmitted will be kept true, stable, and without distortion. It helps effectively solve the problems of image floating, Flickering, distortion, reticulation, crosswalk, snowflakes, image noise, etc.

Feature:
1. No compression no delay time distribution of output HD;
2. The famous SGM semiconductor professional video amplifier IC chip design;
3. Compatible with AHD/CVI/TVI/analog video;
4. Professional broadcast class standards;
5. DC12V power supply high stability;
6. Processing technique of video signal the iage signal stable picture;
7. Without the software settings support plug and play function;
8. Type design convenient for users to install and use;
9. The output range of up to 1200 meters no signal attenuation.

Speicfication:

Model	CVA-H005
Item name	AHD/ TVI/ CVI coaxial video amplifier
Compatible mode	AHD/ TVI/ CVI/ Analog Video
Cable type	SYV75-5-1(coaxial cable)
Interface	BNC port
Power supply input	DC 12V 1A
Transmission distance	Up to 1200m
Operating temperature	-40°C-60°C
Shell material	High quality metal materials
Product weight	106g/pc
Product size	86*63*23mm/pc
Cable type	Farthest Transmission Distance
Camera type	AHD: 720P/1080P	CVI: 720P/1080P	TVI: 720P/1080P
SYV75-3	500M	400M	500M
SYV75-5 Single core	800M	700M	800M
SYV75-7 Single core	1200M	1000M	1200M

Application:
1. Elevator video signal transmission.
2. Around electric motors which often cause video signal interference due to high level AC or DC noise spikes.
3. Cameras located next to high voltage electrical system can cause serious video signal interference.
4. In production areas where RF noise from conveyor belt motors and HVAC systems often cause severe interference to video system.
5. Cameras located near launch towers that often cause video signal interference.
6. System co-located to Frequency Conversion Equipment that cause video signal interference.
7. Other strong interference environments where video signal interference occurs.
