Anti-interference Device

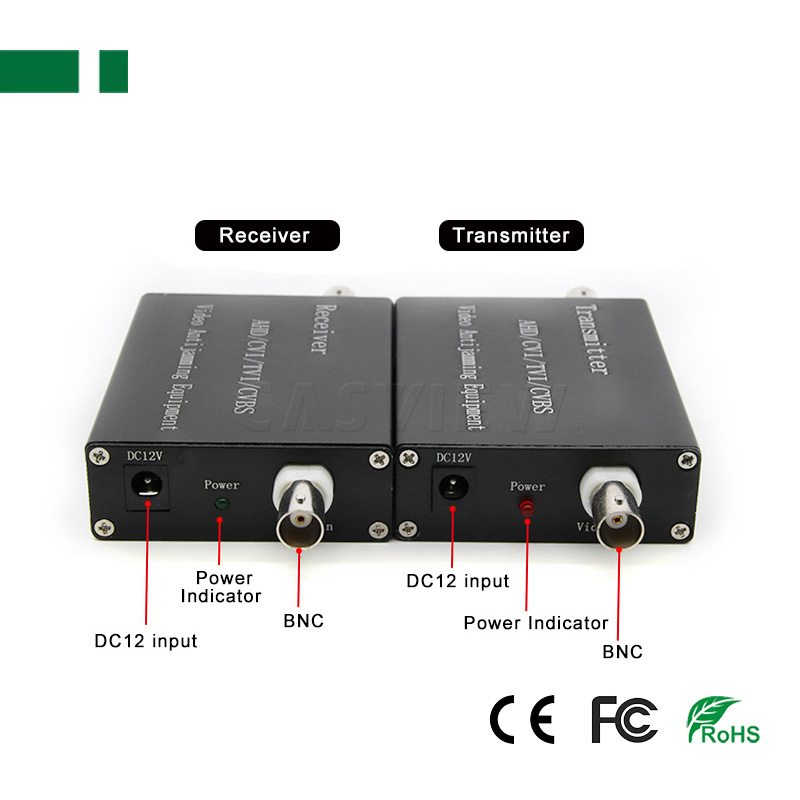

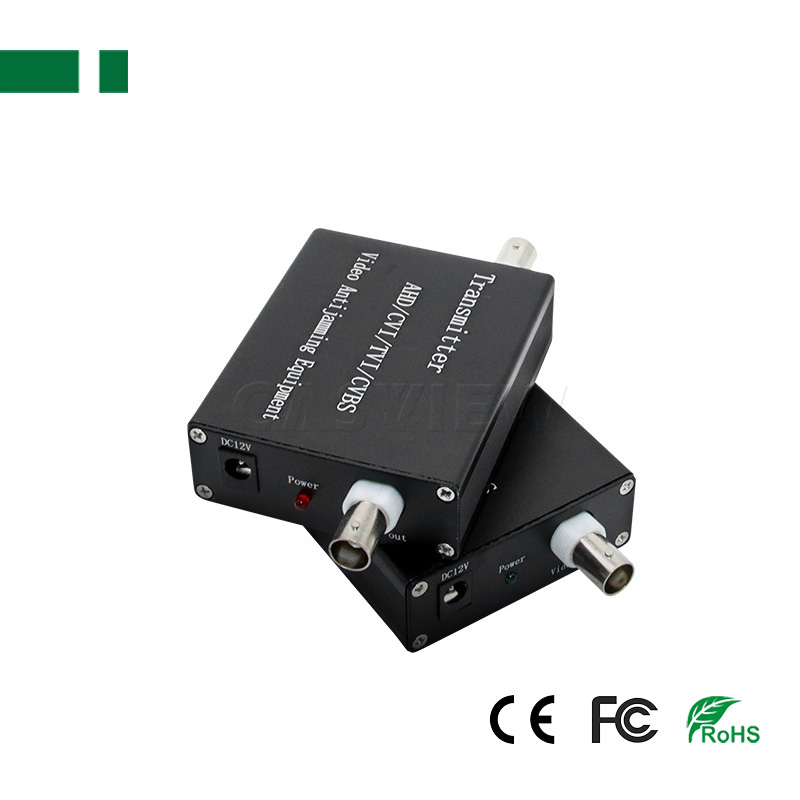

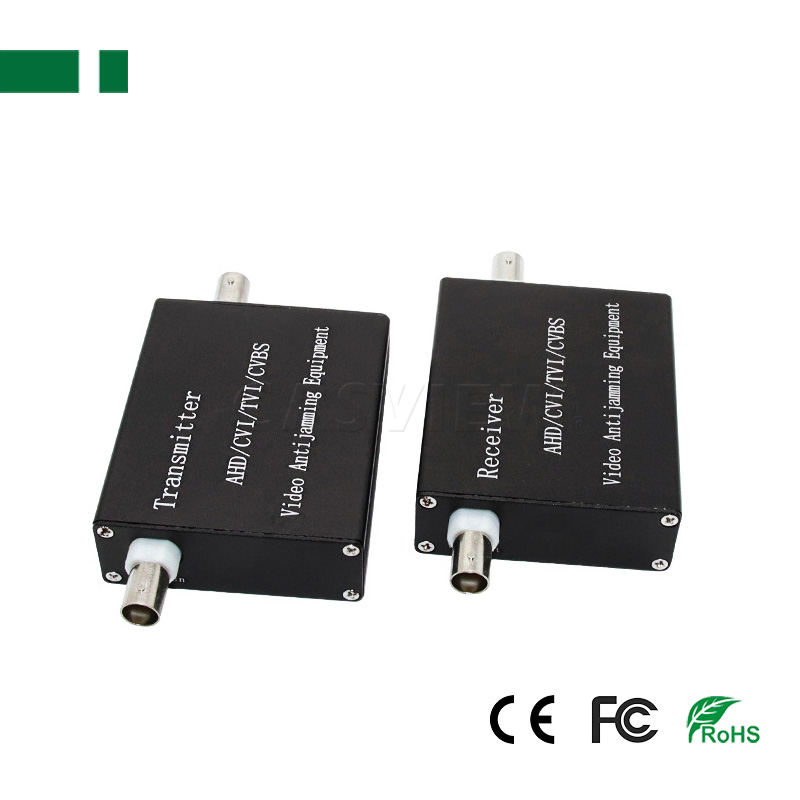

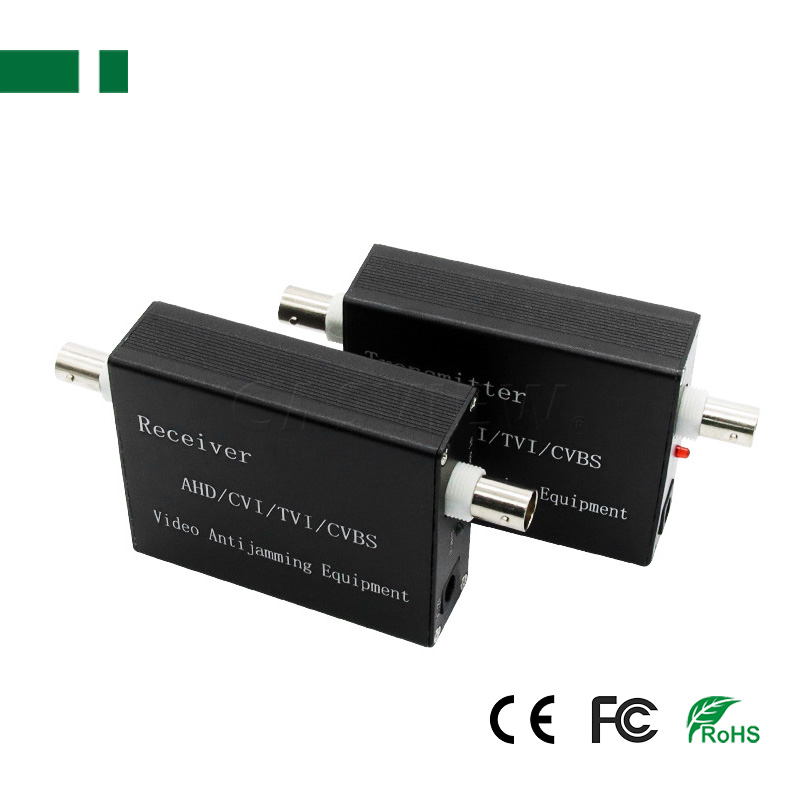

C-HD645T/R HD-AHD/CVI/TVI/CVBS Video Anti-jammer Equipment

C-HD645T/R HD-AHD/CVI/TVI/CVBS Video Anti-jammer Equipment

HD-AHD/CVI/TVI/CVBS Video Anti-jammer Equipment
Support 1080P/960P/720P HD-AHD/TVI/CVI
Transmission distance: 300M
73-3/75-5 coaxial video cable
Product description: HD-AHD/CVI/TVI/CVBS Video Anti-jammer Equipment;.email: info@casview.com
INQUIRY EMAIL

Feature:
1. HD-AHD/CVI/TVI/CVBS Video Anti-jammer Equipment;
2. Support 1080P/960P/720P HD-AHD/TVI/CVI
3. Transmission distance: 300M
4. Power supply: DC12V 1-2A (Not include)
5. Transmisson wire: 73-3/75-5 coaxial video cable
6. Metal shell reduce signal interference
7. Use BNC interface universal lossless input and output

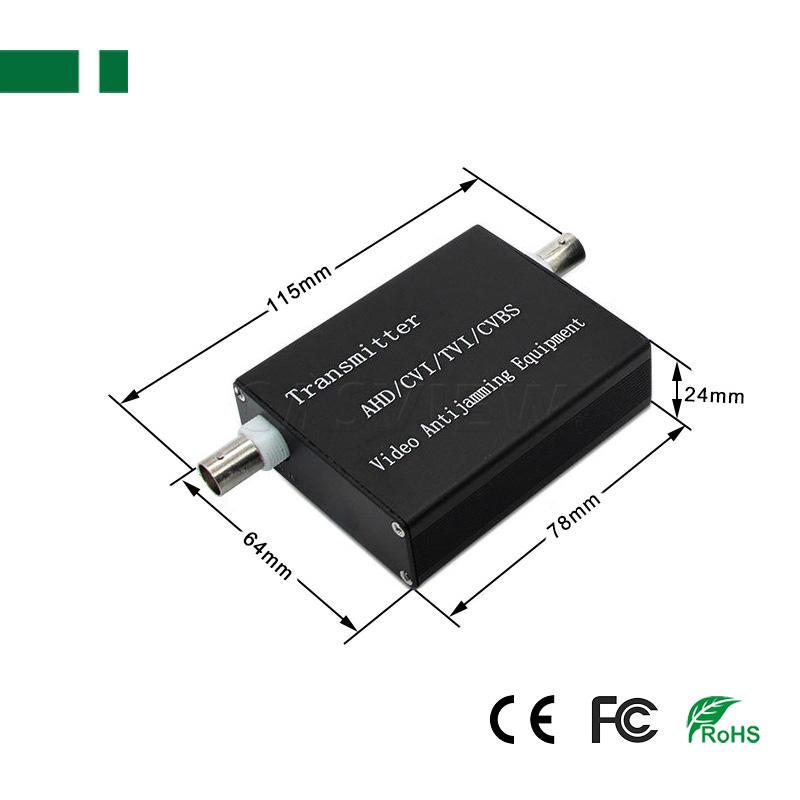

8. Size: 115*64*24mm, 450g.
9. Eliminate kinds of interference: Jitter interference, distortion interference, fringe interference, snowflake interference. Ensure image transmitting quality and increase video transmitting distance;
10. Suitable for elevator, electricity, factory workshop, road light pole monitoring, scenic spots etc.

Specifications

Model	C-HD645T/R
Insertion Loss	≤0.5dB
Frequency Response	0-3dB at 10Mhz
Input Resistance	75ohm
Output Resistance	75ohm
Isolation Voltage	DC 600V
Insulation Resistance	100m ohm
Transient voltage suppressors	12Vrms
Working temperature	-20°C to +50°C
Storage Temperature	-40°C to +80°C
Humidity	0 to 95%
