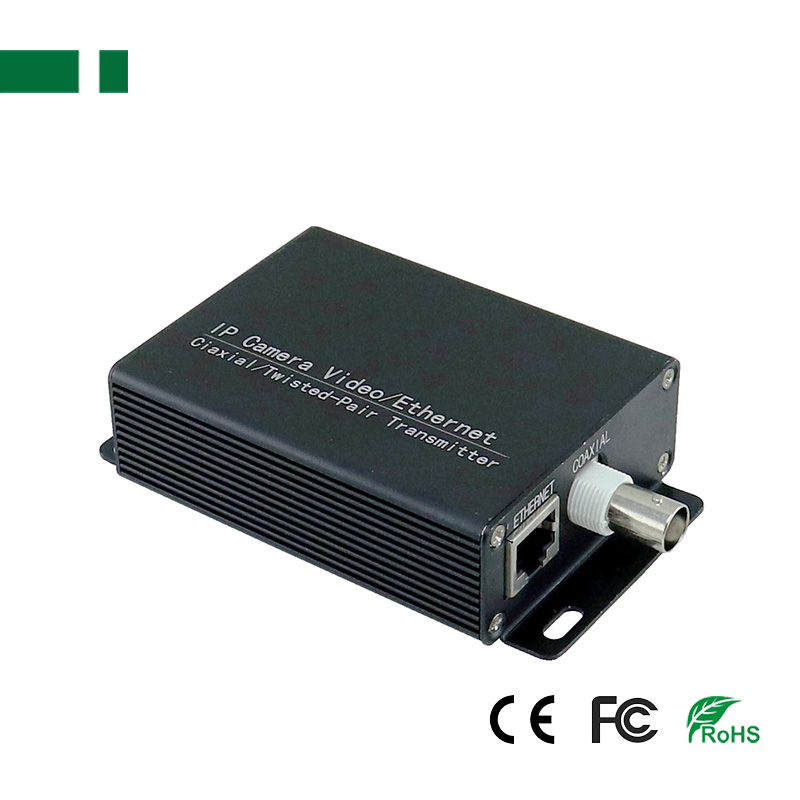

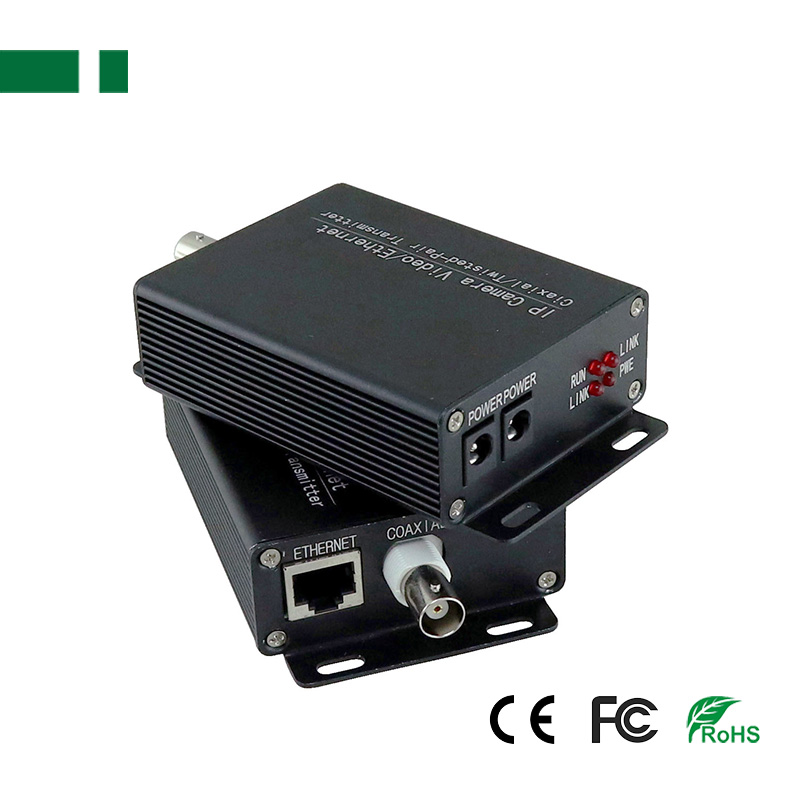

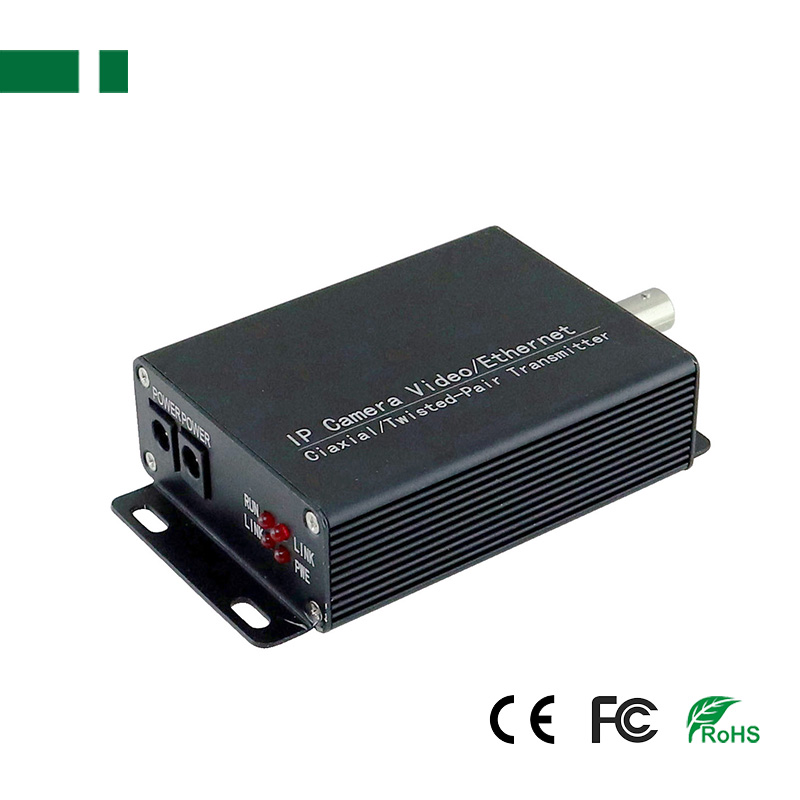

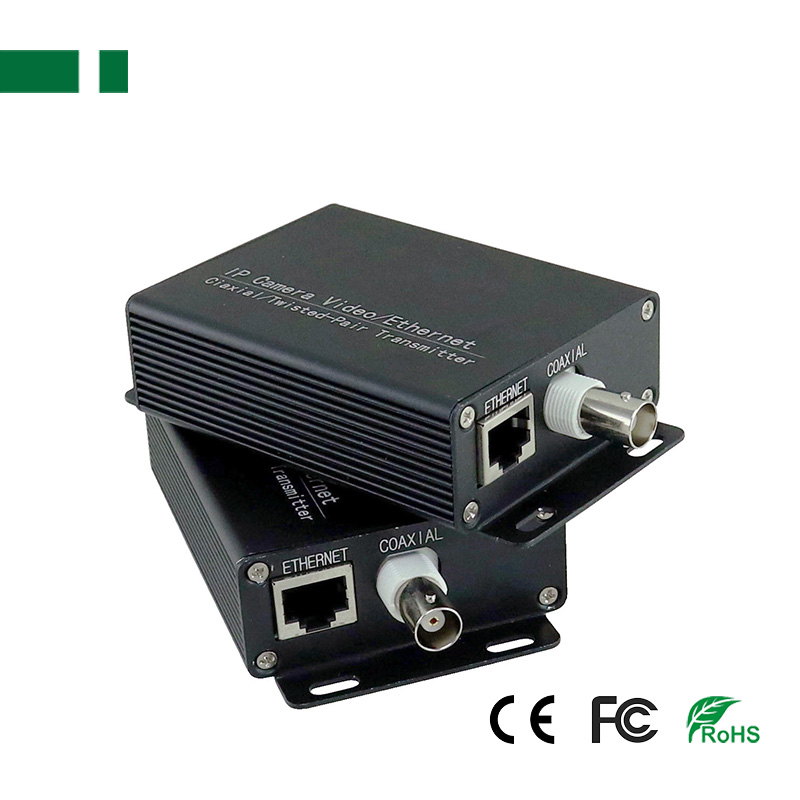

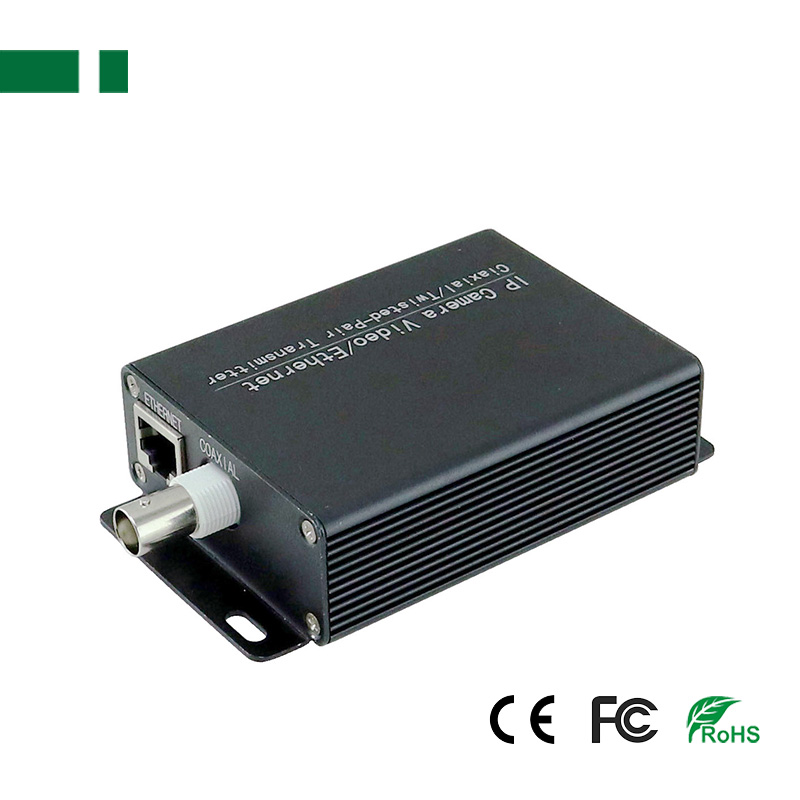

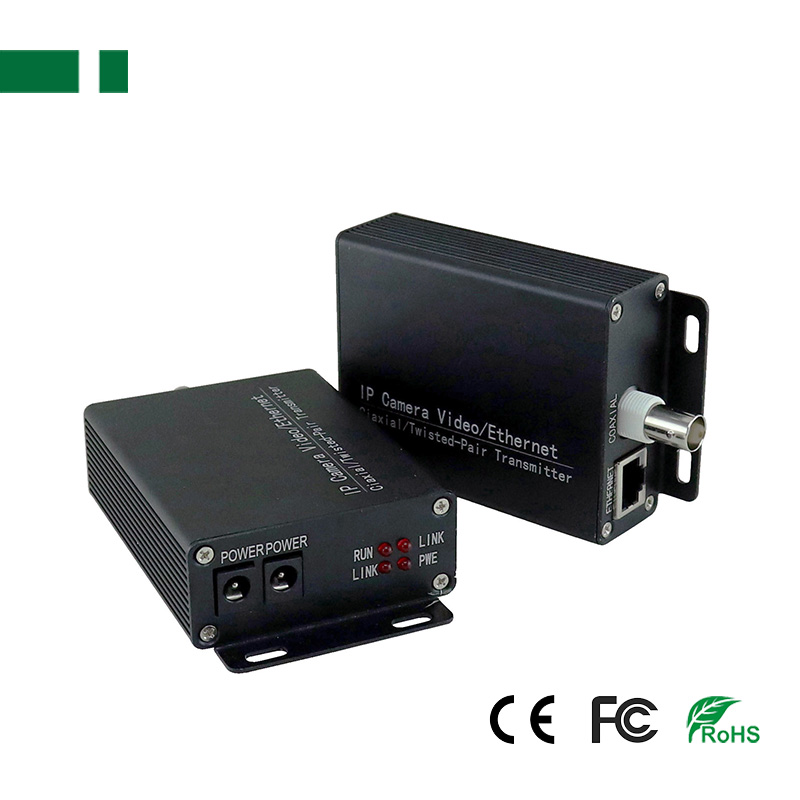

  • BNC Ethernet over Coaxial Extender
  • 10/100M 1BNC+1RJ45
  • IP/Ehernet over Twisted Pair Solution
  • Transmission distance: 2KM
  • Product description: The IEEE-based P1901 supports high-definition video and high-speed data signals over a variety of media such as coaxial and telephone lines.
  • INQUIRY   EMAIL

BNC Ethernet over Coaxial Extender, 10/100M 1BNC+1RJ45;

IP/Ehernet over Twisted Pair Solution, can be transmitted with the Coaxial Cable, Twisted Pair cable or telephone line;

Self-organized network, no need set up;

Transmission distance: 2KM;

Physical transmission rate: 100Mbps;

Power supply: DC12V 1A

10/100Mbps Ethernet over Coaxial Extender  (EOC)
Model CEOC-01 CEOC-02 CEOC-03 CEOC-04 CEOC-05 CN-601P
Standard IEEE 802.3 10Base-T
Bandwidth 10/100Mbps
Max. distance 2000M 500M 100M 100M 100M 100M
Connector BNC Female + RJ45 Female BNC Female + RJ45 Male BNC Female + RJ45 Female BNC Female + RJ45 Male
Cable RG59 RG6 Coaxial Cable
Power DC12V 1A DC5V~DC12V N/A
Operating temperature Operating: -20~70
Relative humidity 0~95%(non condensing)
Storage temperature Storage: -40~150
Housing Metal Metal ABS Plastic ABS Plastic ABS Plastic ABS Plastic
Dimensions 108*66*27mm 92*46*28mm 40*20*19mm 50*20*19mm 40*20*19mm 50*25*19mm
Net weight 170G 270G 40G 50G 40G 50G
