HDMI Extender

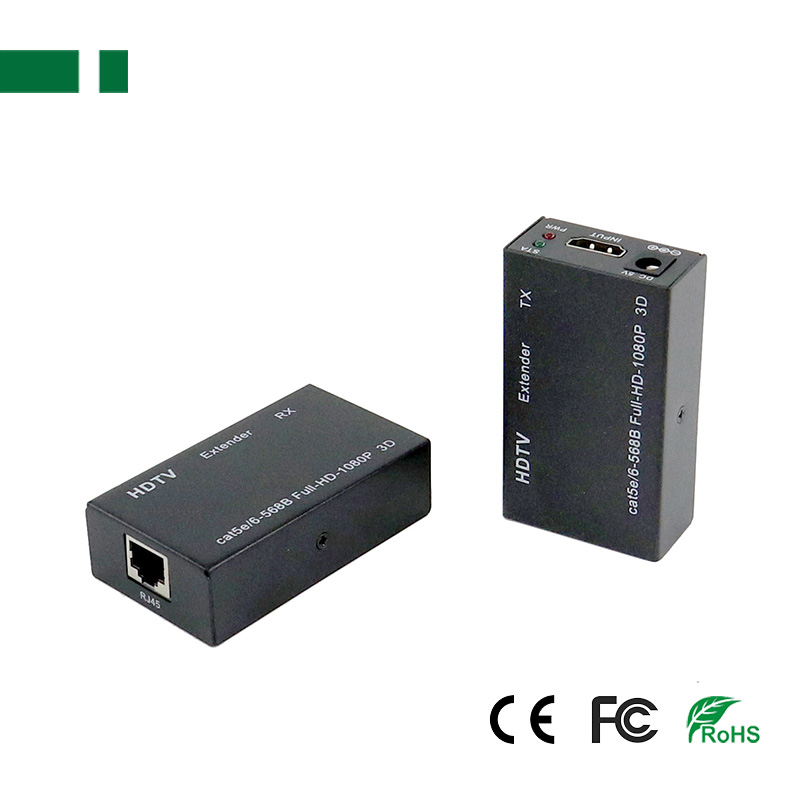

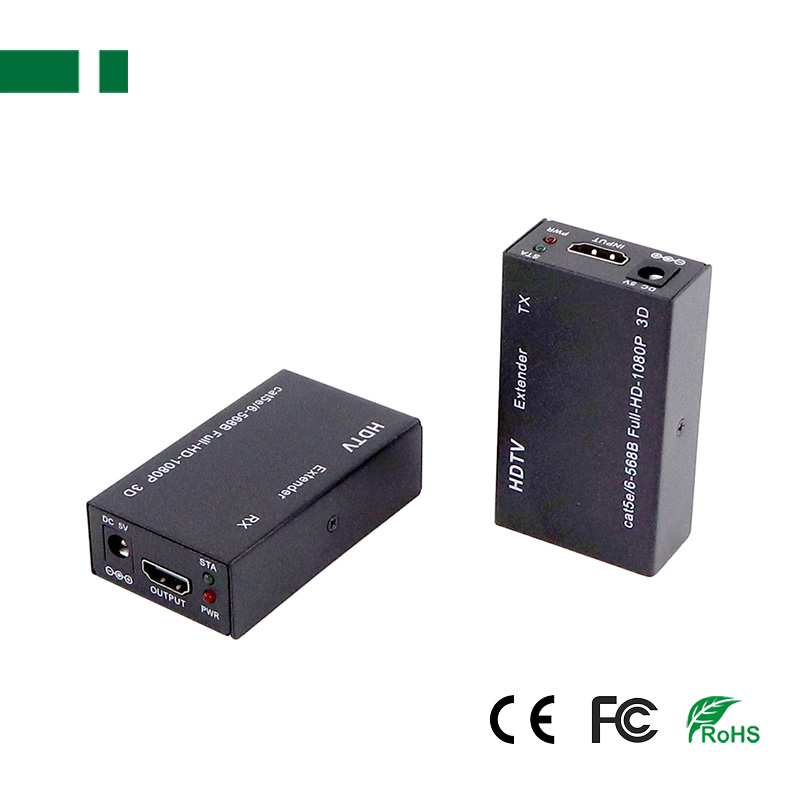

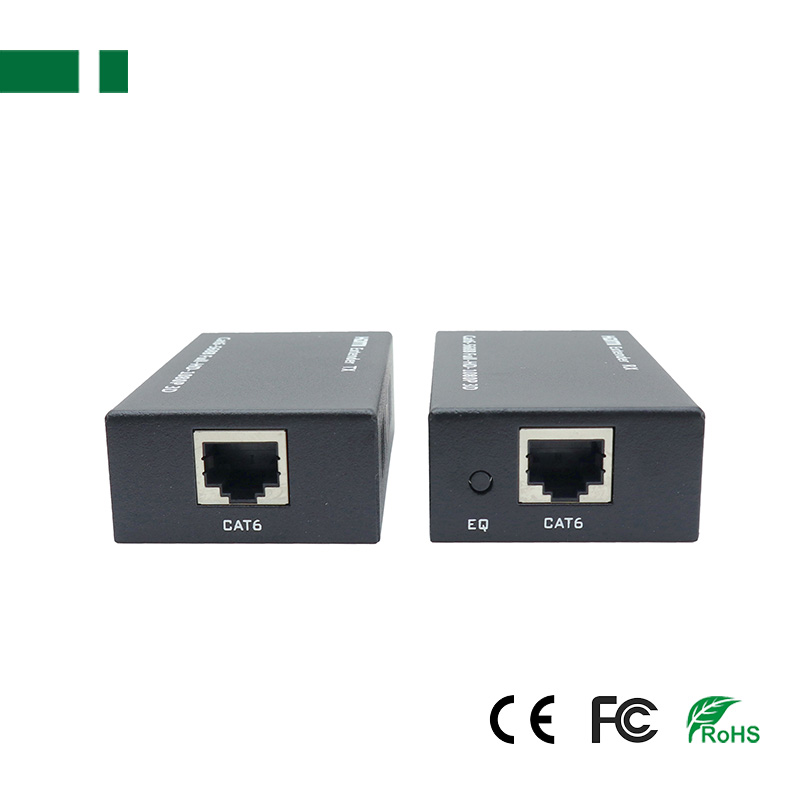

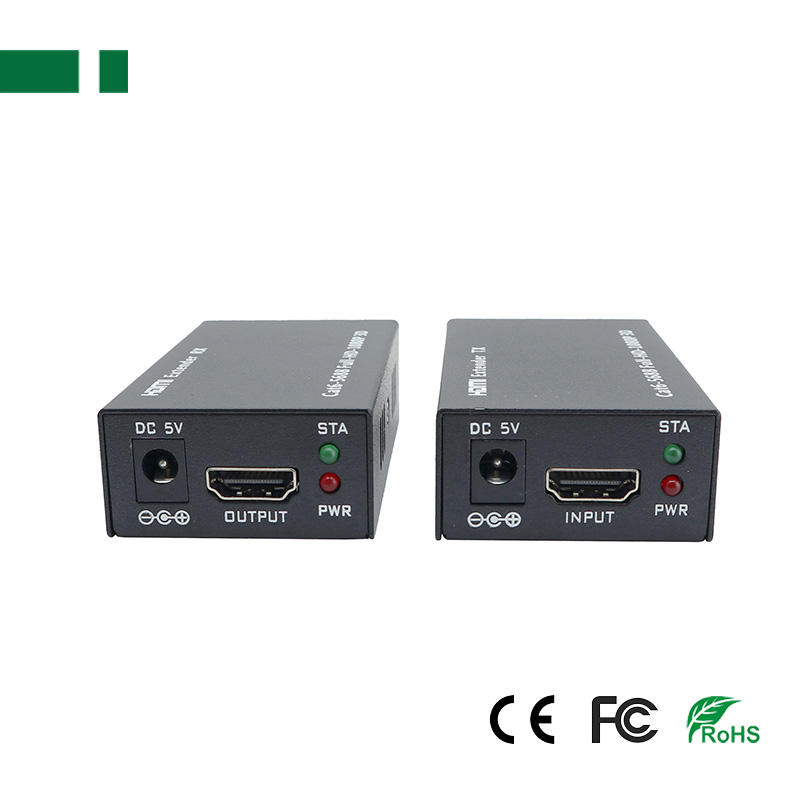

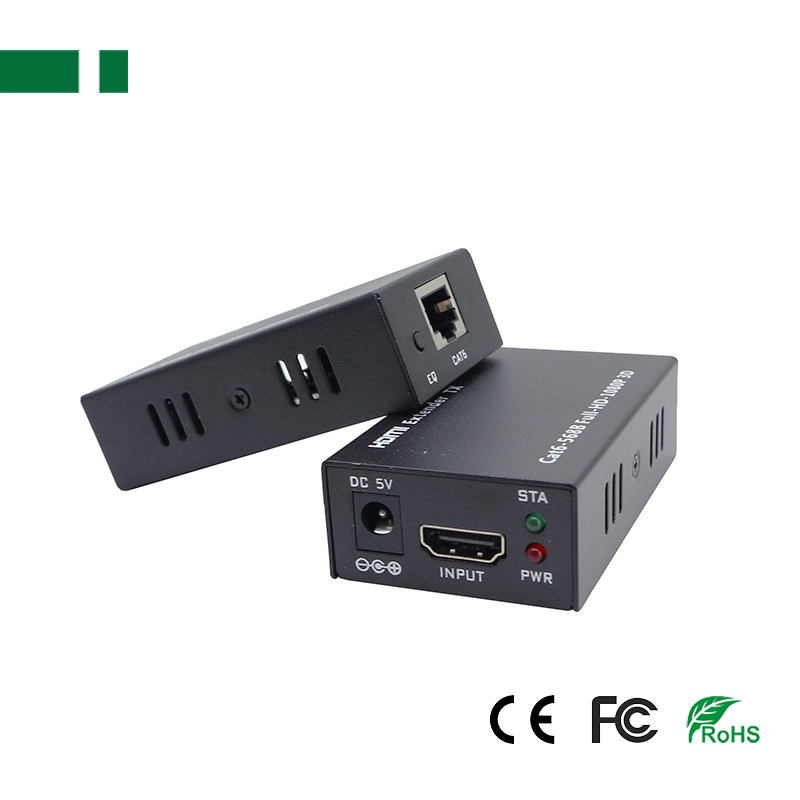

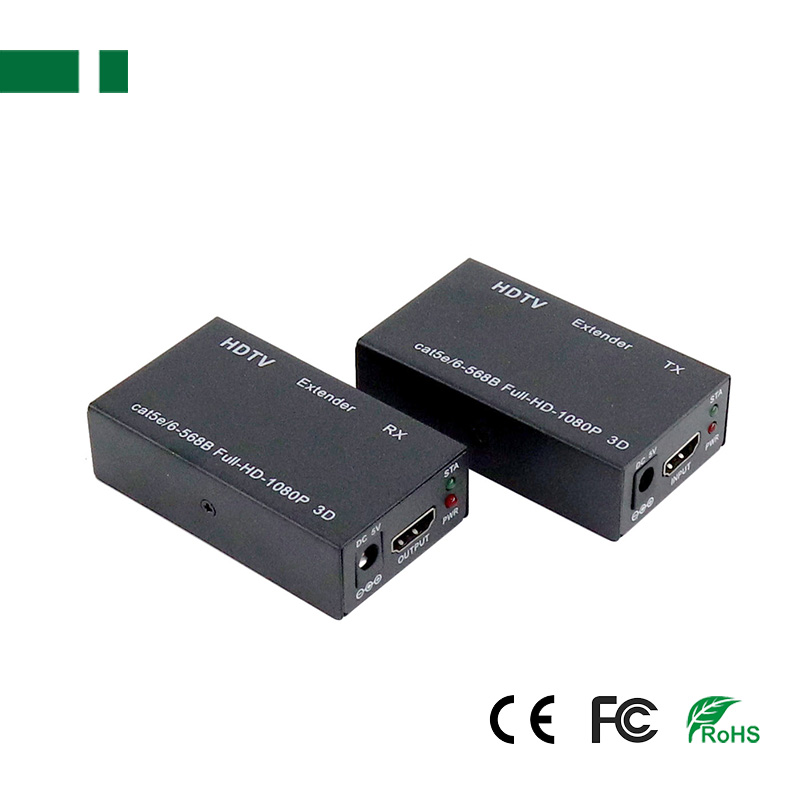

CHDT-003-2 60M 1080P HDMI Video Extender
- Support HDMI 1.4a
- Support Resolution 1920*1080p/60Hz
- distance up to 60 meters between TX and RX
- DC5V/1A power supply
- Product description: The Extender uses single cat-5E or cat-6(recommended) cables instead of HDMI cable to transmit high definition signal up to 60 meters, cutting down the cost. The Extender is designed to supply for lon
Description:
The Extender uses single cat-5E or cat-6(recommended) cables instead of HDMI Cable to transmit high definition signal up to 60 meters, cutting down the cost. The Extender is designed to supply for long distance transmission of high definition signal.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Feature:
1. Support HDMI 1.4a
2. Support 3D
3. Support highest video resolution 1080p/60Hz
4. Support 1.65Gbps data rate and tmds clock up to 165MHz
5. Support 8/10/12 bit deep color
6. Support AWG26 HDMI standard cable, input up to 15 metres, output up to 20 metres
7. Signal transmission: By using single cat-5e or cat-6(recommended) cable instead of HDMI cable, it can extend the distance up to 60 meters between TX and RX.
8. No loss of quality
9. Install in minutes
10. Need DC5V/1A power supply
Secification:
Length of CAT-6/CAT-5E cable between Rx and TX ………………………… Up to 60 meters
HDMI Input ………………………… 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio input ………………………… DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
HDMI Output ………………………… 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio output ………………………… DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth……………………………………………………………………………165MHz
Max baud rate …………………………………………………………………………1.65Gbps
Input video signal …………………………………………………………… 0.5~1.5Volts p-p
Output DDC signal ……………………………………………………………… 5Volts p-p (TT1L)
Input HDMI cable distance ……………………………………………… ≤15m AWG26 HDMI standard cable
Output HDMI cable distance ……………………………………………… ≤20m AWG26 HDMI standard cable
TX Max working current ………………………………………………………………… 510mA
RX Max working current ………………………………………………………………… 100mA
Power Adapter format ………………Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range …………………………………………………… (-15 to +55℃)
Operating Humidity range …………………………………… 5 to 90%RH (No Condensation)
Dimension (L x W x H) …………………………………………………………81x43x22 (mm)
TX Weight ……………………………………………………………………………… 100g
RX Weight ……………………………………………………………………………… 120g
The Package includes:
1. TX Extender: 1pc RX Extender: 1pc
2. 5V DC Power adapter
3. User Manual
The Extender uses single cat-5E or cat-6(recommended) cables instead of HDMI Cable to transmit high definition signal up to 60 meters, cutting down the cost. The Extender is designed to supply for long distance transmission of high definition signal.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Feature:
1. Support HDMI 1.4a
2. Support 3D
3. Support highest video resolution 1080p/60Hz
4. Support 1.65Gbps data rate and tmds clock up to 165MHz
5. Support 8/10/12 bit deep color
6. Support AWG26 HDMI standard cable, input up to 15 metres, output up to 20 metres
7. Signal transmission: By using single cat-5e or cat-6(recommended) cable instead of HDMI cable, it can extend the distance up to 60 meters between TX and RX.
8. No loss of quality
9. Install in minutes
10. Need DC5V/1A power supply
Secification:
Length of CAT-6/CAT-5E cable between Rx and TX ………………………… Up to 60 meters
HDMI Input ………………………… 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio input ………………………… DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
HDMI Output ………………………… 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio output ………………………… DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth……………………………………………………………………………165MHz
Max baud rate …………………………………………………………………………1.65Gbps
Input video signal …………………………………………………………… 0.5~1.5Volts p-p
Output DDC signal ……………………………………………………………… 5Volts p-p (TT1L)
Input HDMI cable distance ……………………………………………… ≤15m AWG26 HDMI standard cable
Output HDMI cable distance ……………………………………………… ≤20m AWG26 HDMI standard cable
TX Max working current ………………………………………………………………… 510mA
RX Max working current ………………………………………………………………… 100mA
Power Adapter format ………………Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range …………………………………………………… (-15 to +55℃)
Operating Humidity range …………………………………… 5 to 90%RH (No Condensation)
Dimension (L x W x H) …………………………………………………………81x43x22 (mm)
TX Weight ……………………………………………………………………………… 100g
RX Weight ……………………………………………………………………………… 120g
The Package includes:
1. TX Extender: 1pc RX Extender: 1pc
2. 5V DC Power adapter
3. User Manual
