HDMI Extender

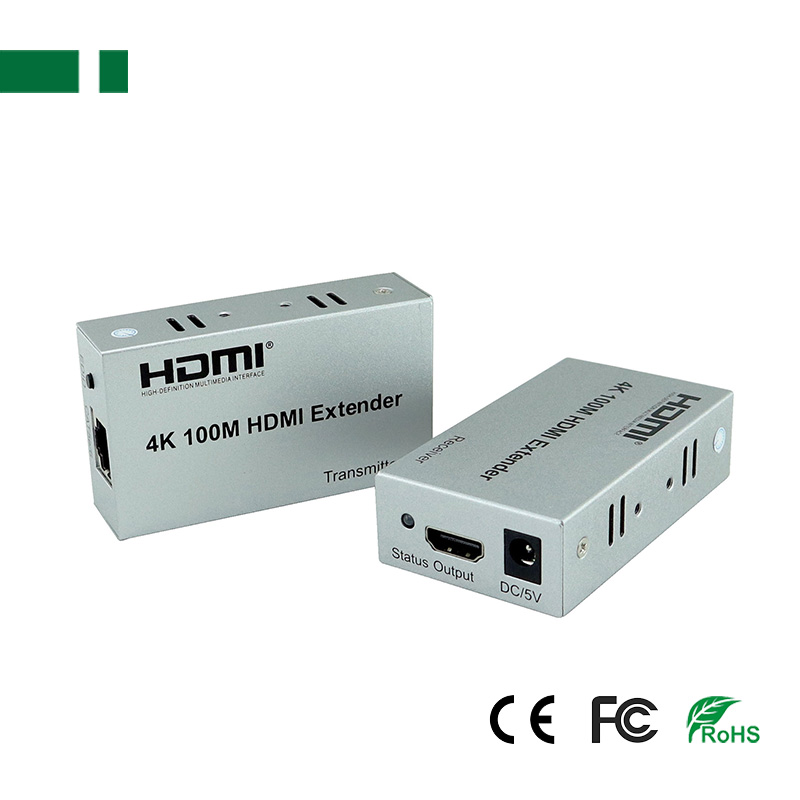

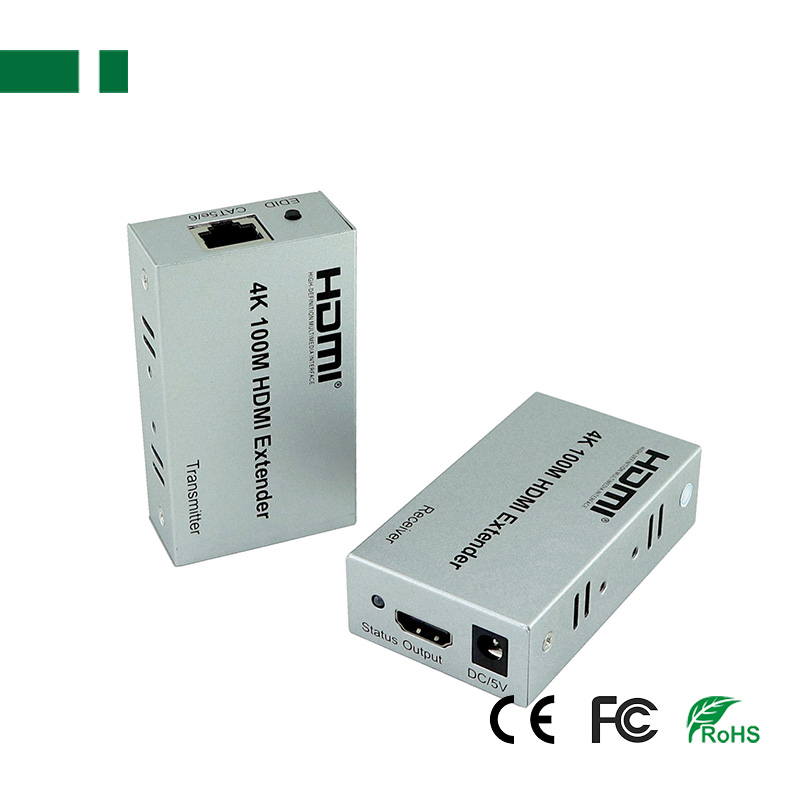

CHDT-100 100M 4K*2K@30Hz HDMI Extender
- Support HDMI 1.4b
- Support 4K*2K@30Hz
- 100M long distance transmission
- Power supply: DC5V
- Product description: 4K HDMI Extender 100M over Single Cat5E/6 Cable HDMI Ethernet Extender Transmit Extension Repeater with EDID for PC HDTV Laptop
4K HDMI Extender 100M over Single Cat5E/6 Cable HDMI Ethernet Extender Transmit Extension Repeater with EDID for PC HDTV Laptop
Introduction:
This 4K HDMI Extender use single cat5e or cat6(recommended) cables instead of HDMI Cable to transmit high definition signal up to 100 meters, cutting down the cost. The Extender is designed to supply for long distance transmission of high definition signal.
Features:
1. Support HDMI 1.4b.
2. 100M long distance transmission
3. Low power consumption, low temperature and high safety.
Specifications:
Length of CAT5e/CAT6 cable between Rx and TX …………………………… Up to 100 meters
HDMI Input …………………………………………………… 4K/1080p/720p/576p/576i/480p/480i
HDMI Output ………………………………… 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Max bandwidth …………………………………………………………………………… 340MHz
Max baud rate …………………………………………………………………………… 3.4x3Gbps
Input video signal …………………………………………………………………… 0.5~1.5Volts p-p
Output DDC signal …………………………………………………………………… 5Volts p-p (TTL)
Input HDMI cable distance …………………………………… ≤10m AWG26 HDMI standard cable
Output HDMI cable distance ………………………………… ≤10m AWG26 HDMI standard cable
TX Max working current ………………………………………………………………… 350mA
RX Max working current ……………………………………………………………………… 200mA
Power Adapter format ……………………………… Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range …………………………………………………… (-15 to +55℃)
Operating Humidity range …………………………………………………………… 5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………………………………………… 81x47x22 (mm)
TX Weight …………………………………………………………………………………… 101g
RX Weight …………………………………………………………………………………… 101g
Connecting and Operating:

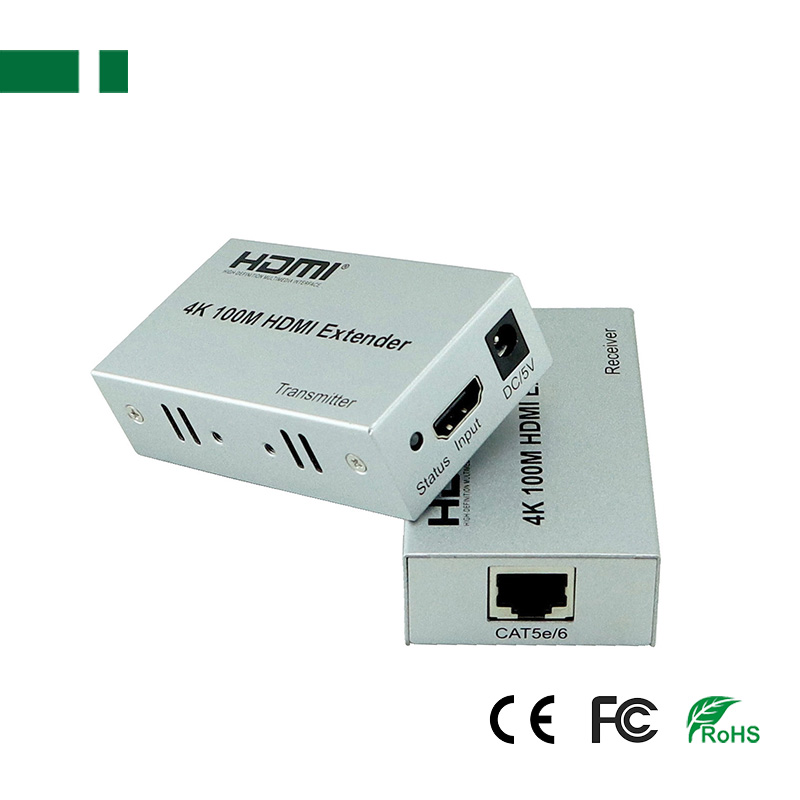

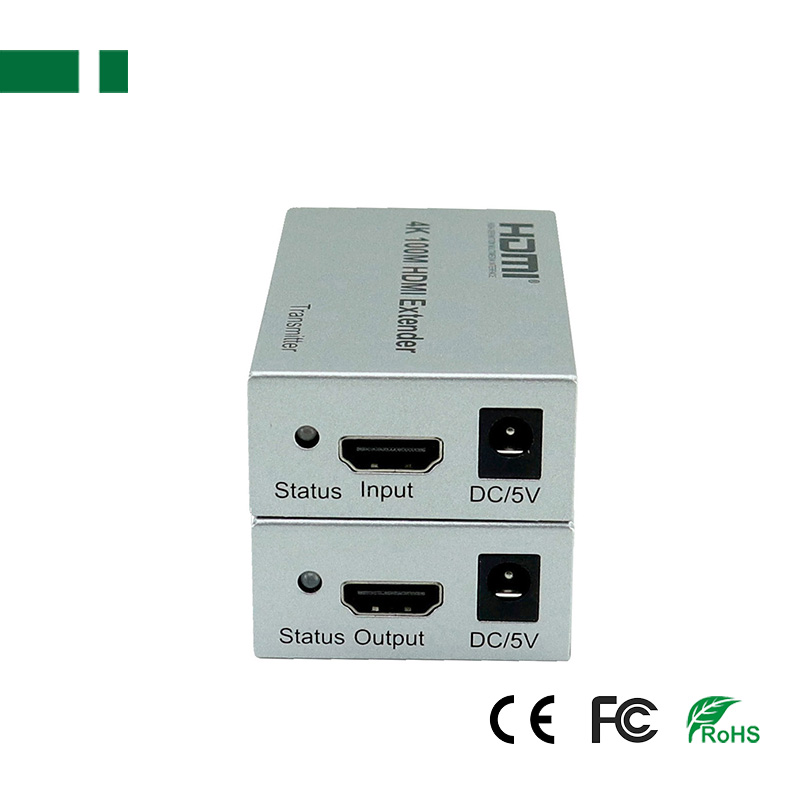

1.Connect one HDMI cable between source device and TX Extender, the max cable distance is 10 meters
2.Connect one HDMI cable between display device and RX Extender, the max cable distance is 10 meters

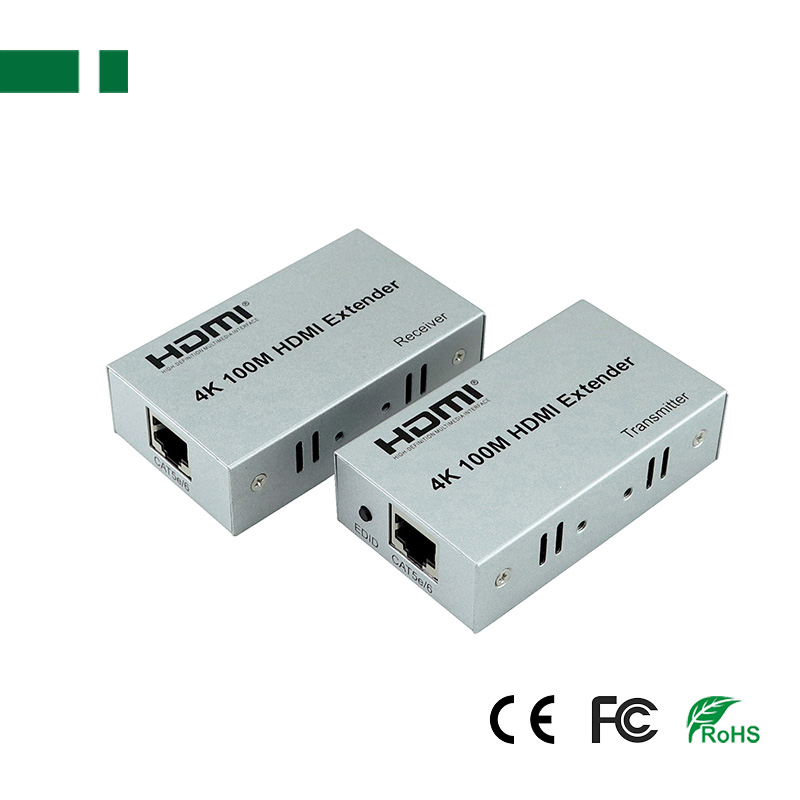

3.Connect single cat-5e or cat-6(recommended) cables instead of HDMI cables between TX and RX Extender, the max cable distance is 100 meters
4.Connect 5V power supply to the TX and RX.
5.LED indicator light TX LED indicator light: When there is no signal input, it turns blue; When there is signal input, it turns red,and keep flashing. RX LED indicator light: When there is no signal input, it turns blue; When there is signal input, it turns red,and keep flashing.

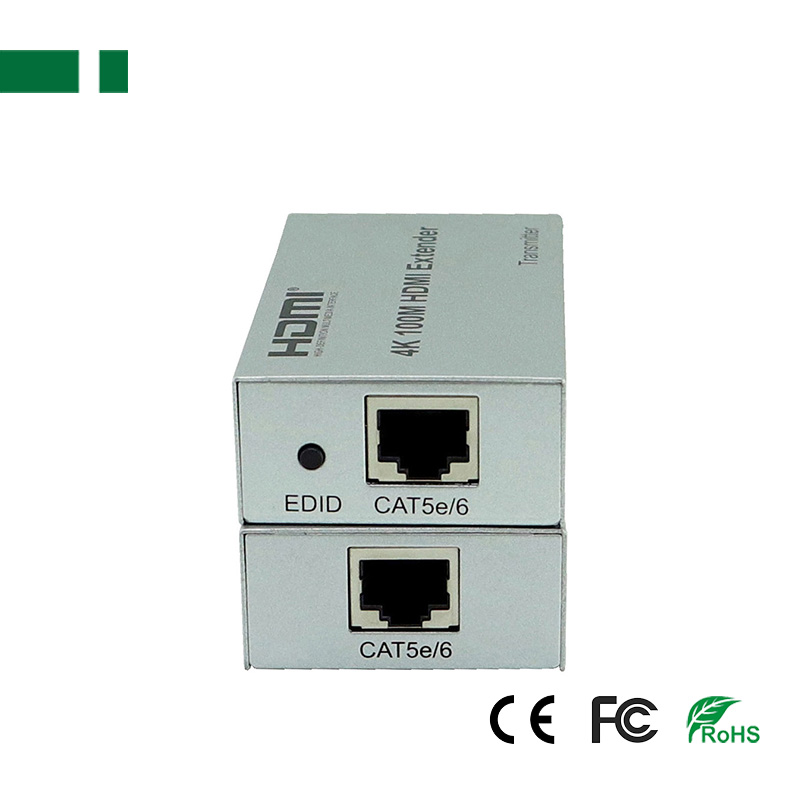

6.EDID button: The button can support the switch of EDID between 1080P and 4K.(4K is the default EDID when the power is on).
Package included:
1 x 4K 100M HDMI Transmitter
1 x 4K 100M HDMI Receiver
2 x Power Adapter 5V/1A
1 x User Manual
Introduction:
This 4K HDMI Extender use single cat5e or cat6(recommended) cables instead of HDMI Cable to transmit high definition signal up to 100 meters, cutting down the cost. The Extender is designed to supply for long distance transmission of high definition signal.
Features:
1. Support HDMI 1.4b.
2. 100M long distance transmission
3. Low power consumption, low temperature and high safety.
Specifications:
Length of CAT5e/CAT6 cable between Rx and TX …………………………… Up to 100 meters
HDMI Input …………………………………………………… 4K/1080p/720p/576p/576i/480p/480i
HDMI Output ………………………………… 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Max bandwidth …………………………………………………………………………… 340MHz
Max baud rate …………………………………………………………………………… 3.4x3Gbps
Input video signal …………………………………………………………………… 0.5~1.5Volts p-p
Output DDC signal …………………………………………………………………… 5Volts p-p (TTL)
Input HDMI cable distance …………………………………… ≤10m AWG26 HDMI standard cable
Output HDMI cable distance ………………………………… ≤10m AWG26 HDMI standard cable
TX Max working current ………………………………………………………………… 350mA
RX Max working current ……………………………………………………………………… 200mA
Power Adapter format ……………………………… Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range …………………………………………………… (-15 to +55℃)
Operating Humidity range …………………………………………………………… 5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………………………………………… 81x47x22 (mm)
TX Weight …………………………………………………………………………………… 101g
RX Weight …………………………………………………………………………………… 101g
Connecting and Operating:
1.Connect one HDMI cable between source device and TX Extender, the max cable distance is 10 meters
2.Connect one HDMI cable between display device and RX Extender, the max cable distance is 10 meters
3.Connect single cat-5e or cat-6(recommended) cables instead of HDMI cables between TX and RX Extender, the max cable distance is 100 meters
4.Connect 5V power supply to the TX and RX.
5.LED indicator light TX LED indicator light: When there is no signal input, it turns blue; When there is signal input, it turns red,and keep flashing. RX LED indicator light: When there is no signal input, it turns blue; When there is signal input, it turns red,and keep flashing.
6.EDID button: The button can support the switch of EDID between 1080P and 4K.(4K is the default EDID when the power is on).
Package included:
1 x 4K 100M HDMI Transmitter
1 x 4K 100M HDMI Receiver
2 x Power Adapter 5V/1A
1 x User Manual
