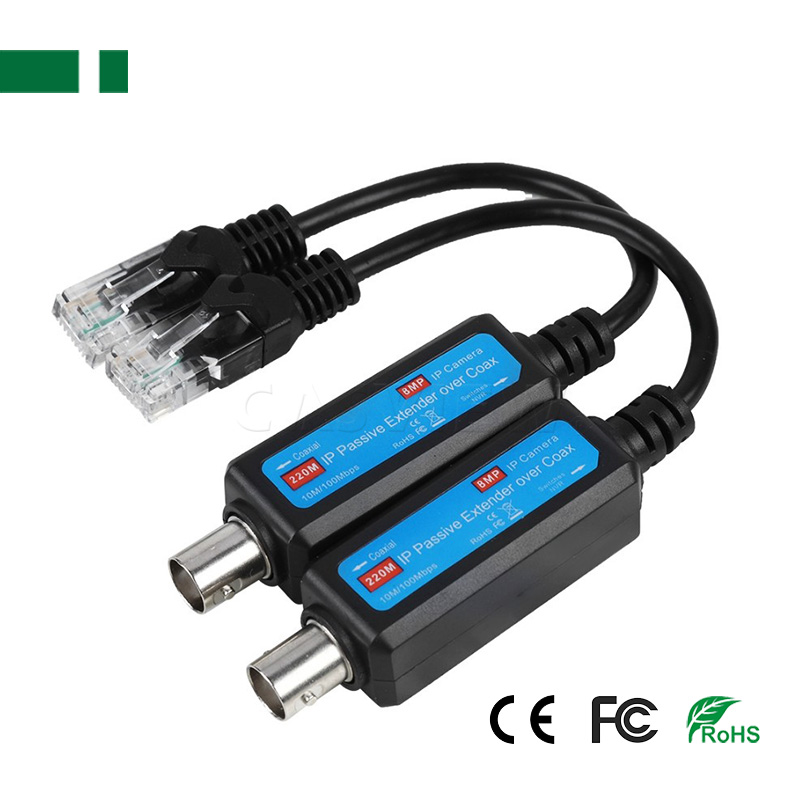

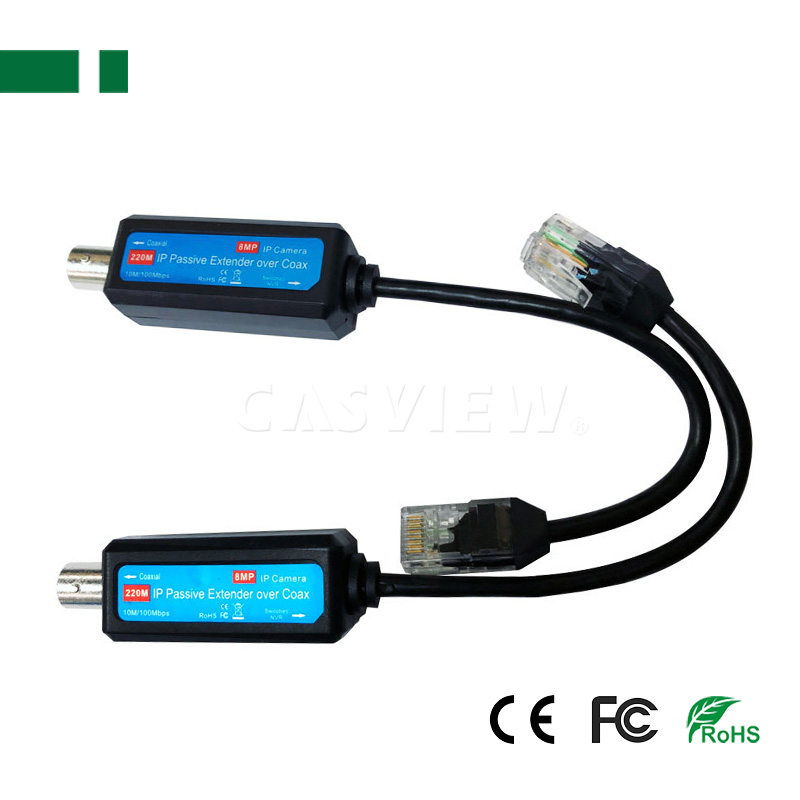

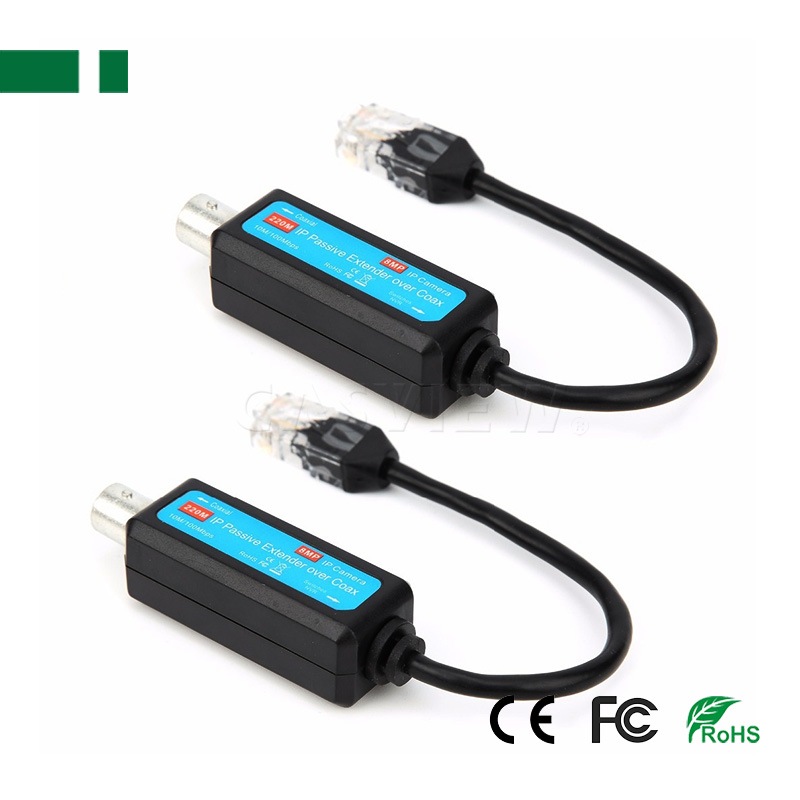

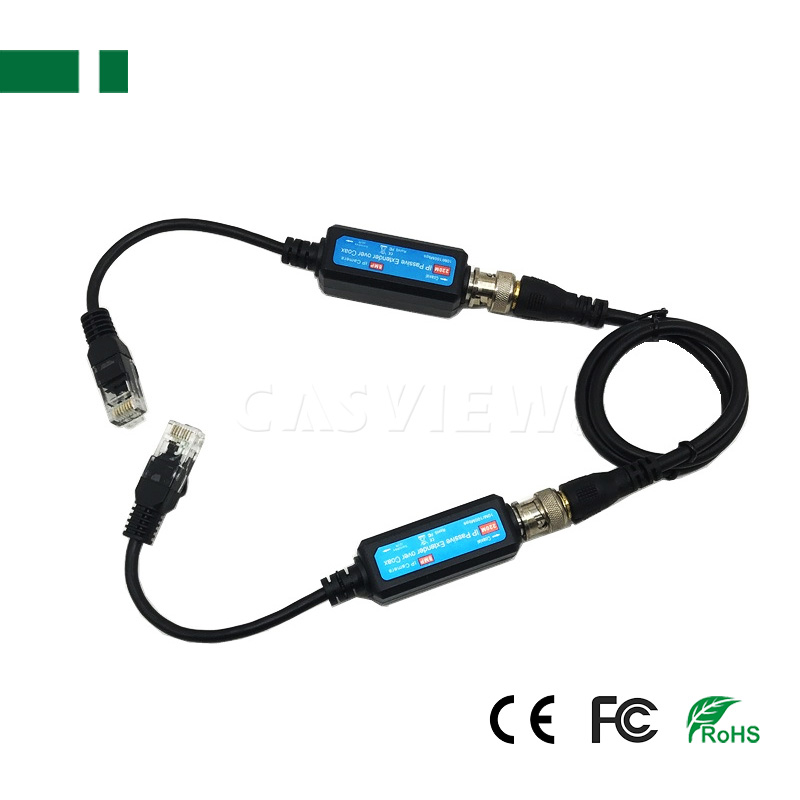

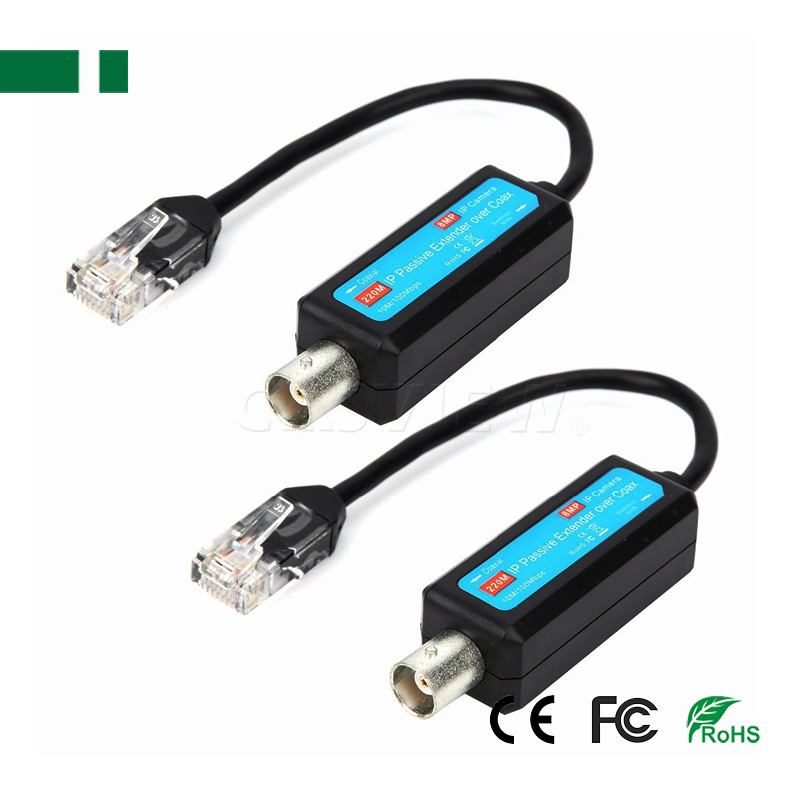

CEOC-04 IP Extender over Coax Cable

1-CH Passive IP Extender Over Coax Transmit IP Camera signal over Existing Coaxial Cable at 100Mbps

Overview:
IP EXTENDER isdesigned to extend IP cameras signal over existing coaxial cable,usd in pairs with RG59 cable to exceed he IEEE 802.3 100Base T NEX specification.Transmission distance reaches max up to 220meters at 100Mbps speed.IP EXTENDER is low cost and easy,simple and speedy migration from Analog to IP cameras using existing coax cable.

Feature:
* Transmit IP camera signal over existing coaxial cable
* Transmission distance max up to 100m
* Passive device,no power required
* Transmission rate/bandwidth;100Mbps.Half duplex transmissions
* High quality and performance
* Fast and easy to install

10/100Mbps Ethernet over Coaxial Extender (EOC)
Model	CEOC-01	CEOC-02	CEOC-03	CEOC-04	CEOC-05	CN-601P
Standard	IEEE 802.3 10Base-T
Bandwidth	10/100Mbps
Max. distance	2000M	500M	100M	100M	100M	100M
Connector	BNC Female + RJ45 Female			BNC Female + RJ45 Male	BNC Female + RJ45 Female	BNC Female + RJ45 Male
Cable	RG59 RG6 Coaxial Cable
Power	DC12V 1A	DC5V~DC12V	N/A
Operating temperature	Operating: -20℃~70℃
Relative humidity	0~95%(non condensing)
Storage temperature	Storage: -40℃~150℃
Housing	Metal	Metal	ABS Plastic	ABS Plastic	ABS Plastic	ABS Plastic
Dimensions	108*66*27mm	92*46*28mm	40*20*19mm	50*20*19mm	40*20*19mm	50*25*19mm
Net weight	170G	270G	40G	50G	40G	50G

Package Contents:
1X1-CH Passive IP Extender Over Coax

Note:Depends on the quality of the cable,
If the low quality and old cable is 100 meters(Packaging is marked 100 meters),
High quality and new cable is 220 meters.
