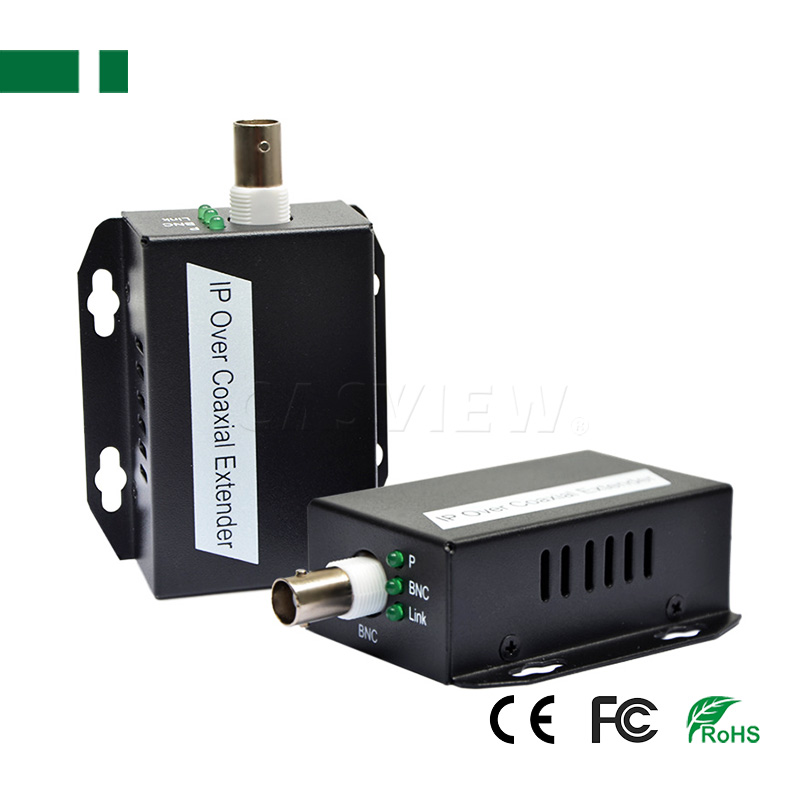

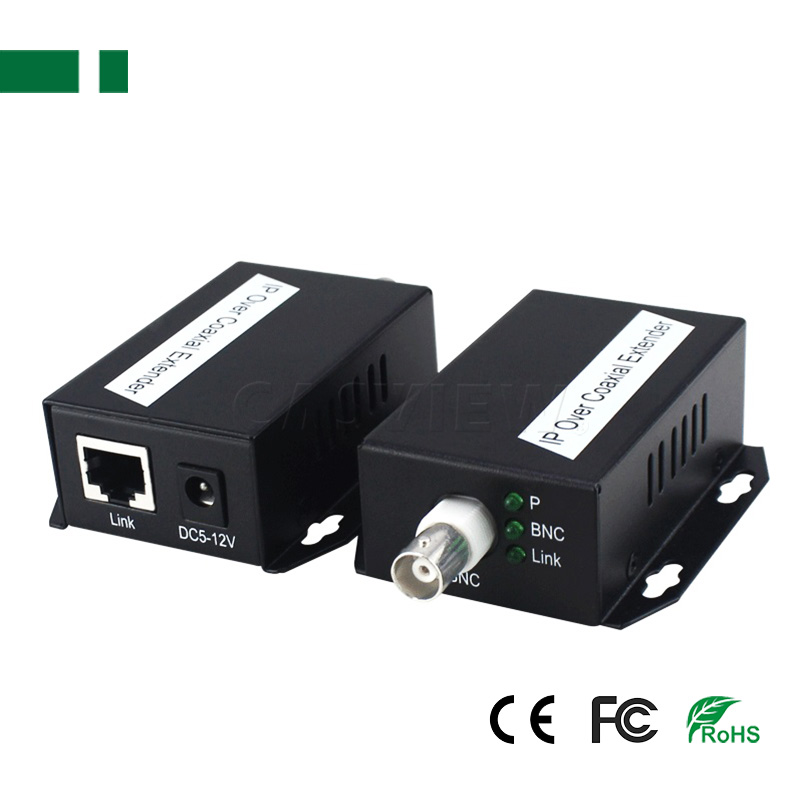

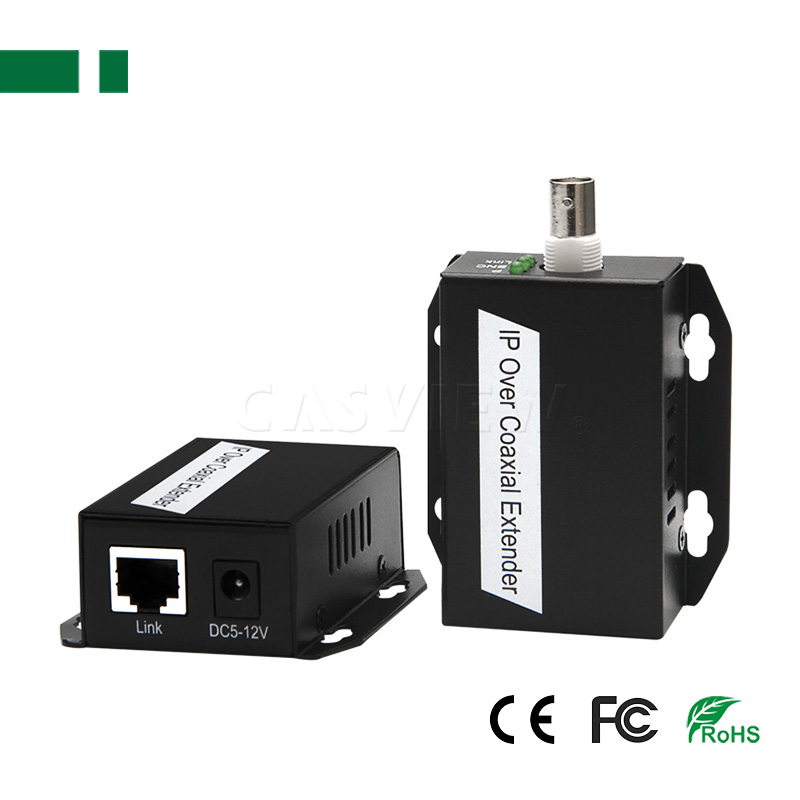

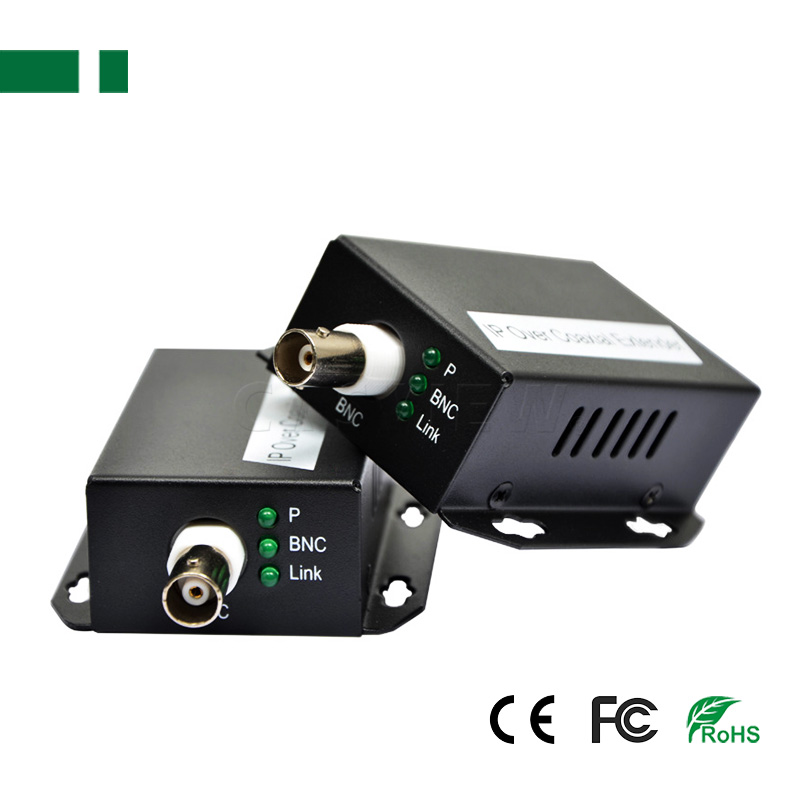

CEOC-02 IP Extender over Coax Cable

10/100Mbps Ethernet over Coaxial(EOC) Extender

Description:
The IEEE-based P1901 supports high-definition video and high-speed data signals over a variety of media such as coaxial and telephone lines.
It has the advantages of long transmission distance, high communication rate, support for multimedia services, and support for networking.
Can use Coaxial Cable, telephone line, a two-core cable extend the IP high-definition network signal transmission to a distance of 500 meters.
Adopt Q9 coaxial cable port, simulate upgrade network HD, plug and play.
Analog video surveillance, upgrade network, HD.
Network extension, network camera video long distance transmission extension.
Used in elevator monitoring transmission and many other occasions.

Feature:
10/100Mbps Ethernet over Coaxial(EOC) Extender;

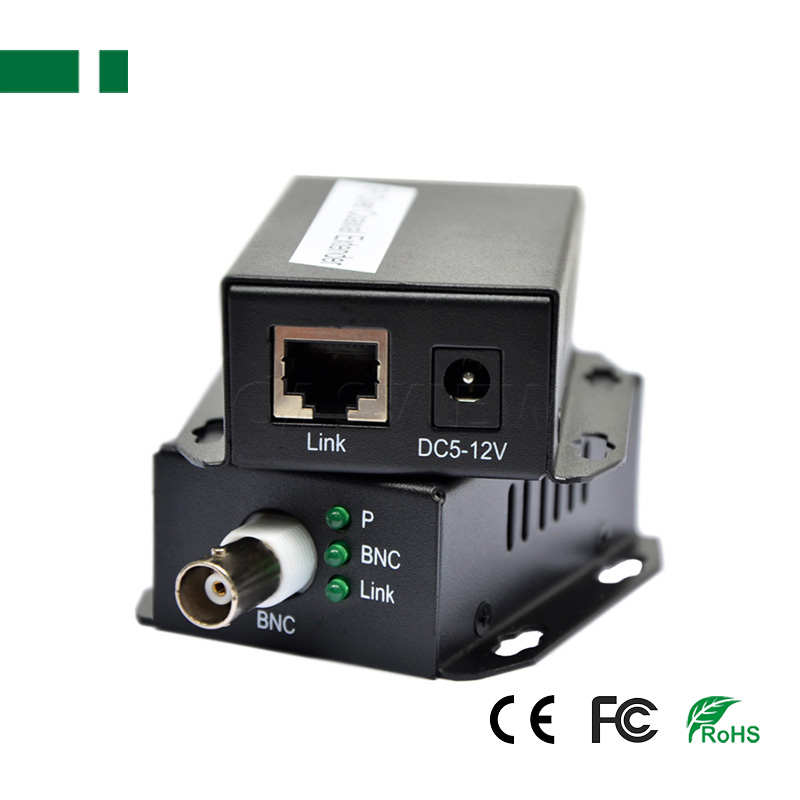

1. Port: BNC Female*1+RJ45 Female*1;
2. Transmission distance: 500M;
3. Power supply: DC5V-12V;
4. Size: 92*46*28mm, 270g/pair.

Specification:

10/100Mbps Ethernet over Coaxial Extender (EOC)
Model	CEOC-01	CEOC-02	CEOC-03	CEOC-04	CEOC-05	CN-601P
Standard	IEEE 802.3 10Base-T
Bandwidth	10/100Mbps
Max. distance	2000M	500M	100M	100M	100M	100M
Connector	BNC Female + RJ45 Female			BNC Female + RJ45 Male	BNC Female + RJ45 Female	BNC Female + RJ45 Male
Cable	RG59 RG6 Coaxial Cable
Power	DC12V 1A	DC5V~DC12V	N/A
Operating temperature	Operating: -20℃~70℃
Relative humidity	0~95%(non condensing)
Storage temperature	Storage: -40℃~150℃
Housing	Metal	Metal	ABS Plastic	ABS Plastic	ABS Plastic	ABS Plastic
Dimensions	108*66*27mm	92*46*28mm	40*20*19mm	50*20*19mm	40*20*19mm	50*25*19mm
Net weight	170G	270G	40G	50G	40G	50G
