IPC & Analog CCTV Tester

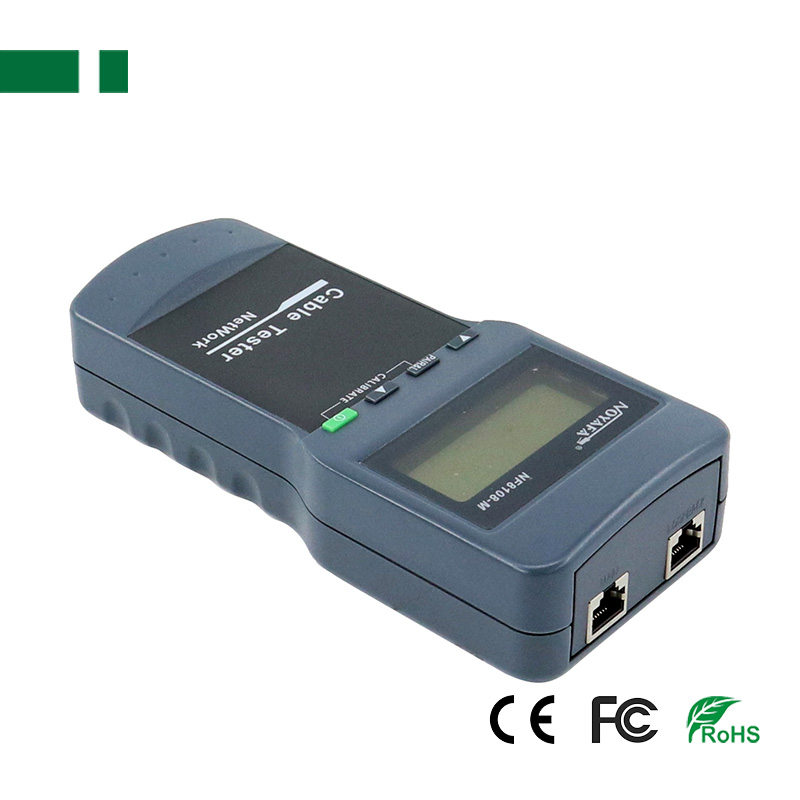

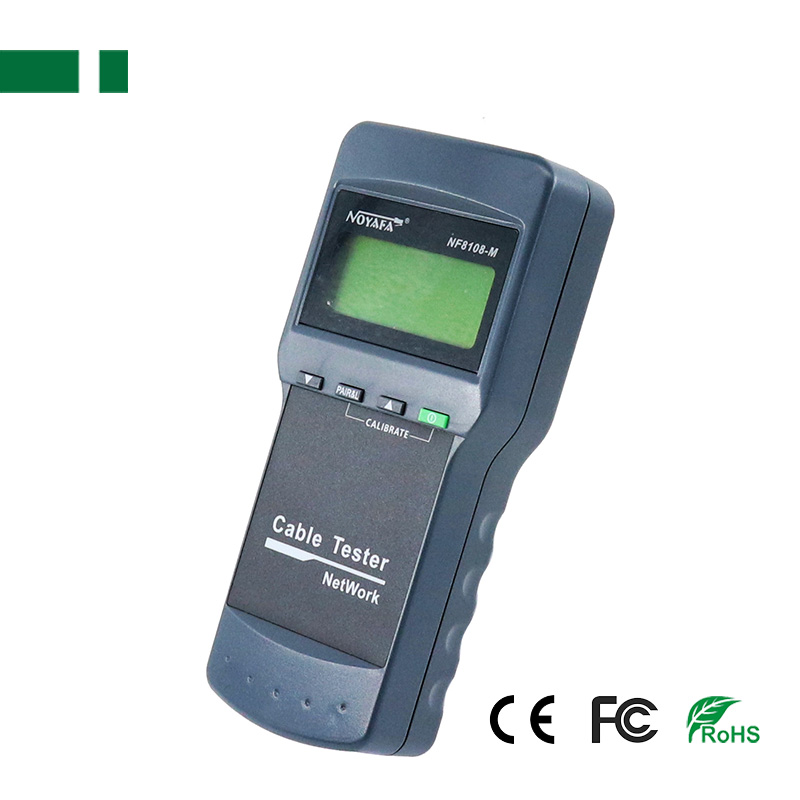

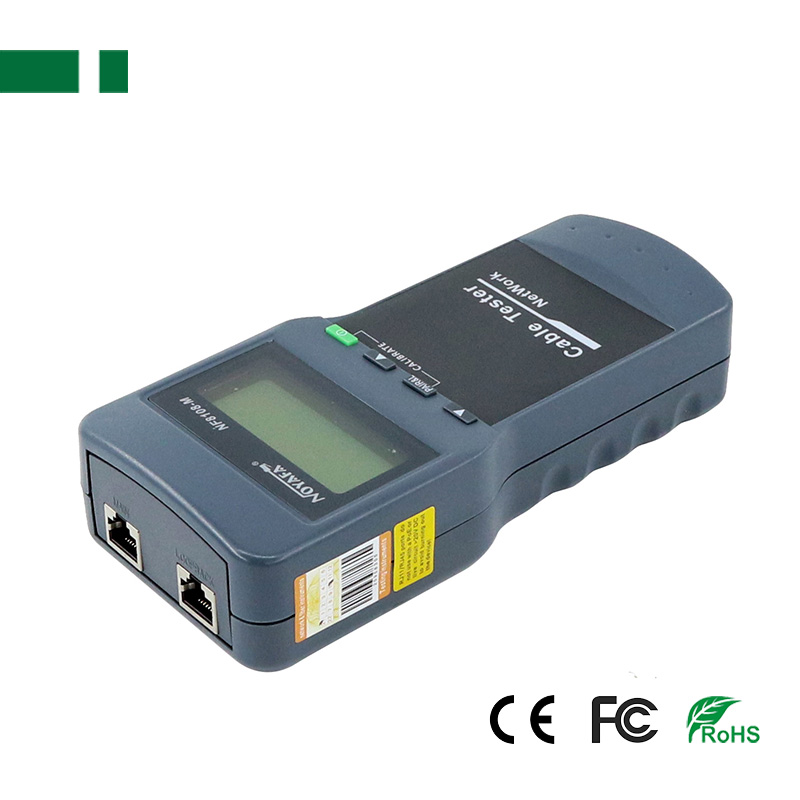

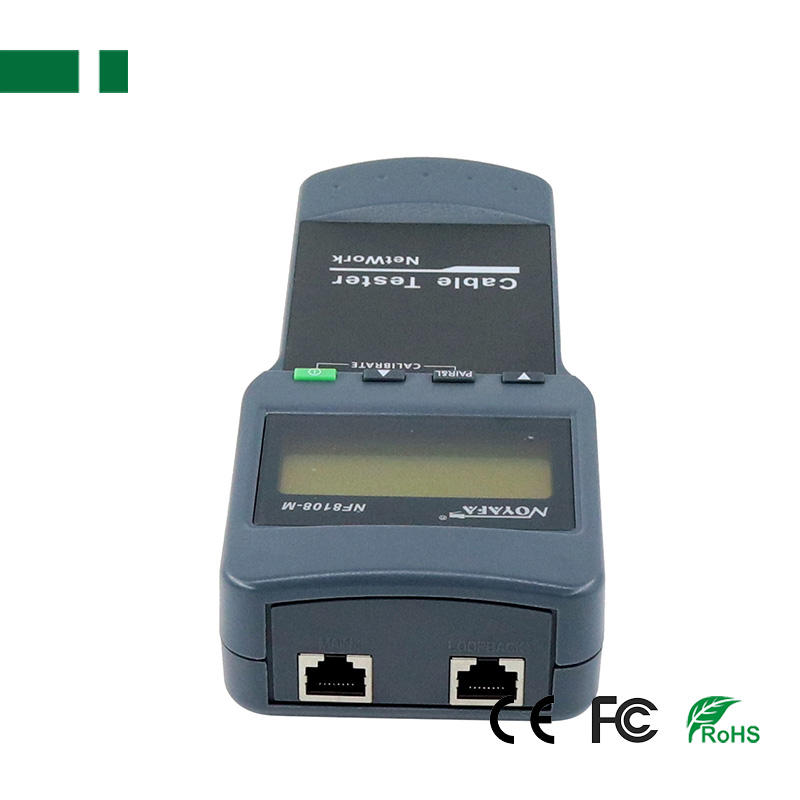

NF8108-M Portable RJ45 LCD Network Tester Meter
- Portable RJ45 LCD Network Tester
- Can detect CAT5E, CAT6E
- Measure Scope : 1350M (31,200ft)
- WIRE MAP*8pcs
- Product description: Portable RJ45 LCD Network Tester Meter Can detect CAT5E, CAT6E Internet Network cable and telephone line wiring fault, open circuit,short circuit, including: cross connection, reverse connection and s

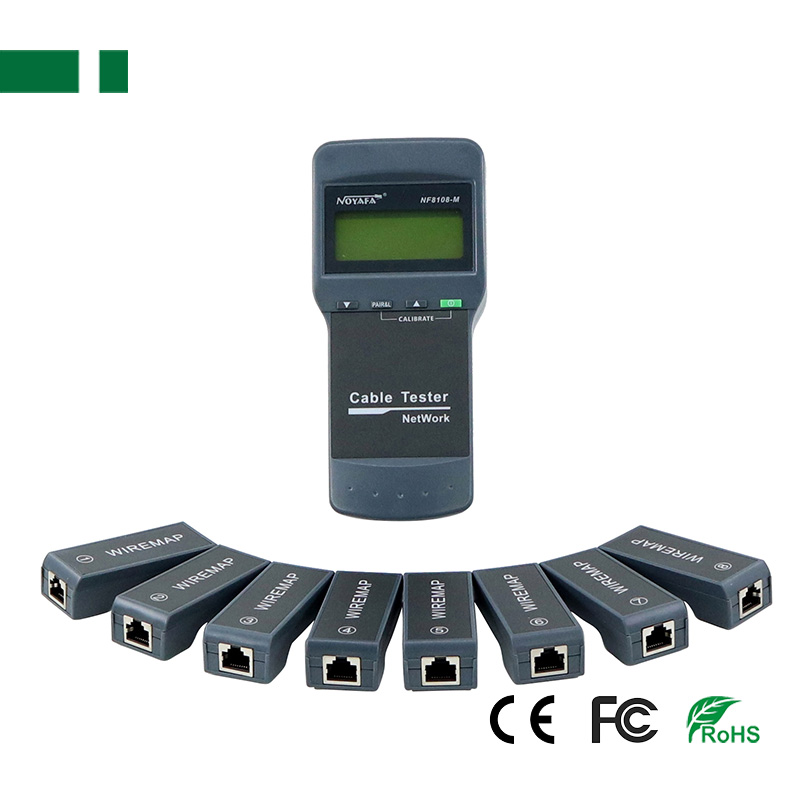

NF8108-M Portable RJ45 LCD Network Tester Meter with WIRE MAP*8pcs
Feature:
Portable RJ45 LCD Network Tester Meter
1. Detect CAT5E, CAT6E Internet Network Cable
2. Measure Scope : 1350M (31,200ft)
3. Powered by 4 AA batteries (NOT included)
4. Size:180*80*40mm, 234.1G
The main function characteristics:
1. The connectivity test can be carried out, single cable；
2. Can detect CAT5E, CAT6E Internet Network cable and telephone line wiring fault, open circuit, short circuit, including: cross connection, reverse connection and series wound；
3. Localization and connection / connection error.(But not for shielded cables, STP cable cannot work)；
4. And measuring cable length, and location of the specific location of open circuit short circuit；
5. And the length of the cable dynamic calibration function, make the length measuring accuracy is as high as 97%;
6. easy to use, large screen display the test results stick out a mile;
7. Portable unit with long battery life(Max. 50 hours);
8. Automatically time-delay shutdown;
9. Measure length and pair with or without far-end recognizer.
10. Locate cable and 8 distal passive testing socket (identification number ID1-ID8);
12. Self-checking function and automatically compensate any change in battery capacity or ambient temperature.
13. Single board computer software watchdog design and reliable operation.
Length measurement of twin twisted cable:
1. Scope : 1350M (31,200 FT)
2. Calibration accuracy : 3% (± 0.5m or ± 1.5 ft) (calibrating cable > 5 M)
3. Shipment accuracy : 5% (± 0.5m or ± 1.5 ft) (AMP, AT&T Class 5 cable)
4. Display: M or FT
5. Length calibration: User can set calibration factor by himself by a given length cable. The length of calibrating cable is more than 5m.
6. Working temperature: -10°C to 60°C
7. Powered by 4 AA batteires (NOT included)
8. Dimension: 180 x 80 x 40 mm
Package Inluded:
1 x Multi-Network Cable Tester

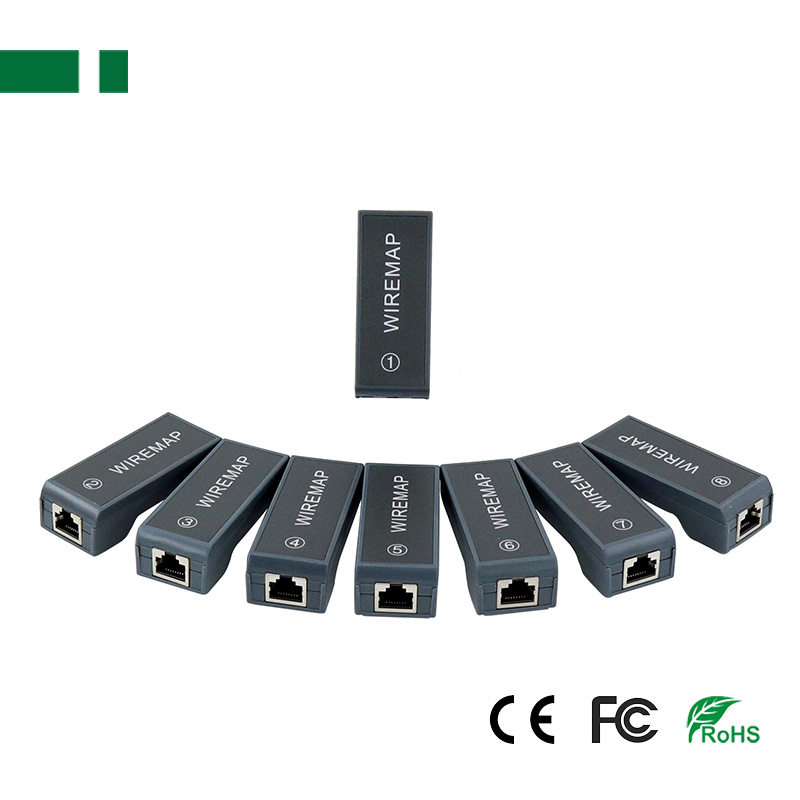

8 x Far-End Test Jack
1 x Instruction Manual
