IPC & Analog CCTV Tester

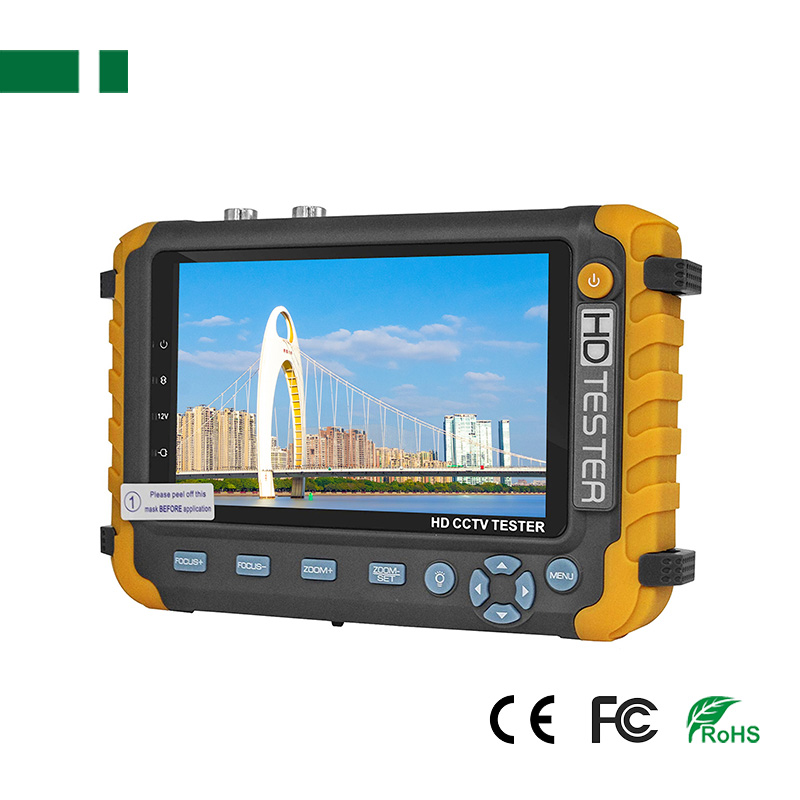

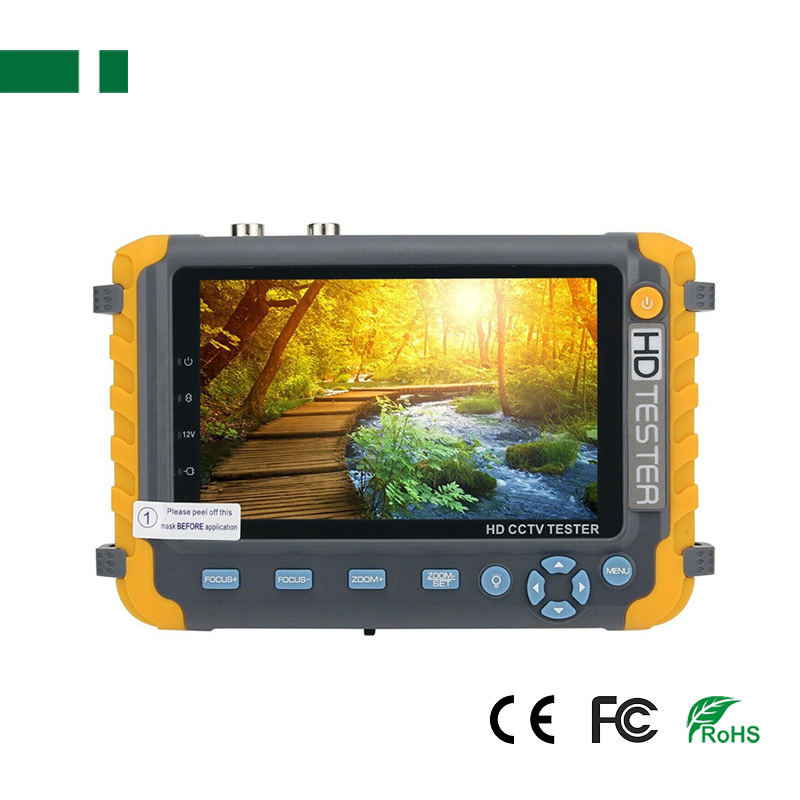

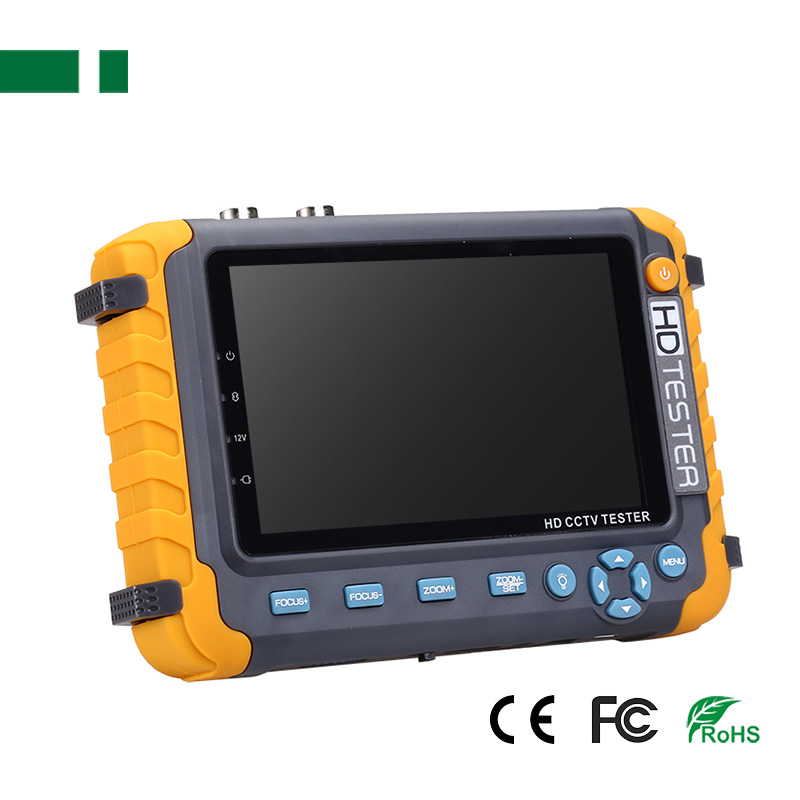

C-IV8 Series 5 inch HD CVI TVI AHD Video Camera Tester

C-IV8 Series 5 inch HD CVI TVI AHD Video Camera Tester

5.0 inch VGA TFT-LCD,800(RGB)*480 resolution.
1 channel BNC Input & 1 channel BNC Output
Output DC12V1A power for camera
Two Built-in 18650 2600mA
Product description: The new HD coaxial camera tester is developed for the on-site installation and maintenance of HD coaxial camera, HIKVISION TVl, AHD and CVl.
INQUIRY EMAIL

The new HD coaxial camera tester is developed for the on-site installation and maintenance of HD coaxial camera, HIKVISION TVl, AHD and CVl. It also provides many useful functions, such as video display, Control-over-Coax, PTZ control, DC12V output power, audio test, color-bar generator (TV OUT) ，VGA video signal input, HDMI signal input, UTP cable testing, LED lamp etc.

Feature:
● HD coaxial camera testing
● Control over Coax
● PTZ controller
The Tester built-in Pelco-D / P PTZ control protocol, etc., through its own RS485 interface.
● Color-bar generator (TV OUT)
● DC12V 1A output power
Power the camera with DC12V (1A) power output from the tester. It is helpful for testing when the power supply is not available.
● Audio testing
Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.
● Enhanced UTP cable testing
By UTP CABLE TEST port on the meter, you can test the connection of Network Cable.
● VGA/HDMI input (Optional) *
Support VGA/HDMI 1.1 Compliant Digital input, once connecting VGA/HDMI video, please switch selector to select HDMI or VGA mode. The maximum resolution is 1920X1440.
● TVI camera test (Optional) *
HD TVI camera testing, support 1MP, 2MP, 3MP, 4MP, 5MP
● AHD camera test (Optional) *
AHD camera testing, support 1MP, 2MP, 3MP, 4MP, 5MP
● CVI camera test (Optional) *
HD CVI camera testing, support 1MP, 2MP, 3MP, 4MP
● LED lamp
lt is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.
● The battery graphic display
The tester has advanced power control and protection circuit, low-power energy saving, 4 to 5 hours on a single charge. Normally it can be used for 10 hours.

Specification:

Model	C-IV8 Series
Video Test
Signal mode	CVBS, HD-AHD, HD-TV, HD-CVI, support Control-over-Coax
Display	5.0 inch VGA TFT-LCD,800(RGB)*480 resolution.
LCD adjustment	Brightness, Contrast, Saturation adjustable

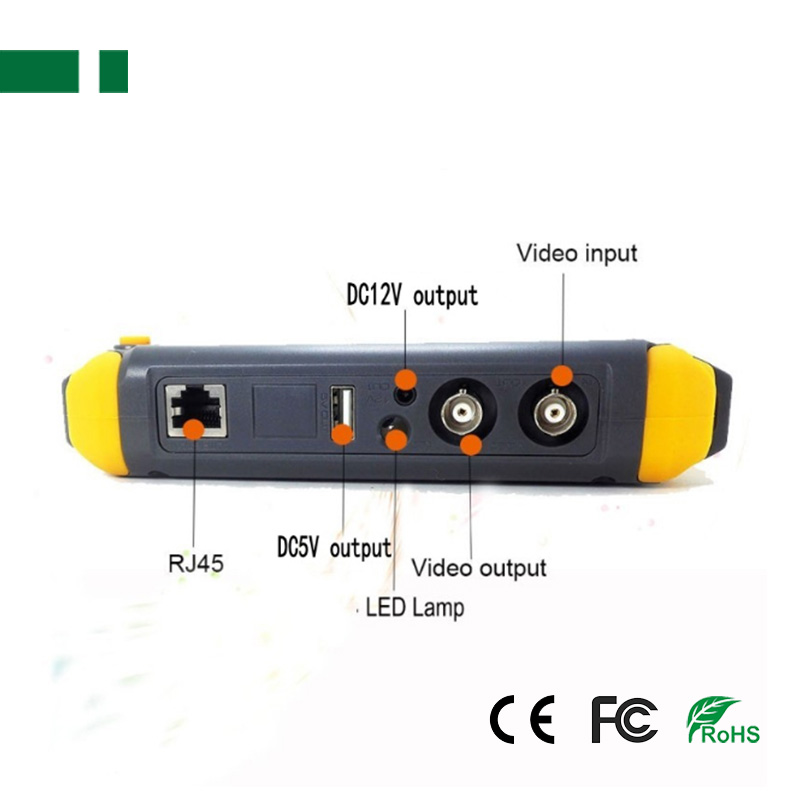

Video IN/OUT	1 channel BNC Input & 1 channel BNC Output
VGA/HDMI Test( Optional)*

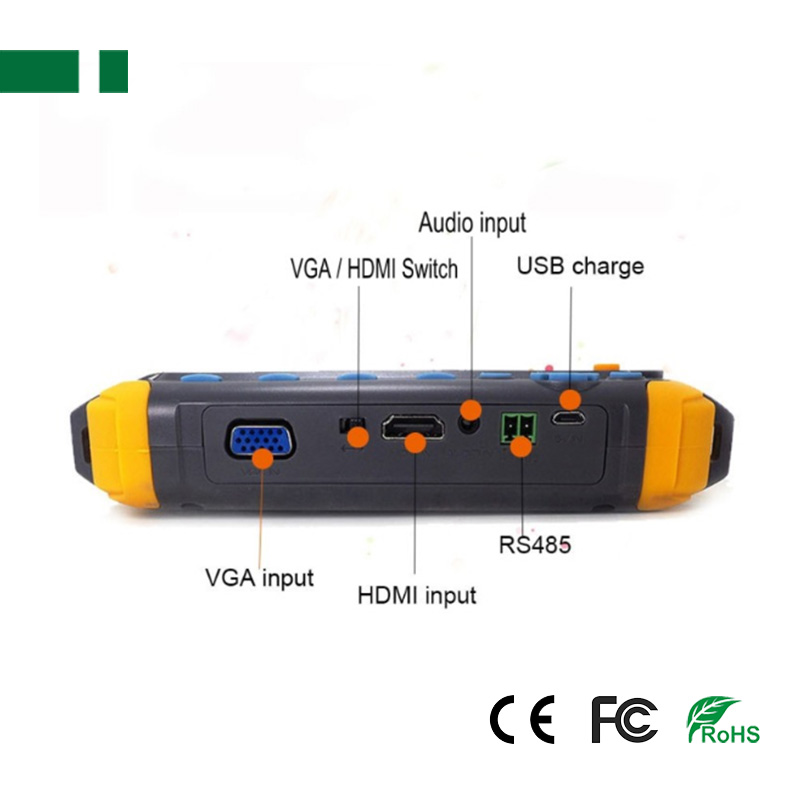

VGA/HDMI Input	Support VGA/HDMI 1.0 video input once connect VGA/HDMI video. please switch selector to select HDMI or VGA mode. The maximum resolution is 1920X1440
PTZ Controller
Communication	RS485
PTZ Protocol	Compatible with protocols PELCO-D/
Baud Rate	1200, 2400, 4800, 9600, 14400bps
Video Signal Generation
Color Bar generator	Support standard color bar output (Red, Green, Blue, White, Black, Grey) and testing image output
UTP Cable Tester
UTP Cable Tester	Display UTP cable connection status cable type and the sequence of wires as well as read the number of the test box.
DC12V 1A Power Output
DC12V 1A Power Output	Output DC12V1A power for camera
Audio Input Test
Audio Input Test	1 channel audio signal input
Power
Power Adapter	DC 5V (1.0A)
Battery	Two Built-in 18650 2600mA
Rechargeable	After charging 4-5 hour, working time lasts 10 hours.
Parameter
Operation setting	OSD menu, select your desired language: English, Chinese, etc.
Dimension/Weight	170mm x 114mm x 34mm / 400g
