IPC & Analog CCTV Tester

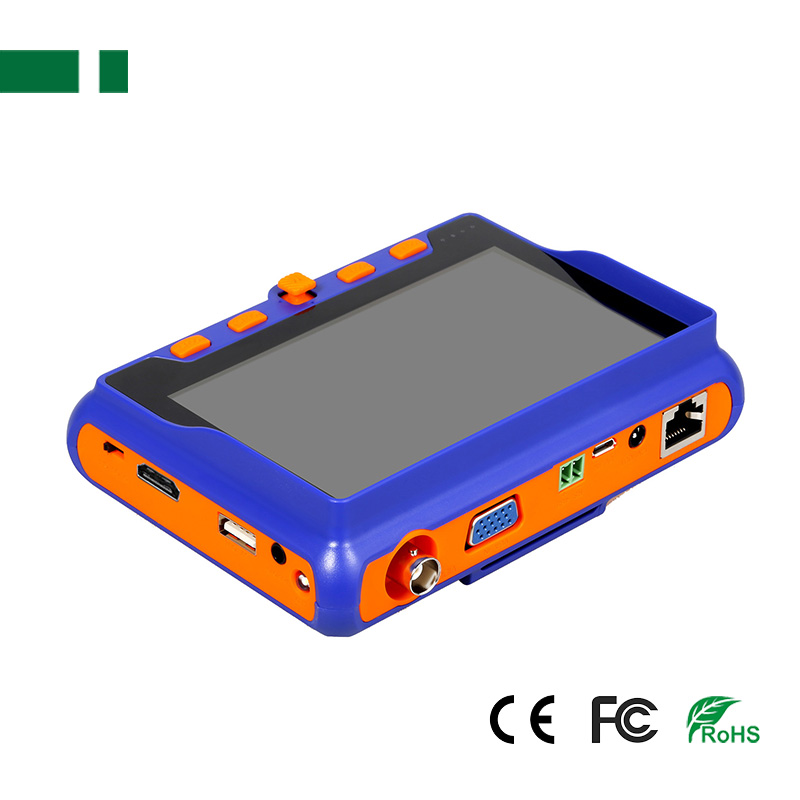

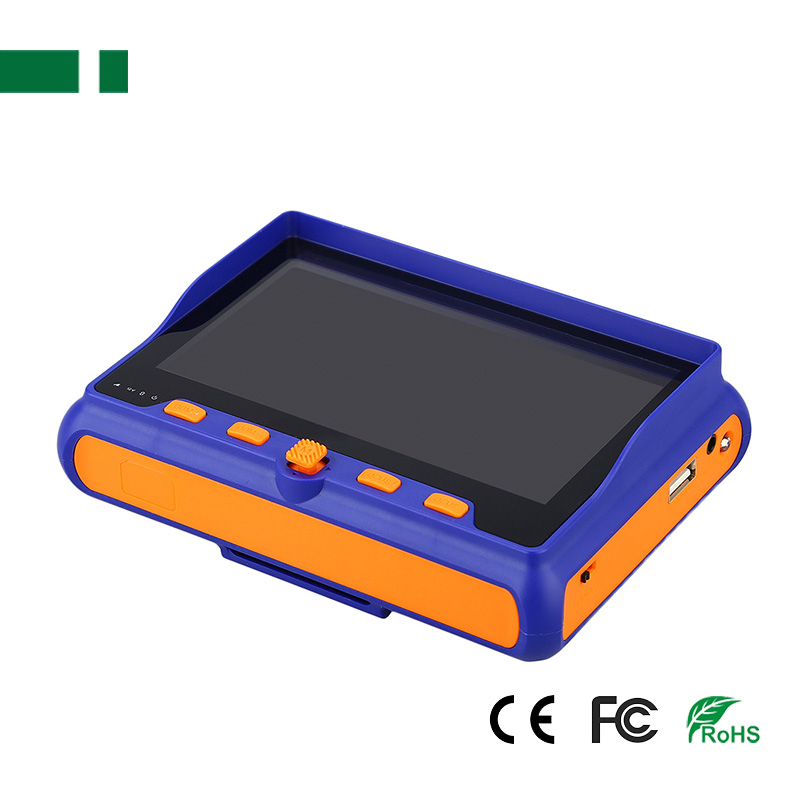

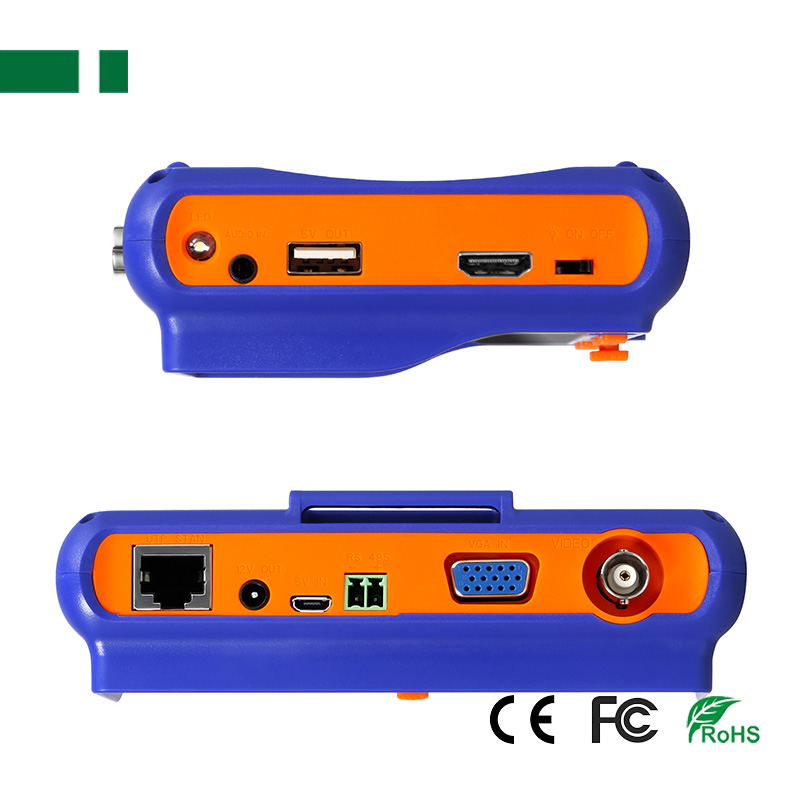

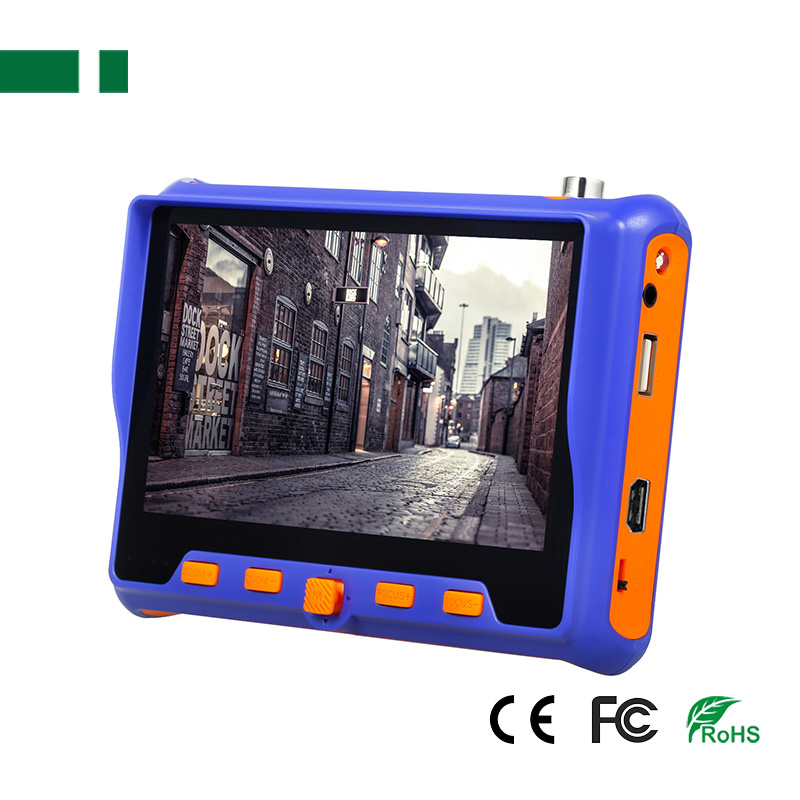

C-5900ACT 8MP AHD /TVI / CVI/ CVBS Camera Tester

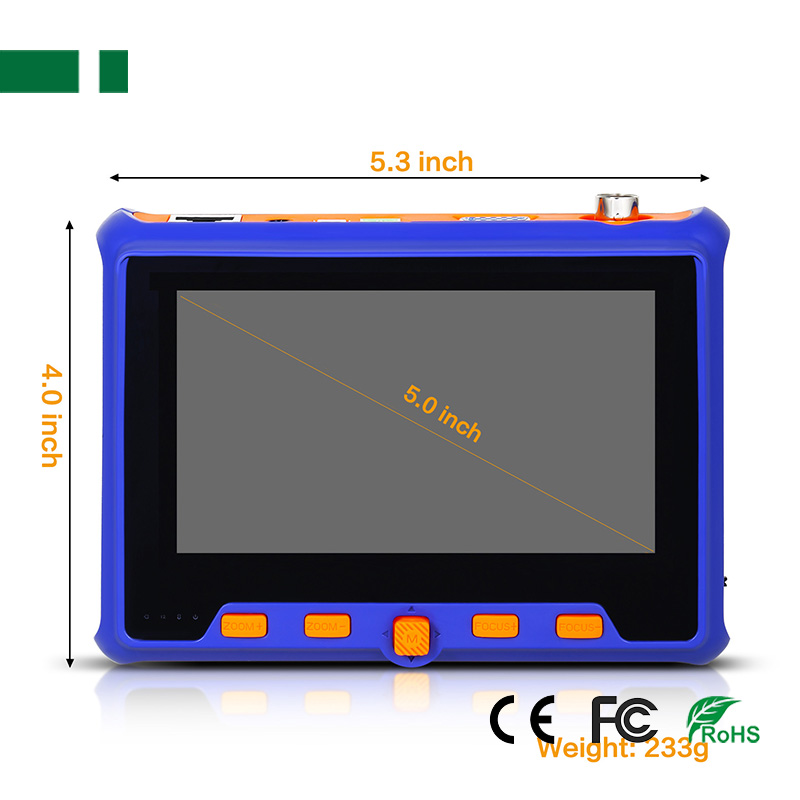

- 5-inch TFT LCD Screen
- Support HDMI input
- Support VGA input
- Support UTC Coaxial /Call OSD Menu
- Product description: 5-inch TFT LCD Screen 6 in 1 CCTV Tester PAL/NTSC (Auto adapt), Hybrid camera tester is able to test and debug coaxial TVI camera & AHD camera & CVI camera and traditional CVBS analog camera.
Tester is simple in design, easy to operate and easy to carry, making it easy for Central TV technicians or installers to install and maintain CCTV systems and increase productivity by reducing field time.
● Tips: This tester NOT supports IP Camera
5-inch TFT LCD Screen 6 in 1 CCTV Tester PAL/NTSC (Auto adapt), Hybrid camera tester is able to test and debug coaxial TVI camera & AHD camera & CVI camera and traditional CVBS analog camera. The LCD screen video monitor with high resolution can show clear image when troubleshooting a security camera system.
AHD Camera: support 720P/1080P/3MP/4MP/5MP/8MP
CVI Camera: support 720P/1080P/3MP/4MP/5MP/8MP
TVI Camera: support 720P/1080P/3MP/4MP/5MP/8MP
CVBS Camera: PAL/NTSC, 960H Camera,800tvl/1000tvl/1 200tvl analog camera
HDMI input
support 1024x768 &1280x720 & 1280x1024 & 1440x900 & 1920x1080 resolution, HDMI access switch to HDMI mode.
VGA input
support 1024*768 and 1280*1024 and 1440x900 and 1920x1080 resolutions.
UTC Coaxial /Call OSD Menu
Support RS485, Compatible with multiple PTZ protocols (PELCO-D / PELCO-P etc.); baud rate: 2400, 4800, 9600,14400 (optional).
UPT/BNC cable, measure the connecting status, display the sequence of connection and the NO.

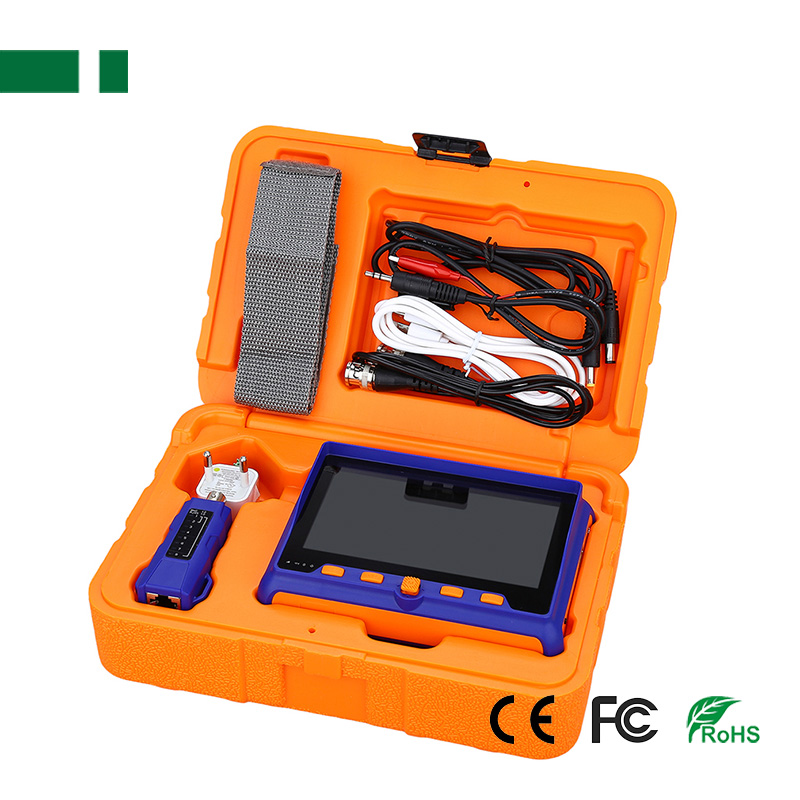

Product Accessories:
● Portable Wrist Band 5 inch LCD Monitor CCTV Camera Tester
● 3000mAh Lithium Battery (Built-in)
● 5V 1A Adapter& Power Output Cable
● Wrist Strap
● BNC Video Cable
● DC output cable
● Audio test cable
● Network Cable test unit
● Coax cable test convertor
● User manual
● Tips: This tester NOT supports IP Camera
5-inch TFT LCD Screen 6 in 1 CCTV Tester PAL/NTSC (Auto adapt), Hybrid camera tester is able to test and debug coaxial TVI camera & AHD camera & CVI camera and traditional CVBS analog camera. The LCD screen video monitor with high resolution can show clear image when troubleshooting a security camera system.
AHD Camera: support 720P/1080P/3MP/4MP/5MP/8MP
CVI Camera: support 720P/1080P/3MP/4MP/5MP/8MP
TVI Camera: support 720P/1080P/3MP/4MP/5MP/8MP
CVBS Camera: PAL/NTSC, 960H Camera,800tvl/1000tvl/1 200tvl analog camera
HDMI input
support 1024x768 &1280x720 & 1280x1024 & 1440x900 & 1920x1080 resolution, HDMI access switch to HDMI mode.
VGA input
support 1024*768 and 1280*1024 and 1440x900 and 1920x1080 resolutions.
UTC Coaxial /Call OSD Menu
Support RS485, Compatible with multiple PTZ protocols (PELCO-D / PELCO-P etc.); baud rate: 2400, 4800, 9600,14400 (optional).
UPT/BNC cable, measure the connecting status, display the sequence of connection and the NO.
Product Accessories:
● Portable Wrist Band 5 inch LCD Monitor CCTV Camera Tester
● 3000mAh Lithium Battery (Built-in)
● 5V 1A Adapter& Power Output Cable
● Wrist Strap
● BNC Video Cable
● DC output cable
● Audio test cable
● Network Cable test unit
● Coax cable test convertor
● User manual
