IPC & Analog CCTV Tester

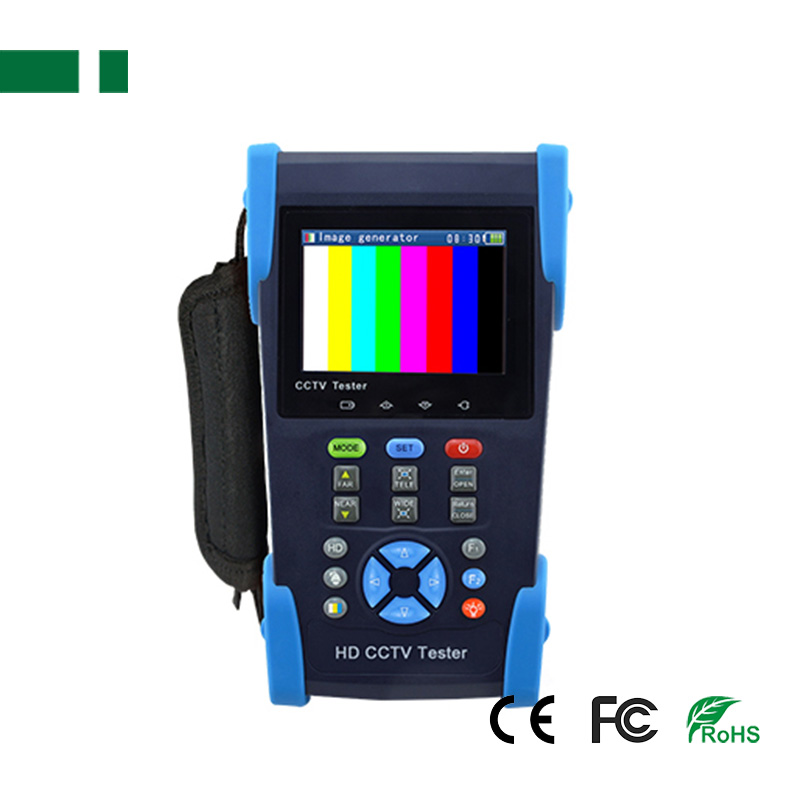

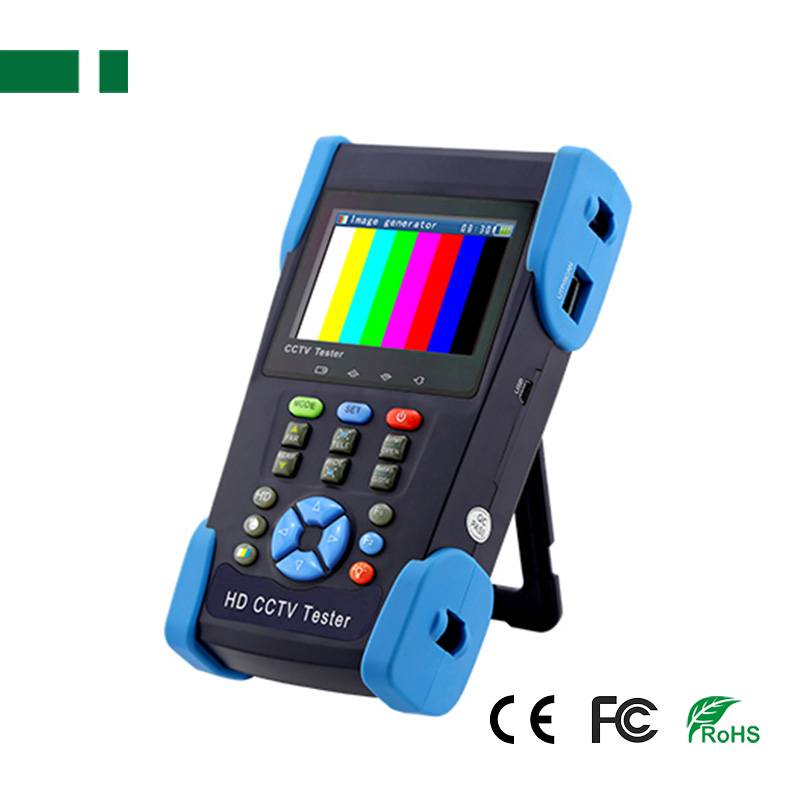

CHD-28ADHS AHD CVI TVI CVBS SDI 5-in-1 HD CCTV Tester

CHD-28ADHS AHD CVI TVI CVBS SDI 5-in-1 HD CCTV Tester

3.5 inch TFT-LCD screen display,480 (RGB)*320 resolution
8MP TVI, 8MP CVI, 8MP AHD &SDI test
PTZ control,UTP cable test
Color bar generator
Product description: The new HD coaxial tester is developed for the On-Site installation and maintenance of coaxial camera.
INQUIRY EMAIL

3.5 inch TFT-LCD CVBS AHD CVI TVI AHD SDI 5-in-1 HD CCTV Tester

The new HD coaxial tester is developed for the On-Site installation and maintenance of coaxial camera，it also combine other functions analog camera test, analog signal output, UTP test Its portability, user-friendly design and many other functions make the tester an essential tool for all installers or technicians.

Feature:
● 3.5 inch TFT-LCD screen display,480 (RGB)*320 resolution
● 8MP TVI, 8MP CVI, 8MP AHD &SDI test*
● CVBS camera test
● PTZ control,UTP cable test
● Color bar generator
● 12V 1A power output

Specification:

LCD	Item series	CHD-28ADHS
	Display	3.5 inch digital TFT-LCD ,480（RGB）x 320 resolution

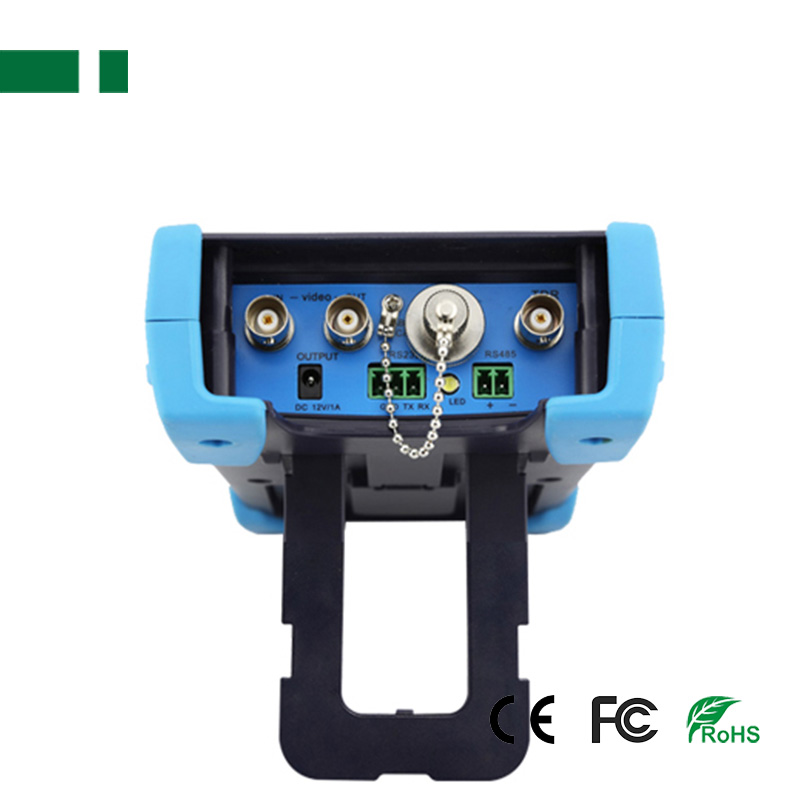

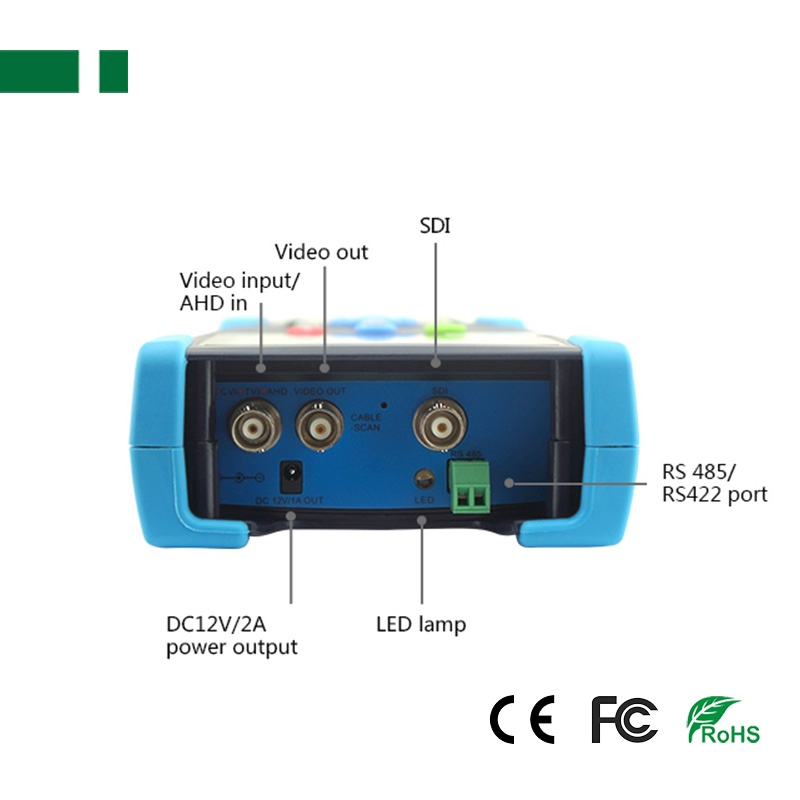

Video Mode	CVBS	1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)
		Analog video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement*
		PTZ control,RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc
	Coaxial HD test*	8MP CVI camera test, support 3840 x 2160P12.5/15 FPS, UTC control/ call OSD menu *
		8MP AHD camera test, support 3840 x 2160P 15 FPS, UTC control/ call OSD menu *
		8MP TVI camera test, support 3840 x 2160P 12.5F/15 fps,UTC control/ call OSD menu *
		HD-SDI camera test, Support 1080P 25/30/50/60 fps *
Power output	12V/1A power output	DC 12V 1A power output, supply temporarily power for the camera
Color bar generator	Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color )

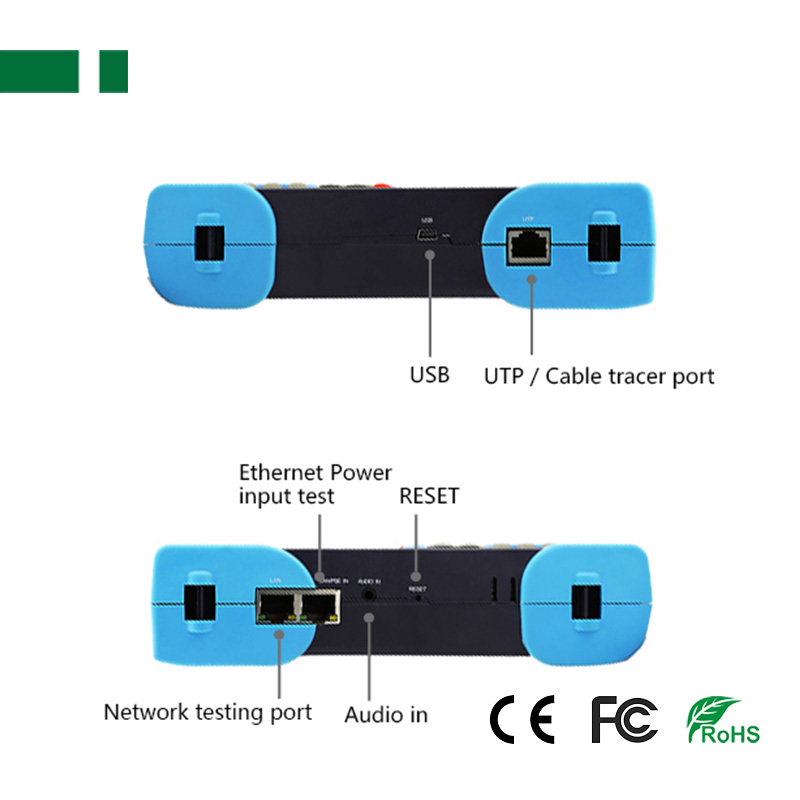

UTP cable test	Test UTP cable connection status and display in the screen. Read the number of the test box.
Audio test	1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone
Data monitor	Captures and analyzes the command data from controlling device，also can send hexadecimal
Power
External power supply	DC 5V 2A
Battery	Built-in 3.7V Lithium polymer battery ,3000mAh
Rechargeable	After charging 3-4 hours, normal working time 11 hours
Operation setting	OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc
Auto off	1-30 (mins)
Working Temperature	-10℃---+50℃
Working Humidity	30%-90%
Dimension/Weight	115mm x 75mm x 33mm / 300g
