CX7 Series IPC and HD CVI TVI AHD CCTV Tester

  • 7 inch retina touch screen,1920*1200 resolution
  • 8MP TVI, 8MP CVI, 8MP AHD, 8MP EX-SDI, HD-SDI, 3G-SDI test
  • H265/H.264 4K video display via mainstream
  • 4K HDMl output,1080P HDMI Input
  • Product description: The 7 inch touch screen IP camera tester is designed for maintenance and installation of lP analog coaxial cameras as well as other security equipment.
  • INQUIRY   EMAIL
HD 7 inch retina touch screen all-in-one multi-functional IPC Tester

The 7 inch touch screen IP camera tester is designed for maintenance and installation of lP analog coaxial cameras as well as other security equipment. The 1920x1200resdlution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. Additional. it with other functions TDR cable test, Digital multi-meter, UTP cable test and cable scan etc. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester. making working conditions safer and increasing productivity.

Feature:
● 7 inch retina touch screen,1920*1200 resolution
● 8MP TVI 8MP CVI 8MP AHD &SDI/ 8MP EX-SDI test*
● H265/H.264 4K video display via mainstream
● Dahua Hikvision, Axis etc. ONVIF camera test
● Chrome browser, set Axis etc. cameras parameters
● Built in WIFI, create WIFI hotspot。
● 4K HDMl output,1080P HDMI Input
● DC12V 2A,DC48V PoE power output
● Rapid ONVIF, auto view video and create testing report
● UTP cable tester /RJ45 cable TDR test cable quality test
● Cable tracer and video leverl meter
● Tester Play: Tester, mobile phone PC display at the same time

Specification:
LCD Item series CX7 series
Display New 7 inch Retina touch screen, 1920*1200 resolution
Video Mode CVBS 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)
Analog video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement
PTZ control,RS485 control, Baud 600-115200bps,compatible with more than 30  protocols such as PELCO-D/P, Samsung, Panasonic etc
CVBS loop test the tester send and receive color bar generator signal, check BNC cable
IP camera test IP Discovery/Quick ONVIF/IPC test /RTSP play / Client APK
4k/H.265/H.264 Rapid Video Auto view the video, create testing report
Hik test tool Activate hikvision camera, modify the user name, password  and IP parameters
Dahua test tool Dahua camera test, modify the user name, password and IP   parameters
IP& CVBS test IP& CVBS test at the same time, converter test from analog to digital with dual test window
Coaxial HD test * 8MP TVI camera test,3840 x 2160P 15 FPS, UTC control & call OSD menu *
8MP CVI camera test,3840 x 2160P 12.5/15 FPS,UTC control & call OSD menu *
8MP AHD camera test,3840 x 2160P 15 FPS, UTC control & call OSD menu*
8MP EX-SDI, HD-SDI, 3G-SDI, UTC control & call OSD menu*
HDMI input 1 channel HDMI input, support 1080P
Zoom Image 4 x zoom, to enlarge image, Screen snapshot, record, save ,view and record and play back
Analog Video out Color bar generator Output one channel PAL/NTSC color bar video signal for testing monitor or video cable
PoE power output 48V PoE power output, max power 25.5W
Power output DC12V power DC12V/3A power output
Cable test TDR cable test * BNC cable, Network Cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable' s length and short circuit. measurement range 1.2KM *
Cable tracer Search BNC cable, network cable and  telephone cable from the mess cables
UTP cable test Test UTP cable connection status and display on the screen. Read the number on the screen

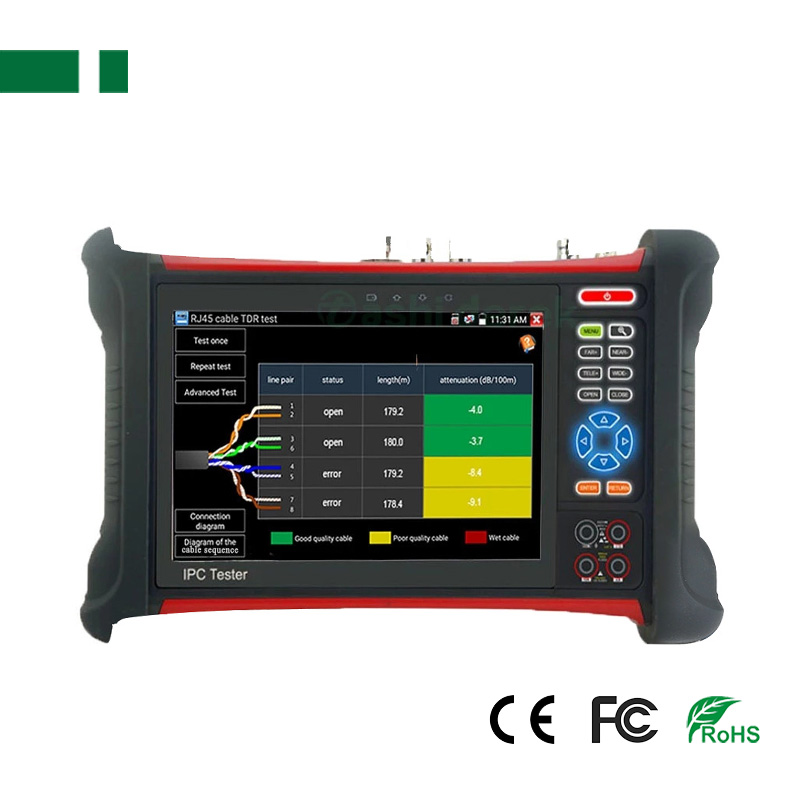

RJ45 cable TDR test Test cable pair status, length, attenuation, reflectivity, impedance, skew etc. measurement  range 180M.
TesterPlay Screen projectiontester, mobile phone and PC display at the same time (For android version mobile phone)
Network test Trace route, Link monitor, DHCP server, port flashing , Ping test
Wi-Fi Built in WIFI, speeds150M,display wireless camera image
Audio test 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone
Data monitor Captures and analyzes the command data from controlling device, also can send hexadecimal
PoE test Measurement POE Switch or PSE power supply voltage and cable connection status
Drop-down menu You can select PoE power switch, IP setting, CVBS, LAN info , HDMI IN functions etc in any interface
External power supply DC 12V 2A
Battery Built-in 7.4V Lithium polymer battery ,5000mAh
Rechargeable After charging 5~6 hours, normal working time 10hours
Operation setting OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc
Auto off 1-30 (mins)
Working Temperature -10---+50
Working Humidity 30%-90%

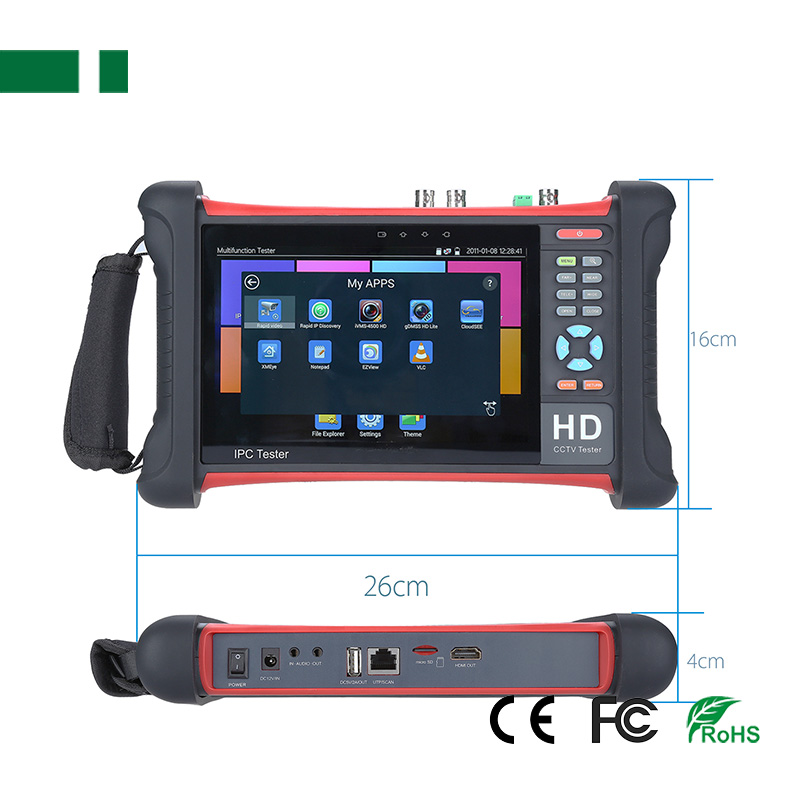

Dimension/Weight 255mm x 160mm x 46mm / 0.95Kg
