HDMI Extender

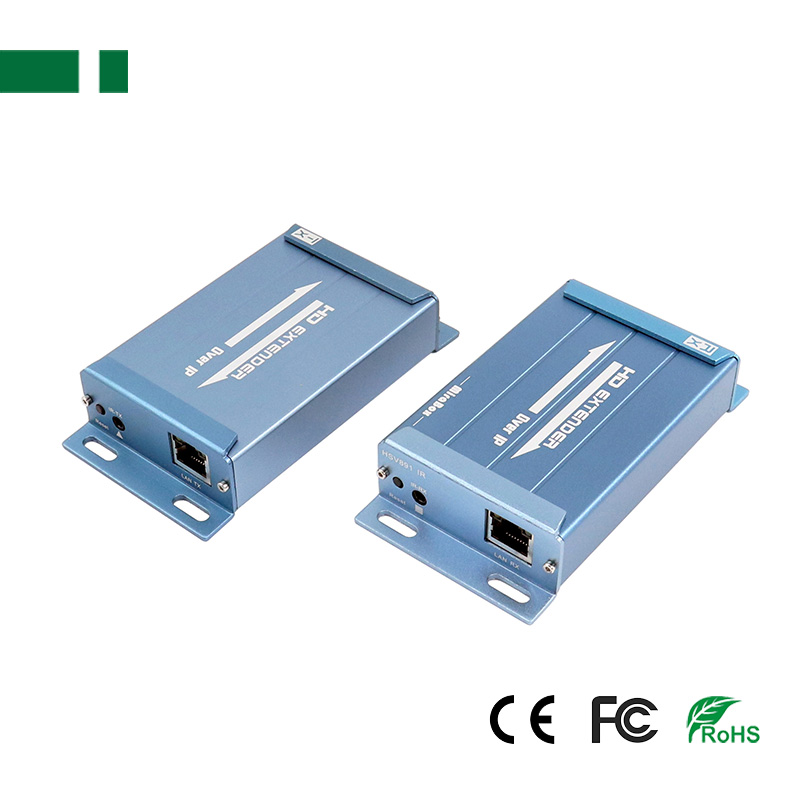

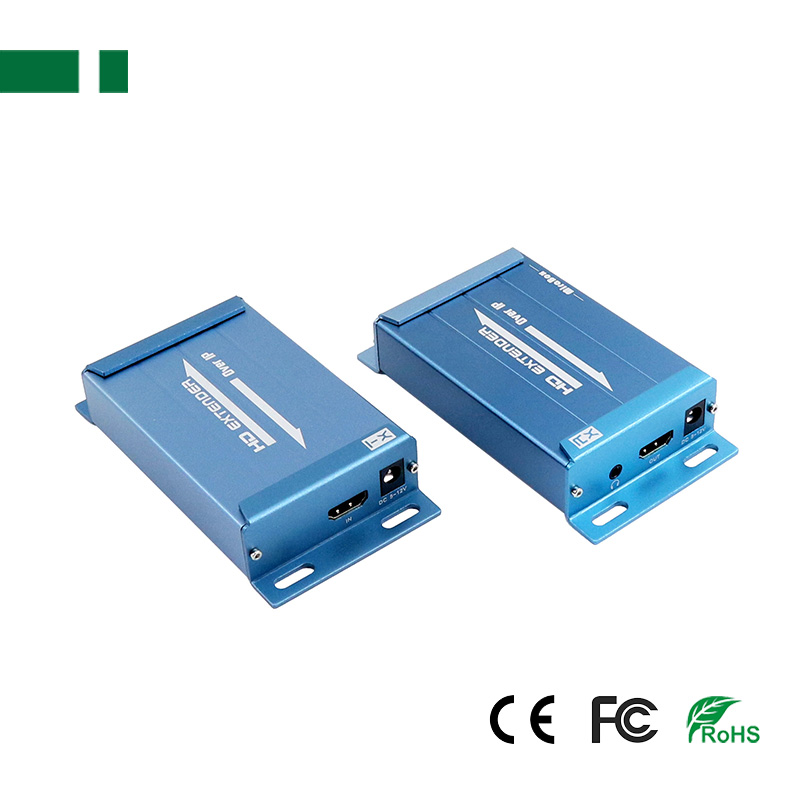

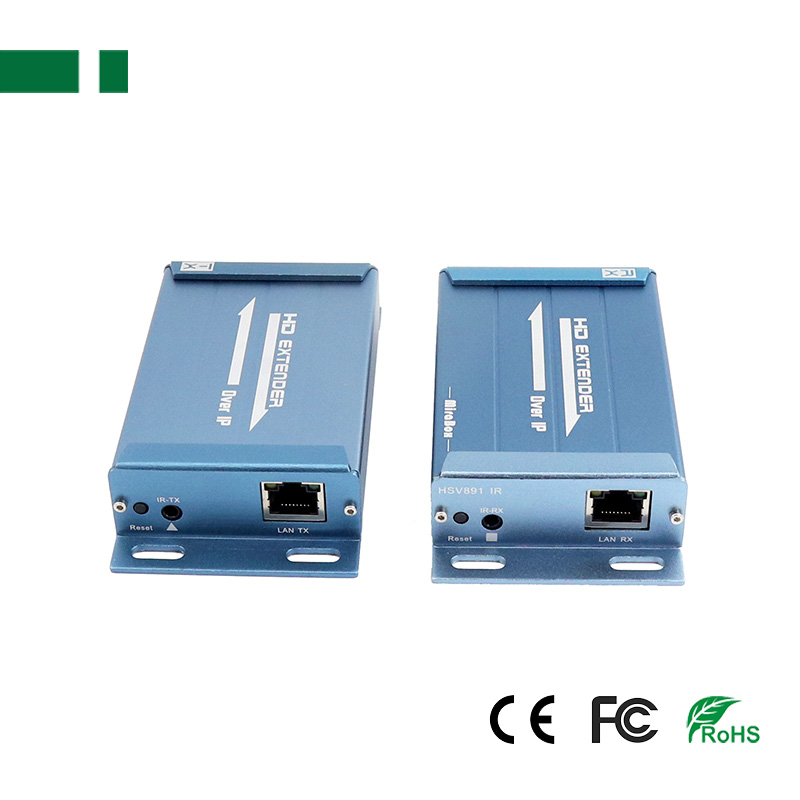

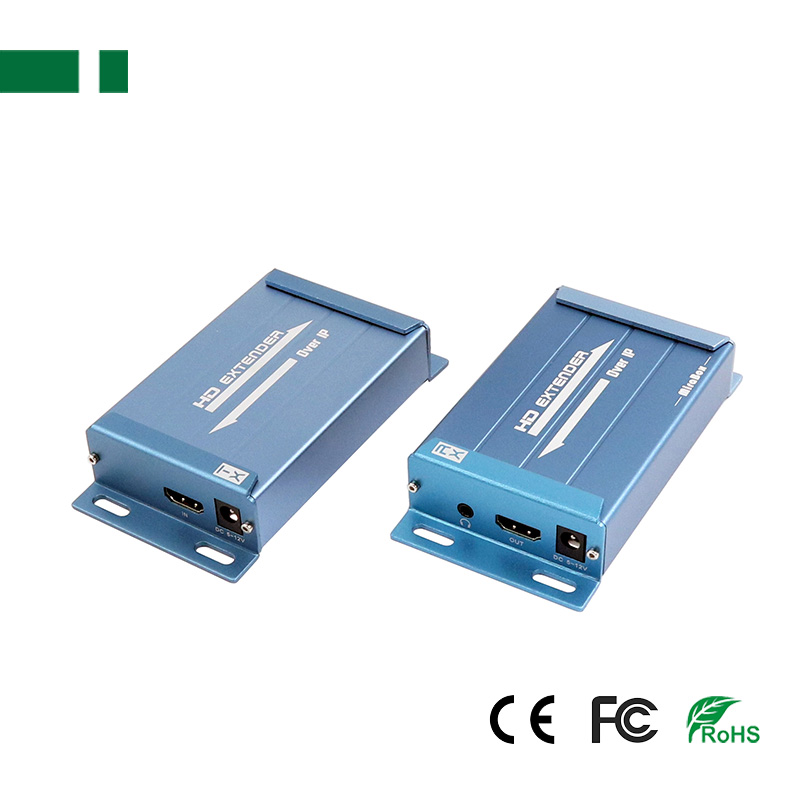

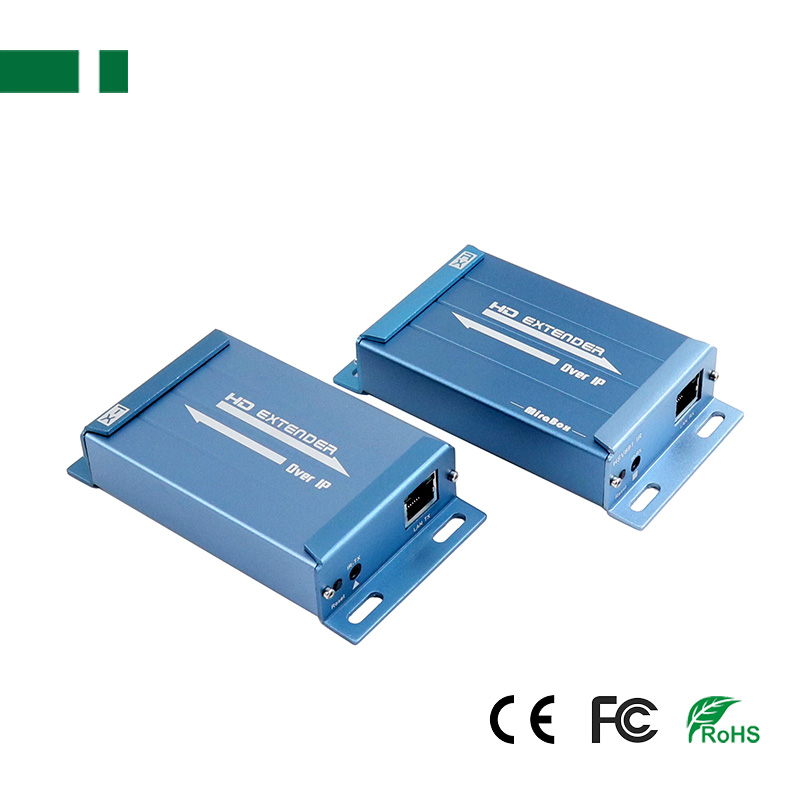

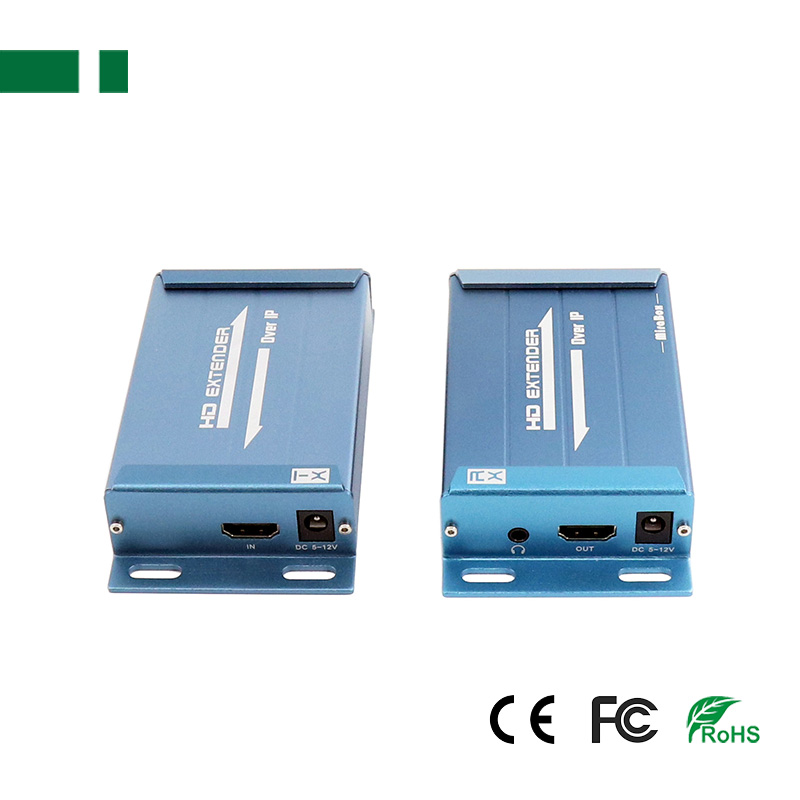

CHM-891-IR 150M HDMI Extender
- can transmit HDMI 1080P signal to above 120m by using UTP Cat5e/6.
- Support: 1080p@50Hz / 1080p@60Hz
- Power Supply: DC5V~12V
- Working Mode: 1. Point to Point mode, 2. Broadcast mode( Point to MultiPoint), 3. Cascade mode
- Product description: This product not only can work as other normal HDMI extender by CAT5/6 cable up to maxim 150 meters, but also can transmit HDMI data over local network. The data could be transmitted over switch, rout
This product not only can work as other normal HDMI Extender by CAT5/6 cable up to maxim 150 meters, but also can transmit HDMI data over local network. The data could be transmitted over switch, router and other ethernet device, and extend the transfer distance to over 20km.
It also could work in broadcast mode, like HDMI Splitter, broadcast HDMI signal from one sender to multiple receivers.
1. CHM-891-IR also integrate HDMI audio extractor that could extract stereo audio out from HDMI signal and output via 3.5mm jacket.
2. CHM-891-IR have many professional designs which suitable for various application scenario, especially for engineering project usage. Such as 5V-12V wide range power supply, mountable aluminum alloy shieding.
Features:
1. Apply M-JPEG technology to process image compressing. The loss of image quality is very small; Supported HDMI format: 480i@50Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 1080p@24Hz.
2. Powerful processing capability keep lower video latency < 150ms.
3. HDCP compatible.
4. It can transmit HDMI 1080P signal to above 120m by using UTP Cat5e/6.
5. It can transmit by Lan.
6. Support Lan bandwidth: 100M
7. Extend 120m longer by adding one more ethernet router.
8. The data could be transmitted over switch, router and other ethernet device, and extend the transfer distance to over 20km.
9. It also could work in broadcast mode, like HDMI splitter, broadcast HDMI signal from one sender to multiple receivers.
10. Integrated HDMI audio extractor output HDMI audio.
11. Supports 5V-12V wide range power supply.
Specifications:
Power Supply: ........................................................................................................ 1pc X DC5~12V/1A;
Resolution Supported: ............................................................................................ 1080p@50Hz / 1080p@60Hz / 1080p@24Hz 1080i@50Hz / 1080i@60Hz/ 720p@50Hz / 720p@60Hz / 576i@50Hz / 480p@60Hz;
Working Temperature: ............................................................................................ -10°C ~ 60°C;
Link Connection: ..................................................................................................... UTP/STP CAT5/5e/6;
3.5mm Audio Output: .............................................................................................. 60mW THD<0.1% SNR 110dB;
Power Consumption: .............................................................................................. 3W(max) each;
Working Mode: ....................................................................................................... Point to Point mode, Broadcast mode( Point to MultiPoint), Cascade mode;
Relative Humidity: ............................................................................................. 20% ~ 90% RH(Non-condensing)
Dimensions: ....................................................................................................... 123x64x25mm
Weight: ............................................................................................................... 110g
* Transfer Distance:
Point to Point Mode:
CAT5: Maximum 100 meters between two devices;
CAT5e: Maximum 120 meters between two devices;
CAT6: Maximum 150 meters between two devices;
Cascade Mode: 20Km maximum;
It also could work in broadcast mode, like HDMI Splitter, broadcast HDMI signal from one sender to multiple receivers.
1. CHM-891-IR also integrate HDMI audio extractor that could extract stereo audio out from HDMI signal and output via 3.5mm jacket.
2. CHM-891-IR have many professional designs which suitable for various application scenario, especially for engineering project usage. Such as 5V-12V wide range power supply, mountable aluminum alloy shieding.
Features:
1. Apply M-JPEG technology to process image compressing. The loss of image quality is very small; Supported HDMI format: 480i@50Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 1080p@24Hz.
2. Powerful processing capability keep lower video latency < 150ms.
3. HDCP compatible.
4. It can transmit HDMI 1080P signal to above 120m by using UTP Cat5e/6.
5. It can transmit by Lan.
6. Support Lan bandwidth: 100M
7. Extend 120m longer by adding one more ethernet router.
8. The data could be transmitted over switch, router and other ethernet device, and extend the transfer distance to over 20km.
9. It also could work in broadcast mode, like HDMI splitter, broadcast HDMI signal from one sender to multiple receivers.
10. Integrated HDMI audio extractor output HDMI audio.
11. Supports 5V-12V wide range power supply.
Specifications:
Power Supply: ........................................................................................................ 1pc X DC5~12V/1A;
Resolution Supported: ............................................................................................ 1080p@50Hz / 1080p@60Hz / 1080p@24Hz 1080i@50Hz / 1080i@60Hz/ 720p@50Hz / 720p@60Hz / 576i@50Hz / 480p@60Hz;
Working Temperature: ............................................................................................ -10°C ~ 60°C;
Link Connection: ..................................................................................................... UTP/STP CAT5/5e/6;
3.5mm Audio Output: .............................................................................................. 60mW THD<0.1% SNR 110dB;
Power Consumption: .............................................................................................. 3W(max) each;
Working Mode: ....................................................................................................... Point to Point mode, Broadcast mode( Point to MultiPoint), Cascade mode;
Relative Humidity: ............................................................................................. 20% ~ 90% RH(Non-condensing)
Dimensions: ....................................................................................................... 123x64x25mm
Weight: ............................................................................................................... 110g
* Transfer Distance:
Point to Point Mode:
CAT5: Maximum 100 meters between two devices;
CAT5e: Maximum 120 meters between two devices;
CAT6: Maximum 150 meters between two devices;
Cascade Mode: 20Km maximum;
