HDMI Extender
CHM-560

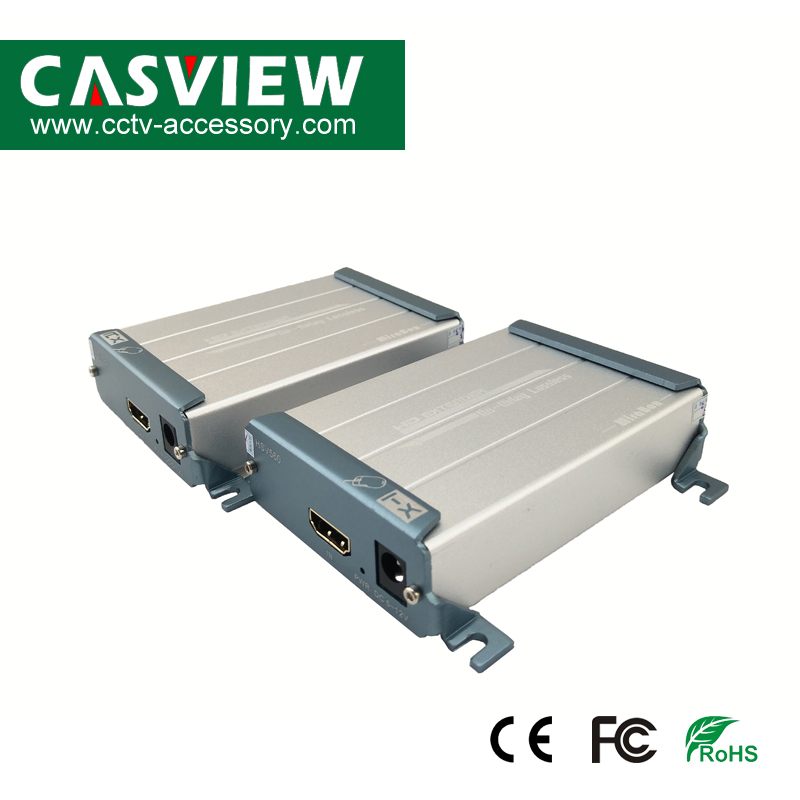

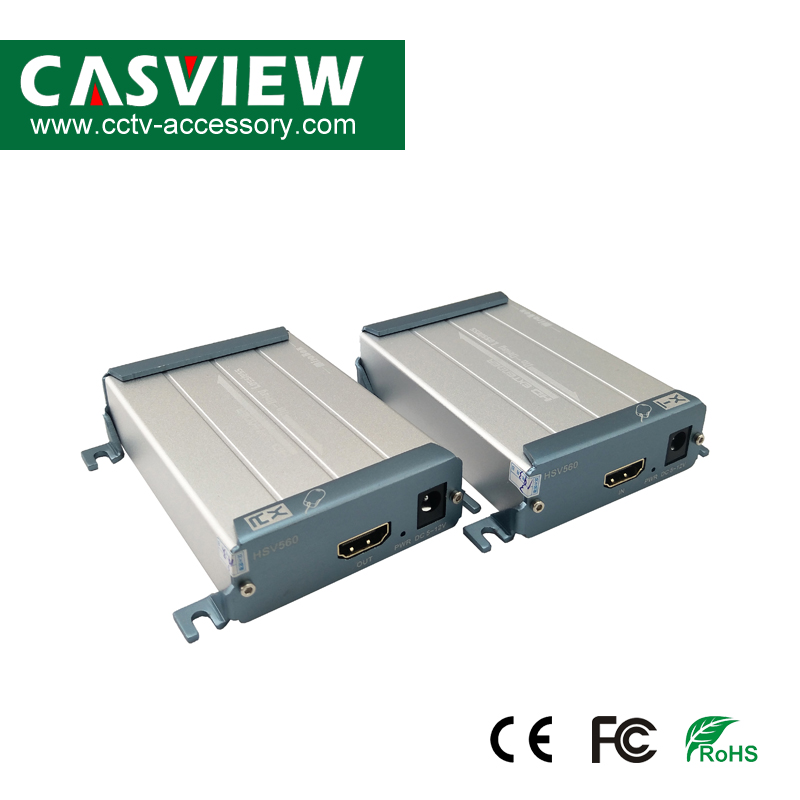

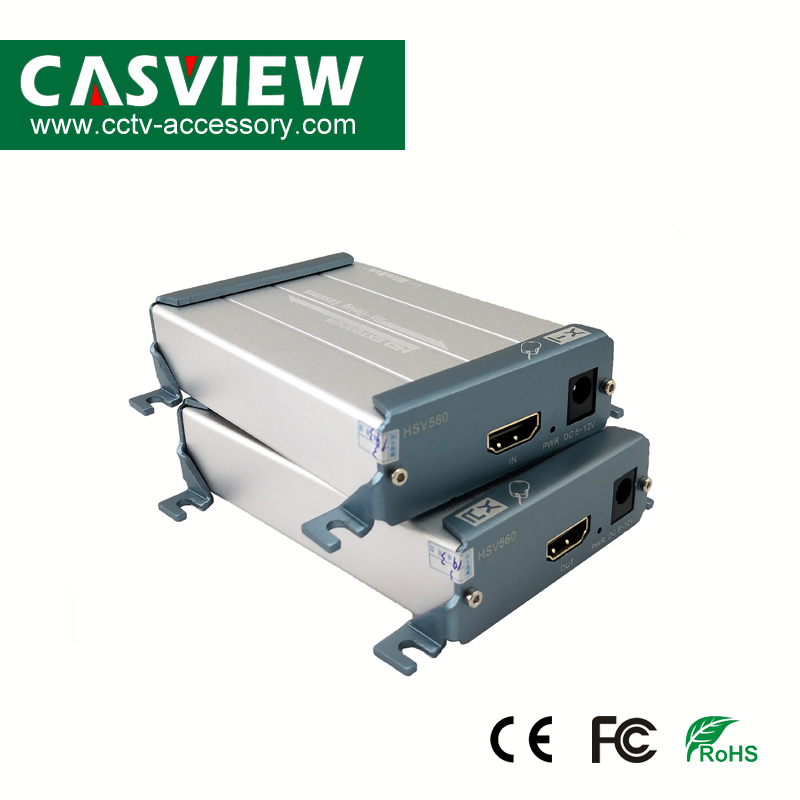

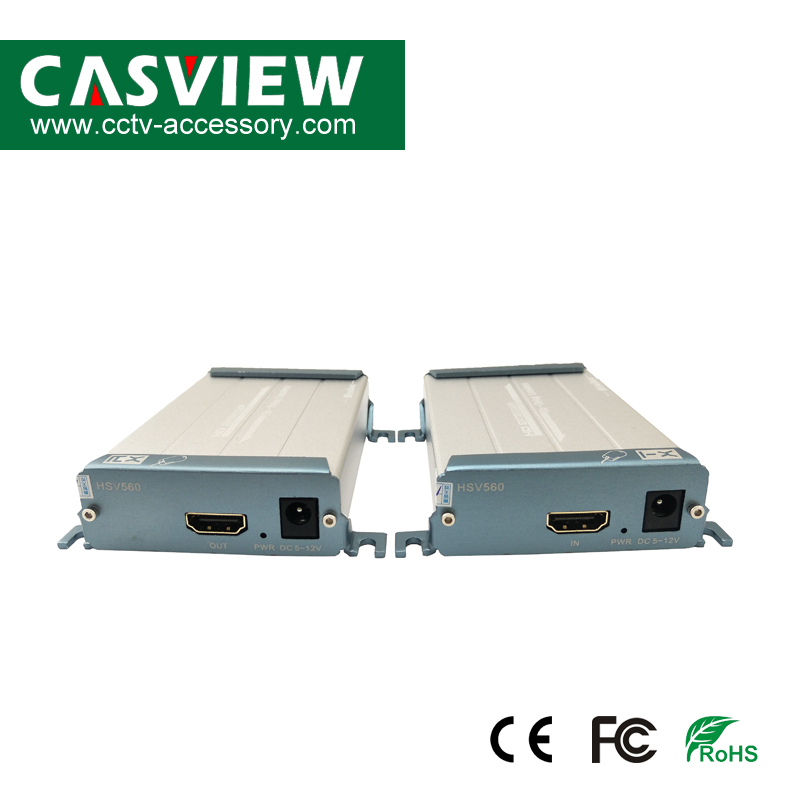

- Product description: HD HDMI signal over single CAT cable
Introduction
This product extend FULL HD HDMI signal up to 60-80M meters via a single CAT cable, without any video loss and time delay. And also support USB keyboard & mouse transmit over 80meters on the same CAT cable. It has many professional designs which suitable for various application scenario, especially for engineering project usage. Such as PoE, 5V-12V wide range power supply, mountable aluminum alloy shieding.
3. No video loss, no time delay.
4. Support PoE function.
5. Wide range power supply
Specifications
Standard Power Input:12V
Power Consumption:3W
HDMI Port:HDMI A type Female

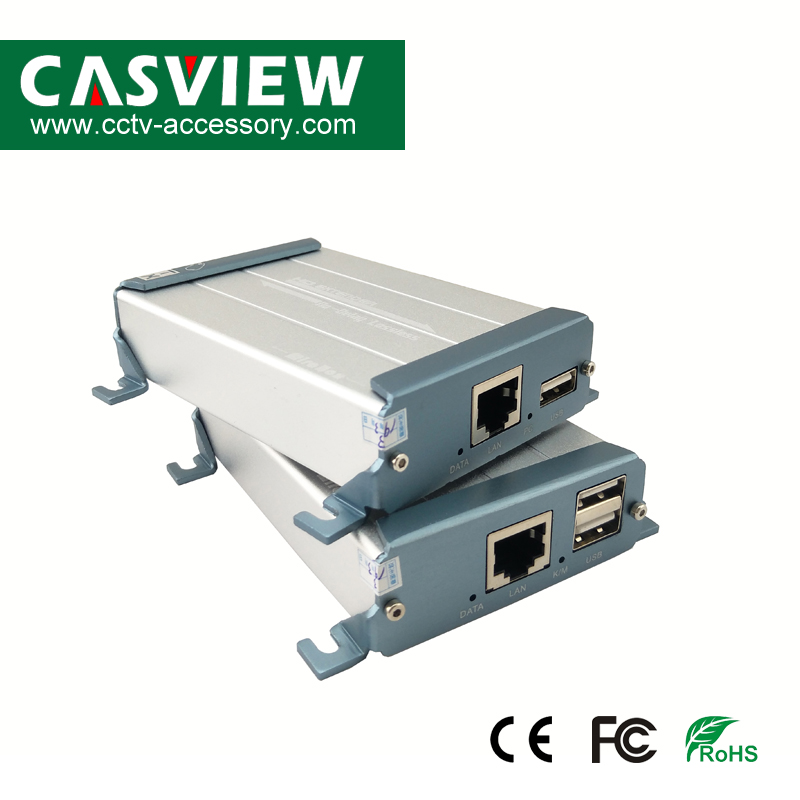

USB Port
Receiver: USB A type Female * 2 connectto peripheral device
ender:USB A type Female * 1 connect to HOST device"
Link Connection:CAT5/5e/6 Cable
HDMI Transmission Distance:100meters
USB Transmission Distance:80meters
USB Device Supported:Keyboard/Mouse and HID devices
HDMI Resolution Supported:1080p@60Hz / 1080p@50Hz / 1080p@30Hz / 1080p@25Hz 720p@60Hz / 720p@50Hz 480p@60H
Operating Temperature :-20°C - 70°C
Storage Temperature: -40°C - 80°C
Humidity: 20% ~ 90% RH(Non-condensing)
Package Contents
Sender *1
Receiver *1
Power Adaptor *1
USB AtoA Cable*1
Manual *1
This product extend FULL HD HDMI signal up to 60-80M meters via a single CAT cable, without any video loss and time delay. And also support USB keyboard & mouse transmit over 80meters on the same CAT cable. It has many professional designs which suitable for various application scenario, especially for engineering project usage. Such as PoE, 5V-12V wide range power supply, mountable aluminum alloy shieding.
Features
1. Extend FULL HD HDMI signal over 100 meters via single CAT cable
2. Extend USB signal over 80 meters simultaneous3. No video loss, no time delay.
4. Support PoE function.
5. Wide range power supply
Specifications
Standard Power Input:12V
Power Consumption:3W
HDMI Port:HDMI A type Female
USB Port
Receiver: USB A type Female * 2 connectto peripheral device
ender:USB A type Female * 1 connect to HOST device"
Link Connection:CAT5/5e/6 Cable
HDMI Transmission Distance:100meters
USB Transmission Distance:80meters
USB Device Supported:Keyboard/Mouse and HID devices
HDMI Resolution Supported:1080p@60Hz / 1080p@50Hz / 1080p@30Hz / 1080p@25Hz 720p@60Hz / 720p@50Hz 480p@60H
Operating Temperature :-20°C - 70°C
Storage Temperature: -40°C - 80°C
Humidity: 20% ~ 90% RH(Non-condensing)
Package Contents
Sender *1
Receiver *1
Power Adaptor *1
USB AtoA Cable*1
Manual *1
