Inquiry:
HDMI Extender

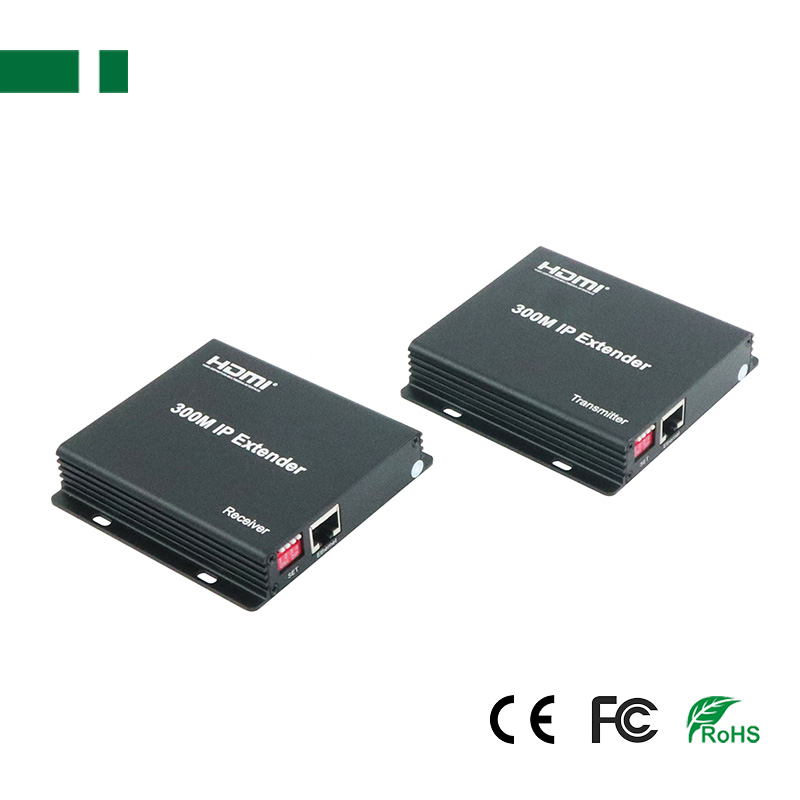

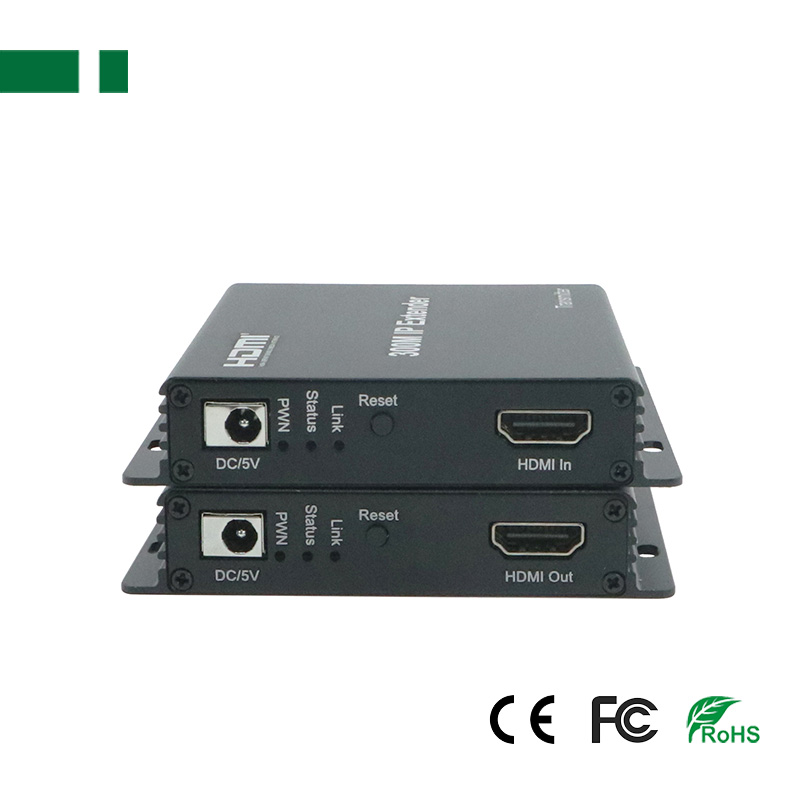

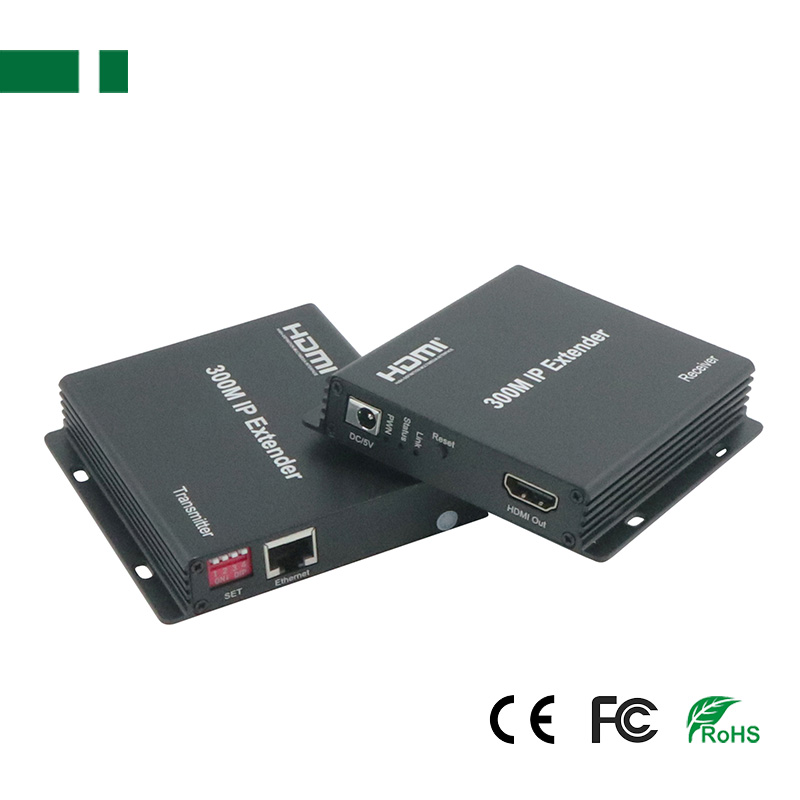

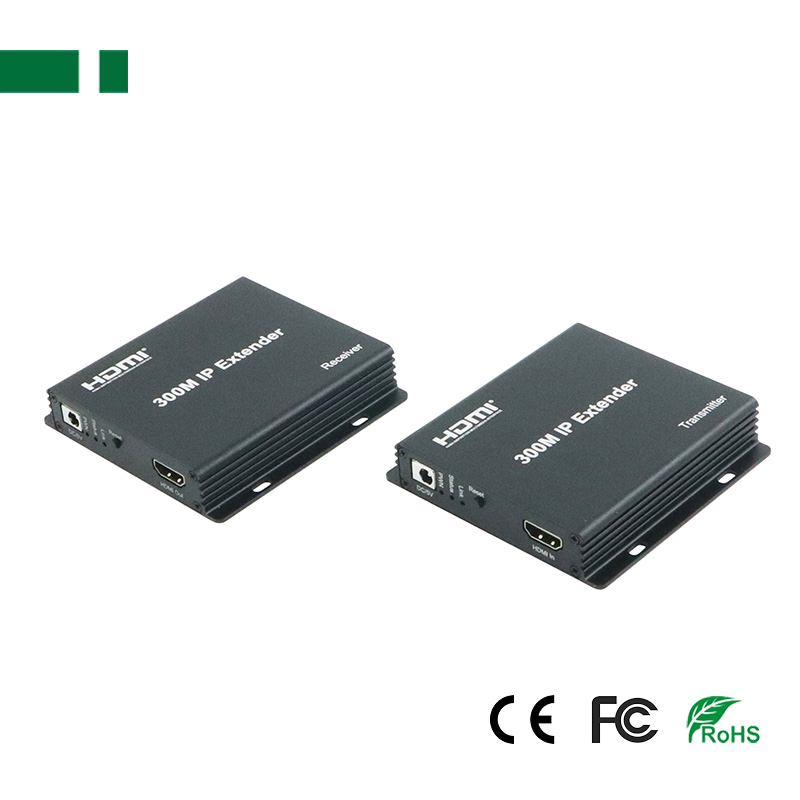

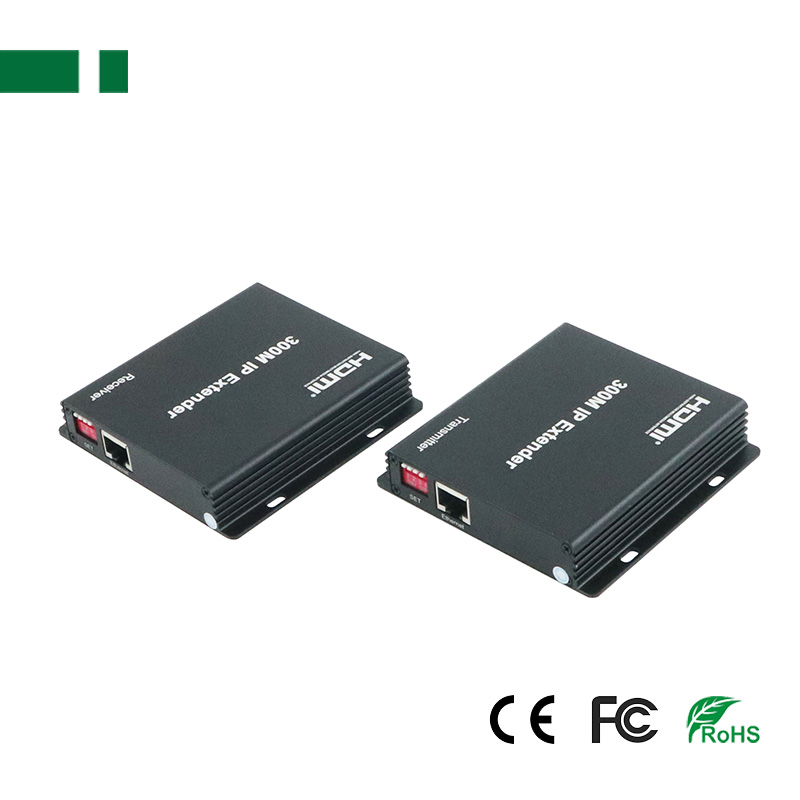

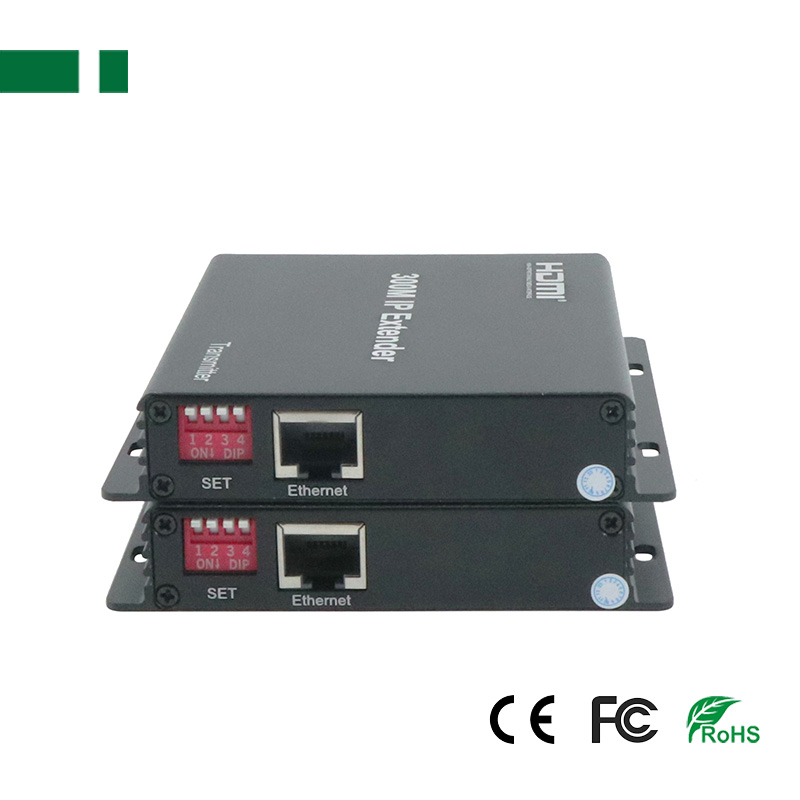

CHM-3001P 300M 1080P HDMI IP Extender
- 300M 1080P HDMI IP Extender
- Support HDCP1.4
- Decoding Mode MJPEG
- 802.3 Ethernet standard
- Product description: HDMI 300M extender over IP is used in audio-visual conference, command and control center, ticketing platform, home theater, multi-media teaching, conference system and so on
300M 1080P HDMI IP Extender
Introduction:
300M HDMI IP Extender is based on TCP/IP standard. It transmits your HD display with the high resolution up to 300 meters away from your DVD or computer source by using one CAT5e/6 cable. At the same time, it’s convenient to transmit HDMI audio and video source by point-to-point mode, point-to-multipoint, multipoint-to-multipoint mode and cascade connection mode .
Features
* Support HDCP1.4
* Decoding Mode MJPEG
* Support point-to-point mode, point-to-multipoint mode, multipoint-to-multipoint mode
and cascade connection mode；
* 802.3 Ethernet standard；
* The design of pure hardware, plug and play, no need for additional software.
Specifications
Resolutions ...................................................................................... 480P/720P/1080P
Audio ....................................................................... Sample rate:32kHz,44.1kHz and 48kHz
Power Adapter format .............................................Input AC (50HZ, 60HZ) 100V-240V; output: DC5V/1A
The max working current ........................................................................ TX 450mA，RX 400mA
Size(L-W-H) .............................................................................................. 90*91*19mm
Weight ..................................................................................................... 120g x 2
Operating Temperature/Humidity ............................................... 0℃-45℃/10%-80%RH(no condensation)
Storage Temperature/Humidity ................................................ -10℃-70℃/5%-90%RH(no condensation)
HDMI 300M extender over IP is used in audio-visual conference, command and control center, ticketing platform, home theater, multi-media teaching, conference system and so on
Introduction:
300M HDMI IP Extender is based on TCP/IP standard. It transmits your HD display with the high resolution up to 300 meters away from your DVD or computer source by using one CAT5e/6 cable. At the same time, it’s convenient to transmit HDMI audio and video source by point-to-point mode, point-to-multipoint, multipoint-to-multipoint mode and cascade connection mode .
Features
* Support HDCP1.4
* Decoding Mode MJPEG
* Support point-to-point mode, point-to-multipoint mode, multipoint-to-multipoint mode
and cascade connection mode；
* 802.3 Ethernet standard；
* The design of pure hardware, plug and play, no need for additional software.
Specifications
Resolutions ...................................................................................... 480P/720P/1080P
Audio ....................................................................... Sample rate:32kHz,44.1kHz and 48kHz
Power Adapter format .............................................Input AC (50HZ, 60HZ) 100V-240V; output: DC5V/1A
The max working current ........................................................................ TX 450mA，RX 400mA
Size(L-W-H) .............................................................................................. 90*91*19mm
Weight ..................................................................................................... 120g x 2
Operating Temperature/Humidity ............................................... 0℃-45℃/10%-80%RH(no condensation)
Storage Temperature/Humidity ................................................ -10℃-70℃/5%-90%RH(no condensation)
HDMI 300M extender over IP is used in audio-visual conference, command and control center, ticketing platform, home theater, multi-media teaching, conference system and so on
