BNC Video Connector

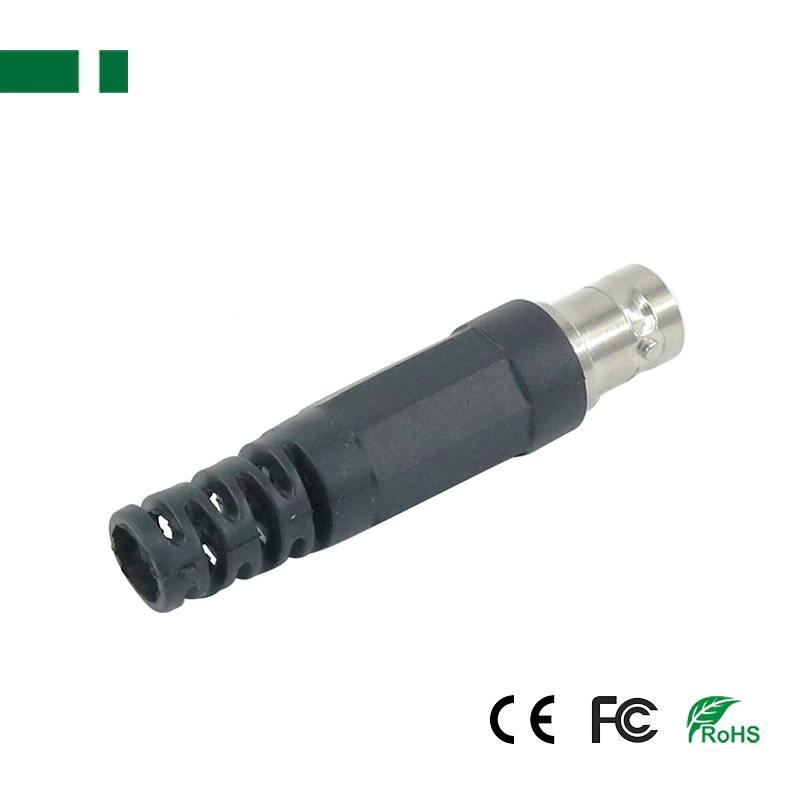

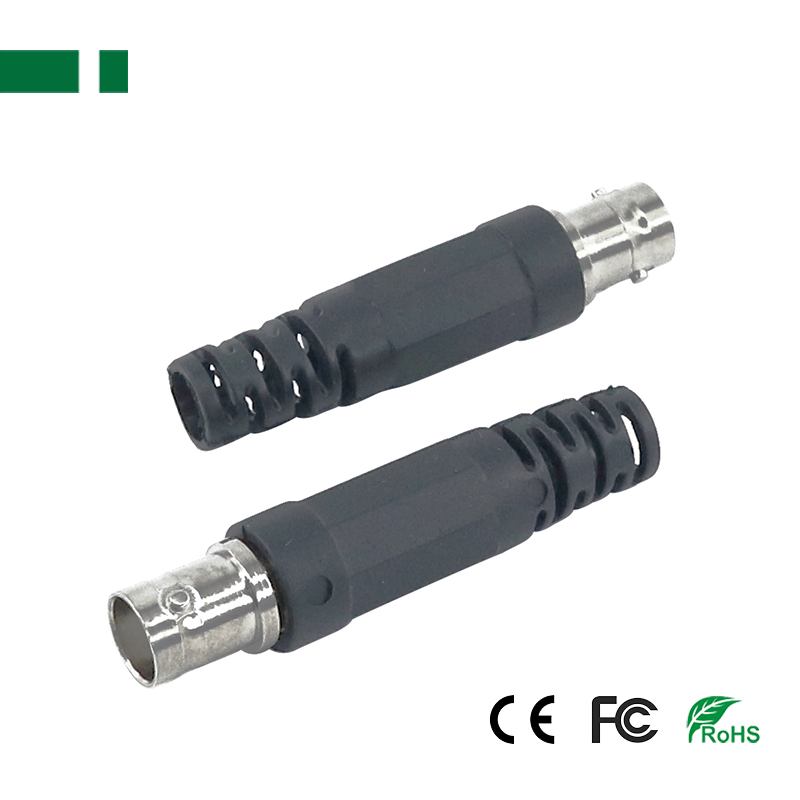

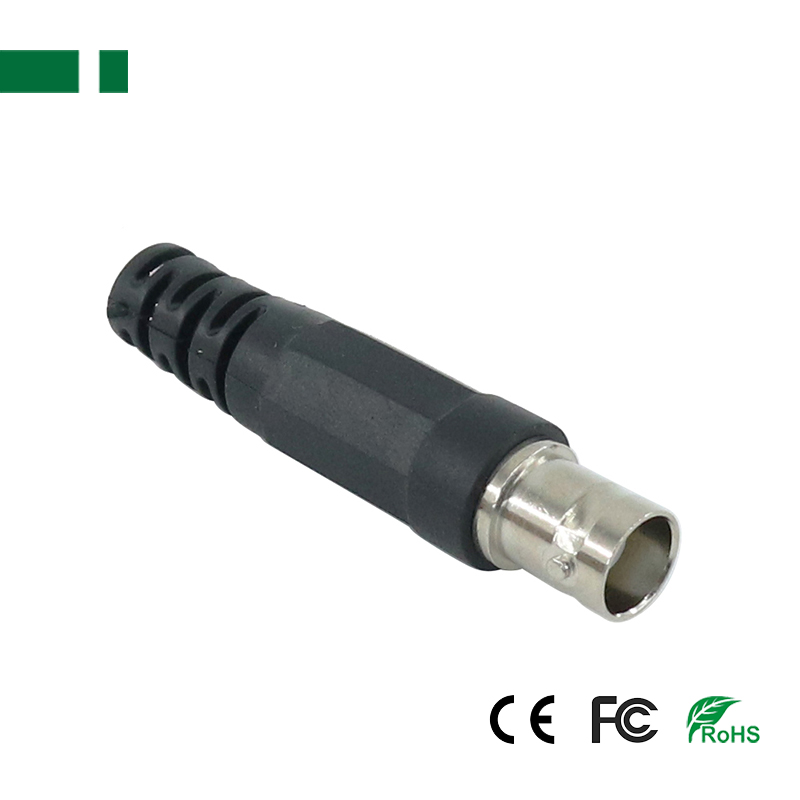

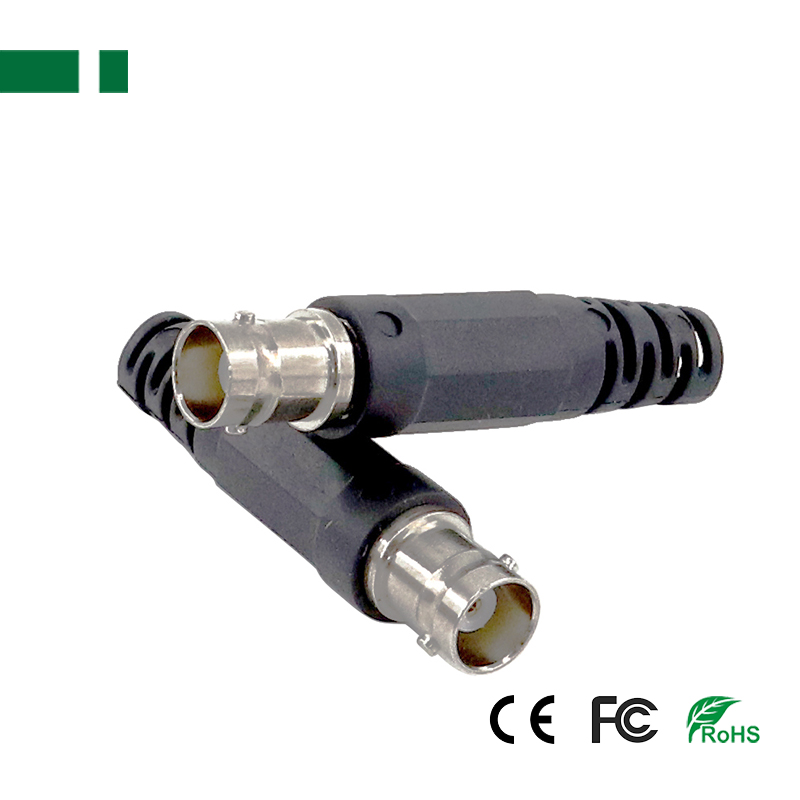

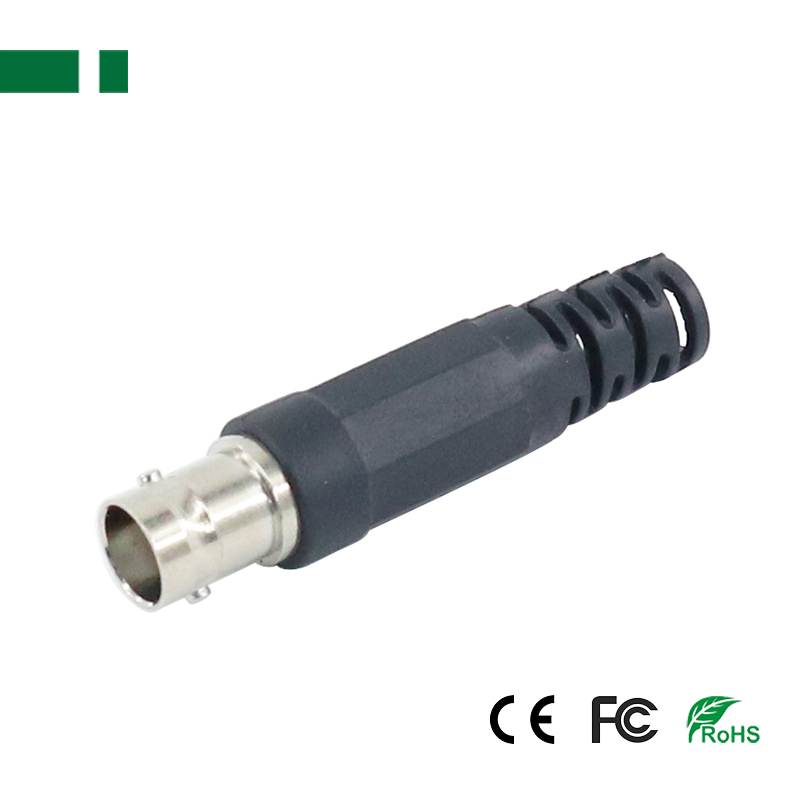

CBN-072F BNC Female Connector

Solderless BNC Female Connector

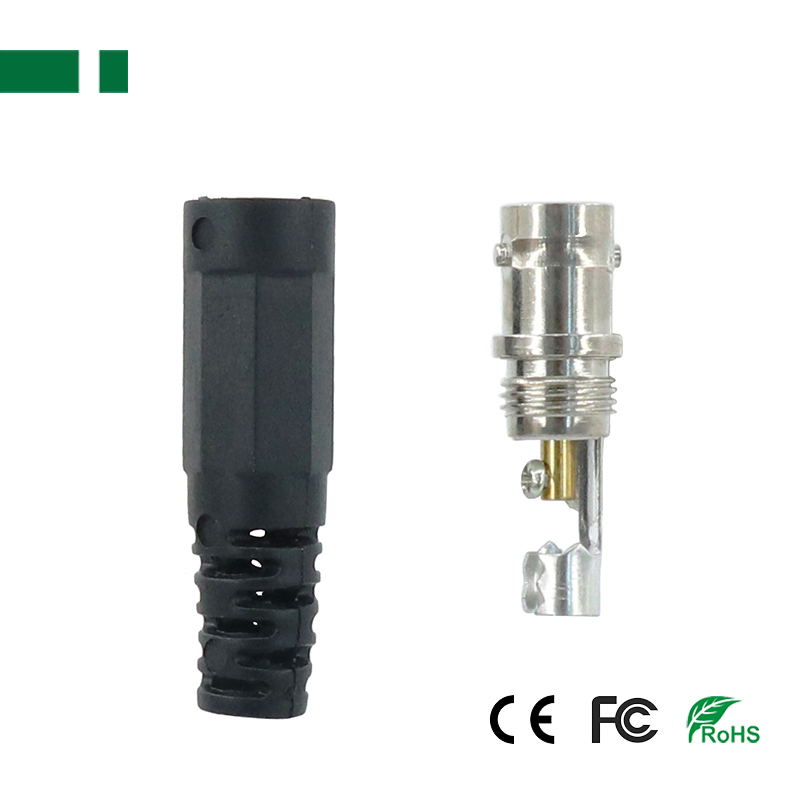

with Screw inside
RG58/ RG59/ RG60 optional
Product description: CBN-072F RG6/75-5 Solderless BNC Female Connector
INQUIRY EMAIL

Female Solderless BNC Connector for CCTV Camera Security System
Main Features
1. Connectors: Solderless Female BNC to Coaxial Cable
2. Can connect a RG59 / RG-6 coaxial cable to a BNC connection port
3. Easier for camera installation, save time and more securer cable connection;
4. General quality termination;
5. No electrical tap, No splicing, no crimping, but only a small screw driver;
6. Material: Copper Pin and Zinc Alloy body;
7. Size: 5.9cm(length)x 1.35cm(width);
8. Net Weight: Approx. 11.9G
9. Packing list: 100pcs/pack

Specification:

Model	CBN-072F	CBN-072M
Connectors	Female BNC Connector	Male BNC Connector
Installation	Solderless with screw inside	Solderless with screw inside
Material	Zinc Alloy Body + Copper Pin + Plastic
Contact Resistance	center conductor≤1.5mΩ; outer conductor≤1mΩ
Insulation Resistance	≥5000MΩ
Frequency Range	0~3GHZ
Disengage Force	≥0.6N
Attenuation	0.5dB type
Wire Type	coaxial cable
DC Loop Resistance	52 ohms per 1,000 ft
Withstand Voltage	1500V rms
Frequency Response	DC to 8 MHz
Working Tempremature	-10°C to +70°C
Humidity	0 to 95%
Packing	100pcs/bag
Dimension	1455.67.2mm
Weight	10.9g
