HDMI Splitter

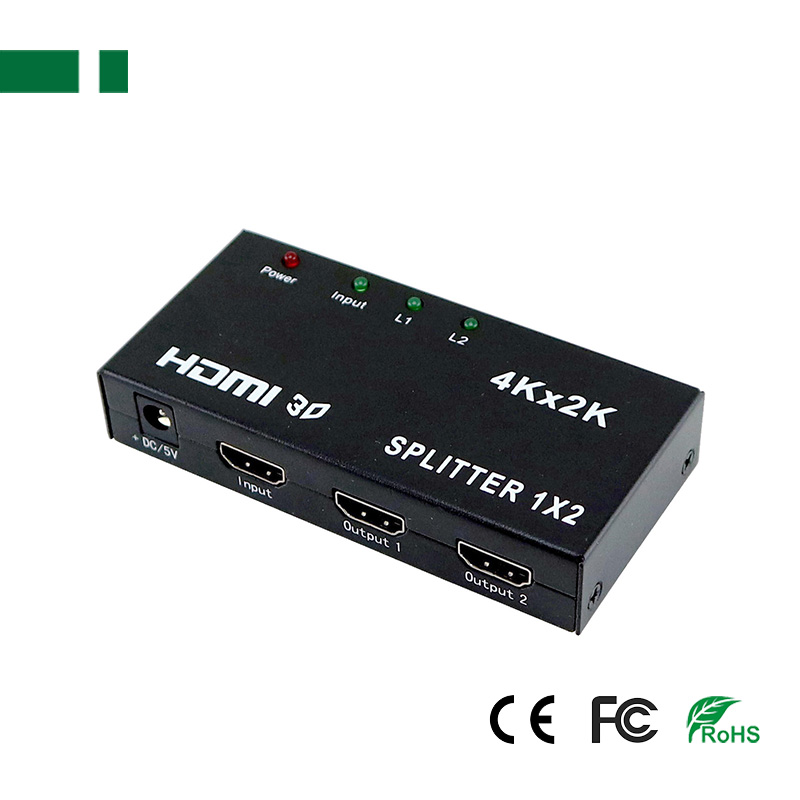

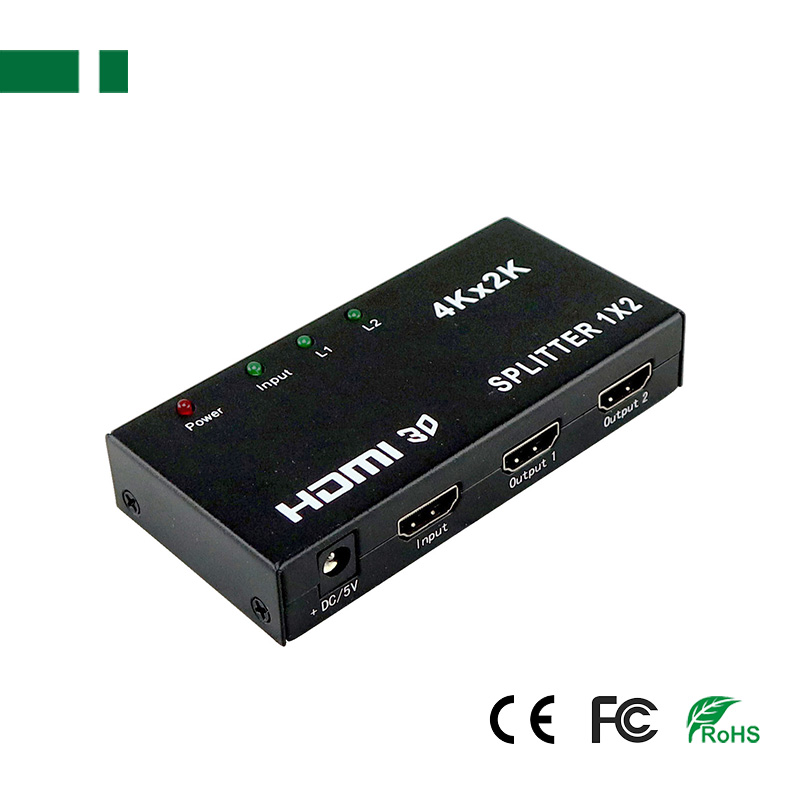

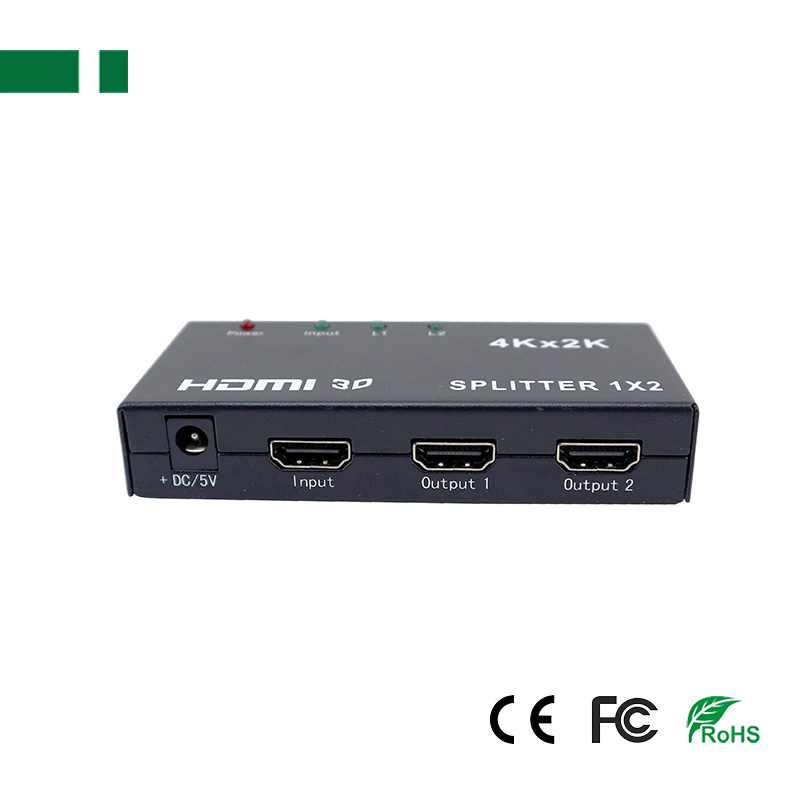

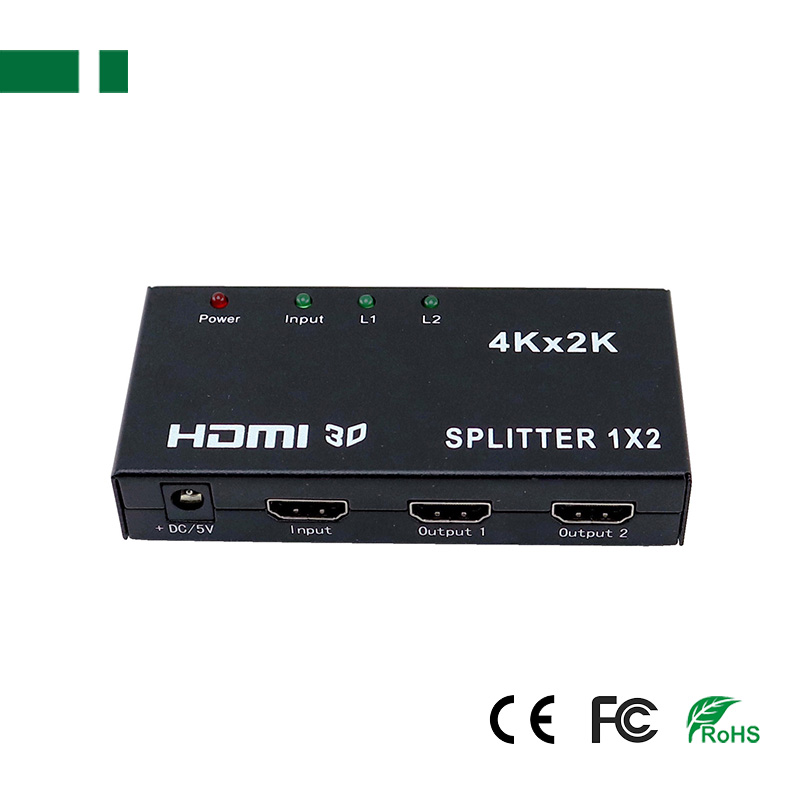

  • CHM-1022-4K 3D 4K@30Hz 1x2 HDMI Video Splitter
  • CHM-1022-4K 3D 4K@30Hz 1x2 HDMI Video Splitter
  • CHM-1022-4K 3D 4K@30Hz 1x2 HDMI Video Splitter
  • CHM-1022-4K 3D 4K@30Hz 1x2 HDMI Video Splitter
  • CHM-1022-4K 3D 4K@30Hz 1x2 HDMI Video Splitter
  • CHM-1022-4K 3D 4K@30Hz 1x2 HDMI Video Splitter
CHM-1022-4K 3D 4K@30Hz 1x2 HDMI Video Splitter CHM-1022-4K 3D 4K@30Hz 1x2 HDMI Video Splitter CHM-1022-4K 3D 4K@30Hz 1x2 HDMI Video Splitter CHM-1022-4K 3D 4K@30Hz 1x2 HDMI Video Splitter CHM-1022-4K 3D 4K@30Hz 1x2 HDMI Video Splitter CHM-1022-4K 3D 4K@30Hz 1x2 HDMI Video Splitter

CHM-1022-4K 3D 4K@30Hz 1x2 HDMI Video Splitter

  • 3D 4K@30Hz 1x2 HDMI Video Splitter
  • Resolution: 4K 30Hz
  • Support for HDMI 1.4b
  • Support HDCP1.3
  • Product description: 4K*2k 1x2 HDMI 2 Port HDMI Video Splitter Audio Amplifier Repeater 3D 1080p 1 In to 2 Out 1x2 HDMI Splitter Converter HDTV
  • INQUIRY   EMAIL

Product Description:
1.View HD Content on 2 Displays: Distributes 1 HDMI input signal into 2 HDMI output and send it to 2 displays simultaneously without any loss; . Both displays will

have the exactly same video and audio format
2.HDMI Ver 1.4 & HDCP Complaint: Support 4Kx2k @ 30HZ, Ultra HD 3840 x 2160 resolution. HDCP complaint- no need to worry about HDCP handshake issues. Support 3D

(Source, display&HDMI Cables must support 3D)
3.Premium Quality& Delicate Design: The heavy-duty metal enclosure protects the insides and keeps the unit cool by aiding in quick heat absorption and dissipation, 4

indicator lights will show working status
4.Support deep color 30bit, 36bit and XvYCc ; Supported Audio: LPCM,Dolby-AC3, DTS7.1, DSD/Dolby TrueHD/DTS-HD master audio, essentially all available audio options

are supported
5.Compatibility: Can be applied to all the HDMI devices in the market (such as digital HDTV, plasma displayer, LCD monitor, STB, PC, PS4, DLP,, Xbox, DVD players,

Blu-ray, digital cameras, audio and video receiver, practical video, connection between projector systems, signal amplification.) Perfect for projector factory,

conference presentation, school or corporate training environments
6.Support the use of standard AWG26 cable input support 15 meters, the output support 15 meters (1080P and below resolution)
Support the use of standard AWG26 cable input support 8 meters, the output support 10 meters (4K resolution)

Features:
* Full support for HDMI 1.4b;
* Support HDMI video signal;
* Supports HDMI digital audio;
* Support DVI1.0 + HDCP1.3;
* Fully compatible with HDCP;
* Detect whether the HDMI signal input;
* Reconfigure E-EDID data;
* Detection of whether the output device display device;
* Input and output can use HDMI or DVI to HDMI cable;
* Support plug and play, can detect whether the output monitor supports HDCP;
* Supports 480p, 576p, 720p, 1080i, and 1080p.4KX2K resolution.
Maximum resolution: 1920 * 1080P / 60Hz; 3840 × 2160 24Hz / 25Hz / 30Hz;
Power supply: 110V to 240V, 50HZ
Bandwidth: 340MHz (3.4Gbps)

Package:
1 x HDMI 1x4  Splitter
1 x DC5V/1A Power Adapter
1 x User Manual
