CHM-2002-4K

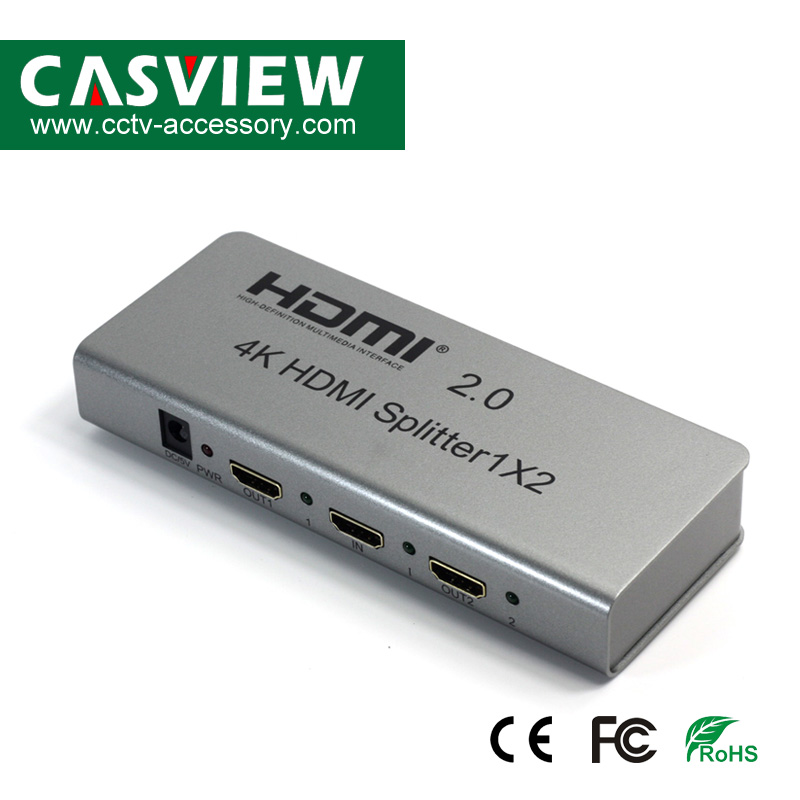

INTRODUCTION

This 1x2 HDMI Splitter use a single HDMI source,accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to 4 HDMI compatible monitors or

projectors. In addition,it can be placed at the end of a long HDMI Cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up to

3840X2160/60Hz.
This product can support EDID management function, comes with eight kinds of EDID mode, the users can choose according to their own needs. In addition, this product is

with built-in IR extension function, it can work with our hdmi 2.0 repeater which has IR-RX to receive the IR command to control the source


FEATURES
Support HDMI 2.0 ,HDCP2.2
Support 3D video format
Support high resolution up to 3840X2160/60HZ
Support the max baud rate of 6G and TMDS clock can be up to 600 MHz
Support  8/10/12 bit deep color
Support AWG26 HDMI standard cable:
when the resolution is 1080p and below, input up to 8 meters,output to 8 meters.
when the resolution is 4K, input up to 8 meters, output up to 8 meters.
Support single HDMI source,accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and etc.
Built-in IR extension function.(it can work with our hdmi 2.0 repeater which has IR-RX to receive the IR command to remote control the source)
Support serial port online upgrade
Support EDID management
5V/2A Power Adapter

Specifications:
HDMI version  …………………………………………………………. HDMI 2.0
HDCP version  …………………………………………………………. HDCP 2.2
HDMI resolution ……………………………………………………up to 3840*2160/60Hz
Support video format ……………………………………………8/10/12bit Deep color
Support audio format………………………………….DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth………………………………………………………….600MHz
Max baud rate…………………………………………………………..6Gbps
Input cable distance.…………………………….(1080p resolution) ≤8m,(4K resolution)≤8m AWG26 HDMI standard cable
Output cable distance…………………………(1080p resolution) ≤8m,(4K resolution)≤8m AWG26 HDMI standard cable
Max working current…………………………………………………....1.4 A
Power adapter format……………………input AC (50Hz, 60Hz) 100V-240V; output:DC5V/2A
Operating Temperature range……………………………………(-15 to +55)
Dimension (L x W x H)……………………………. 220x75x24 (mm)
Weight…….…..……………………………………530g

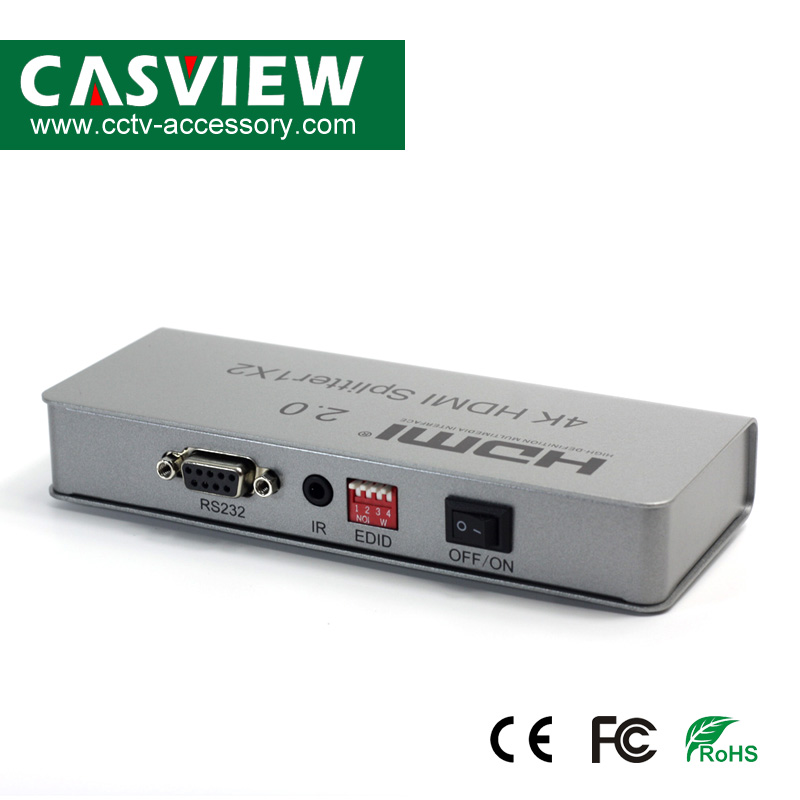

DIP EDID Switch Description:
DIP 1   2   3   4

X  0   0    0    : copy output1 EDID only
X  0   0    1    :  EDID MIX
X  0   1    0    :  EDID Download (RS232)
X  0   1    1    : 4K X 2K  30HZ
X  1   0    0    : 4K X 2K  60HZ
X  1   0    1    : 1080P 3D 2ch
X  1   1    0    : 1080P 2D 2ch
X  1   1    1    : 1080P 2D 5.1ch

DIP[1] is used for upgrades:1 is upgrading mode, 0 is normal working mode (switch down is 1, otherwise is 0)


Working Mode Description:
There are two working mode for product, normal working mode and upgrading mode, which is decided by DIP EDID switch 1, 1 is upgrading mode,0 is normal working mode.

IR Extension description:
There is an IR TX Extension port, it can be used with an optional HDMI 2.0 repeater whichworks as IR-RX and IR extended via HDMI cable

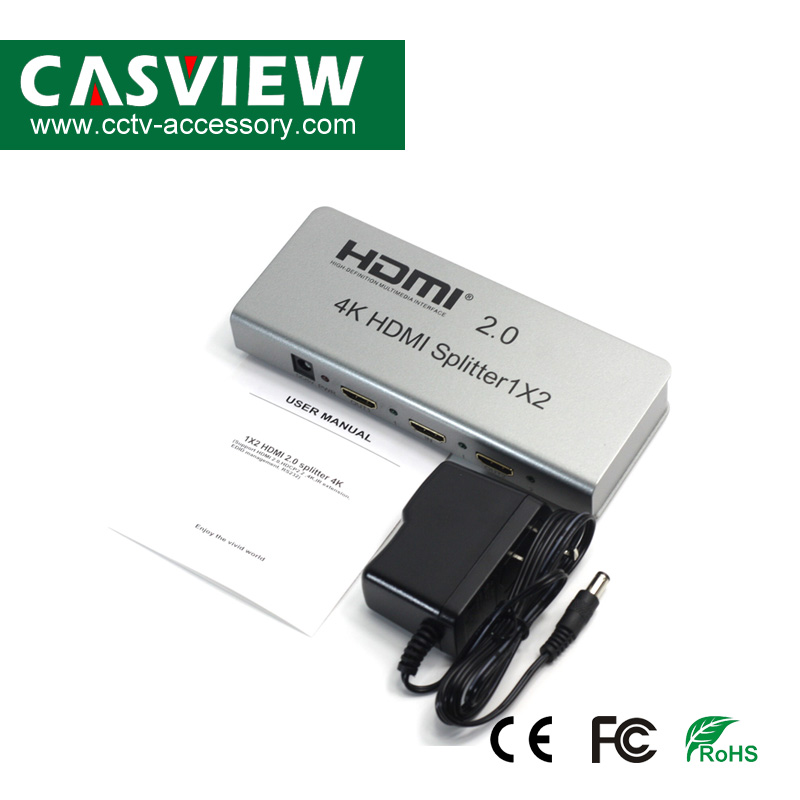

Package include :
1. HDMI splitter
2. Power adapter
3. User manual

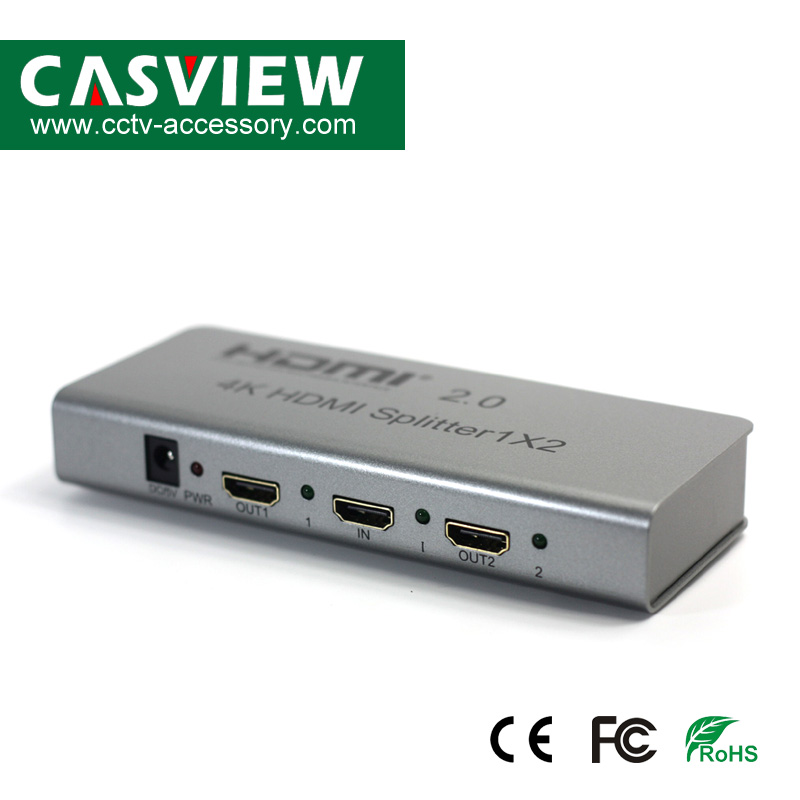

Connection and Operation:
1: connect the HD source to the splitter input with one hdmi cable
2: connect the splitter output to the diaplays with 4 hdmi cables
3: connect 5V/2A power adapter to the splitter
