HDMI Splitter

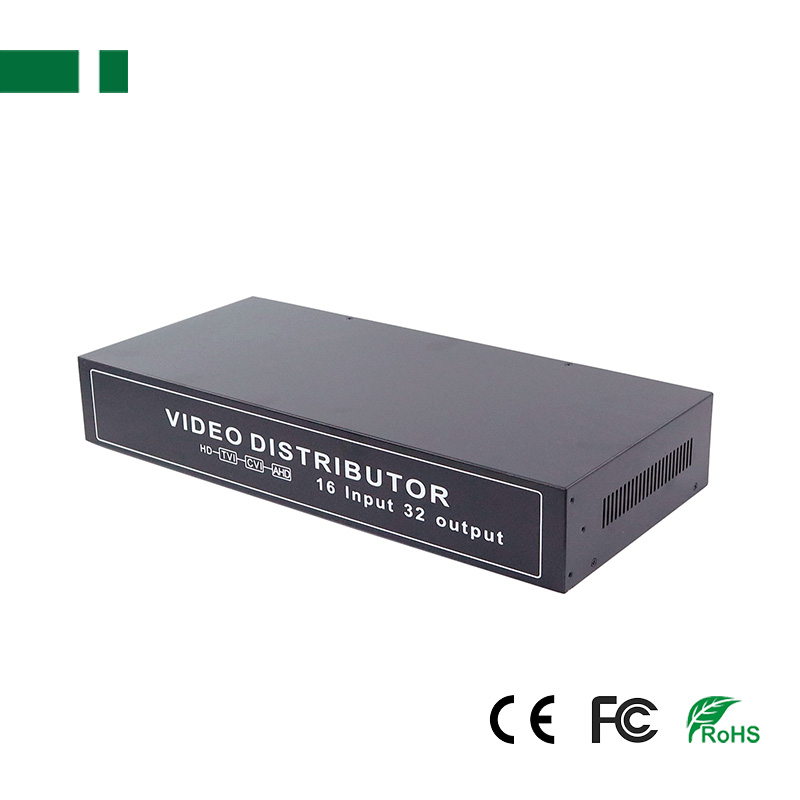

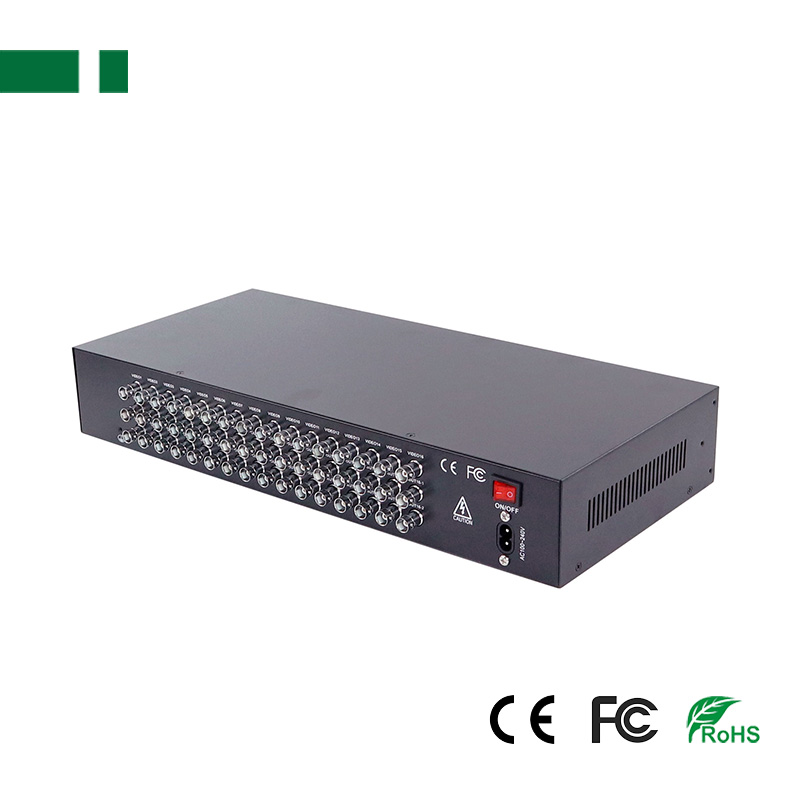

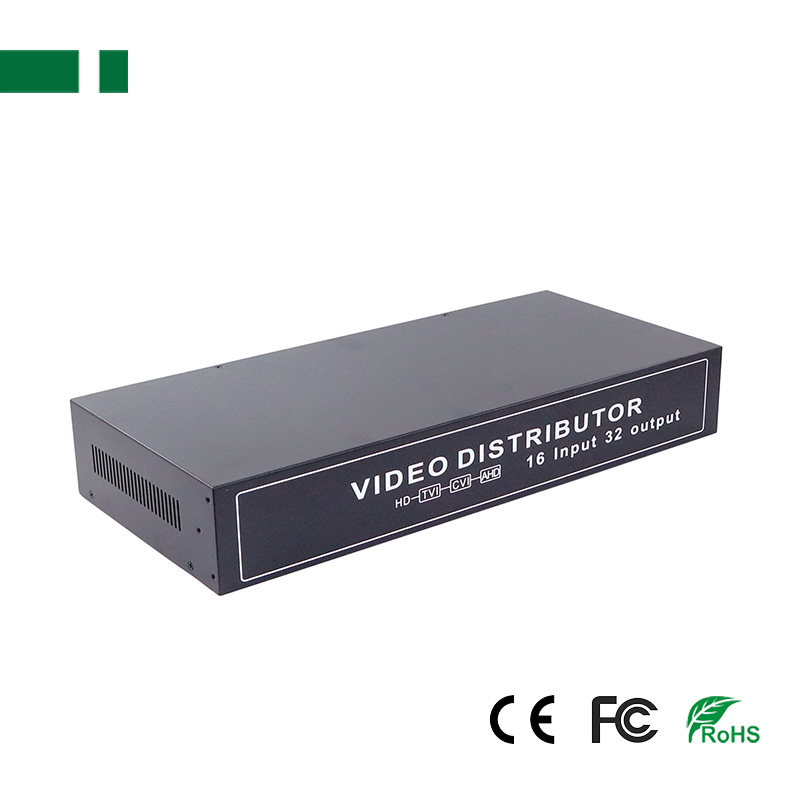

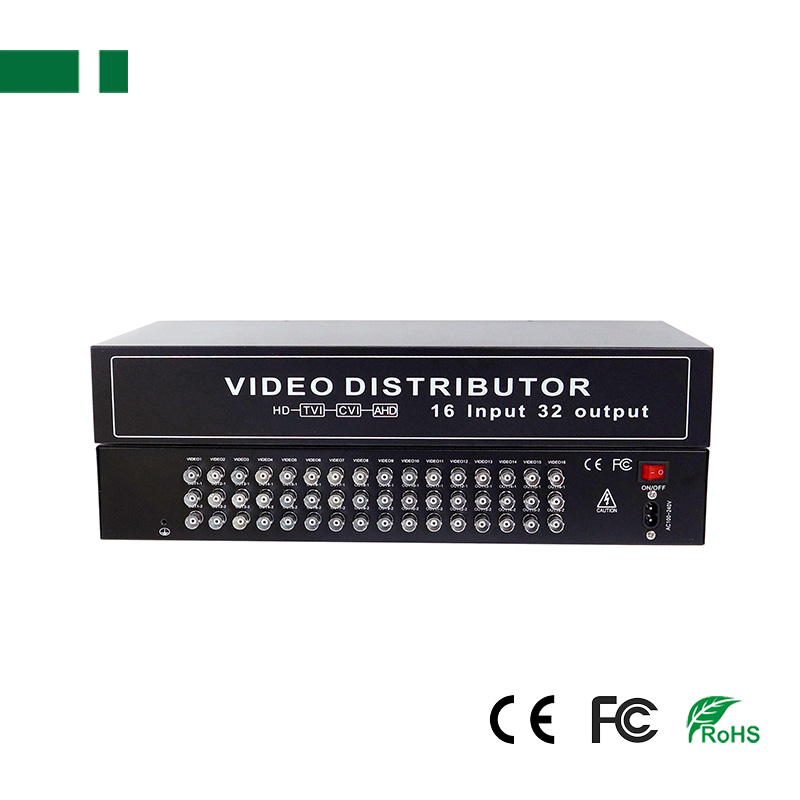

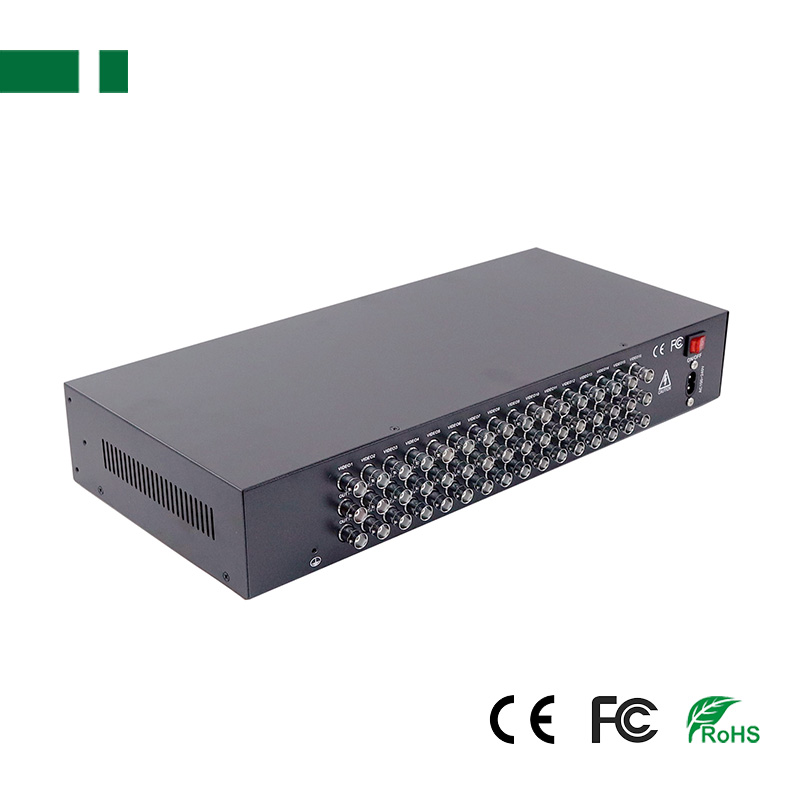

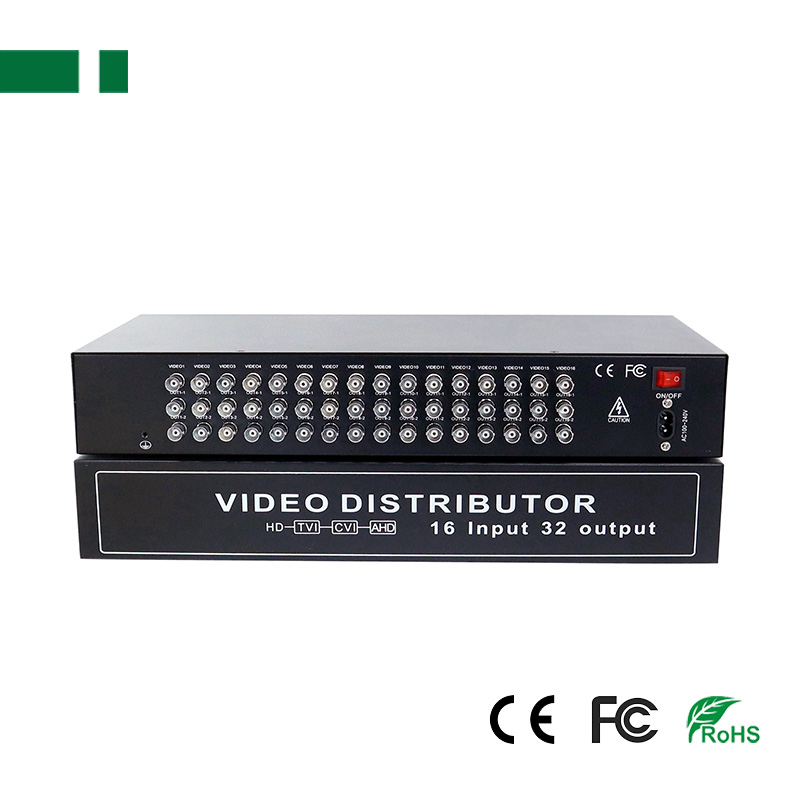

CDV-H1632 16 in 32 out 1080P HD AHD TVI CVI Video Distributor

CDV-H1632 16 in 32 out 1080P HD AHD TVI CVI Video Distributor

16 input 32 output splitter
Support 1080P/ 960P/ 720P
Support HD AHD TVI CVI and CVBS
Transmission up to 400-600 meters
Product description: This CCTV video splitter is one of the portable splitter which can splitter 1 or multi-channel HD CCTV signal to multi-channel signals. suitable for signal transmission over long distances. (400-600Me
INQUIRY EMAIL

16 input 32 output HD AHD/ TVI/ CVI Video Distributor

This CCTV video splitter is one of the portable splitter which can split 16-channel HD CCTV signal to 32-channel signals. This machine is suitable for DVD, VCD, SVCD, multimedia computer, recording and whoever has video output function of the equipment, all can be used as the native source input.Its useful for entertainment, audiovisual education, monitoring and control system, suitable for signal transmission over long distances. (400-600Meter)

Main features:
* Support HD-AHD, HD-TVI, HD-CVI, CVBS/ analog video transmission over UTP;
* 760P/ 960P/ 1080P up to 600 meters;
* 60dB cross talk and noise immunity;
* Frequency respond can be adjusted according to the specific circumstances;
* Support Coaxial two-way data communication, through the receiver to send control signals
* Automatic correction of the signal distortion of different transmission channels.
* Using the Coaxial Cable as the transmission medium.
* 12 months warranty & life time maintenance service.

Specification:

Model	CDV-H1632
Support	16 input & 32 output AHD/ TVI/ CVI/ Analog
Transmission distance	760P/ 960P/ 1080P: 300-600 meters;
Connector	Female BNC and terminal Block
Housing	Aluminium alloy
CMRR	60dB
MTBF	≥ 100000Hours
Impedance	BNC: 75 ohms
Standard video input/output voltage	1.0Vp-p
Video Bandwidth	60MHz
Sampling Frequency	120MHz
Rise and Fall time	<0.8ns
Differential Gain	< ±1.5%
Differential Phase	< ±1°
Category type	Coaxial Cable, RG59/ RG6 suggested
Working temperature	-10℃ to +70℃
Storage temperature	-30℃ to +70℃
Humidity	0-95%
Power	AC220V
Power Consumption	≤3W
Dimension	49019070mm
Unit Weight	2.3kg
Warranty	12months

Cautions installation

1). Do not attempt to disassemble the unit.
To prevent electric shock, do not attempt to disassemble this unit.There are no user serviceable parts inside.Ask qualified service person for servicing.
2). Handle the unit with care.
Do not abuse the unit.Avoid striking, shaking,etc.improper handling or storage could damage the unit.
3) Do not expose the unit to rain or moisture,or try to operate it in wet areas.
Turn the power off immediately and ask a qualified service person for servicing. Moisture can damage the unit and also create the danger of electric shock.
4). Do not use strong or abrasive detergents when cleaning the unit.
Use a soft cloth to clean the unit when dirty.In case the dirt is hard to remove,use a mild detergent and wipe gently.
5). Do not operate the unit beyond the specified temperature, humidity or power source ratings.
Use the unit under conditions where temperature is between –10 ℃ -+45 ℃ and humidity is below 90%.
The input power source is 220VAC.
