HDMI Splitter

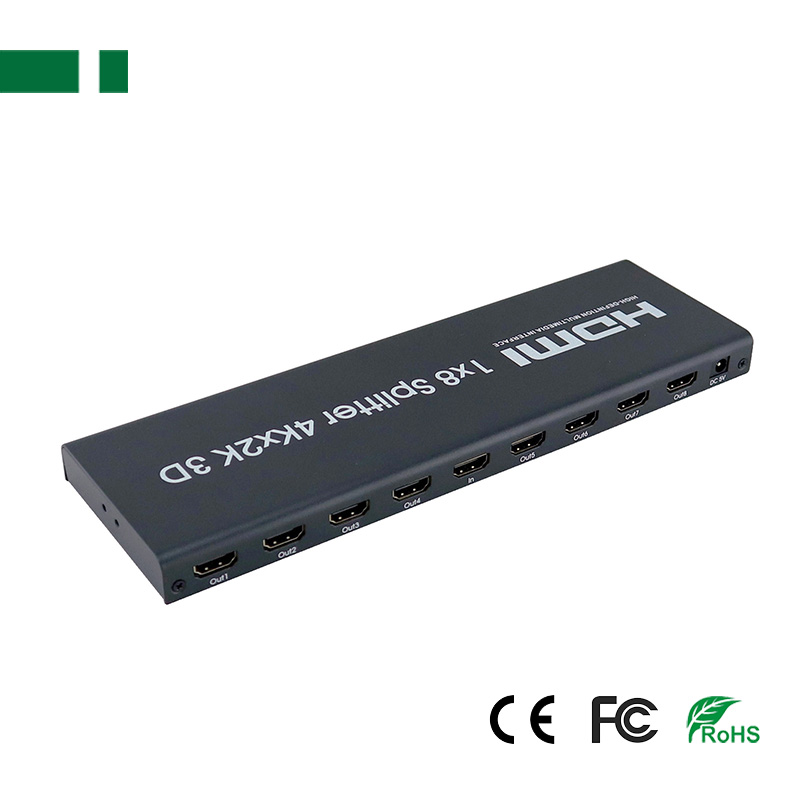

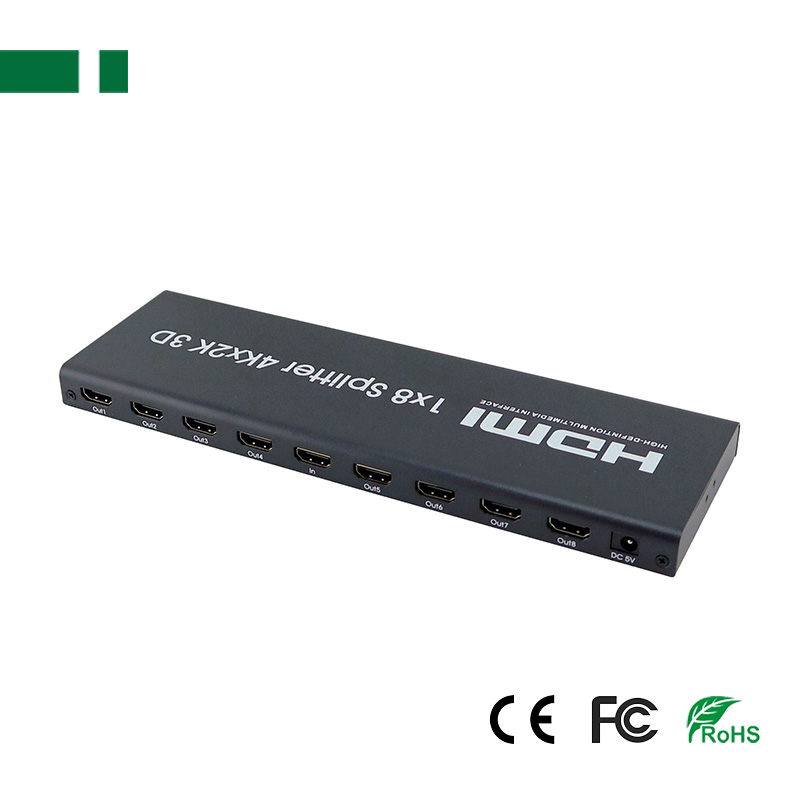

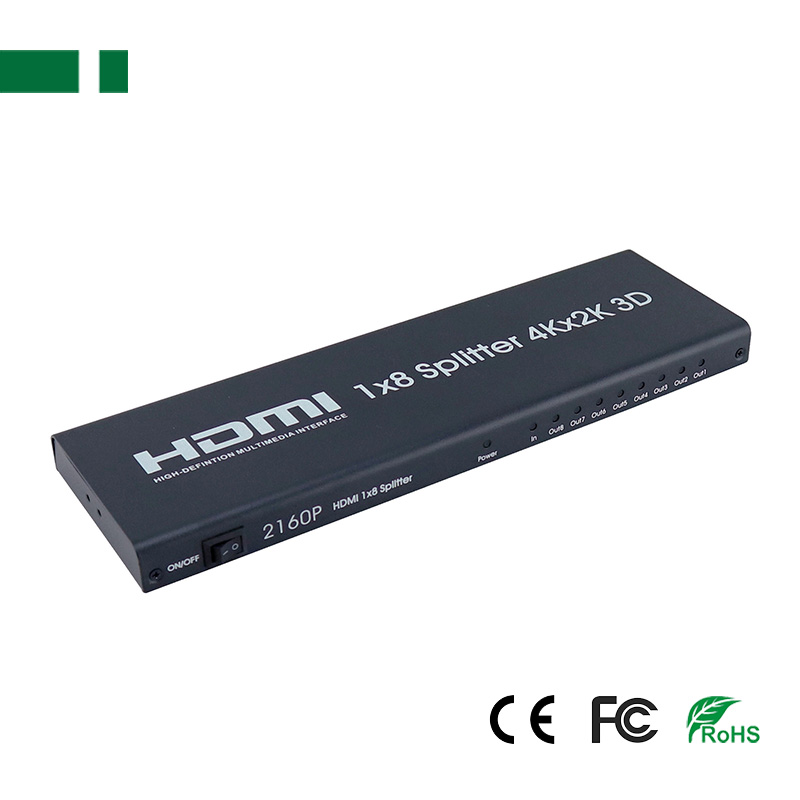

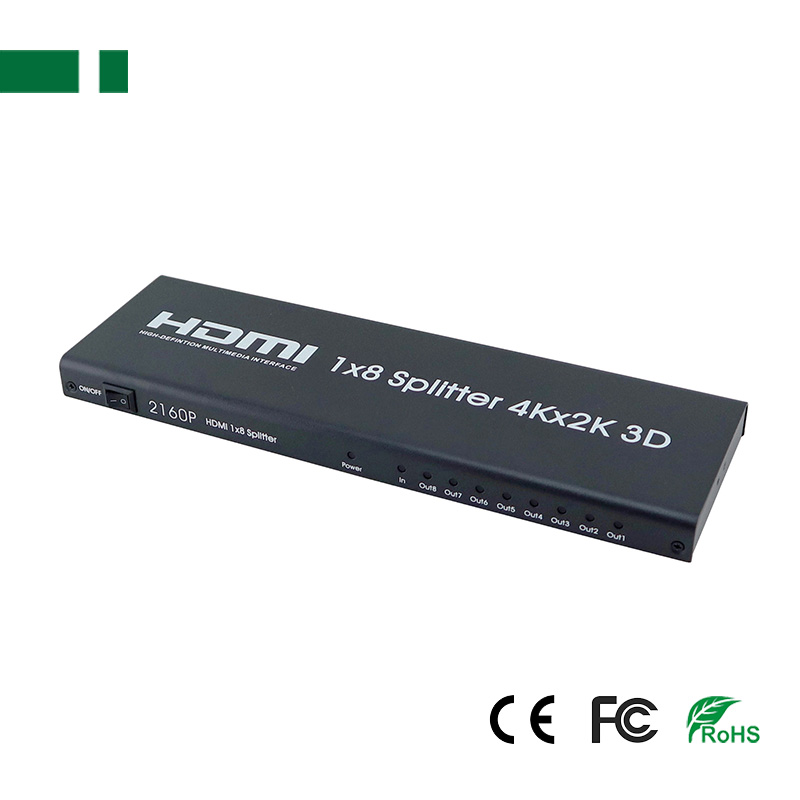

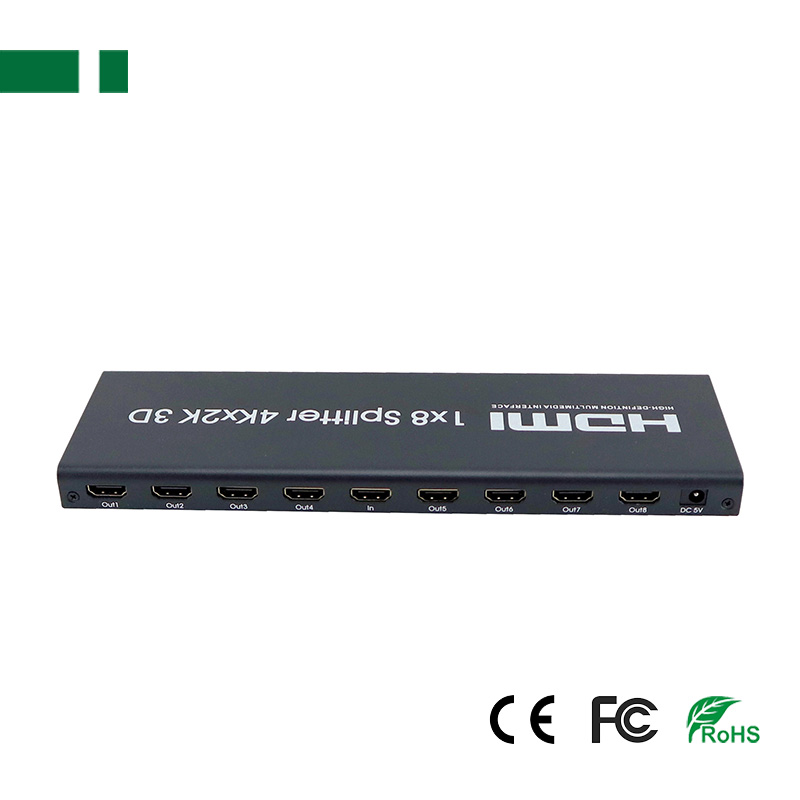

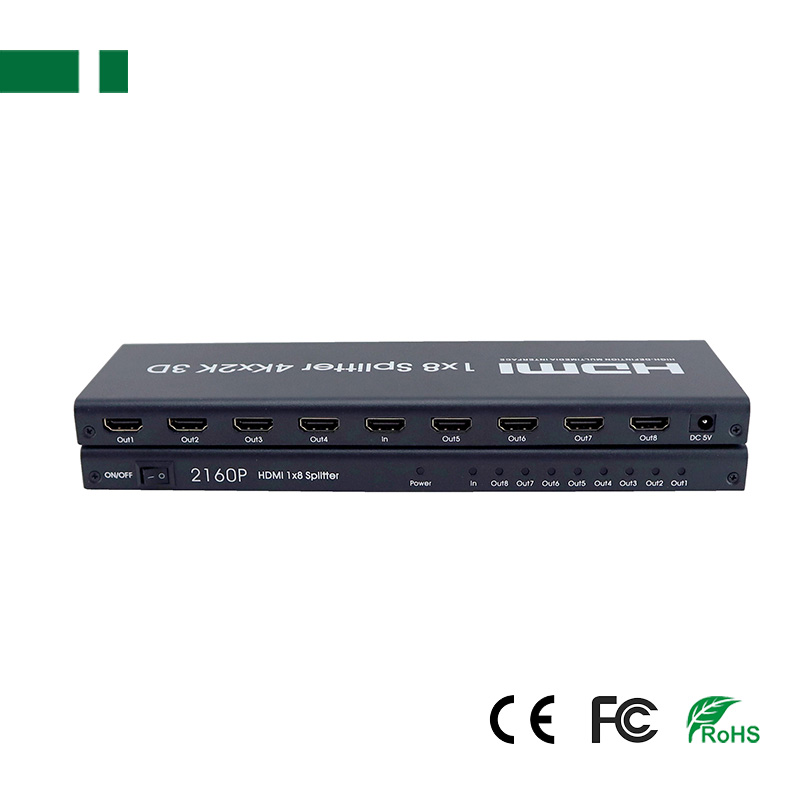

CHM-1018-4K 3D 4K@30Hz 1x8 HDMI Video Splitter

CHM-1018-4K 3D 4K@30Hz 1x8 HDMI Video Splitter

3D 4K@30Hz 1x8 HDMI Video Splitter
Resolution: 4K 30Hz
Support for HDMI 1.4b
Support HDCP1.3
Product description: 4K*2k 1x8 HDMI 8 Port HDMI Video Splitter Audio Amplifier Repeater 3D 1080p 1 In to 8 Out 1x8 HDMI Splitter Converter HDTV
INQUIRY EMAIL

Description:
The HDMI Splitter Distributes HDMI input into 8 identical outputs, both outputs need to be the same pixels. The splitter supports 120HZ 3D projection conversion - only if your device supports 3D
Supports: 4K*2K@30Hz, 1080P@120Hz and 1080P 3D@60Hz HD video solution for supermarkets, shopping malls, HDTVs, STB, DVDs, projector factories, data control centers, information distribution, conference rooms presentation, education and training, corporation showrooms, home theaters and more.

Features:
1. HD 4K*2K@30Hz HDMI Splitter 1x8
2. Support Full HD, Full 3D (If your devices support 3D)
3. Support up to 3840x2160@30Hz
4. Support deep color 30bit, 36bit
5. Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
6. Digital audio format, as DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD/HD(HBR)
7. Support signal Retiming
8. Support AWG26 HDMI standart cable: input up to 12 meter, output up to 20 meters. (When the resolution is 4K, input up to 8 meters; output up to 8 meters)
9. No loss of quality

Specifications:

Model	CHM-1002-4K	CHM-1012-4K	CHM-1022-4K	CHM-1004-4K	CHM-1014-4K	CHM-1008-4K	CHM-1018-4K	CHM-1016-4K
Signal Input	1ch HDMI input			1ch HDMI input		1ch HDMI input		1ch HDMI input
Signal Output	2chs HDMI output			4chs HDMI output		8chs HDMI output		16chs HDMI output
HDMI connector	19-Pin HDMI Female Port
HDMI Version	HDMI 1.4V + HDCP 1.3 (compatible HDMI 1.3/ 1.2/ 1.1/ 1.0)
Support Video Format	DTV/HDTV: 480i/ 576i/ 480p/ 576p/ 720p/ 1080i/ 1080p/ 3D/ 3840x2160 Video
Support Audio Format	DTS-HD Master Audio, Dolby true-HD etc.
Color Format	Xv-YCC/ Deep Color up to 48bit
Max baud rate	10.2Gbps
Operating Frequency	Up to 340MHz
Max. Cable Extension	15 meters by 28AWG HDMI Cable; 20 meters by 26AWG HDMI cable
Power consumption	10 watts (Maximum)
Input/output DDC Signal	5 volts p-p (TTL)
Input/Output TMDS Signal	0.5~1.5 Volts p-p
Max Working Current	1.4A
Power Adapter	DC5V input			DC5V input		DC5V input		DC12V input
Operating Temperature	(- 15 to + 55 Celsius degree)
Operating Humidity	5% to 90% RH (No Condensation)
Material	Polished iron	ABS Plastic	Polished iron			Polished iron
Dimension	656020mm	625012mm	1065120mm	1806822mm	956020mm	27711025mm	2568018mm	49025060mm
Weight	80g	45g	125g	245g	112g	550g	480g	1600g
