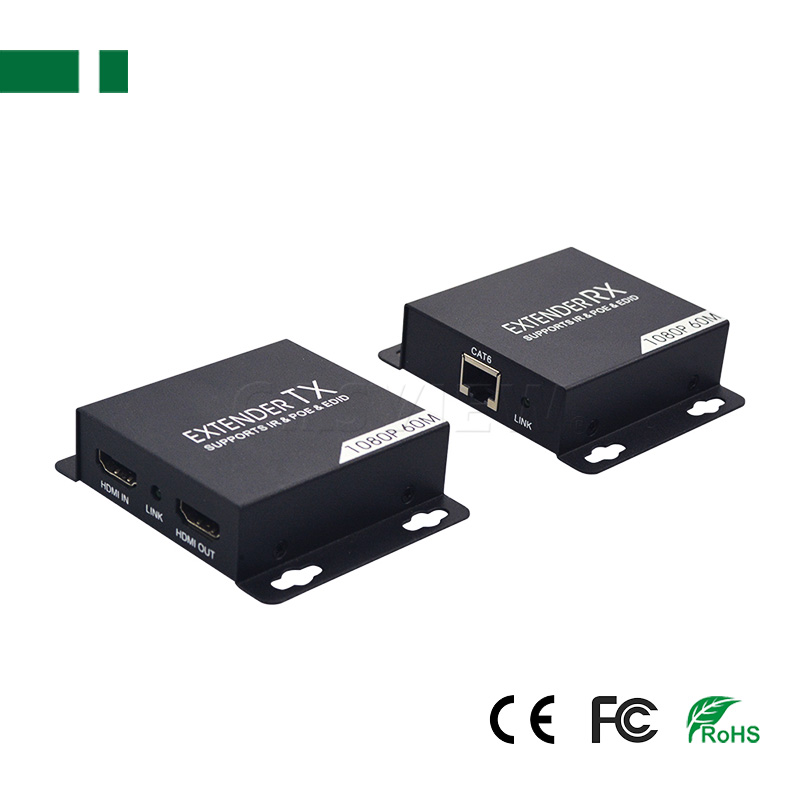

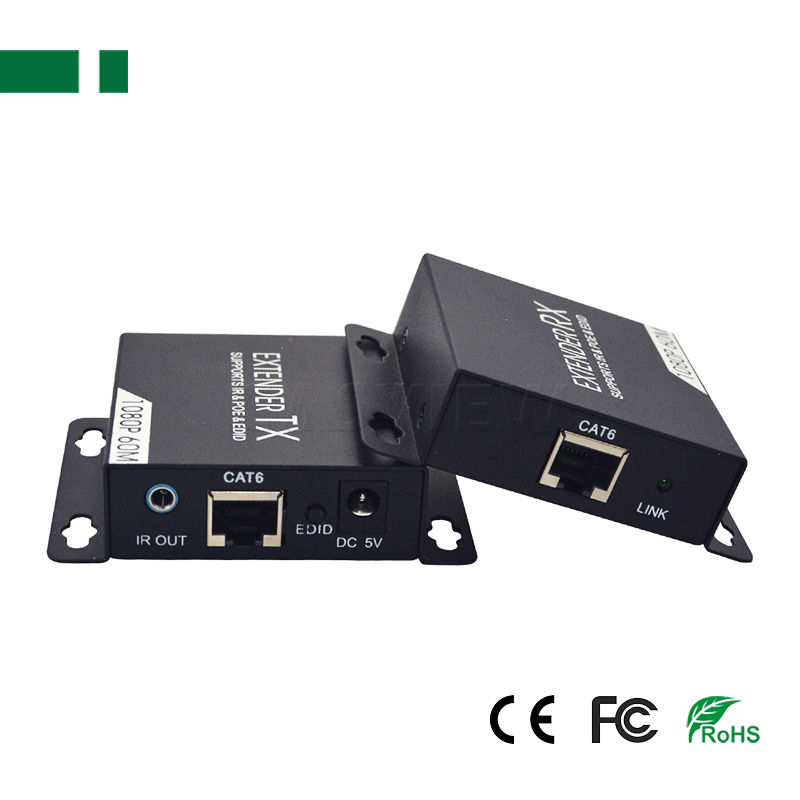

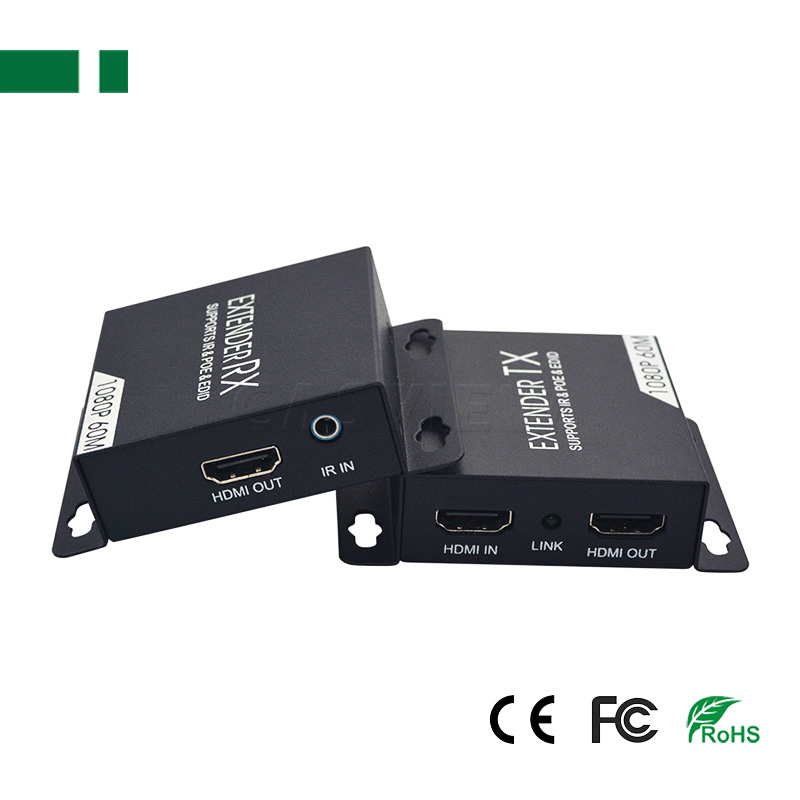

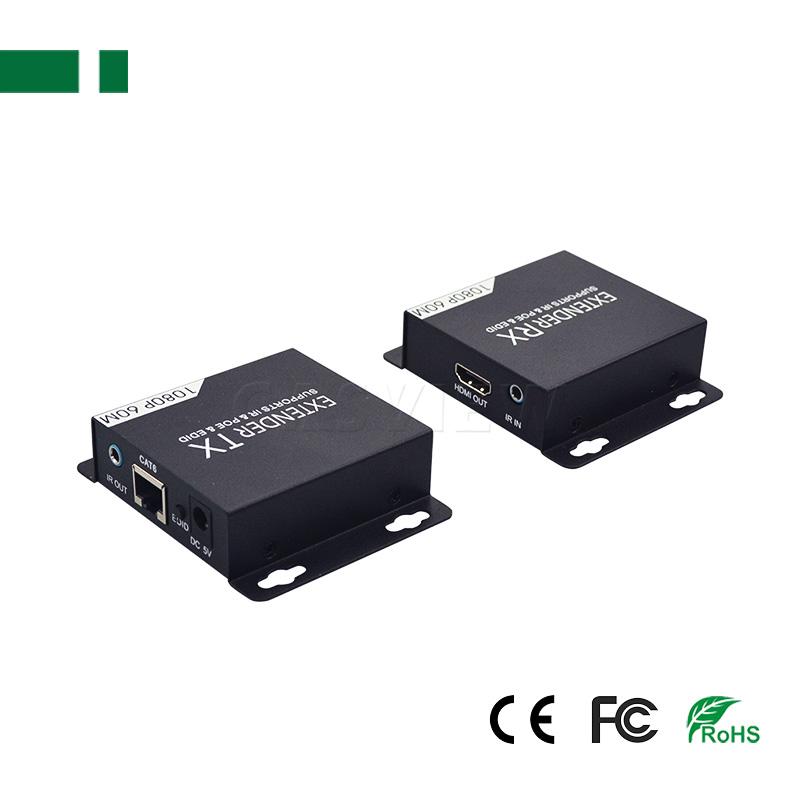

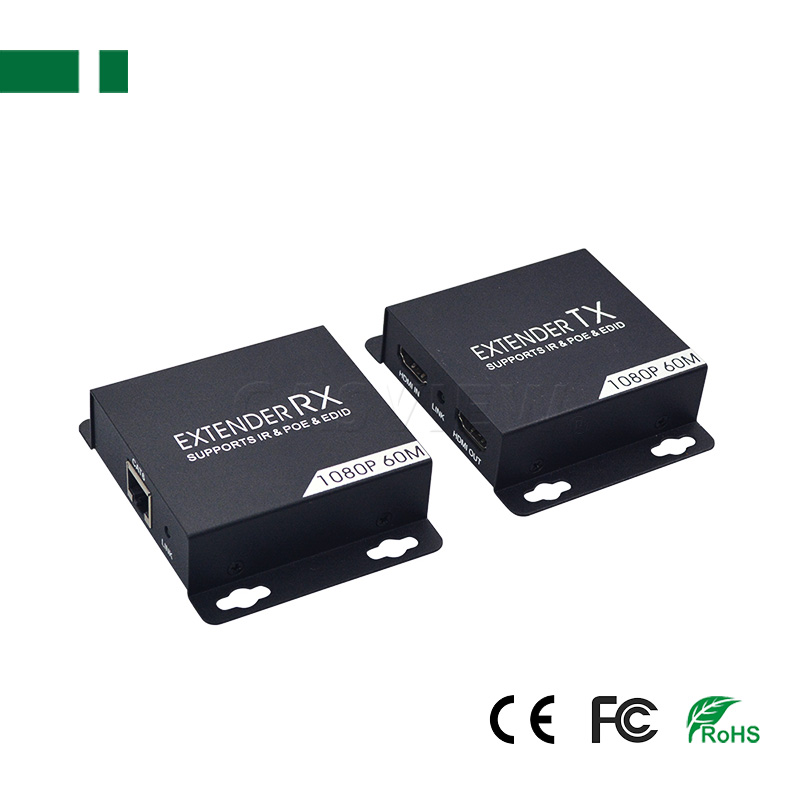

CHM-0860 60 Meters HDMI Extender with HDMI Loop Output

Download for More Details

60 Meters HDMI Extender with HDMI Loop Output

Introduction：
Long distance transmission of high definition signals is very difficult because HDMI Cable is very expensive and infrequent. This HDMI extender breaks the problem of the expensive HDMI cable transmission distance, simply use one network cat6/cat6a/cat7 cable in stead of HDMI cable to extend HDMI signal to 60m , saving your money and space,It also supports EDID learning and is perfectly compatible with any display.

Features:
1. Supports HDMI 1.3.
2. Follow standard IEEE-568B.
3. Can extend HDMI 1080p signal to 60m.
4. Support up to 20m cable length between the extender and the source device when use HDMI/AWG26 cable.
5. Support Poe Network Cable power supply, only need TX power supply
6. It also supports EDID learning and is perfectly compatible with any display.
7. Indicator LED can indicate the working status.
8. Allows you control a DVD player or other HDMI video source from a remote location with the included IR cables.
9. Automatic adjustment to match cable length.
10. Installs in minutes. No need driver. Plug and play.


Specification:
Specification：
Support HDCP Version......................................................................HDCP1.2
Support HDMI Resolution...................480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
Transmit Length...............more than 60m by CAT6 Cable or higher level cable
Support Network Cable..................................................CAT6, CAT6A, CAT7
Power Supply....................................................................................DC5V 1A
Support IR remote control..................................................................20-60Khz
Power Consumption...........................................................TX: 1.5W; RX< 1W
Operating Temperature........................................0～60℃
Case Dimension.................................66.8x82.6x21.3mm*2pcs
Weight.....................................................105g*2pcs
Case Material..................................................Metal
Color..........................................................Black

Package Contents：
HDMI to RJ45 sender TX..........................................1pcs
RJ45 to HDMI receiver RX......................................1pcs
DC5V/1A Power Adapter..........................................1pcs
IR blaster extension cable.....................................1pcs
IR receiver extension cable...................................1pcs
User Manual...................................................1pcs
