CHM-0815 150 Meters HDMI Extender with HDMI Loop Output

Download for More Details

150 Meters HDMI Extender with HDMI Loop Output

Introduction：
Long distance transmission of high definition signals is very difficult because HDMI Cable is very expensive and infrequent. This HDMI extender breaks the problem of the expensive HDMI cable transmission distance, simply use one network cat6/cat6a/cat7 cable in stead of HDMI cable to extend HDMI signal to 150m , At the same time, it supports POE Network Cable power supply, only one of which needs to be powered.saving your money and space.
This HD extender also has the characteristics of lossless, no compression and no delay, which perfectly solves the problem of unclear picture quality of the traditional extender, and can be widely applied in various occasions where the transmission picture quality is required to be high.

Features:
1. Supports HDMI 1.3b.
2. Supports HDCP 1.4.
3. Support POE network cable power supply, only need one of the power supply TX or RX
4. Compatible with IEEE-568A and IEEE-568B standards.
5. Extend HDMI 1080p HD signal to 150m, Lossless, HD picture quality .

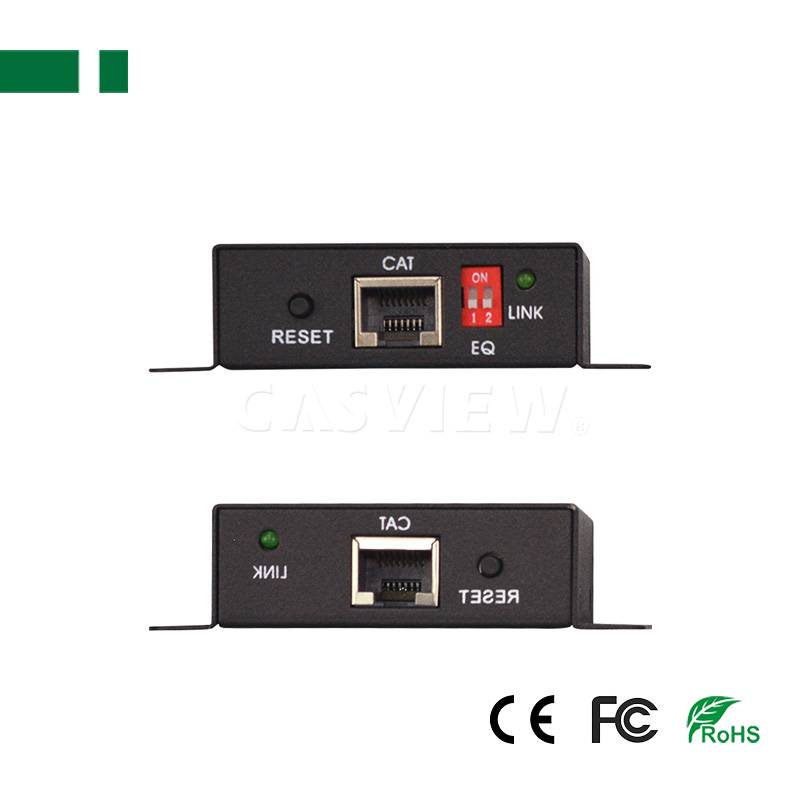

6. Indicator LED can indicate the working status.
7. Allows you control a DVD player or other HDMI video source from a remote location with the IR cables.
8. EQ adjustment function to achieve the best match between HD picture quality and cable length.
9. Installs in minutes. No need driver. Plug and play.

Specification:
Transmission Distance .........................0-150M(Use Cat 6 and above cable )
Support Network Cable....................................................CAT6, CAT6A, CAT7
Power Supply...........................................................................DC12V 1A 1pcs
Support IR remote control..................................................................30-60Khz
Power Consumption..............................................................TX: 2W; RX< 2W
Operating Temperature........................................................................0～60℃
HDMI Input length.....................................................................................≤8M
HDMI Output length...................................................................................≤8M
Case Dimension........................................................66.8x82.6x21.3mm*2pcs
Weight..............................................................................................105g*2pcs
Case Material...........................................................................................Metal
Color.........................................................................................................Black

Package Contents：
HDMI to RJ45 sender TX.........................................................................1pcs
RJ45 to HDMI receiver RX.......................................................................1pcs
DC12V/1A Power Adapter........................................................................1pcs
IR blaster extension cable........................................................................1pcs
IR receiver extension cable......................................................................1pcs
User Manual.............................................................................................1pcs
