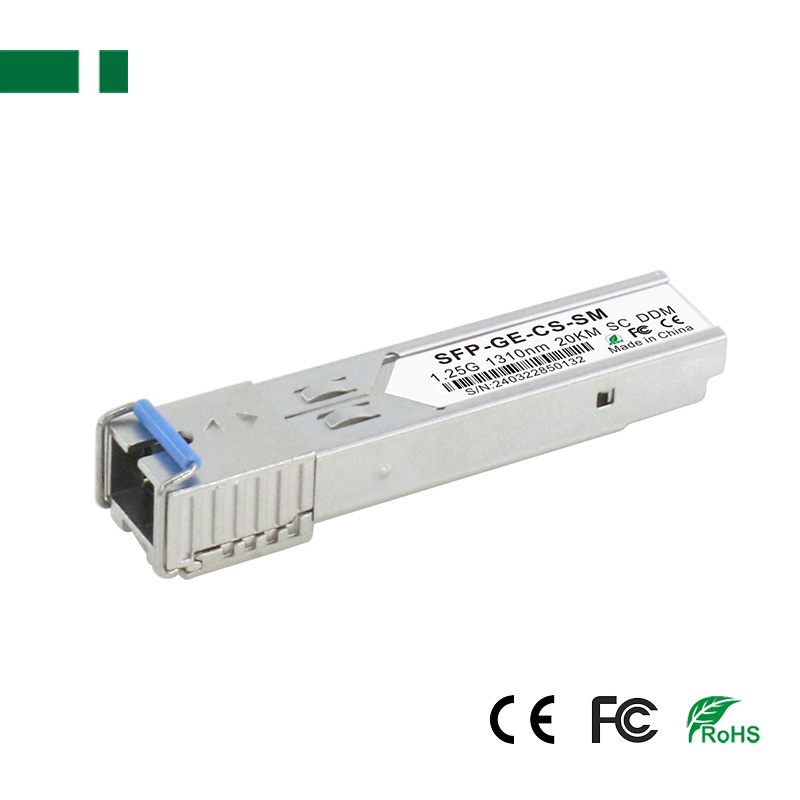

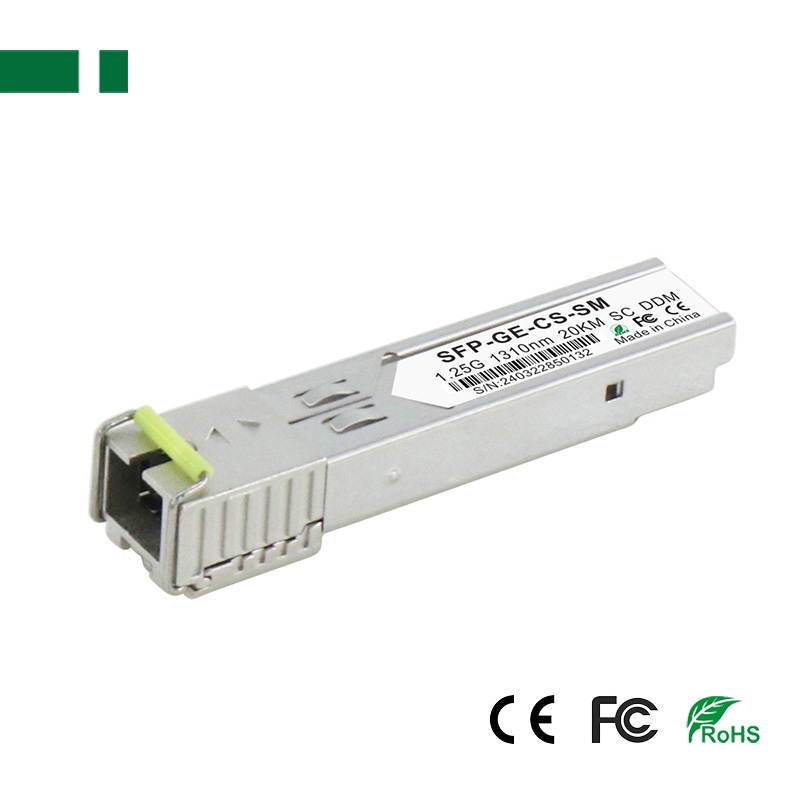

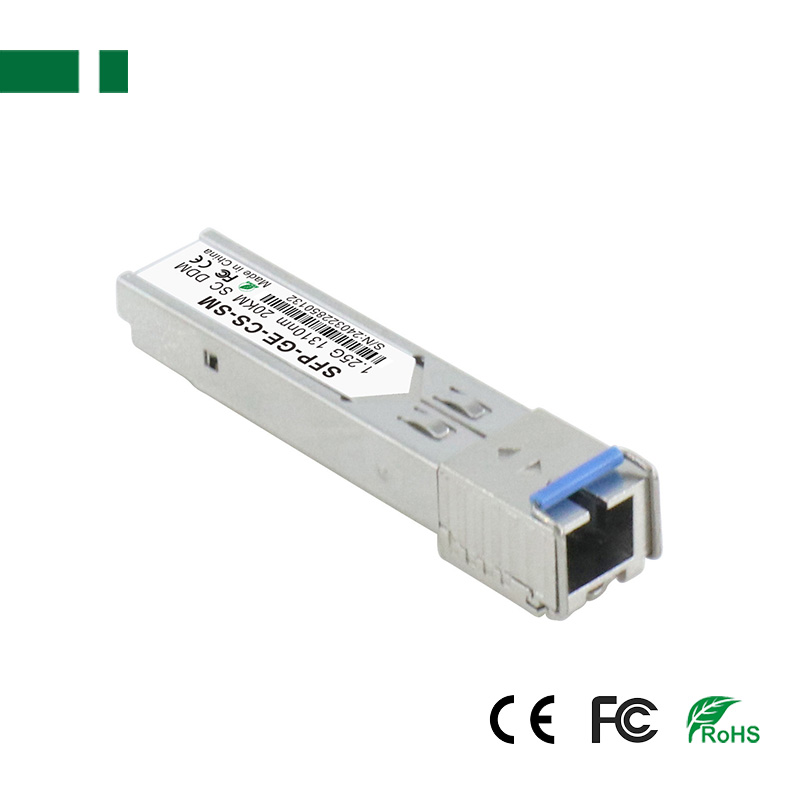

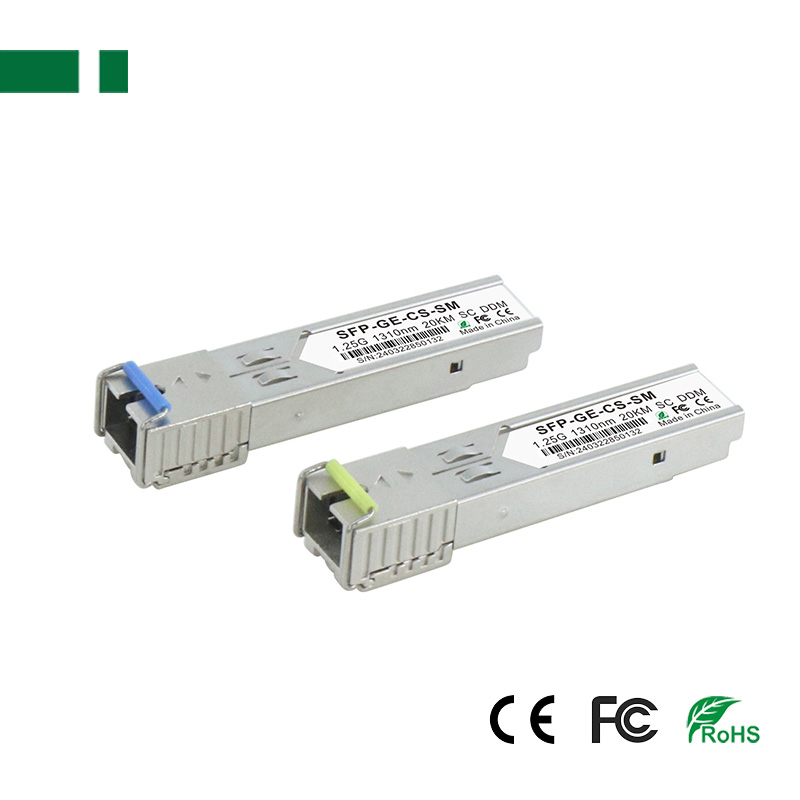

SFP-GE-CS-SM 1.25Gbps 1310nm Single-mode Simplex SC fiber SFP Transceiver

  • Data Rate: Up to 1.25Gb/s data links;
  • Transmission Distance: 3KM/ 20KM/ 40KM/ 80KM/ 100KM/ 120KM
  • Wave Length: 1310nm, 1490 or 1550nm;
  • Fiber Type: Simplex SC/UPC type
  • Product description: Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA).
  • INQUIRY   EMAIL
1.25Gbps 1310nm Single-mode Simplex SC fiber SFP Transceiver Compliant with SFF-8472 and DDM Function

Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of four sections: the LD driver, the limiting amplifier, the DFB laser and the PIN photo-detector.

The optical output can be disabled by a TTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.

Feature:
1. Data Rate: Up to 1.25Gb/s data links;
2. DFB laser transmitter and PIN photo-detector;
3. Transmission Distance: 3KM/ 20KM/ 40KM/ 80KM/ 100KM/ 120KM (on 9/125μm SMF Fiber Optic Patch Cord);
4. Wave Length: 1310nm, 1490 or 1550nm;
5. Fiber Type: Simplex SC/UPC type pluggable optical interface;
6. With DDM/DOM: Internal or External Calibration;
7. Low power dissipation;
8. ROHS compliant and Lead Free;
9. Metal enclosure, for lower EMI, Hot-pluggable, Plug and Play;
10. Single +3.3V Power Supply;
11. Compatible with optical fiber equipment from Huawei, ZTE, H3C, Cisco, TPLINK, Ruijie, Dell, HP, Intel, NETGEAR, Juniper, AMD and other brands;
12. Case operating temperature: Commercial: 0°C to +70°C; Extended: -10°C to +80°C; Industrial: -40°C to +85°C.

Applications:
● Switch to Switch Interface;
● Gigabit Ethernet;
● Switched Backplane Applications;
● Router/Server Interface;
● Other Optical Links.

Specification:
Model Data Rate Connector Wave Fiber Distance Operating Temperature Compatibility
SFP-GE-CS-SMA-3KM 1.25Gbps 1*SC 1310nm Single-mode 3KM

Commercial:

0°C to +70°C;

Extended:

-10°C to +80°C;

Industrial:

-40°C to +85°C

Compatible with optical fiber equipment from Huawei, ZTE, H3C, Cisco, TPLINK, Ruijie, Dell, HP, Intel, NETGEAR, Juniper, AMD and other brands.
SFP-GE-CS-SMB-3KM 1550nm 3KM
SFP-GE-CS-SMA-20KM 1310nm 20KM
SFP-GE-CS-SMB-20KM 1550nm 20KM
SFP-GE-CS-SMA-40KM 1310nm 40KM
SFP-GE-CS-SMB-40KM 1550nm 40KM
SFP-GE-CS-SMA-80KM 1490nm 80KM
SFP-GE-CS-SMB-80KM 1550nm 80KM
SFP-GE-CS-SMA-100KM 1490nm 100KM
SFP-GE-CS-SMB-100KM 1550nm 100KM
SFP-GE-CS-SMA-120KM 1490nm 120KM
SFP-GE-CS-SMB-120KM 1550nm 120KM
