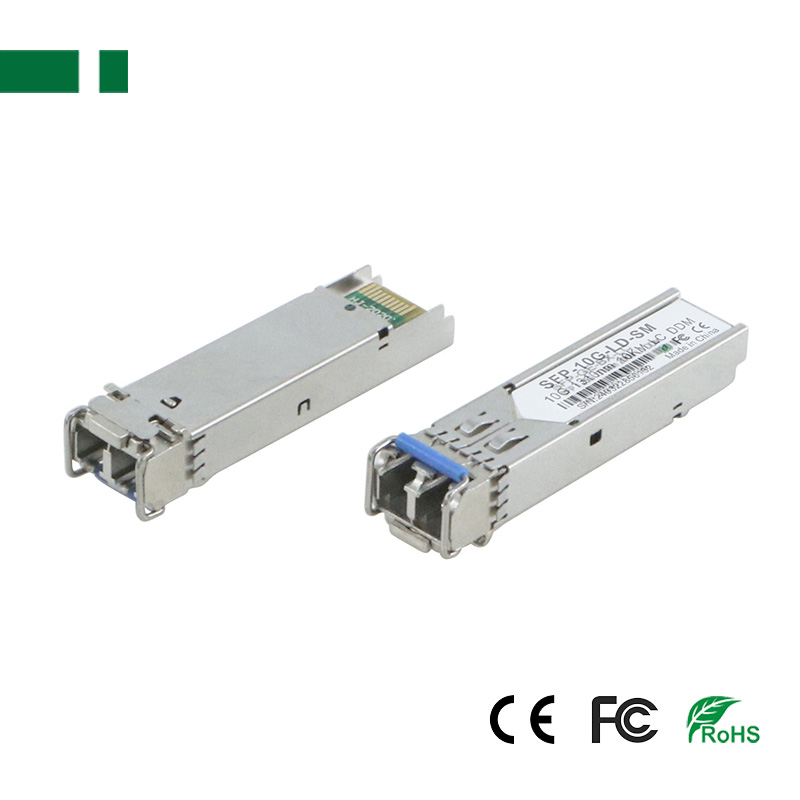

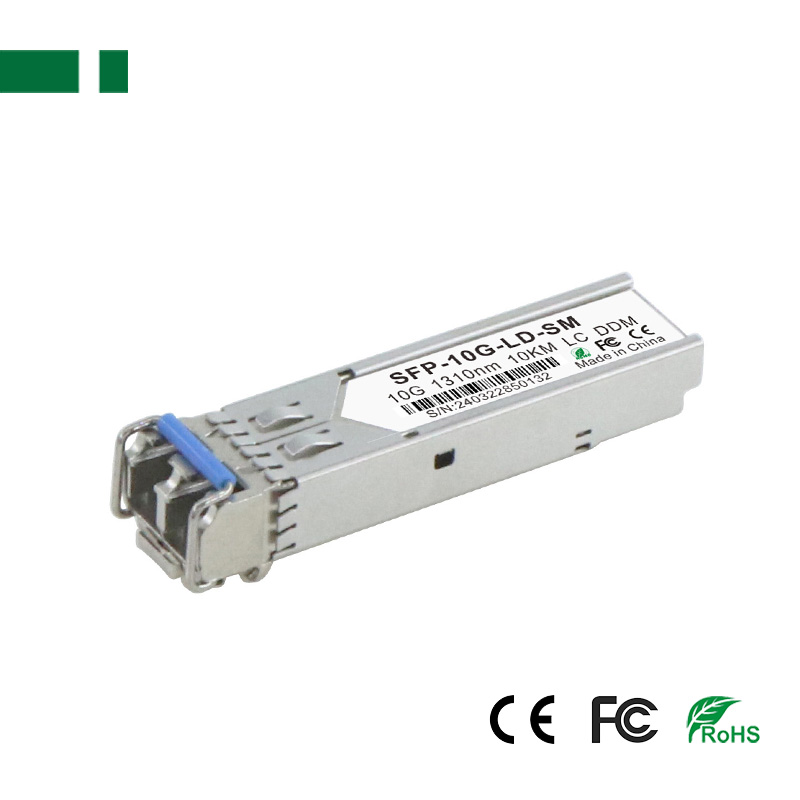

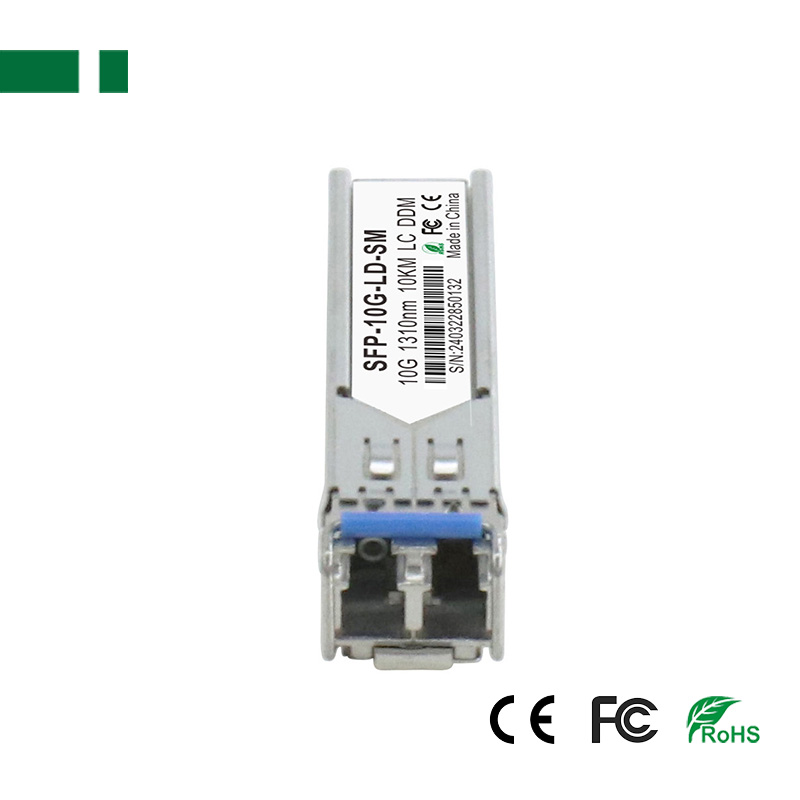

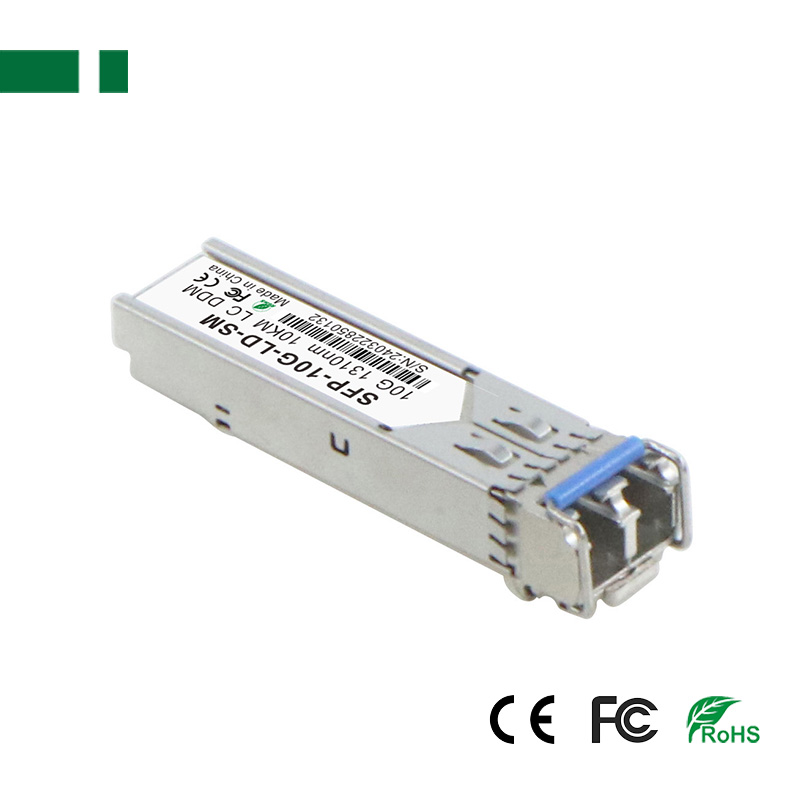

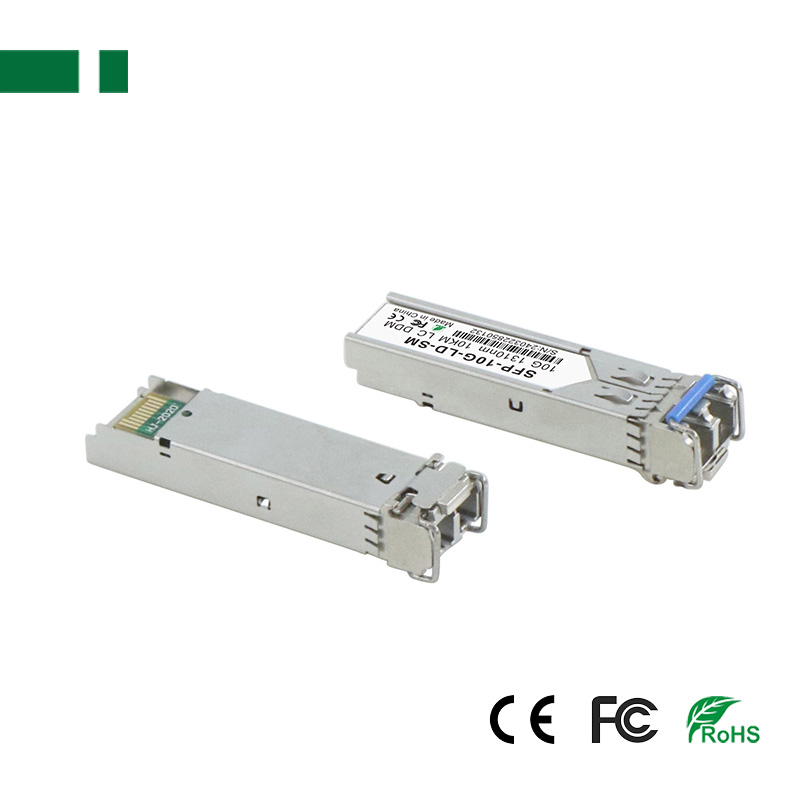

SFP-10G-LD-SM 10Gbps 1310nm Single-mode Duplex LC fiber SFP Transceiver

SFP-10G-LD-SM 10Gbps 1310nm Single-mode Duplex LC fiber SFP Transceiver

Data Rate: Up to 10Gb/s data links;
Transmission Distance: 10KM/ 20KM/ 40KM/ 80KM/ 100KM
Wave Length: 1310nm or 1550nm;
Fiber Type: Duplex LC/UPC type
Product description: Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA).
INQUIRY EMAIL

10Gbps 1310nm Single-mode Duplex LC fiber SFP Transceiver Compliant with SFF-8472 and DDM Function

Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of four sections: the LD driver, the limiting amplifier, the DFB laser and the PIN photo-detector.

The optical output can be disabled by a TTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.

Feature:
1. Data Rate: Up to 10Gb/s data links;
2. DFB laser transmitter and PIN photo-detector;
3. Transmission Distance: 10KM/ 20KM/ 40KM/ 80KM/ 100KM (on 9/125μm SMF Fiber Optic Patch Cord);
4. Wave Length: 1310nm or 1550nm;
5. Fiber Type: Duplex LC/UPC type pluggable optical interface;
6. With DDM/DOM: Internal or External Calibration;
7. Low power dissipation;
8. ROHS compliant and Lead Free;
9. Metal enclosure, for lower EMI, Hot-pluggable, Plug and Play;
10. Single +3.3V Power Supply;
11. Compatible with optical fiber equipment from Huawei, ZTE, H3C, Cisco, TPLINK, Ruijie, Dell, HP, Intel, NETGEAR, Juniper, AMD and other brands;
12. Case operating temperature: Commercial: 0°C to +70°C; Extended: -10°C to +80°C; Industrial: -40°C to +85°C.

Applications:
● Switch to Switch Interface;
● Gigabit Ethernet;
● Switched Backplane Applications;
● Router/Server Interface;
● Other Optical Links.

Specification:

Model	Data Rate	Connector	Wave	Fiber	Distance	Operating Temperature	Compatibility
SFP-GE-LD-SM-10KM	1.25Gbps	2*LC	1310nm	Single-mode	10KM	Commercial: 0°C to +70°C; Extended: -10°C to +80°C; Industrial: -40°C to +85°C	Compatible with optical fiber equipment from Huawei, ZTE, H3C, Cisco, TPLINK, Ruijie, Dell, HP, Intel, NETGEAR, Juniper, AMD and other brands.
SFP-GE-LD-SM-20KM			1310nm		20KM
SFP-GE-LD-SM-40KM			1310nm		40KM
SFP-GE-LD-SM-80KM			1550nm		80KM
SFP-GE-LD-SM-100KM			1550nm		100KM
SFP-GE-LD-SM-120KM			1550nm		120KM
