SFP Module

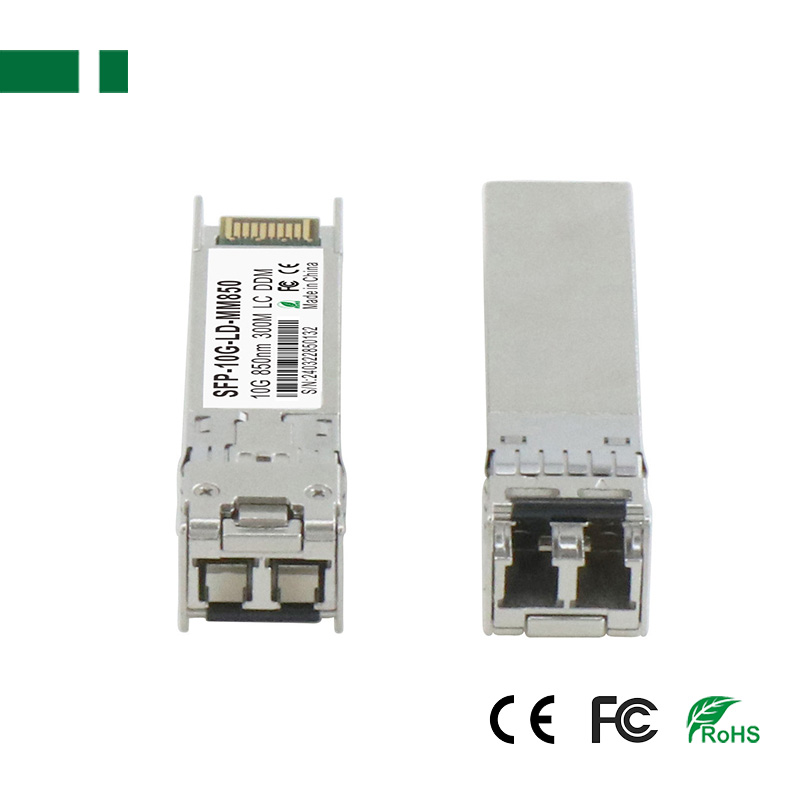

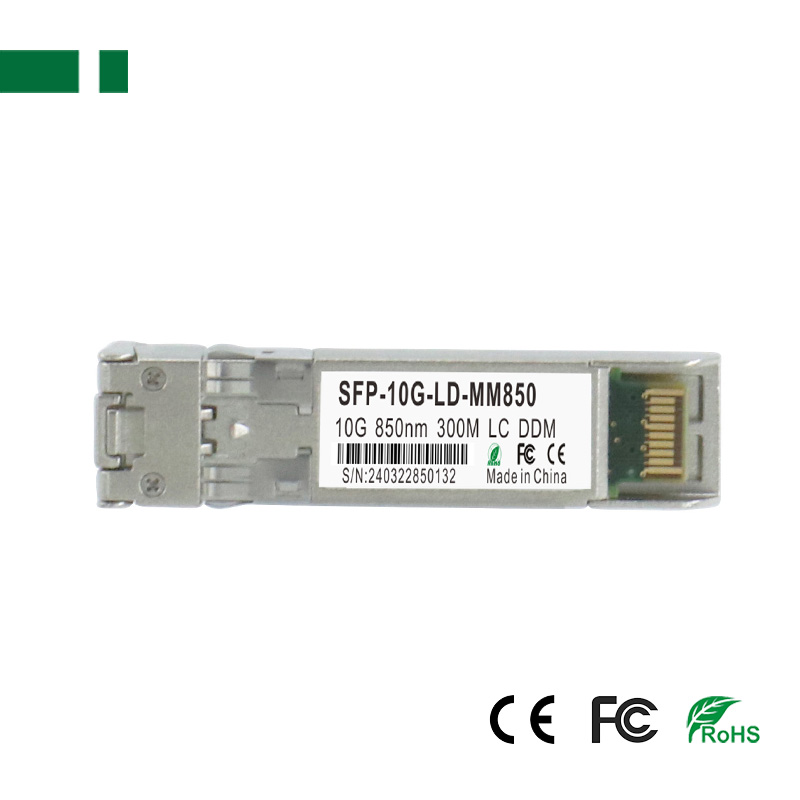

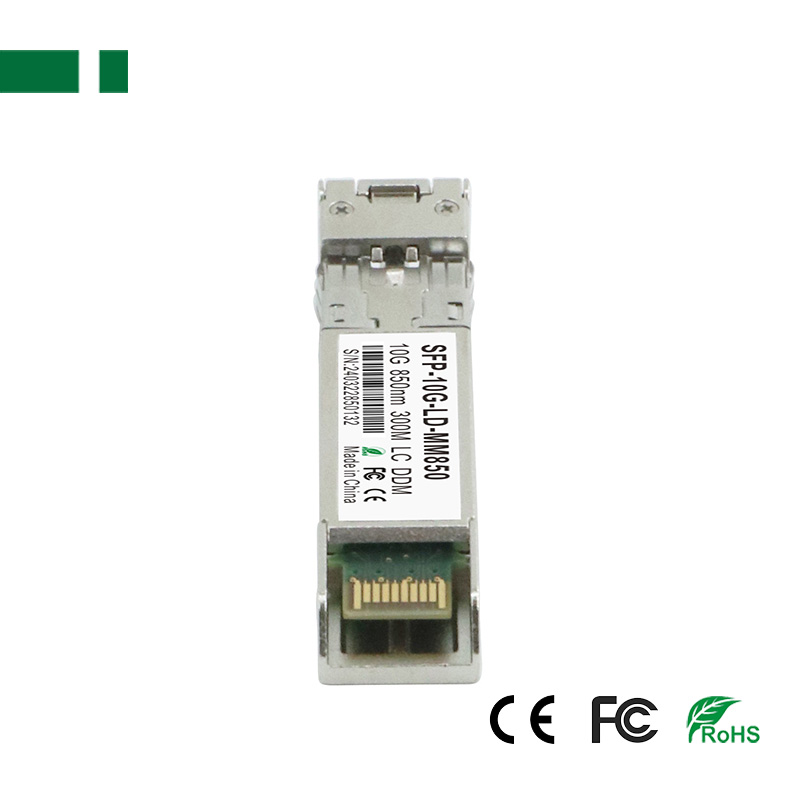

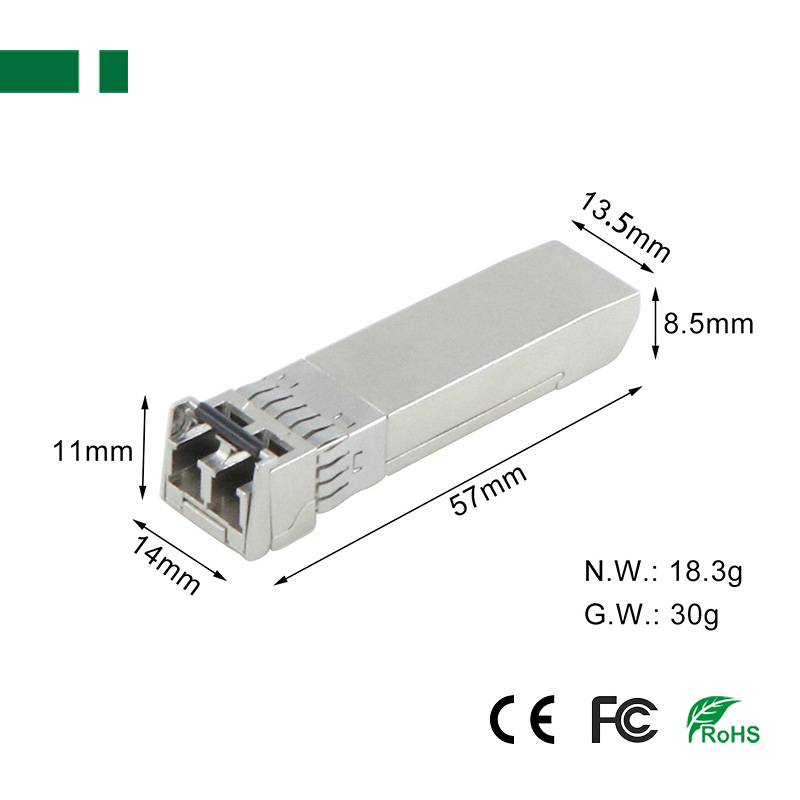

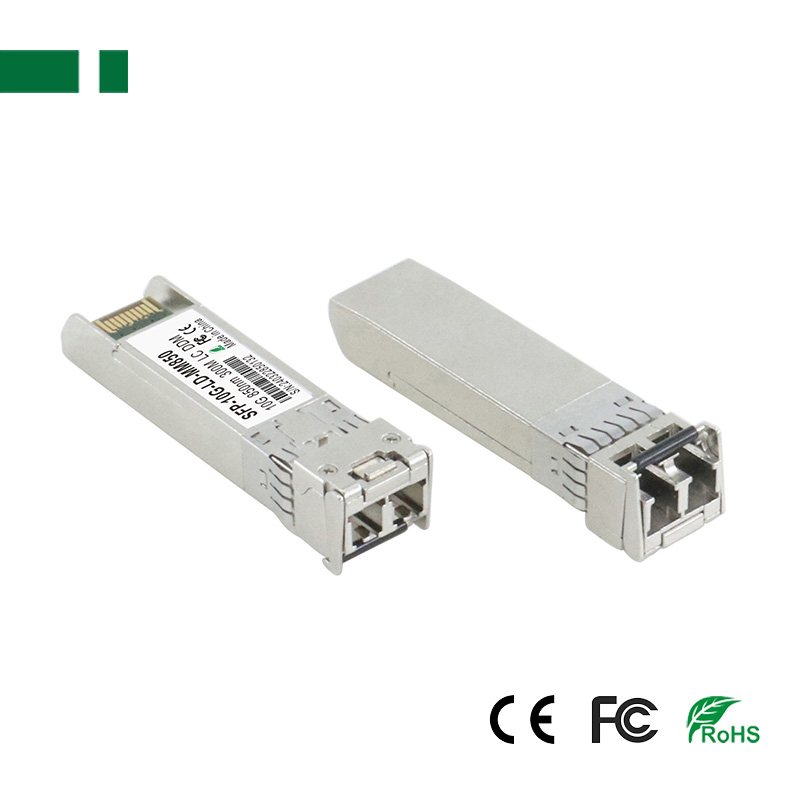

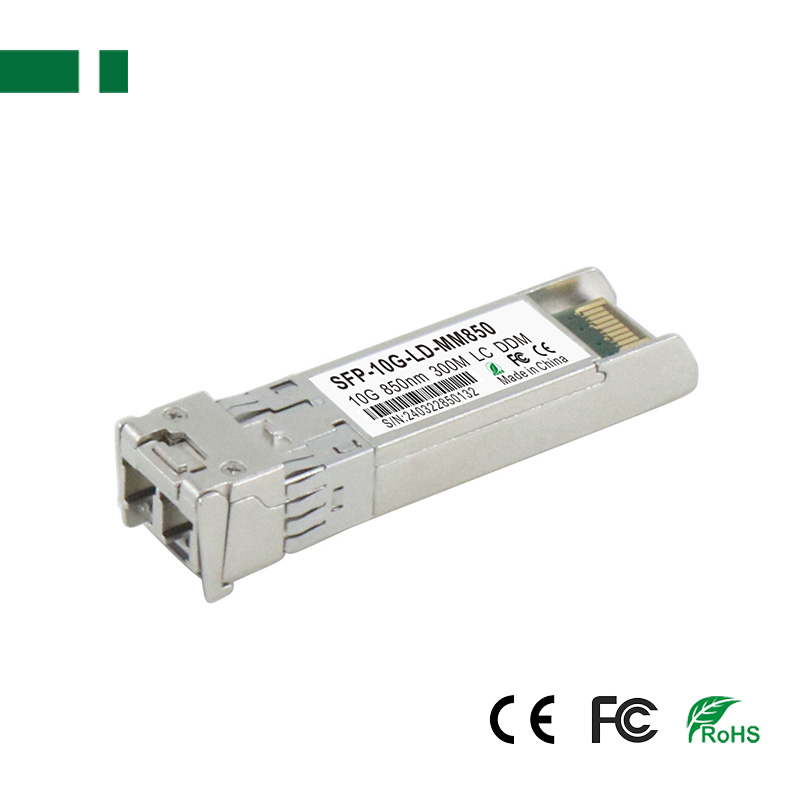

SFP-10G-LD-MM 10Gbps 850nm Multi-mode Duplex LC fiber SFP Transceiver
- Data Rate: Up to 10Gb/s data links;
- Transmission Distance: 300M
- Wave Length: 850nm;
- With DDM/DOM
- Product description: Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA).
10Gbps 850nm Multi-mode Duplex LC fiber SFP Transceiver Compliant with SFF-8472 and DDM Function
Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of four sections: the LD driver, the limiting amplifier, the DFB laser and the PIN photo-detector.
The optical output can be disabled by a TTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.
Feature:
1. Data Rate: Up to 10Gb/s data links;
2. DFB laser transmitter and PIN photo-detector;
3. Transmission Distance: 300M;
4. Wave Length: 850nm;
5. Fiber Type: Duplex LC/UPC type pluggable optical interface;
6. With DDM/DOM: Internal or External Calibration;
7. Low power dissipation;
8. ROHS compliant and Lead Free;
9. Metal enclosure, for lower EMI, Hot-pluggable, Plug and Play;
10. Single +3.3V Power Supply;
11. Compatible with optical fiber equipment from Huawei, ZTE, H3C, Cisco, TPLINK, Ruijie, Dell, HP, Intel, NETGEAR, Juniper, AMD and other brands;
12. Case operating temperature: Commercial: 0°C to +70°C; Extended: -10°C to +80°C; Industrial: -40°C to +85°C.
Applications:
● Switch to Switch Interface;
● Gigabit Ethernet;
● Switched Backplane Applications;
● Router/Server Interface;
● Other Optical Links.
Specification:
Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of four sections: the LD driver, the limiting amplifier, the DFB laser and the PIN photo-detector.
The optical output can be disabled by a TTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.
Feature:
1. Data Rate: Up to 10Gb/s data links;
2. DFB laser transmitter and PIN photo-detector;
3. Transmission Distance: 300M;
4. Wave Length: 850nm;
5. Fiber Type: Duplex LC/UPC type pluggable optical interface;
6. With DDM/DOM: Internal or External Calibration;
7. Low power dissipation;
8. ROHS compliant and Lead Free;
9. Metal enclosure, for lower EMI, Hot-pluggable, Plug and Play;
10. Single +3.3V Power Supply;
11. Compatible with optical fiber equipment from Huawei, ZTE, H3C, Cisco, TPLINK, Ruijie, Dell, HP, Intel, NETGEAR, Juniper, AMD and other brands;
12. Case operating temperature: Commercial: 0°C to +70°C; Extended: -10°C to +80°C; Industrial: -40°C to +85°C.
Applications:
● Switch to Switch Interface;
● Gigabit Ethernet;
● Switched Backplane Applications;
● Router/Server Interface;
● Other Optical Links.
Specification:
| Model | Data Rate | Connector | Wave | Fiber | Distance | Operating Temperature | Compatibility |
| SFP-GE-LD-MM850 | 1.25Gbp | 2*LC | 850nm | Multi-mode | 300M |
Commercial: 0°C to +70°C; Extended: -10°C to +80°C; Industrial: -40°C to +85°C |
Compatible with optical fiber equipment from Huawei, ZTE, H3C, Cisco, TPLINK, Ruijie, Dell, HP, Intel, NETGEAR, Juniper, AMD and other brands. |
| SFP-10G-LD-MM850 | 10Gbps |
