Surge Protector

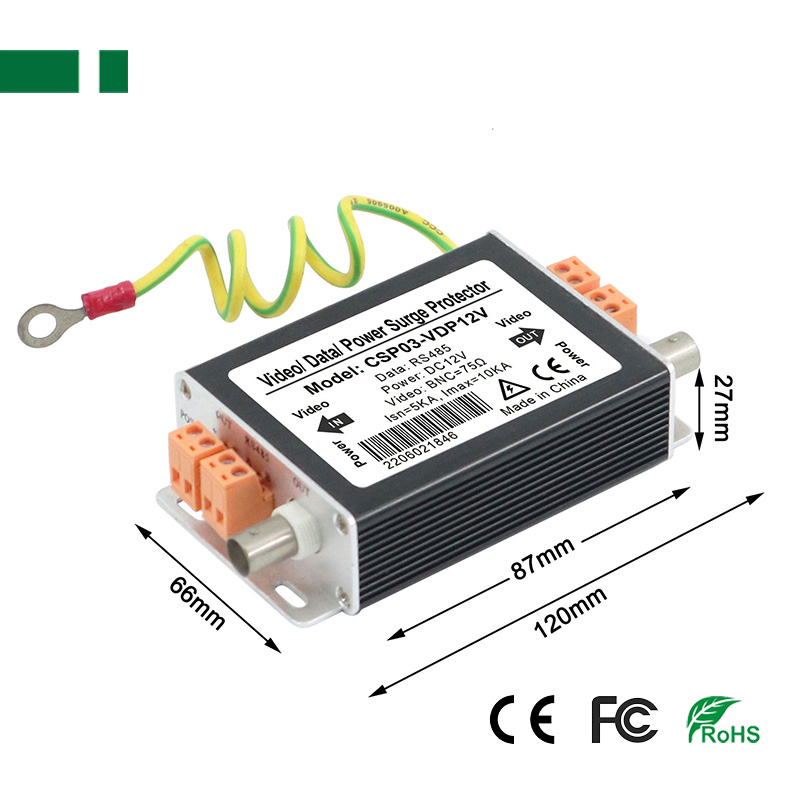

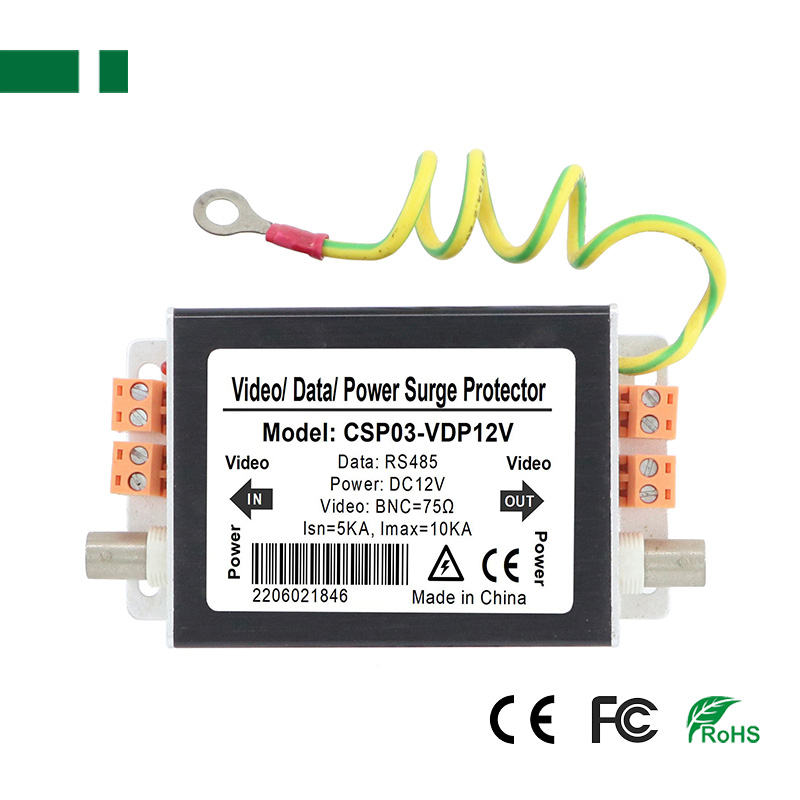

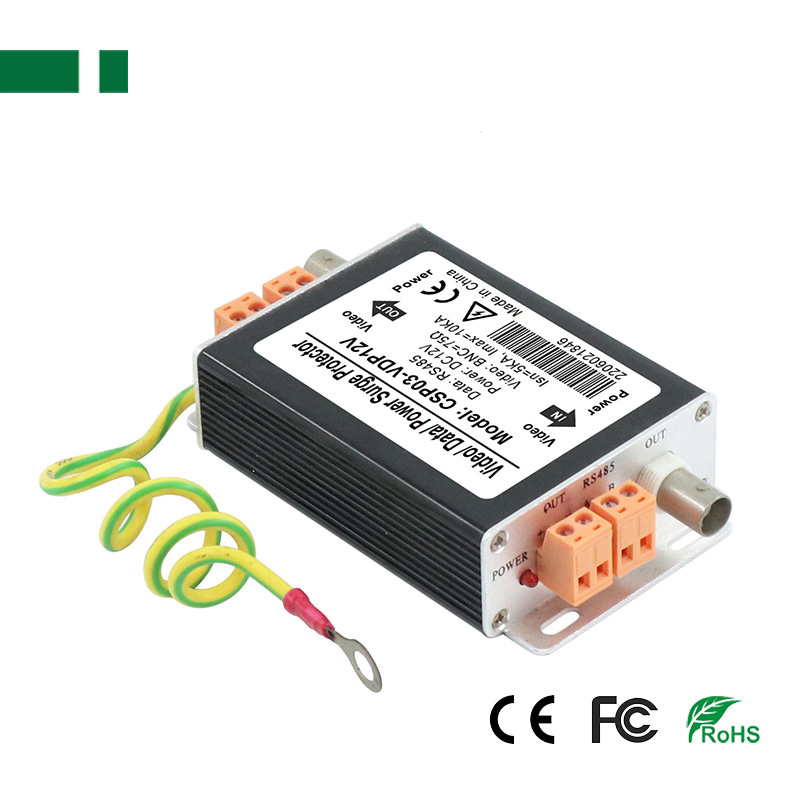

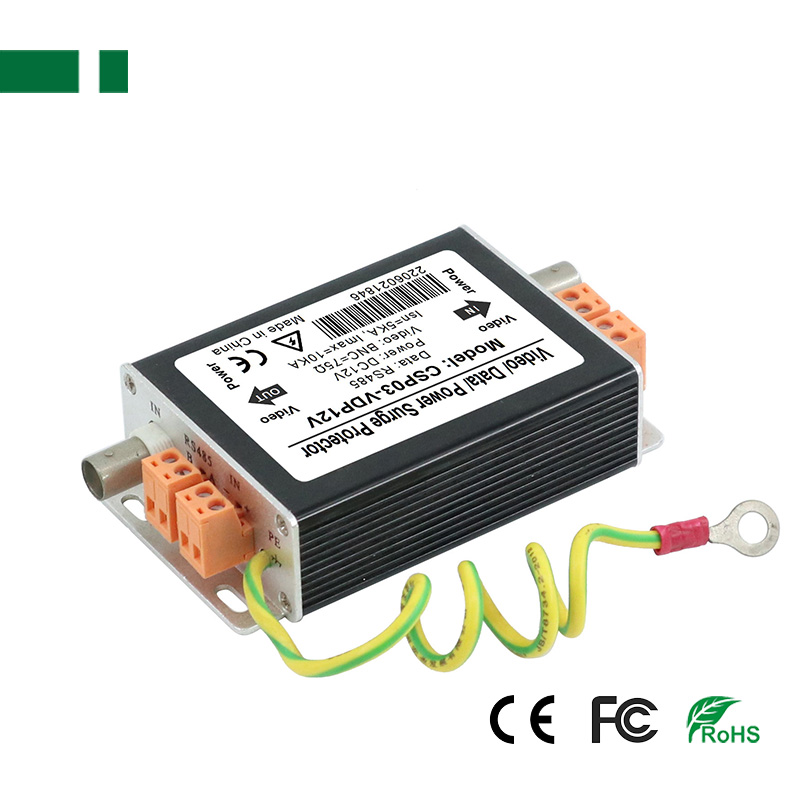

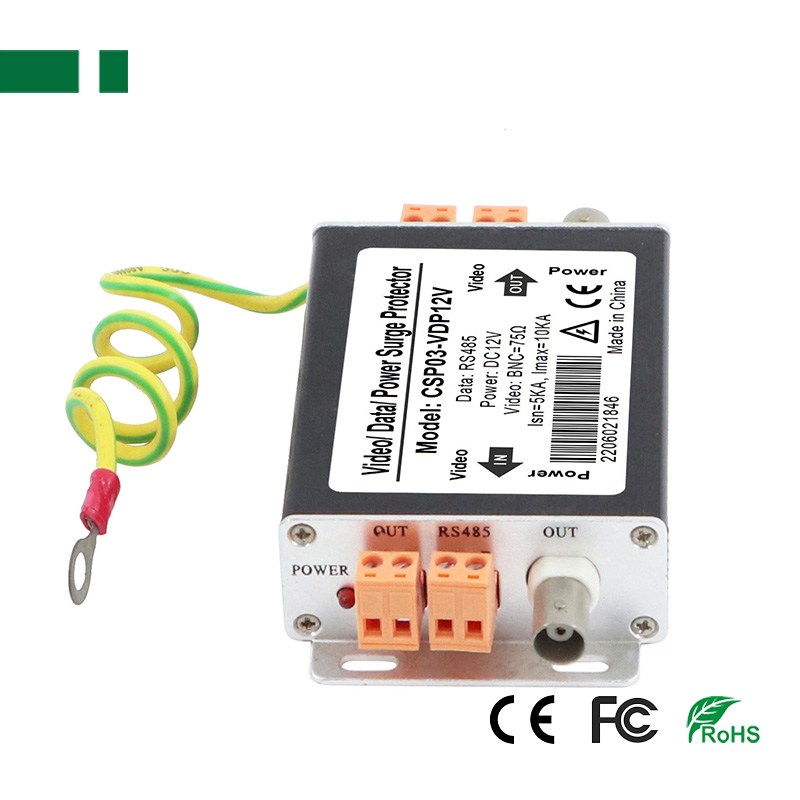

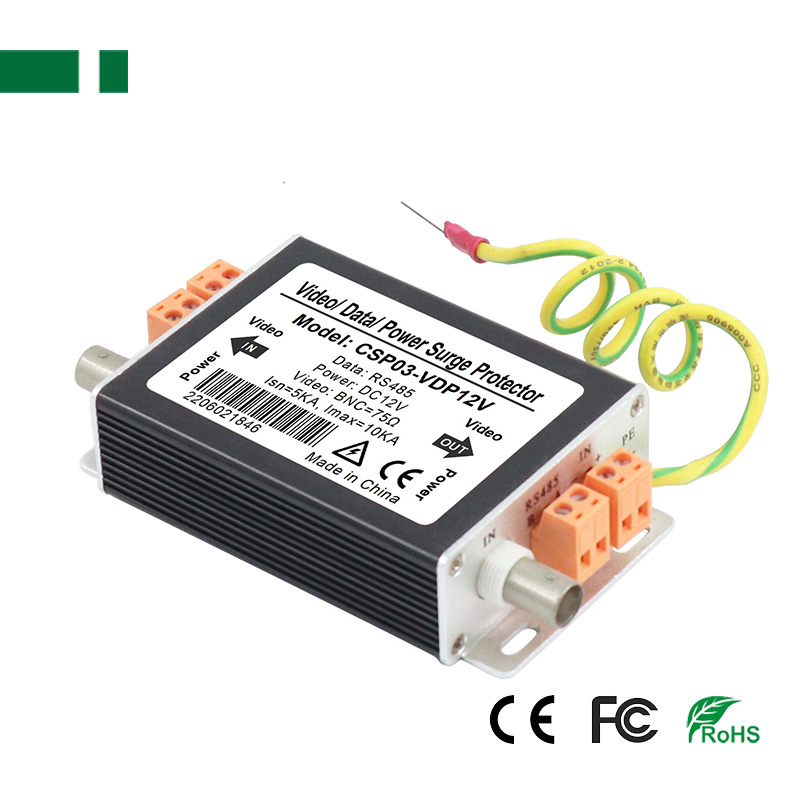

CSP03-VDP12V Video-Data-DC12V Power Supply Surge Protector 3 in 1

Video Surge Protector
Power Surge Protector
Data Surge Protector
Larger flow capacity
Product description: Surge Protective Devices are designed to protect against transient surge conditions. Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or i
INQUIRY EMAIL

Surge Protective Devices are designed to protect against transient surge conditions. Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or intermittent equipment failure. However, lightning and utility power anomalies only account for 20% of transient surges. The remaining 80% of surge activity is produced internally. Although these surges may be smaller in magnitude, they occur more frequently and with continuous exposure can degrade sensitive electronic equipment within the facility.

Feature:
1. Protection video signal, Data Signal and DC12V Power Supply;
2. Function Multi-level over voltage protection large capacity discharge current low limiting voltage;
3. Quick reacting time low inserting loss;
4. Grounding Mode Extending Line to ground;
5. Outlook design Clear mark easily recognized;
6. Aluminum shell delicate size simple installation;

Specification:

Video Signal, Data Signal & Power Supply Surge Protector
	Model	CSP03-VDP12V	CSP03-VDP24V	CSP03-VDP220V
Video	Rated operation voltage	DC5V
	Max continuous operating voltage	DC6V
	Nominal discharge current in(8/20µs)	5KA
	Max discharge current(8/20µs)	10KA
	Voltage protection level(10/700μs)	<20V
	Reacting time	≤0.5ns
	Inserting loss	≤0.2dB
	Inserting resistance	≤1Ω
	Signal Bandwidth	10MHz
Power	Nominal working voltage	DC12V	DC/ AC 24V	AC220V
	Max continuous operating voltage	DC18V	DC/ AC47V	AC470V
	Nominal discharge current(8/20μs)	2.5KA
	Max discharge current (8/20μs)	5KA
	RLA	≤3A
	Leakage Current	≤5μA
	Reacting Time	≤25ns
Data	Nominal working voltage	DC5V
	Max continuous operating voltage	DC8.8V
	Nominal discharge current(8/20μs)	5KA
	Max discharge current (8/20μs)	10KA
	Leakage Current	≤0.5A
	Reacting Time	≤1ns
	Data transmit rate vs	10Mbps
	Signal Bandwidth	20MHz
Other	Connector type	BNC & Grip
	Working temperature	-20°C to +50°C / 0 to 95%
	MTBF	>30000hrs
	Dimension	1206528mm / 143g
	Test standard	IEC61643-21 : 2000
