Surge Protector

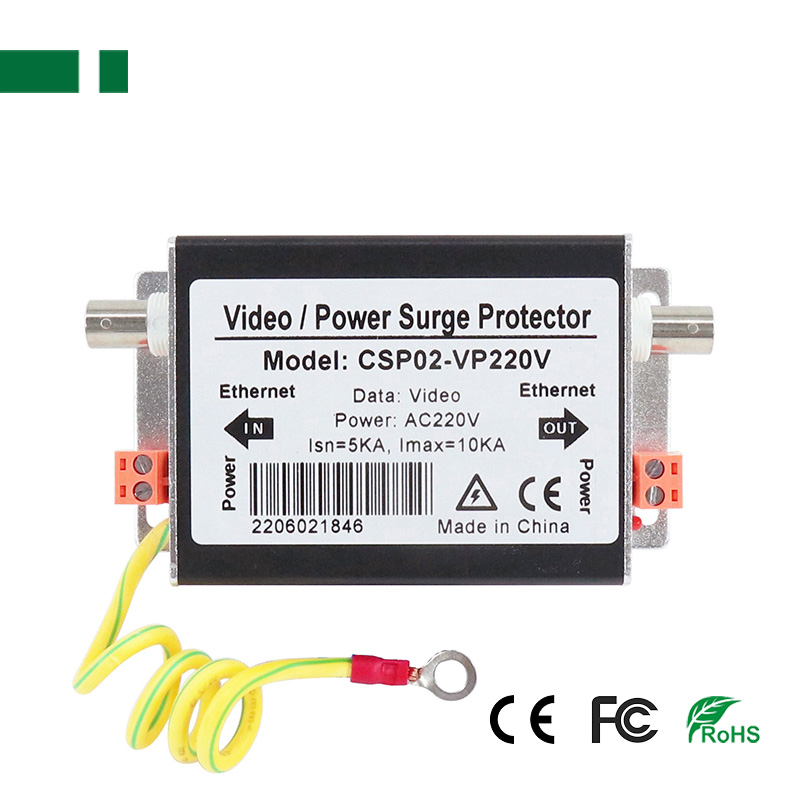

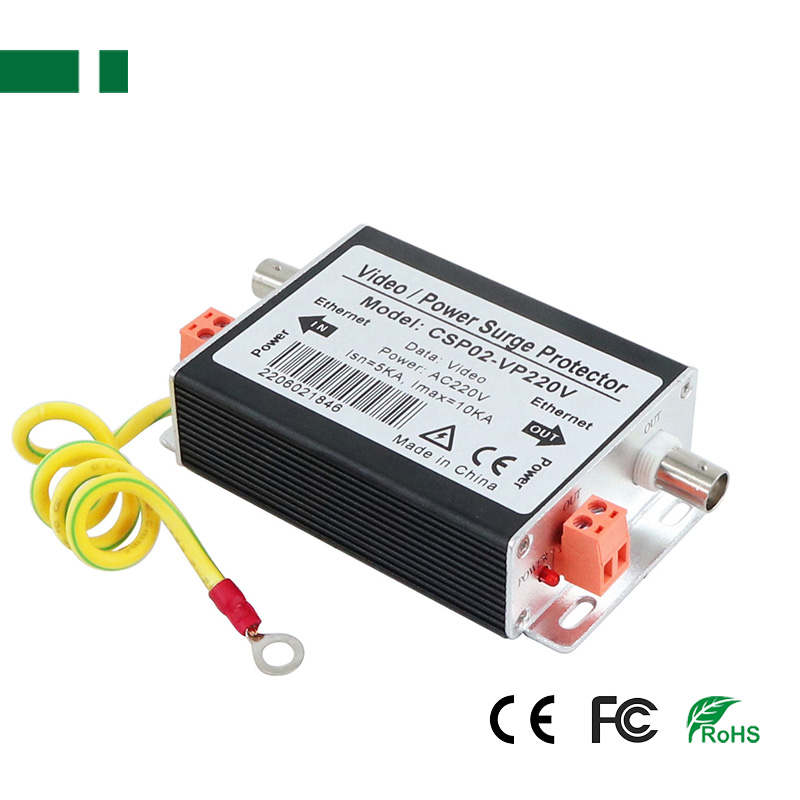

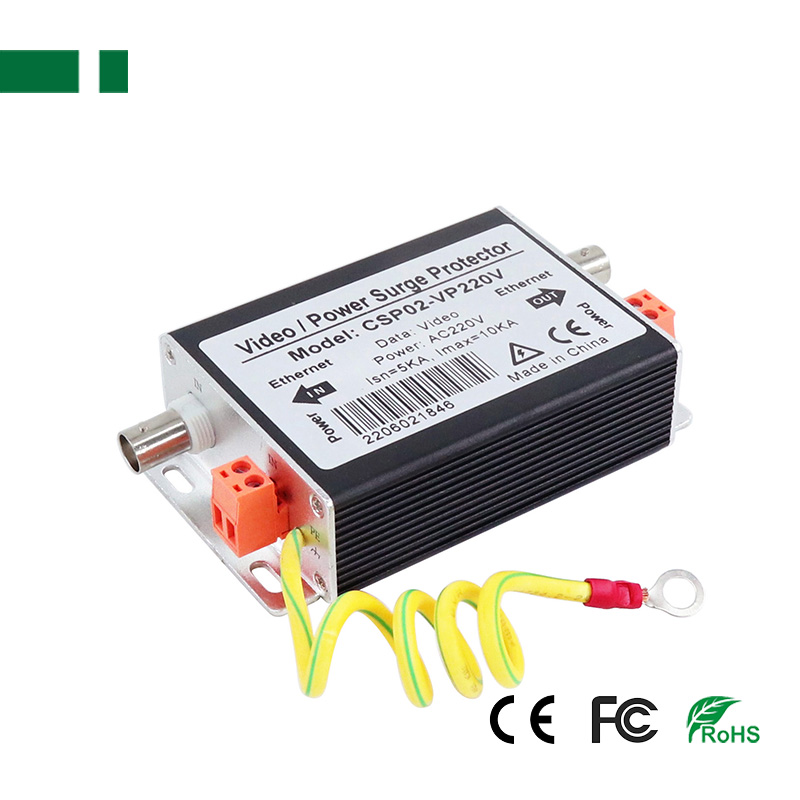

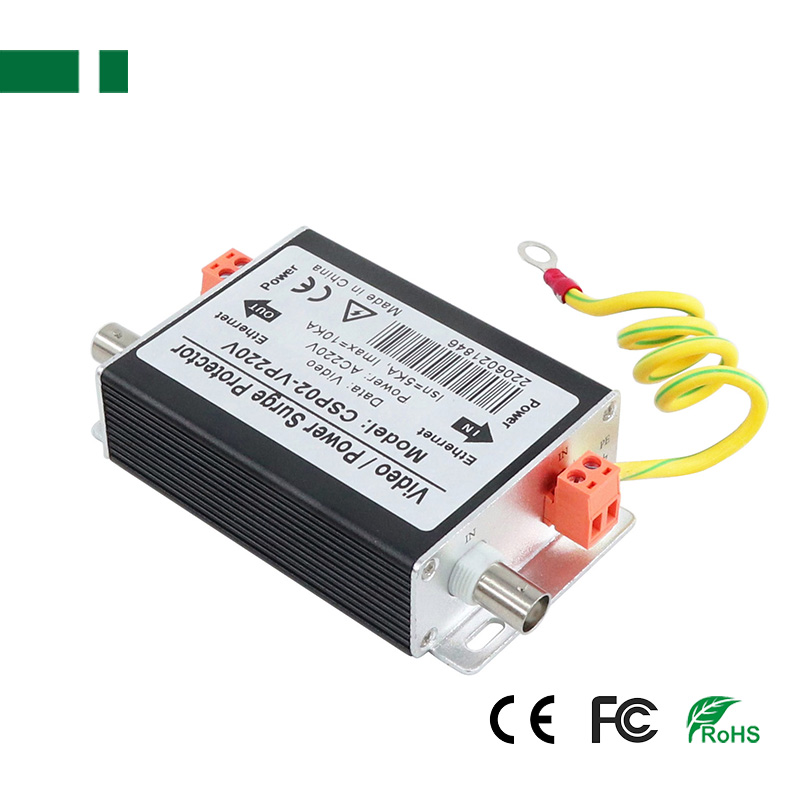

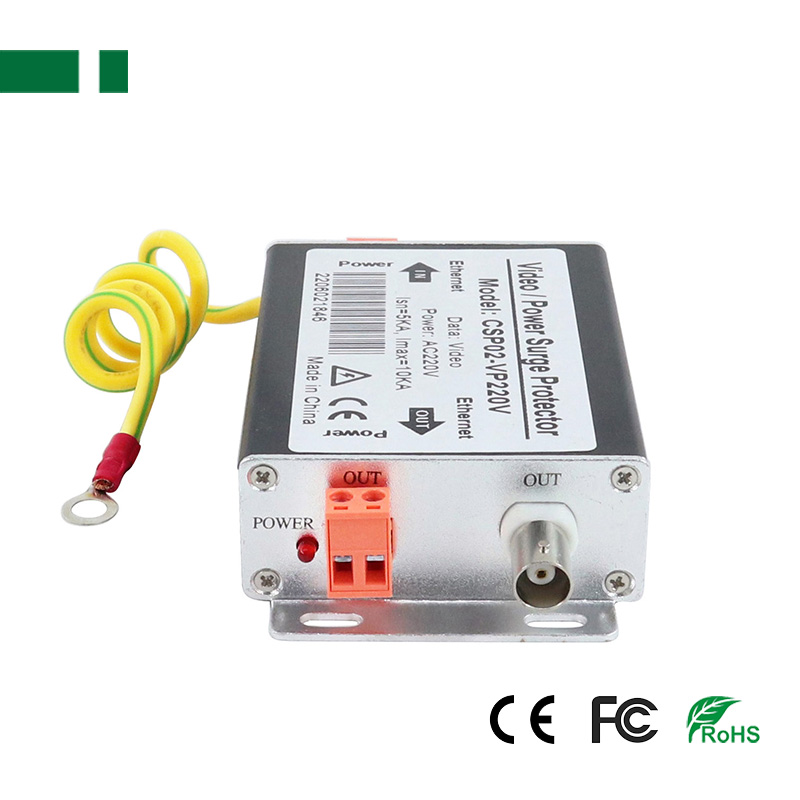

CSP02-VP220V Video and AC220V Power Supply Surge Protector

Video and AC220V Power Surge Protector
High transmission rate
Multi-level protection
Larger flow capacity
Product description: A surge protector is a special component that curbs these sudden, high voltages. As the power starts to spike, the protector kicks in, and any excessive charge is routed through the ground connection
INQUIRY EMAIL

A Surge Protector is a special component that curbs these sudden, high voltages. As the power starts to spike, the protector kicks in, and any excessive charge is routed through the ground connection so it never has chance to cause damage. Each surge protector has a pre-set level that is deemed to be the maximum voltage allowed.

Feature:
● Protection video signal and DC12V/ DC(AC)24V/ AC220V power supply,
● Function Multi-level over voltage protection, large capacity discharge current, low limiting voltage, quick reacting time, low inserting loss，
● Grounding Mode Extending Line to ground，
● Outlook design Clear mark, easily recognized, aluminum shell, delicate size, simple installation；

Specification:

	Model	CSP02-VP12V	CSP02-VP24V	CSP02-VP220V
Video parameters	Rated operation voltage	DC5V
	Max continuous operating voltage	DC6V
	Nominal discharge current in(8/20μs)	5KA
	Max discharge current(8/20μs)	10KA
	Voltage protection level(10/700μs)	<20V
	Reacting time	≤0.5ns
	Inserting loss	≤0.2dB
	Inserting resistance	≤1Ω
	Signal Bandwidth	10MHz
Power parameters	Nominal working voltage	DC12V	DC/ AC 24V	AC220V
	Max continuous operating voltage	DC18V	DC/ AC47V	DC470V
	Nominal discharge current(8/20μs)	2.5KA
	Max discharge current (8/20μs)	5KA
	RLA	≤3A
	Leakage Current	≤5μA
	Reacting Time	≤25ns
	Connector type	BNC & Grip
Environment parameters	Working temperature	-20°C to +50°C
	Storage Temperature	-40°C to +70°C
	Humidity	0 to 95%
	MTBF	>30000hrs

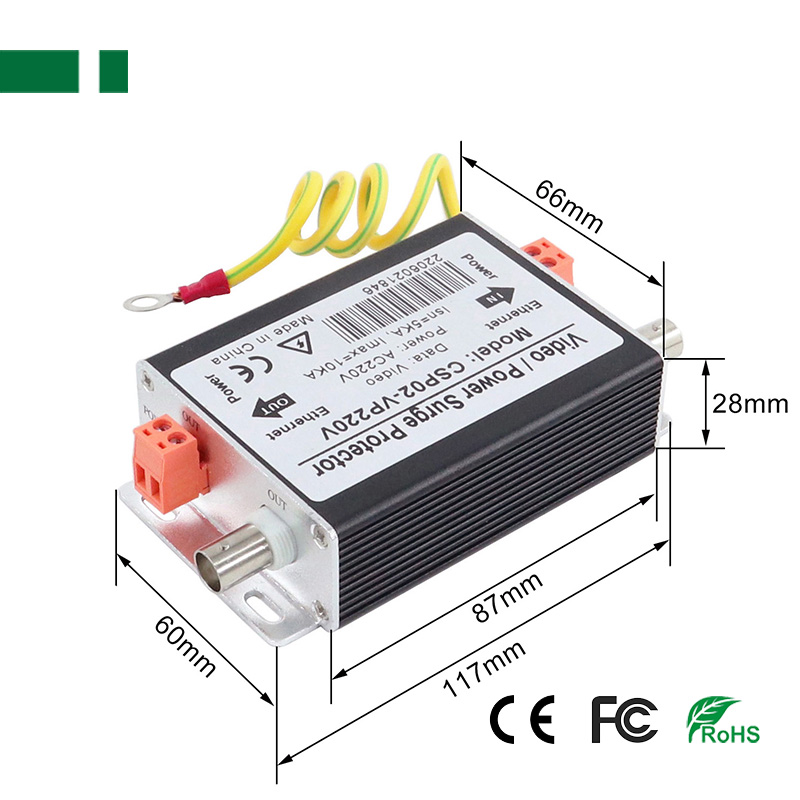

Other parameters	Dimension	1206528mm, 140g
	Test standard	IEC61643-21 : 2000
