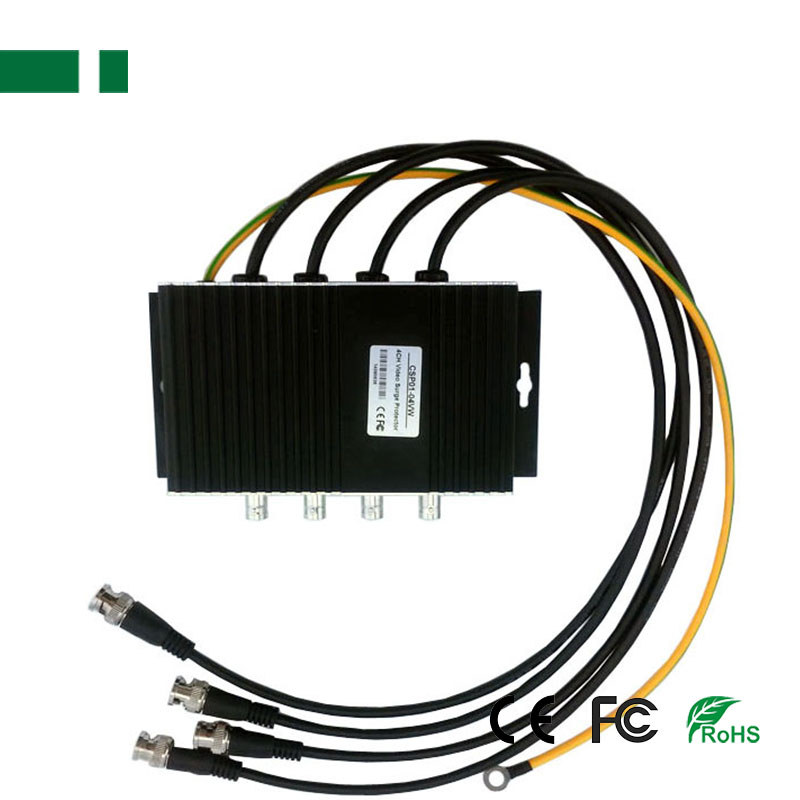

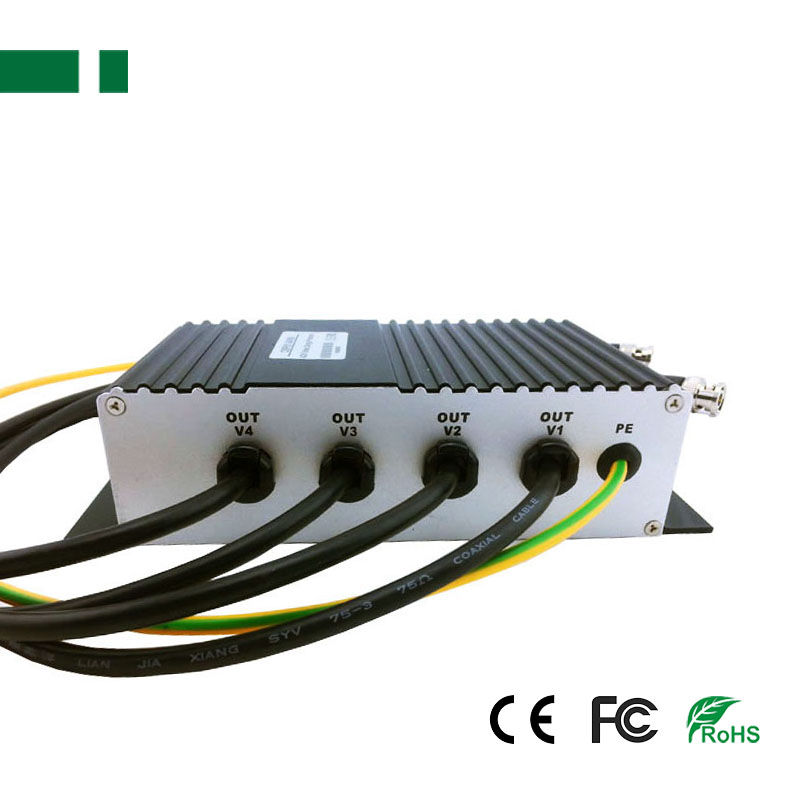

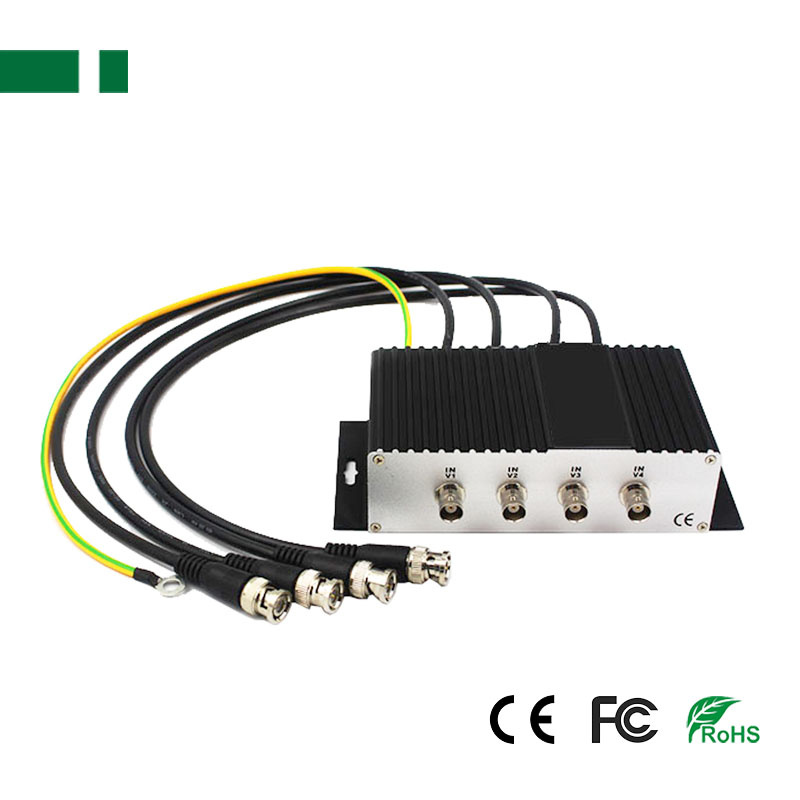

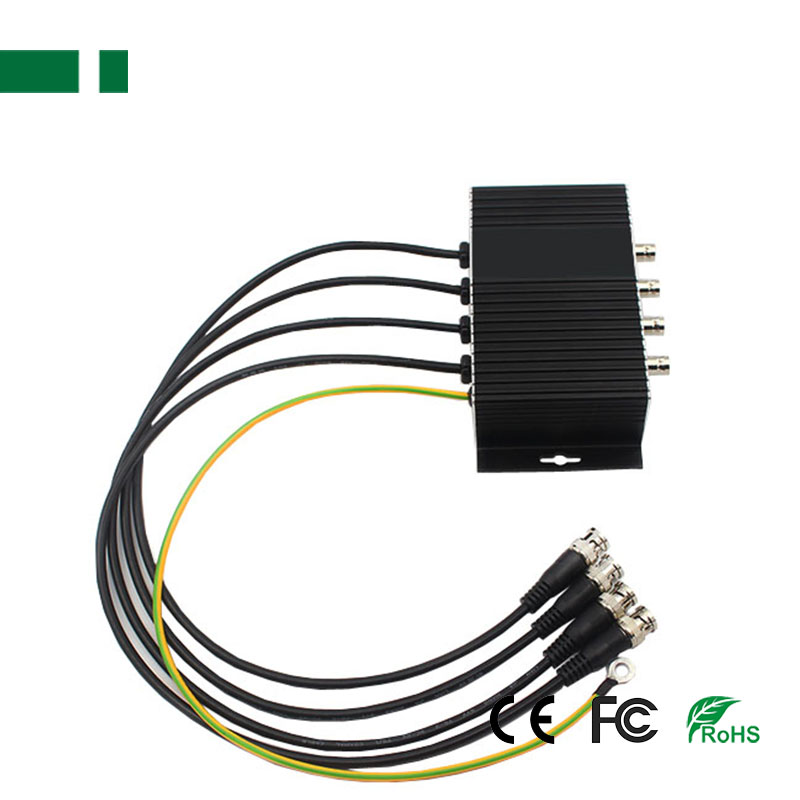

CSP01-04VW 4CHS Video Surge Protector with Cable

4CHS Video Surge Protector with Cable
High transmission rate
Multi-level protection
Larger flow capacity
Product description: Surge Protective Devices are designed to protect against transient surge conditions. Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or i
INQUIRY EMAIL

Surge Protective Devices are designed to protect against transient surge conditions. Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or intermittent equipment failure. However, lightning and utility power anomalies only account for 20% of transient surges. The remaining 80% of surge activity is produced internally. Although these surges may be smaller in magnitude, they occur more frequently and with continuous exposure can degrade sensitive electronic equipment within the facility.

Product Parameter :
◆ 4chs video Surge Protector;
◆ Function Multi-level over voltage protection large capacity discharge current low limiting voltage;
◆ Quick reacting time low inserting loss;
◆ Grounding Mode Extending Line to ground;
◆ Outlook design Clear mark easily recognized;
◆ Aluminum shell delicate size simple installation;

Specification:

Model	CSP01-04VW
Video	Video channel	4 channels
	Rated operation voltage	5V
	Max continuous operating voltage	10V
	Nominal discharge current in(8/20μs)	5KA
	Max discharge current(8/20μs)	10KA
	Voltage protection level(10/700μs)	<20V
	Reacting time	≤1ns
	Inserting loss	≤0.5dB
	Inserting resistance	≥0.4MΩ
	Signal Bandwidth	10MHz
	Standing-wave ratio	≤1.2
Environmental	Working temperature	-20°C to +55°C
	Storage Temperature	-40°C to +70°C
	Humidity	0 to 95%
Stability	MTBF	>30000hrs
