CHM-W300B 1080P 300M Wireless HDMI Extender

Introduction:
The HDMI Wireless Extender provides an easy way to extend the HDMl signal in open environments up to 300 meters.

Feature:

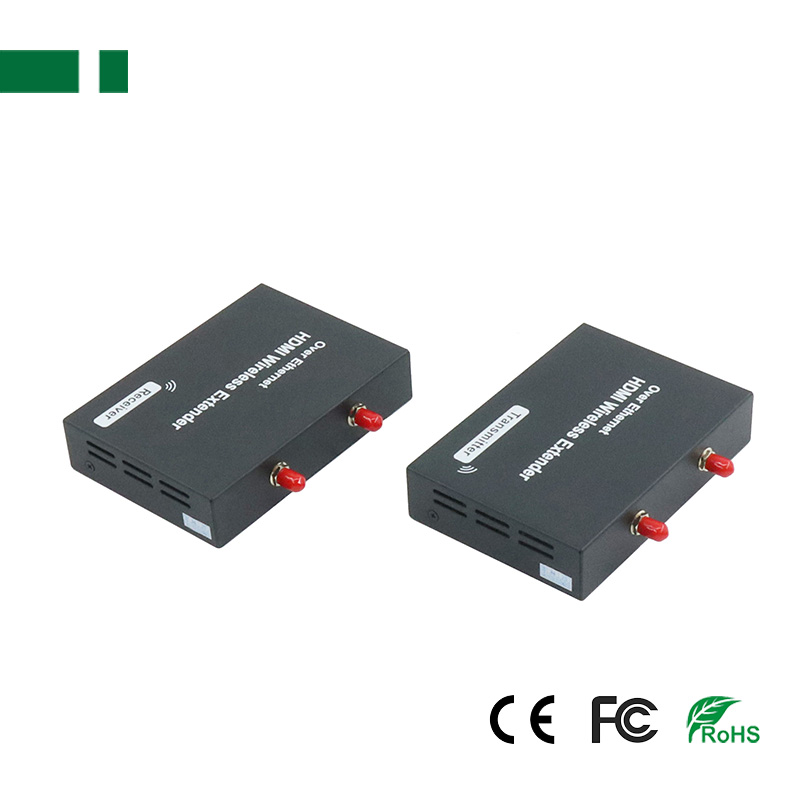

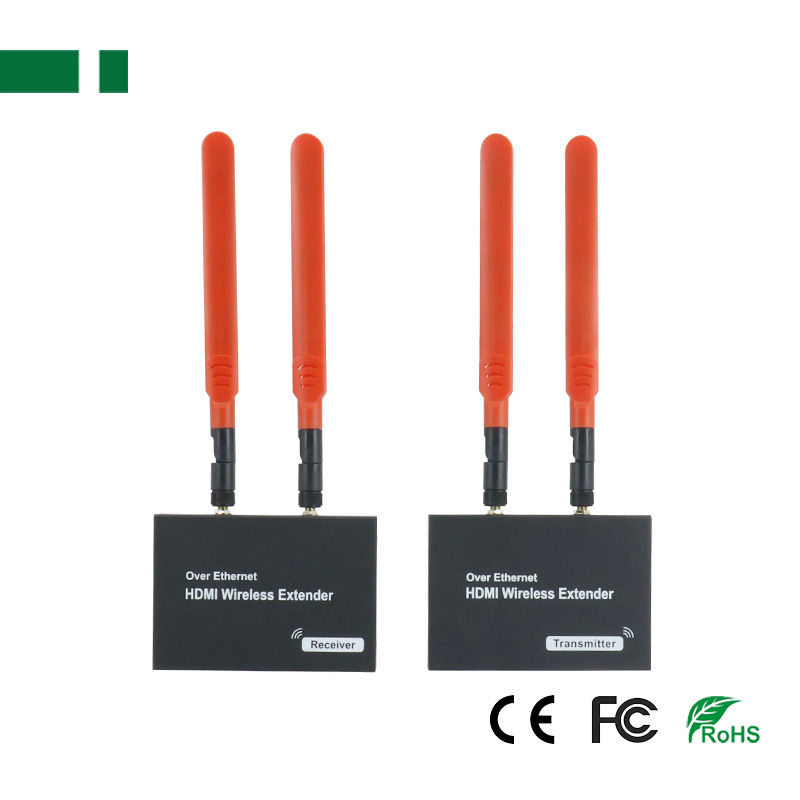

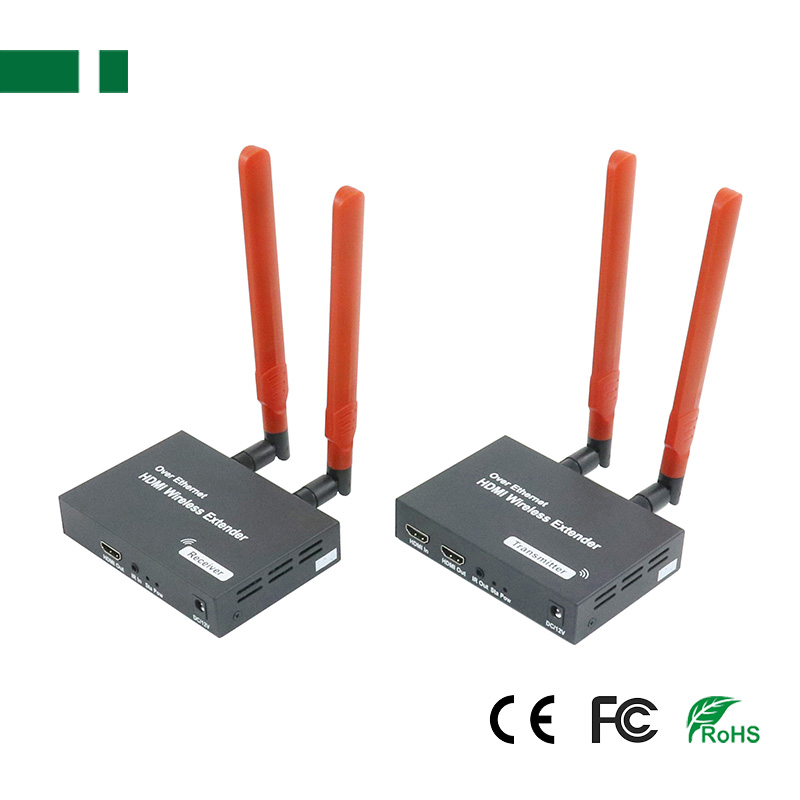

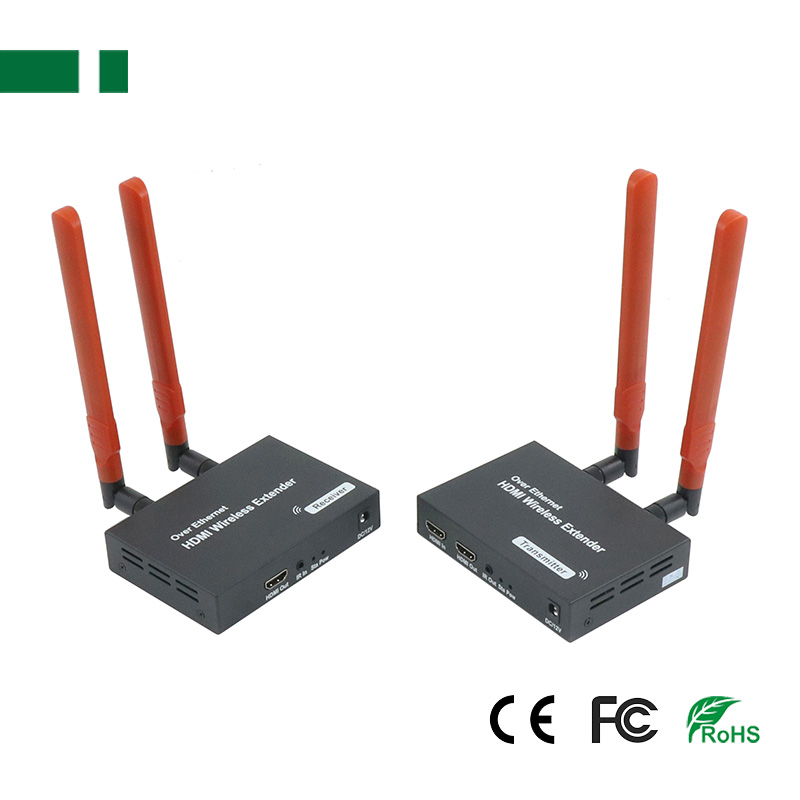

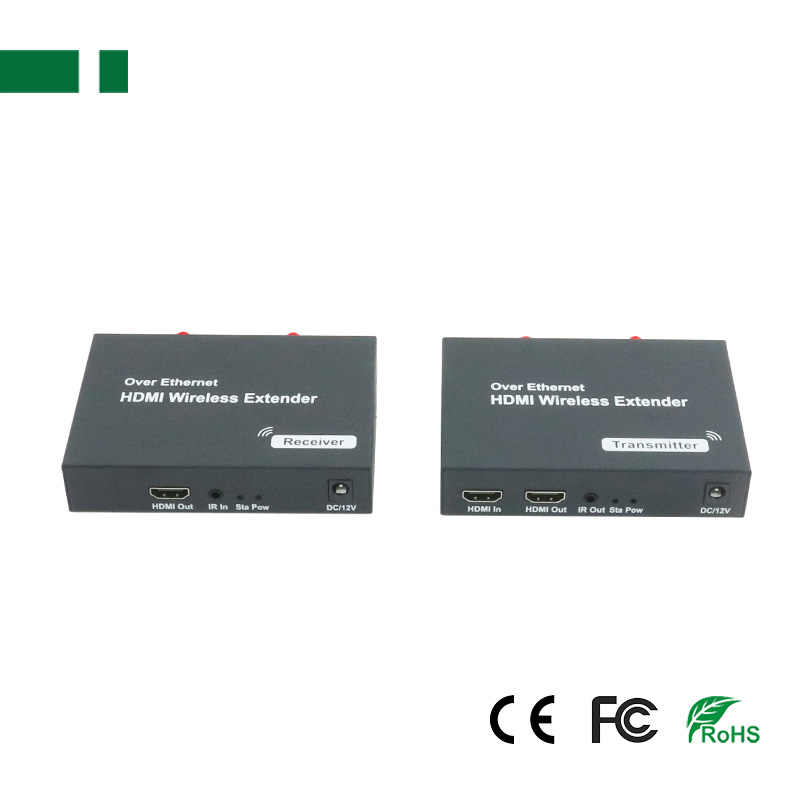

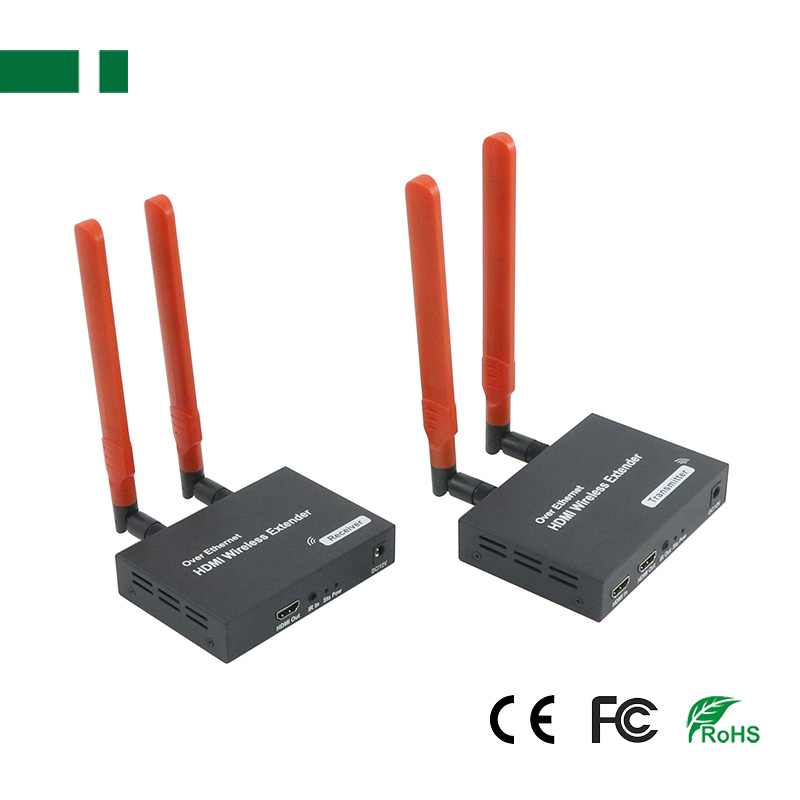

1. This wireless HDMl extender consists of a transmitter unit and a receiving unit.
2. The transmitter supports loop output for easy monitoring.
3. Supports multiple resolutions, including 480i/576i to1080P@50/60hz.
4. Support 5G dual-frequency, fast transmission speed strong anti-interference ability.
5.The external antenna supports long-distance transmission up to 300 meters in the air expansion environment (pay attention to ambient interference).
6.Supports infrared extension, and supports lR extension controlled by the source device on the display side.
7. Plug and play, the computer does not need to install drivers. Supports mouse and keyboard operations.

Specification:

Model	CHM-W300B
HDMI Version	HDMI V1.3
HDCP Version	HDCP V1.2
Compressed Format	H.264
Maximum Pixel Clock	165MHz
Maximum Data Rate	6.75Gbps
Resolution	Max 1920*1080P@60Hz
Connector	HDMI-A
Impedance	100Ω
Maximum HDMI input/output Range	When 1920x1080p@60Hz,it's less than 3M
Ports	3.5mm infrared ports
Signal Direction	unidirectional
Signal Type	Digitization
Infrared Frequency	20-60KHz
Network Wireless	13dBm
Wireless Standard	802.11AC signal
Direction	unidirectional
Frequency	5.8G
Distance	300M
Power Supply	DC12/1A Power Adapter
Power	Transmitter 9W receiver
Operating Temperature	Below -5 °C-+70 °C
Working Humidity	5% -90%
Size	117*82*25mm

Packing list:
1. Wireless HDMl Extension Transmitter  *1
2. Wireless HDMl Expansion Receiver  *1
3. External antenna  *4
4. Power adapter (DC12V)  *2
5. Infrared Transmitter  *1
6. Infrared receiver  *1
7. User Manual  *1
8. USB cable  *2
