Inquiry:

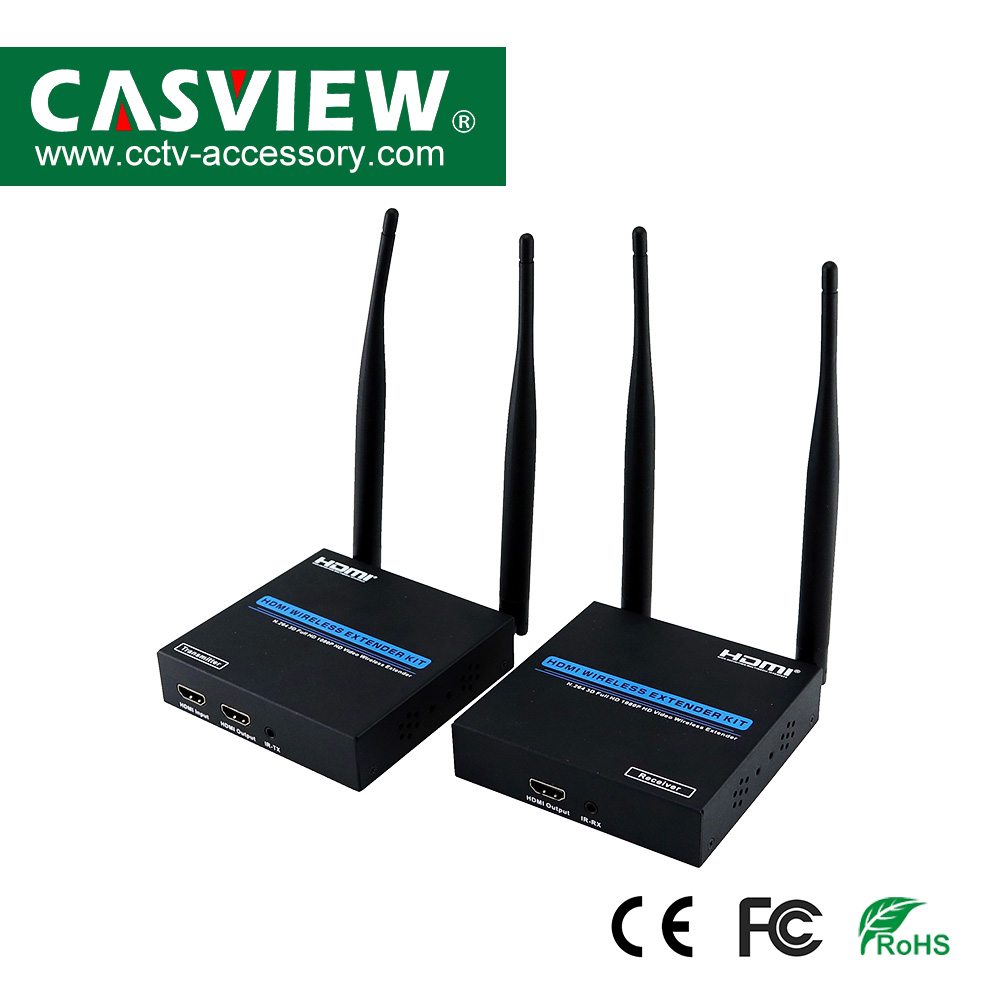

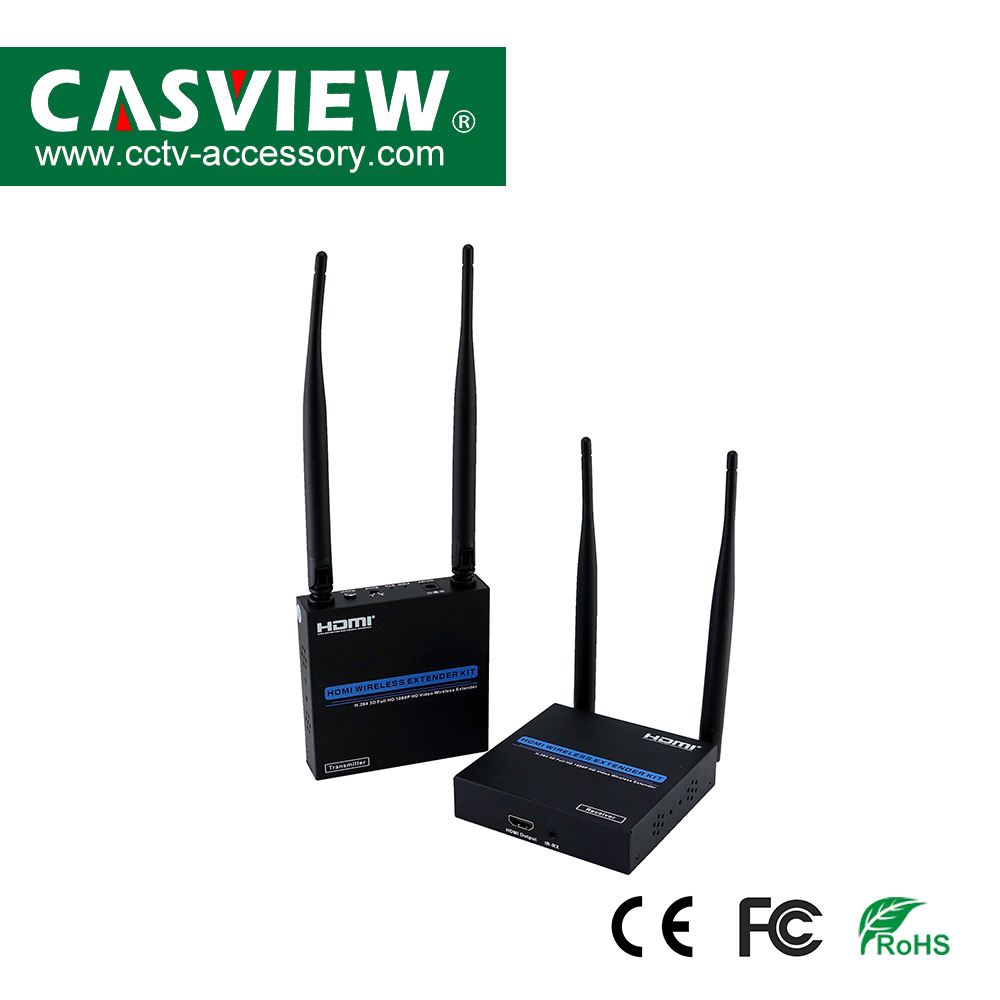

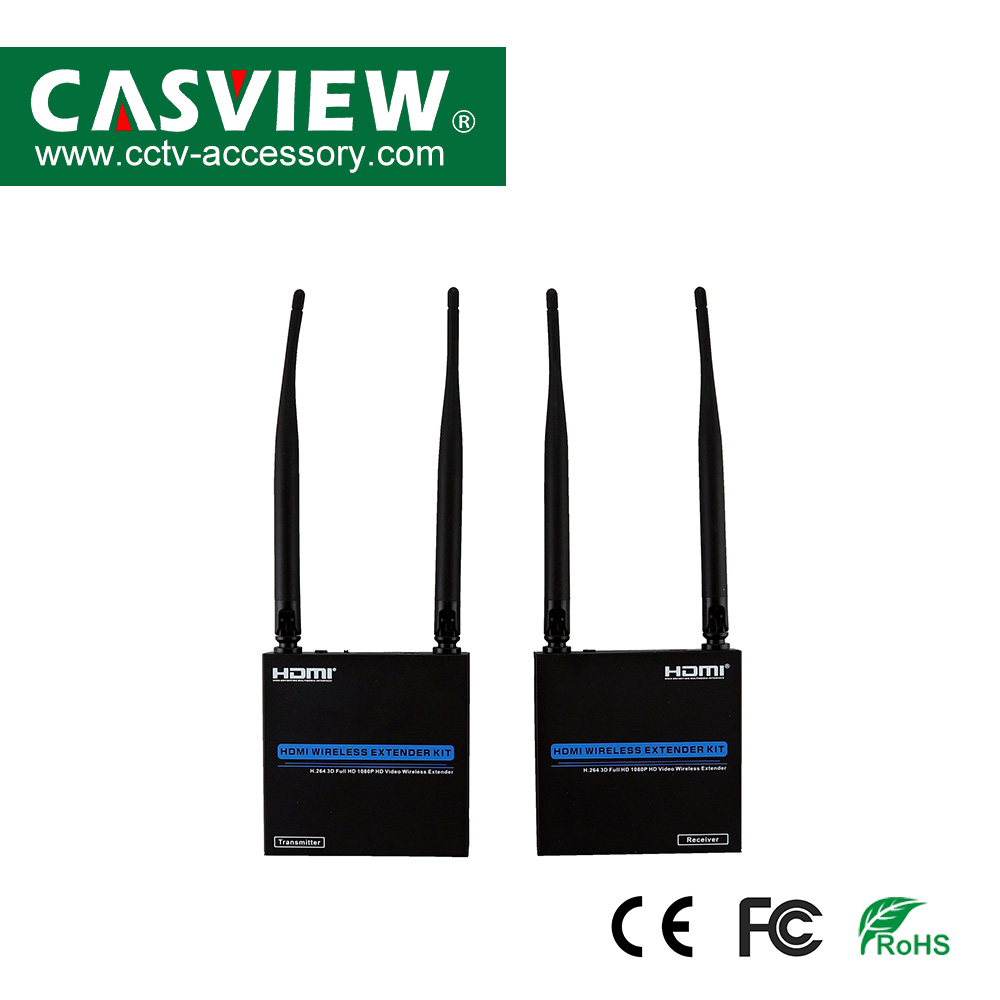

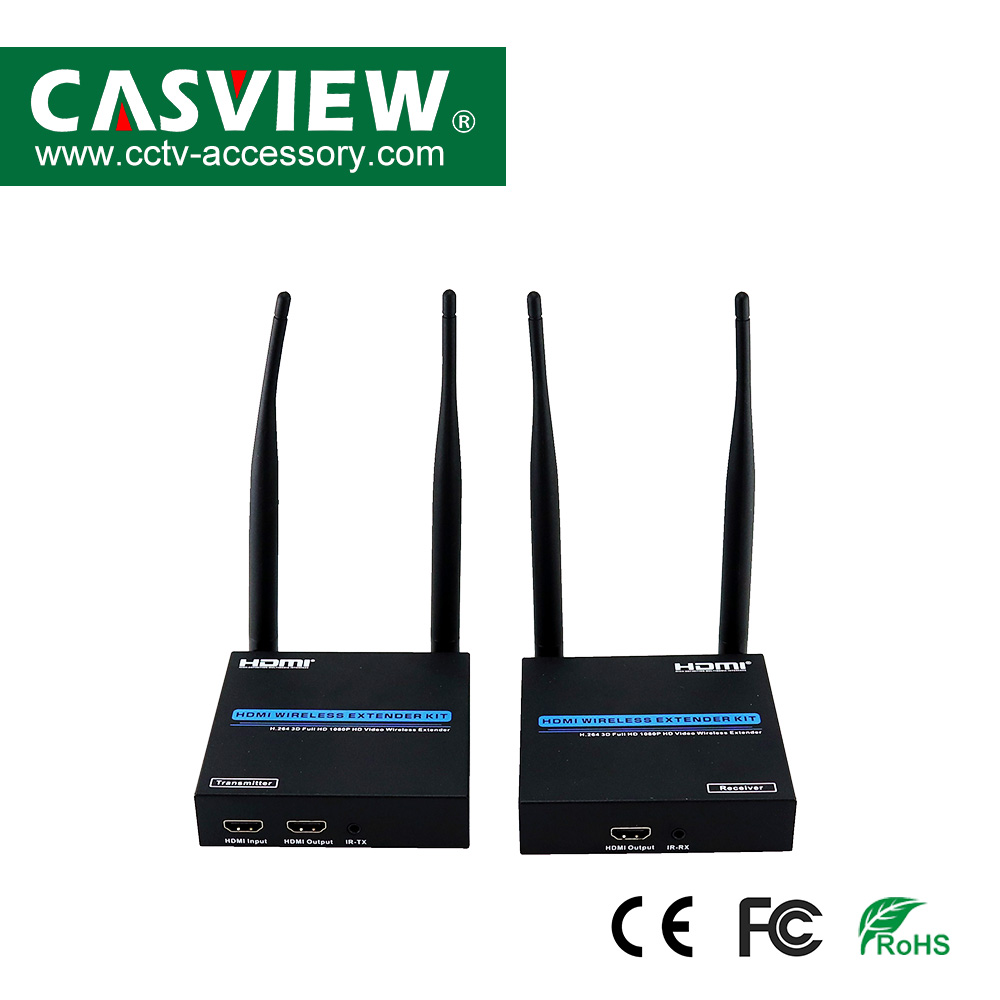

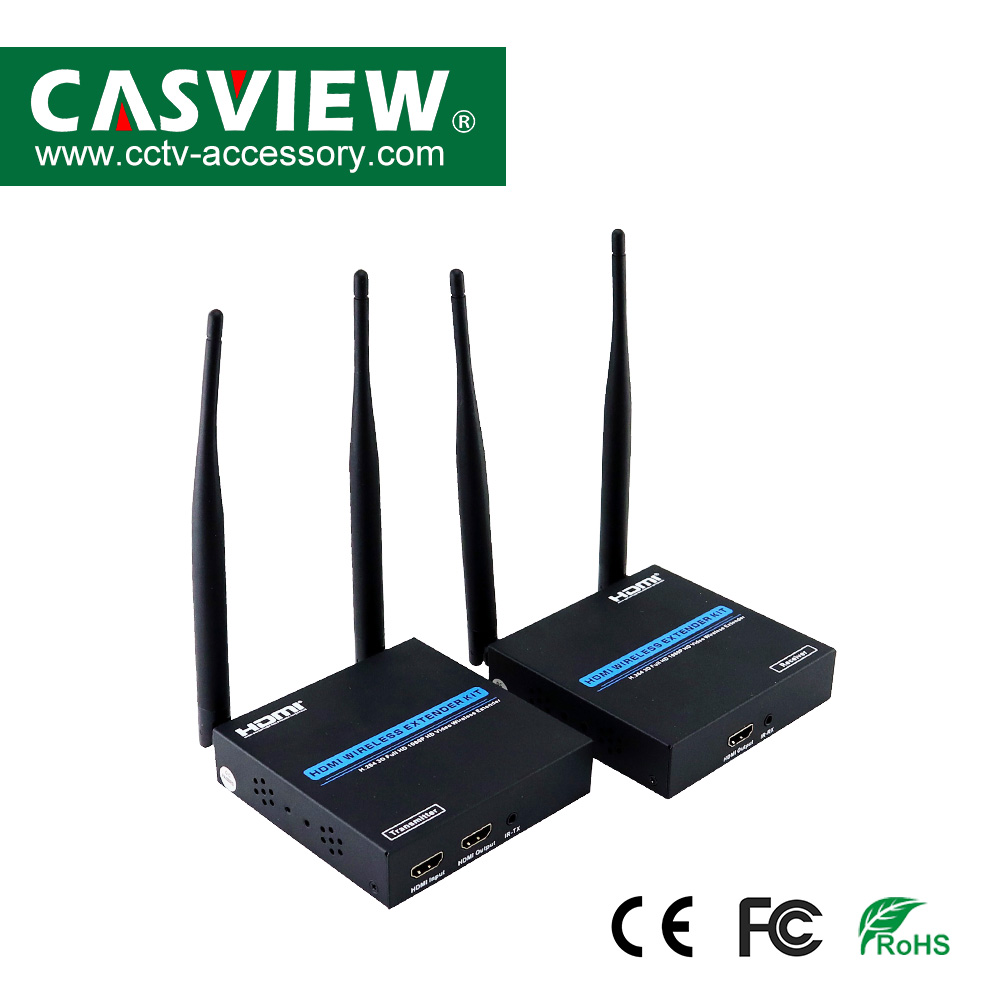

HDMI Extender
CHM-W300
- Product description:

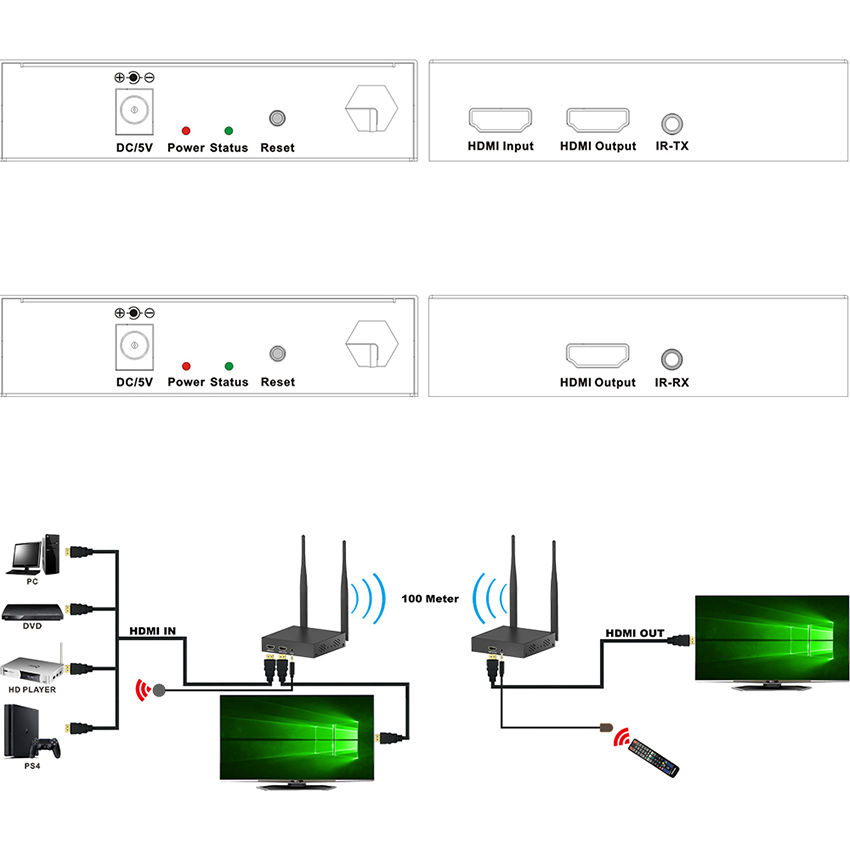

1. HDMI video and audio transmission via wireless WIFI, up to 300 meters;
2. HDMI 1.3 compatible;
3. In accordance with standard HDCP1.2 ,high-bandwidth digital content protection technology;
4. HD video signal resolution up to 1920x1080@60Hz;
5. Support transmitter with HDMI Loop out;
6. Special format is to compress and decompress video, effectively improve the transfer efficiency, to ensure that the playback fluency;
7. Support external remote infrared extension, easy to operate the remote Device;
8. Able to automatically identify and configure a variety of display mode;
9. Built-in automatic balance system, the picture is fluent, clear and stable;
10. The built-in ESD electrostatic protection circuit, comprehensive security protection system;
11. Simple and convenient installation, plug and play, do not need to set up.
Packaging Details:
1. HDMI transmitter------------------------------------------------1 Pcs
2. HDMI receiver ---------------------------------------------------1 Pcs
3. 5V DC Power Adaptor------------------------------------------2 Pcs
4. IR RX Cable ------------------------------------------------------1 Pcs
5. IR TX Cable ------------------------------------------------------1 Pcs
6. User Manual------------------------------------------------------1 Pcs
Specifications:
2. HDMI 1.3 compatible;
3. In accordance with standard HDCP1.2 ,high-bandwidth digital content protection technology;
4. HD video signal resolution up to 1920x1080@60Hz;
5. Support transmitter with HDMI Loop out;
6. Special format is to compress and decompress video, effectively improve the transfer efficiency, to ensure that the playback fluency;
7. Support external remote infrared extension, easy to operate the remote Device;
8. Able to automatically identify and configure a variety of display mode;
9. Built-in automatic balance system, the picture is fluent, clear and stable;
10. The built-in ESD electrostatic protection circuit, comprehensive security protection system;
11. Simple and convenient installation, plug and play, do not need to set up.
Packaging Details:
1. HDMI transmitter------------------------------------------------1 Pcs
2. HDMI receiver ---------------------------------------------------1 Pcs
3. 5V DC Power Adaptor------------------------------------------2 Pcs
4. IR RX Cable ------------------------------------------------------1 Pcs
5. IR TX Cable ------------------------------------------------------1 Pcs
6. User Manual------------------------------------------------------1 Pcs
| Parameter | Description | |
| Video | Standards | HDMI 1.3; HDCP 1.2 |
| Compressed format | H.264 | |
| Maximum pixel clock | 165MHz | |
| Maximum data rate | 6.75Gbps | |
| Resolution | Max1920X1080p@60Hz | |
| HDMI Wireless Extender | 300M | |
| Connector | HDMI-A | |
| Impedance | 100Ω | |
| HDMI max. input/output range | Less than 5 meters, when 1920 x1080p@60Hz | |
| IR | Interface | 3.5mm Stereo audio socket |
| Signal direction | Unidirectional | |
| Signal type | Digital | |
| IR frequency | 20-60kHz | |
| WIFI | Radio Frequency power | 13dbm |
| signal direction | Unidirectional | |
| Radio frequency | 5.8GHz | |
| Transmission distance | 100M | |
| Other | Power Adapter | DC 5V |
| Power dissipation | MAX 7W | |
| Temperature | Operating：-5℃ ~ +70℃ | |
| Humidity | Operating：5% ~ 90% | |
| Size/ weight | 103*101*25mm, 0.35kg | |
| Warranty | 1 year free warranty | |
