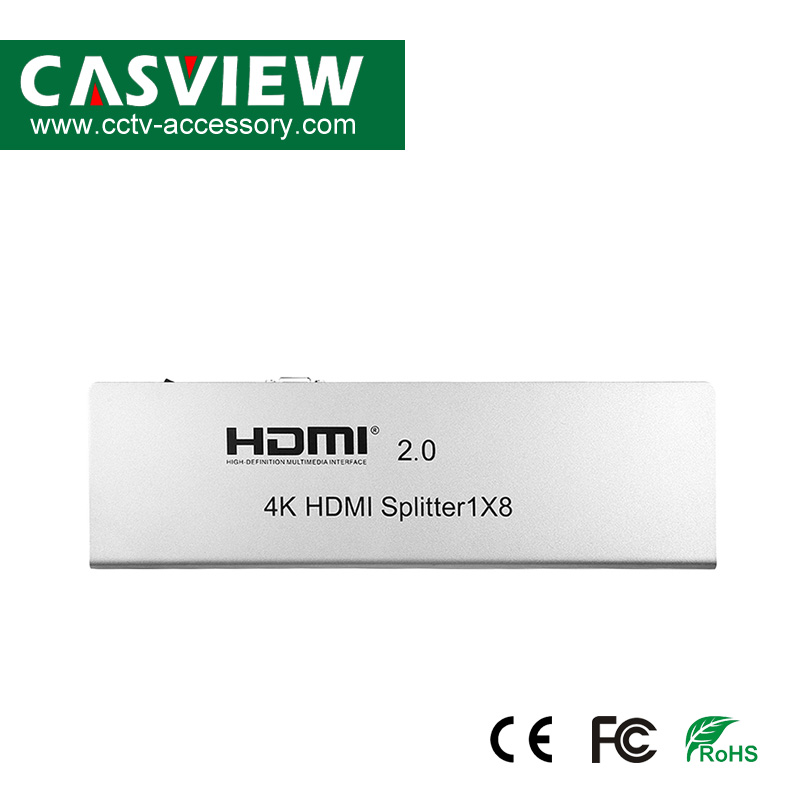

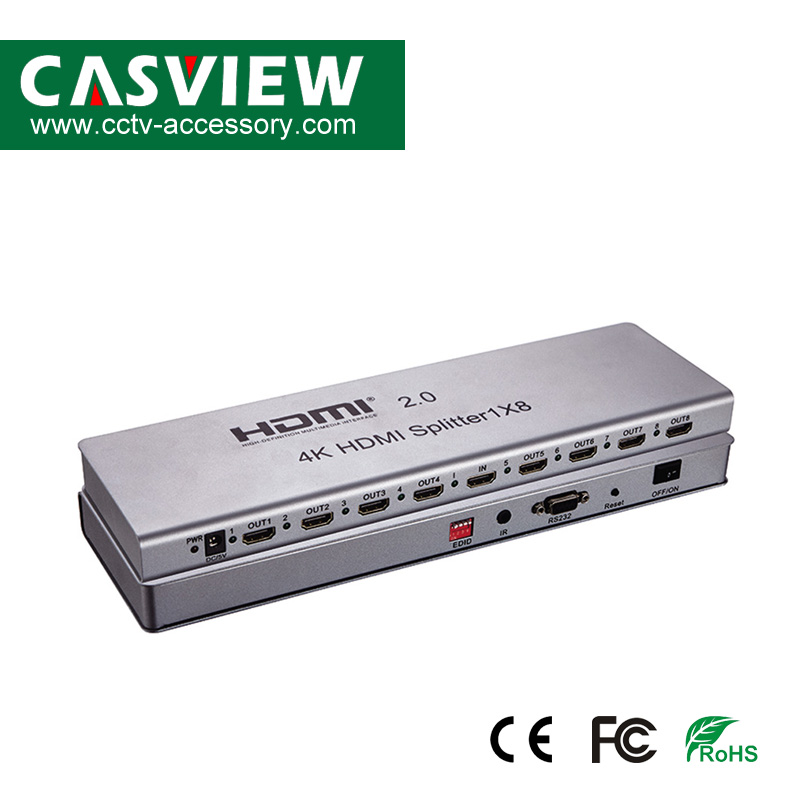

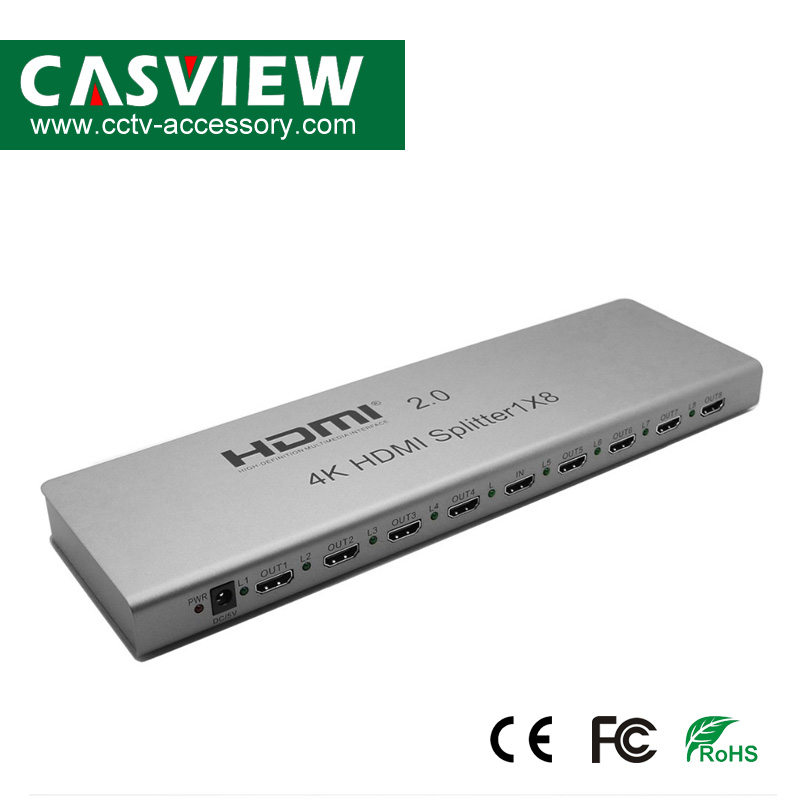

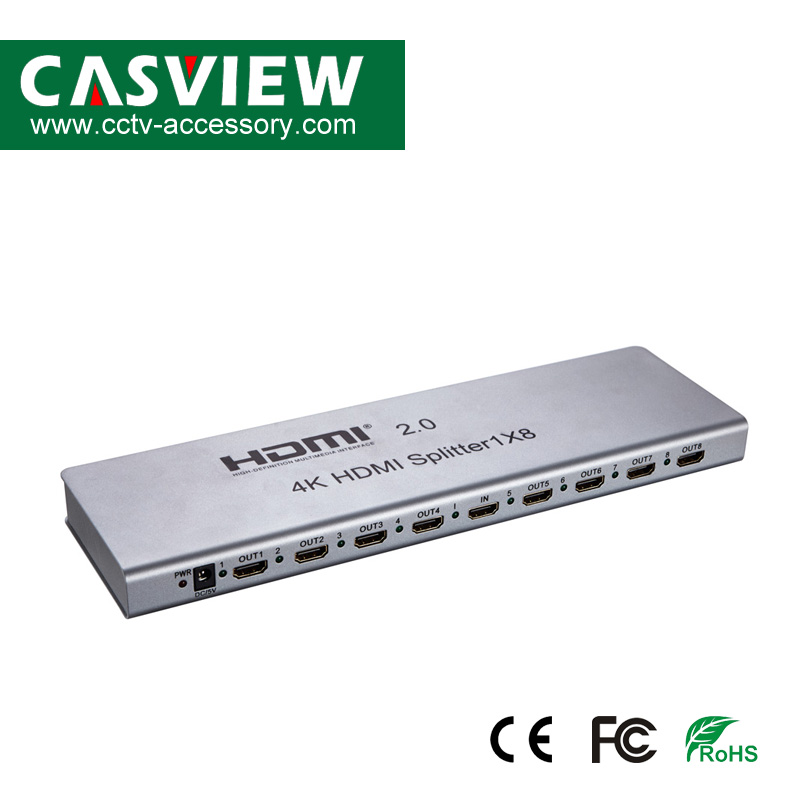

HDMI Splitter
CHM-2008-4K
- Product description: CASVIEW technology concentrating on switching power supply, power adapter, solar LED lights & cctv accessories etc. email: info@casview.com
FEATURES
Support HDMI 2.0 ,HDCP2.2
Support 3D video format
Support high resolution up to 3840X2160/60HZ
Support the max baud rate of 6G and TMDS clock can be up to 600 MHz
Support 8/10/12 bit deep color
Support AWG26 HDMI standard cable:
when the resolution is 1080p and below, input up to 8 meters,output to 8 meters.
when the resolution is 4K, input up to 8 meters, output up to 8 meters.
Support single HDMI source,accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and etc.
Built-in IR extension function.(it can work with our hdmi 2.0 repeater which has IR-RX to receive the IR command to remote control the source)
Support serial port online upgrade
Support EDID management
5V/3A Power Adapter
Specifications:.
HDMI version ……………………………………………………………………………………………… HDMI 2.0
HDCP version …………………………………………………………………………………………………HDCP 2.2
HDMI resolution ………………………………………………………………………………………up to 3840*2160/60Hz
Support video format ………………………………………………………………………………8/10/12bit Deep color
Support audio format………………………………………………DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth…………………………………………………………………………………………………………600MHz
Max baud rate………………………………………………………………………………………………………6Gbps
Input cable distance.………….(1080p resolution) ≤8m,(4K resolution)≤8m AWG26 HDMI standard cable
Output cable distance…………(1080p resolution) ≤8m,(4K resolution)≤8m AWG26 HDMI standard cable
Max working current…………………………………………………………………………………………1.4 A
Power adapter format………………………………………………input AC (50Hz, 60Hz) 100V-240V; output:DC5V/2A
Operating Temperature range………………………………………………………………………(-15 to +55)
Dimension (L x W x H)………………………………………………………………………………………………220x75x24 (mm)
Weight…………………………………………………………………………………………………………………………530g
DIP EDID Switch Description:
DIP 1 2 3 4
X 0 0 0 : copy output1 EDID only
X 0 0 1 : EDID MIX
X 0 1 0 : EDID Download (RS232)
X 0 1 1 : 4K X 2K 30HZ
X 1 0 0 : 4K X 2K 60HZ
X 1 0 1 : 1080P 3D 2ch
X 1 1 0 : 1080P 2D 2ch
X 1 1 1 : 1080P 2D 5.1ch
DIP[1] is used for upgrades:1 is upgrading mode, 0 is normal working mode (switch down is 1, otherwise is 0)
Working Mode Description:
There are two working mode for product, normal working mode and upgrading mode, which is decided by DIP EDID switch 1, 1 is upgrading mode,0 is normal working mode.
Connection and Operation:
1: connect the HD source to the splitter input with one HDMI Cable
2: connect the splitter output to the diaplays with 4 hdmi cables
Support HDMI 2.0 ,HDCP2.2
Support 3D video format
Support high resolution up to 3840X2160/60HZ
Support the max baud rate of 6G and TMDS clock can be up to 600 MHz
Support 8/10/12 bit deep color
Support AWG26 HDMI standard cable:
when the resolution is 1080p and below, input up to 8 meters,output to 8 meters.
when the resolution is 4K, input up to 8 meters, output up to 8 meters.
Support single HDMI source,accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and etc.
Built-in IR extension function.(it can work with our hdmi 2.0 repeater which has IR-RX to receive the IR command to remote control the source)
Support serial port online upgrade
Support EDID management
5V/3A Power Adapter
Specifications:.
HDMI version ……………………………………………………………………………………………… HDMI 2.0
HDCP version …………………………………………………………………………………………………HDCP 2.2
HDMI resolution ………………………………………………………………………………………up to 3840*2160/60Hz
Support video format ………………………………………………………………………………8/10/12bit Deep color
Support audio format………………………………………………DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth…………………………………………………………………………………………………………600MHz
Max baud rate………………………………………………………………………………………………………6Gbps
Input cable distance.………….(1080p resolution) ≤8m,(4K resolution)≤8m AWG26 HDMI standard cable
Output cable distance…………(1080p resolution) ≤8m,(4K resolution)≤8m AWG26 HDMI standard cable
Max working current…………………………………………………………………………………………1.4 A
Power adapter format………………………………………………input AC (50Hz, 60Hz) 100V-240V; output:DC5V/2A
Operating Temperature range………………………………………………………………………(-15 to +55)
Dimension (L x W x H)………………………………………………………………………………………………220x75x24 (mm)
Weight…………………………………………………………………………………………………………………………530g
DIP EDID Switch Description:
DIP 1 2 3 4
X 0 0 0 : copy output1 EDID only
X 0 0 1 : EDID MIX
X 0 1 0 : EDID Download (RS232)
X 0 1 1 : 4K X 2K 30HZ
X 1 0 0 : 4K X 2K 60HZ
X 1 0 1 : 1080P 3D 2ch
X 1 1 0 : 1080P 2D 2ch
X 1 1 1 : 1080P 2D 5.1ch
DIP[1] is used for upgrades:1 is upgrading mode, 0 is normal working mode (switch down is 1, otherwise is 0)
Working Mode Description:
There are two working mode for product, normal working mode and upgrading mode, which is decided by DIP EDID switch 1, 1 is upgrading mode,0 is normal working mode.
Connection and Operation:
1: connect the HD source to the splitter input with one HDMI Cable
2: connect the splitter output to the diaplays with 4 hdmi cables
