Video & Audio Matrix

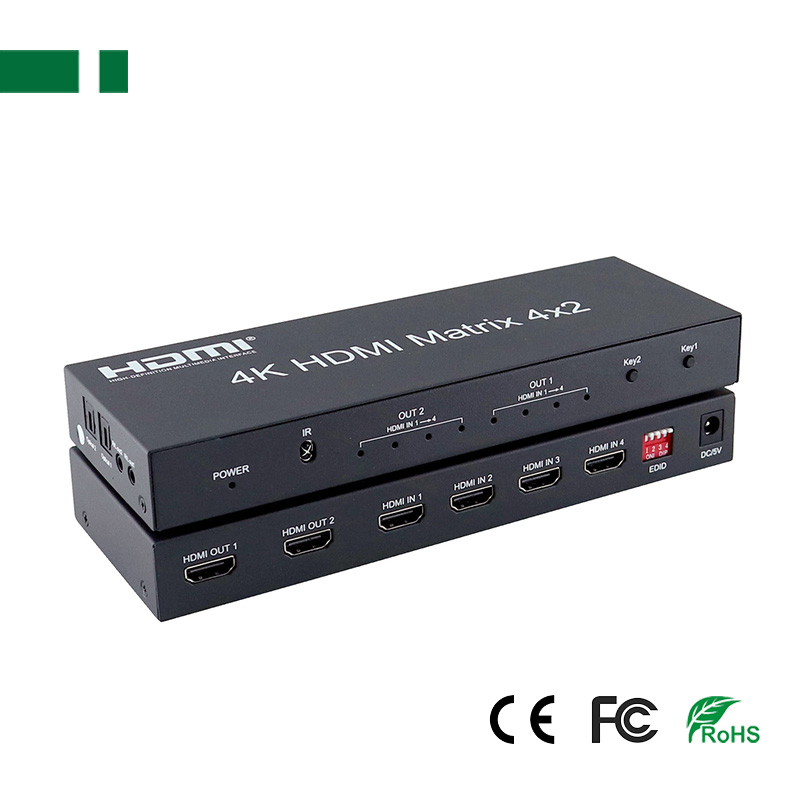

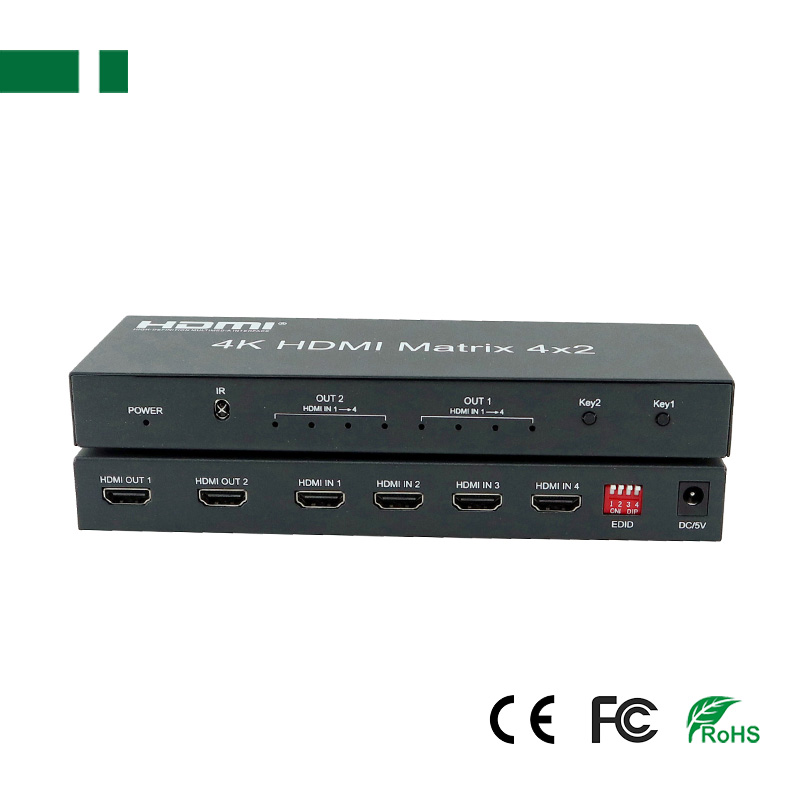

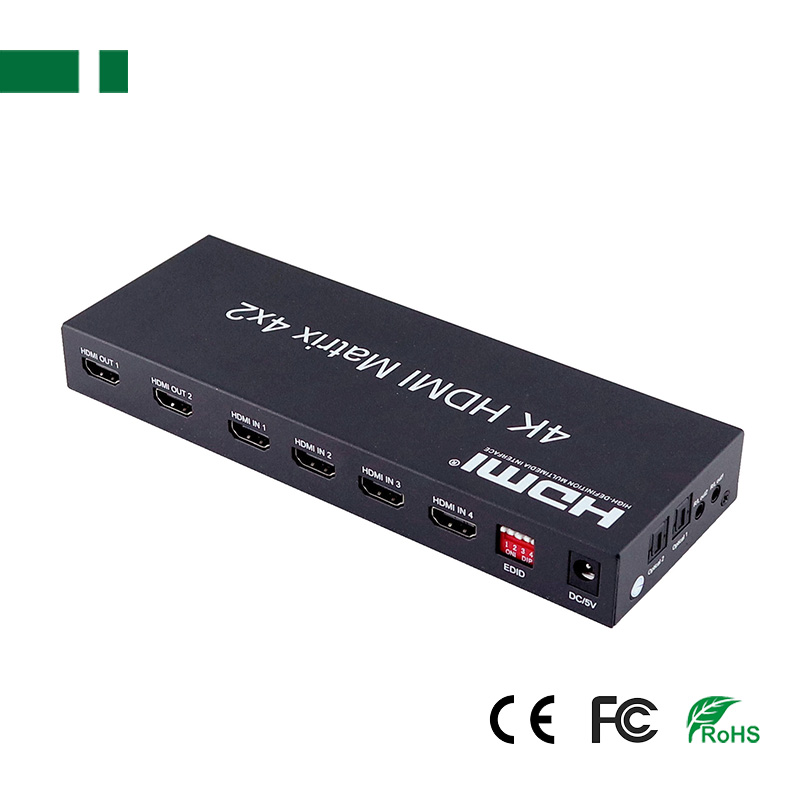

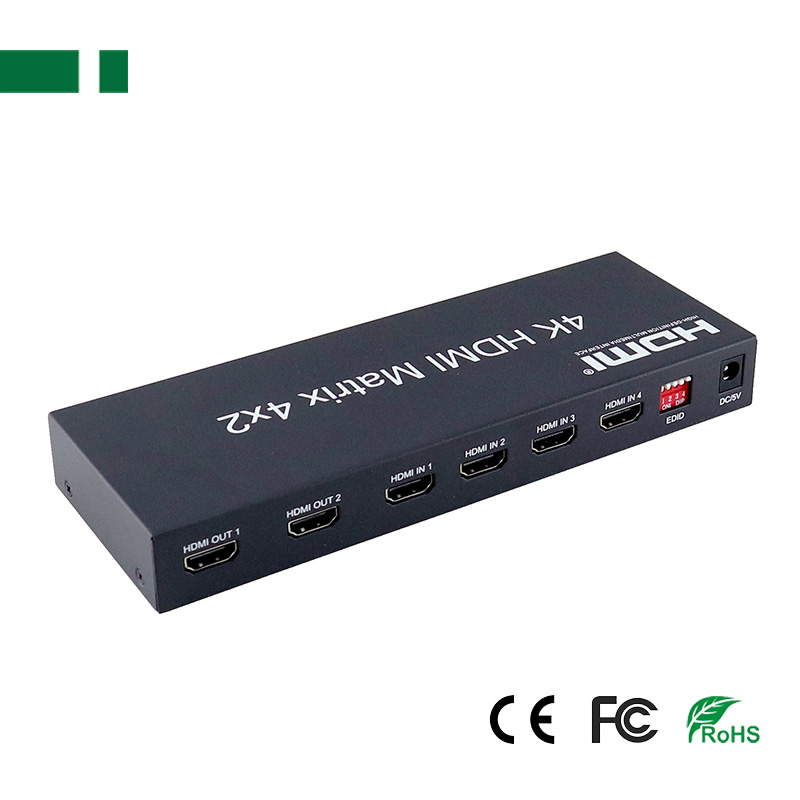

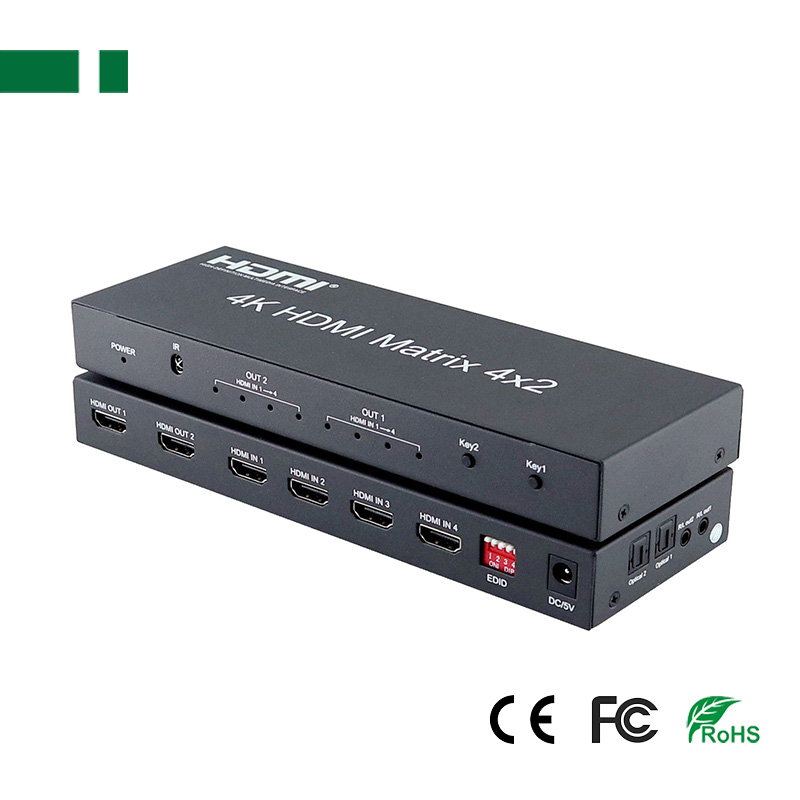

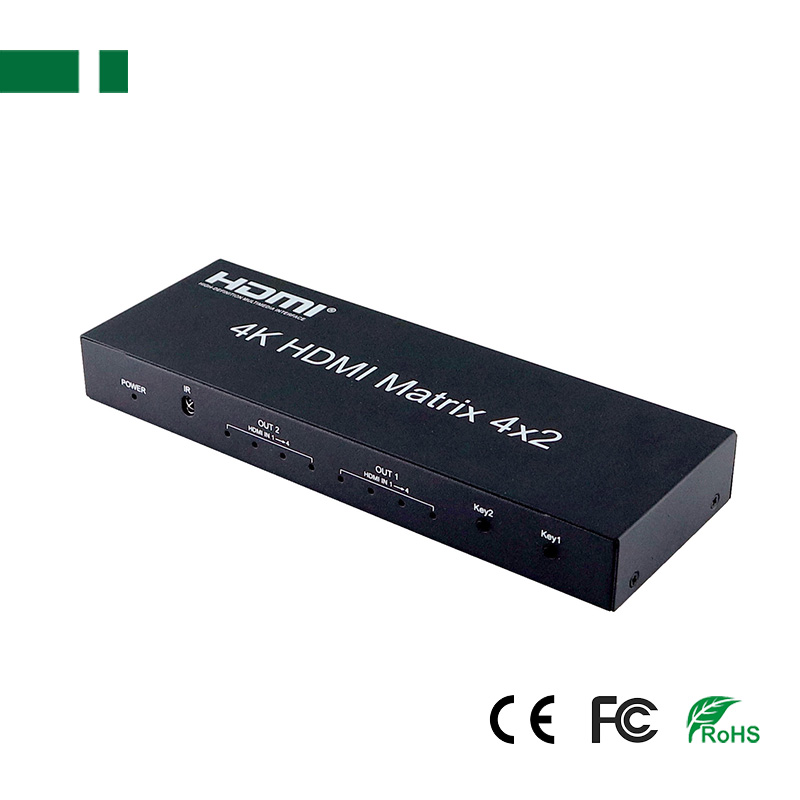

CHM-M0402 4K HDMI Matrix 4*2
- 4K HDMI Matrix 4*2
- HDMI 1.4b
- HDCP2.2
- resolution up to 3840*2160/30Hz
- Product description: The HDMI matrix 4x2 can connect 4 HD signal sources to 2 HD display terminals with optical fiber or stereo headphone output.
INTRODUCTION
The HDMI matrix 4x2 can connect 4 HD signal sources to 2 HD display terminals with optical fiber or stereo headphone output. The matrix allows four HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors. And any output port can realize independent audio output by optical fiber or stereo head phone.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Features:
Support HDMI 1.4b/HDCP2.2
Support 3D video format
Support highest resolution up to 3840*2160/30Hz
Support 3.4Gbps x 3 data rate and tmds clock up to 340Mhz
Support deep color 8/10/12 bit
Support 2 HDMI audio outputs, 3.5mm earphone jack and optical output at same time
4 HDMI inputs switch and split to 2 HDMI displays.
Support LPCM/Dolby/DTS 5.1 channel
SPECIFICATIONS:
HDMI version……………………………...…………………………….…….…....….….... HDMI 1.4b
HDMI resolution …………………….…....….…....….…....….…....….….... up to 3840*2160/30Hz
Support video format …………….........................………...………….…....8/10/12 bit deep color
Support audio format………….....................................................….….... LPCM/DTS/Dolby-AC3
Max bandwidth…………………………………………………..….…………..….…....….…340MHz
Max baud rate……………….…….………………….………….……………….….…...3.4Gbps x 3
Input cable distance..…... ………………………..………≤10m AWG26 HDMI 1.4 standard cable
Output cable distance………………………........……….≤15m AWG26 HDMI 1.4 standard cable
HDMI Input.......……………………………………………....………...………..……….…....….…....4
HDMI Output……………………………………………………......…………………..….…....….…..2
Max working current……………………………………………..…..………………..…….….600mA
Power Adapter format..............................Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range……..…………….…...……..………………………..…(-15 to +45℃)
Operating Humidity range…………………………...……..….…....5 to 90%RH (No Condensation)
Dimension (L x W x H)……………………………….……....………………...….. 199x70x27 (mm)
Weight…..………………………………………………..…………….….........….…....….….... 300g
Accessories :
1.4K HDMI Matrix 4X2
2.IR Remote Control
3.5V power adapter
4.User Manual
The HDMI matrix 4x2 can connect 4 HD signal sources to 2 HD display terminals with optical fiber or stereo headphone output. The matrix allows four HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors. And any output port can realize independent audio output by optical fiber or stereo head phone.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Features:
Support HDMI 1.4b/HDCP2.2
Support 3D video format
Support highest resolution up to 3840*2160/30Hz
Support 3.4Gbps x 3 data rate and tmds clock up to 340Mhz
Support deep color 8/10/12 bit
Support 2 HDMI audio outputs, 3.5mm earphone jack and optical output at same time
4 HDMI inputs switch and split to 2 HDMI displays.
Support LPCM/Dolby/DTS 5.1 channel
SPECIFICATIONS:
HDMI version……………………………...…………………………….…….…....….….... HDMI 1.4b
HDMI resolution …………………….…....….…....….…....….…....….….... up to 3840*2160/30Hz
Support video format …………….........................………...………….…....8/10/12 bit deep color
Support audio format………….....................................................….….... LPCM/DTS/Dolby-AC3
Max bandwidth…………………………………………………..….…………..….…....….…340MHz
Max baud rate……………….…….………………….………….……………….….…...3.4Gbps x 3
Input cable distance..…... ………………………..………≤10m AWG26 HDMI 1.4 standard cable
Output cable distance………………………........……….≤15m AWG26 HDMI 1.4 standard cable
HDMI Input.......……………………………………………....………...………..……….…....….…....4
HDMI Output……………………………………………………......…………………..….…....….…..2
Max working current……………………………………………..…..………………..…….….600mA
Power Adapter format..............................Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range……..…………….…...……..………………………..…(-15 to +45℃)
Operating Humidity range…………………………...……..….…....5 to 90%RH (No Condensation)
Dimension (L x W x H)……………………………….……....………………...….. 199x70x27 (mm)
Weight…..………………………………………………..…………….….........….…....….….... 300g
Accessories :
1.4K HDMI Matrix 4X2
2.IR Remote Control
3.5V power adapter
4.User Manual
