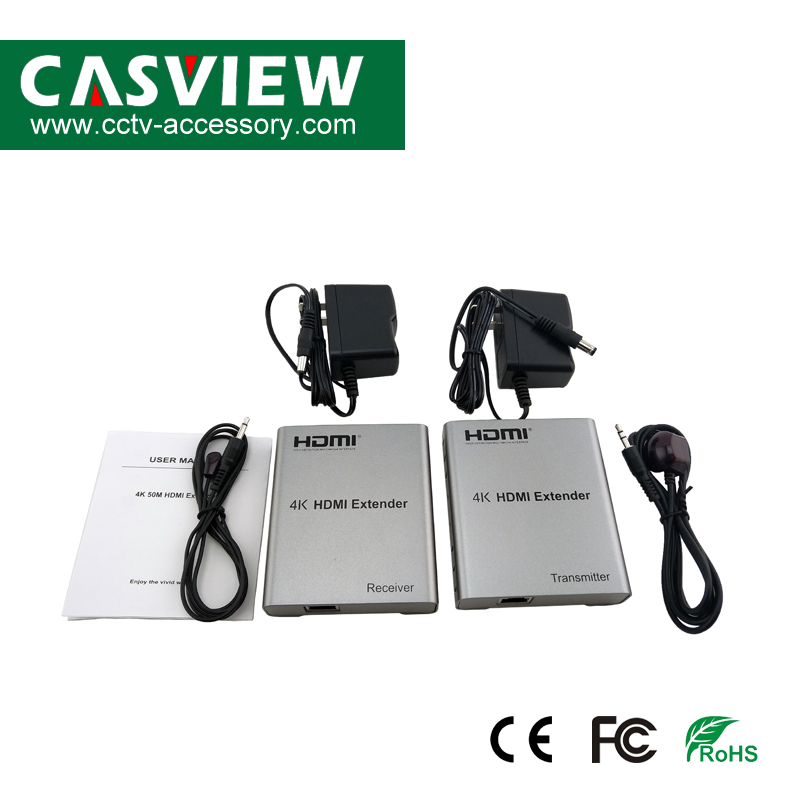

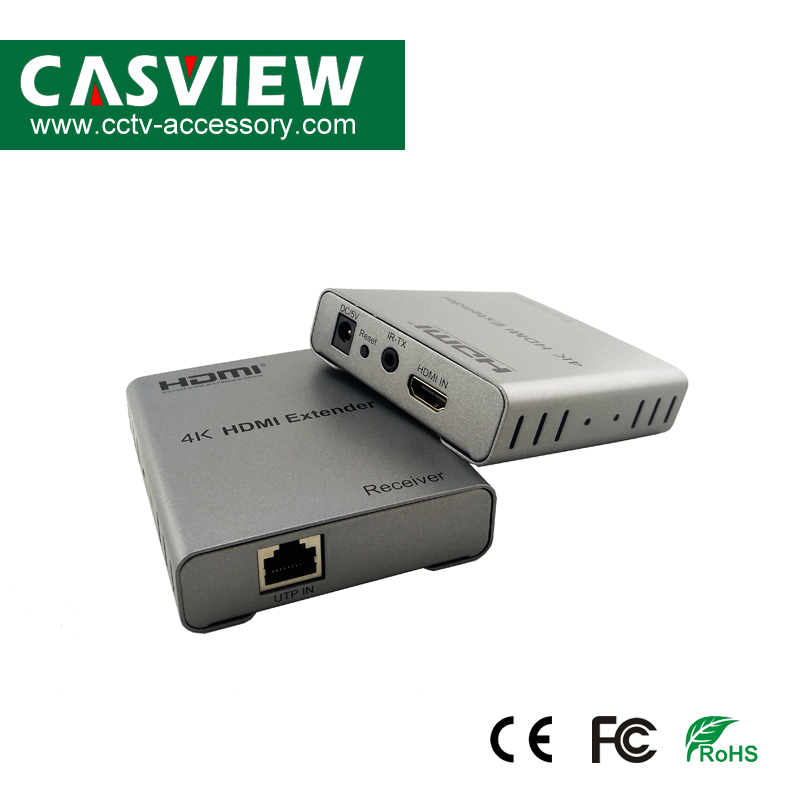

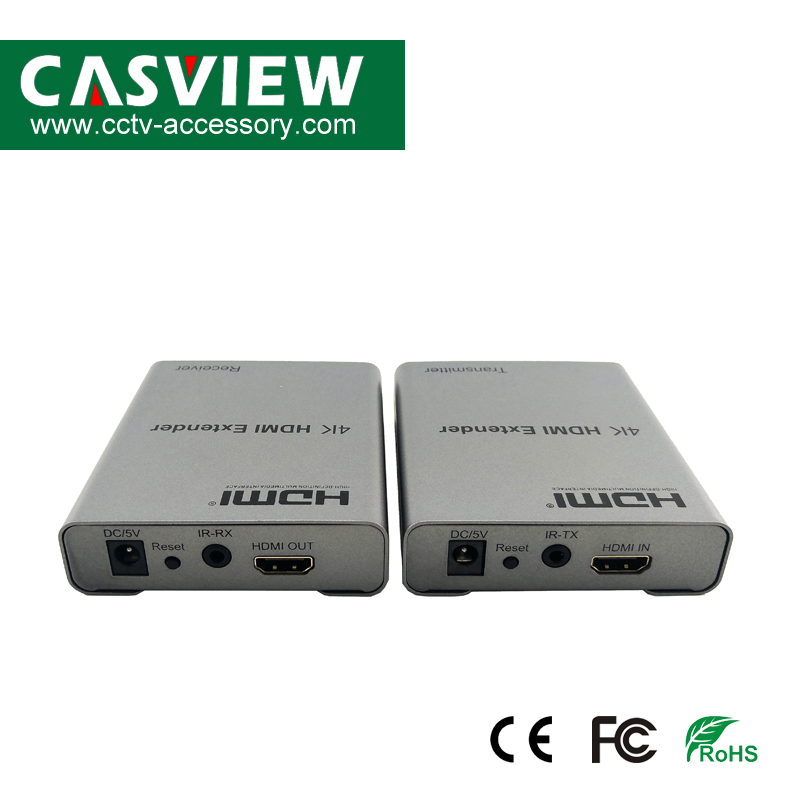

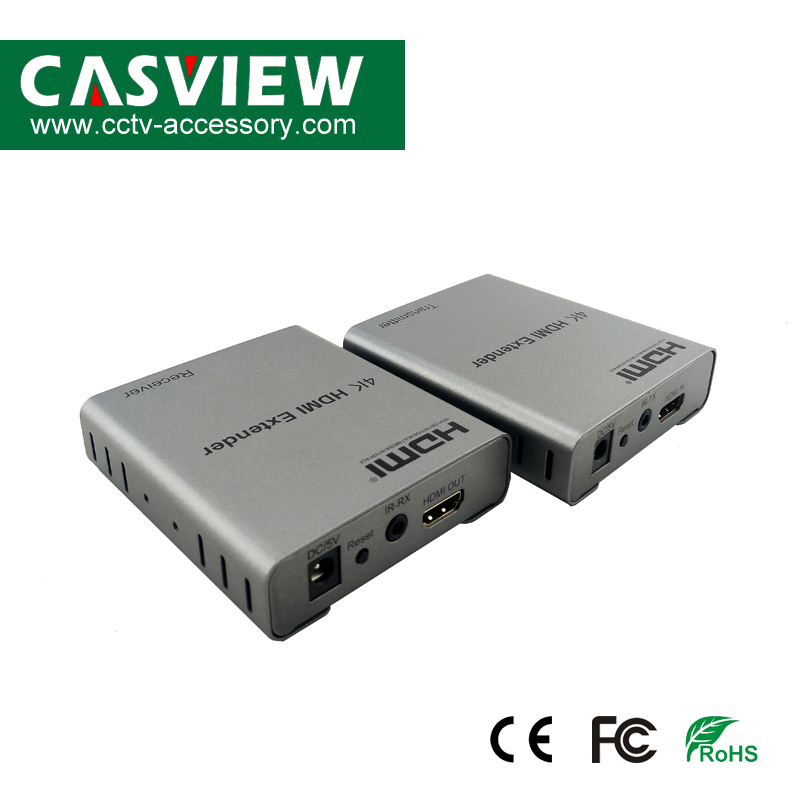

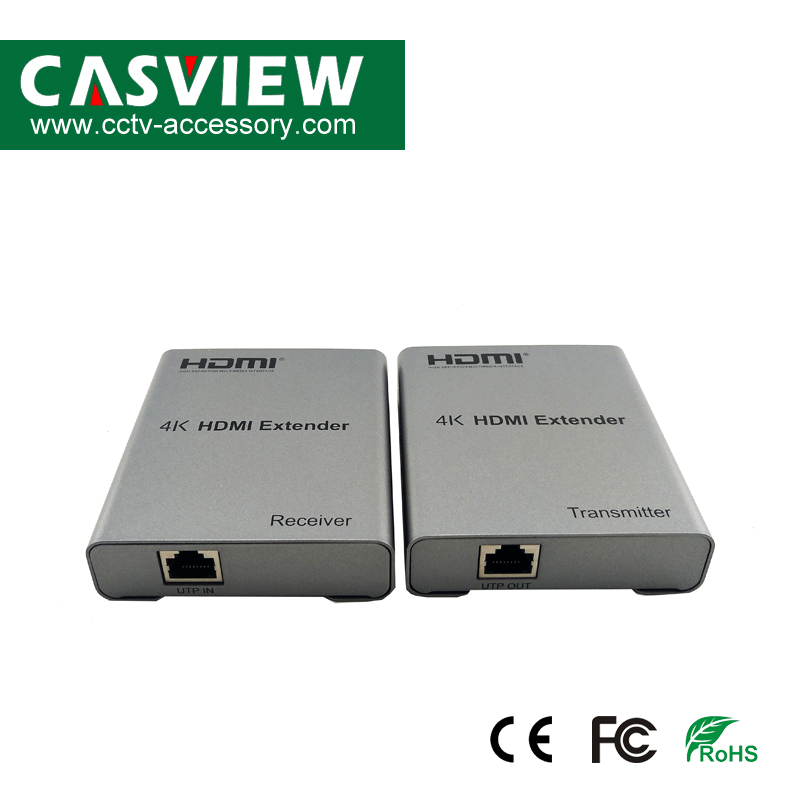

HDMI Extender
CHM-109-4K
- Product description: HDMI Extender transmission up to 120M email: info@casview.com
Features:
120M long distance transmission
Multi-receive cascading transmission
Low power consumption, low temperature and high safety
Support 4K@30HZ HDMI1.4 or below
Specifications:
Extended distance: transmission up to 120M (CAT5E/6)
Input video signal: 5Volts p-p(TTL)
Video resolution support: Up to 3840 X 2160/30HZ backward compatible.
Support audio format: DTS/Dolby/LPCM
Support video format: 4K/1080P/720P and so on.
Maximum bandwidth transmission: 340MHz
Maximum transfer rate: 3 x 3.4Gbps
Input cable length: ≤15M AWG26 HDMI standard cable
Output cable length: ≤15M AWG26 HDMI standard cable
Maximum operating current: TX: 350mA; RX: 200mA
Power Adapter specifications: input: AC (50HZ, 60HZ) 100-240V; output: DC5V / 1A;
Operating temperature range: (-10∽+45°C)
Size: 94*84*24 (mm)
Weight: 223g*2
120M long distance transmission
Multi-receive cascading transmission
Low power consumption, low temperature and high safety
Support 4K@30HZ HDMI1.4 or below
Specifications:
Extended distance: transmission up to 120M (CAT5E/6)
Input video signal: 5Volts p-p(TTL)
Video resolution support: Up to 3840 X 2160/30HZ backward compatible.
Support audio format: DTS/Dolby/LPCM
Support video format: 4K/1080P/720P and so on.
Maximum bandwidth transmission: 340MHz
Maximum transfer rate: 3 x 3.4Gbps
Input cable length: ≤15M AWG26 HDMI standard cable
Output cable length: ≤15M AWG26 HDMI standard cable
Maximum operating current: TX: 350mA; RX: 200mA
Power Adapter specifications: input: AC (50HZ, 60HZ) 100-240V; output: DC5V / 1A;
Operating temperature range: (-10∽+45°C)
Size: 94*84*24 (mm)
Weight: 223g*2
