HDMI Extender

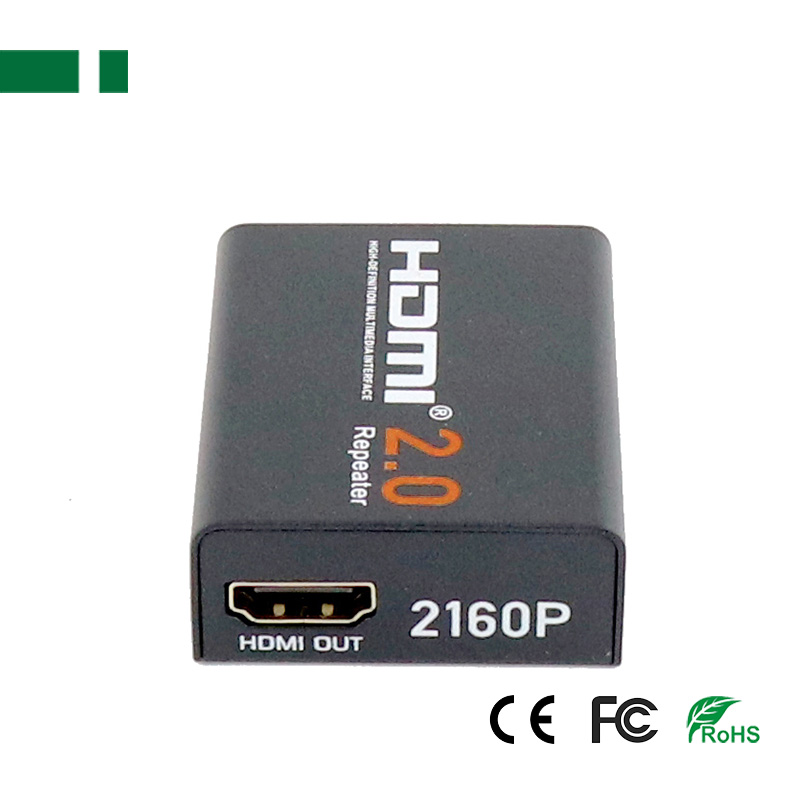

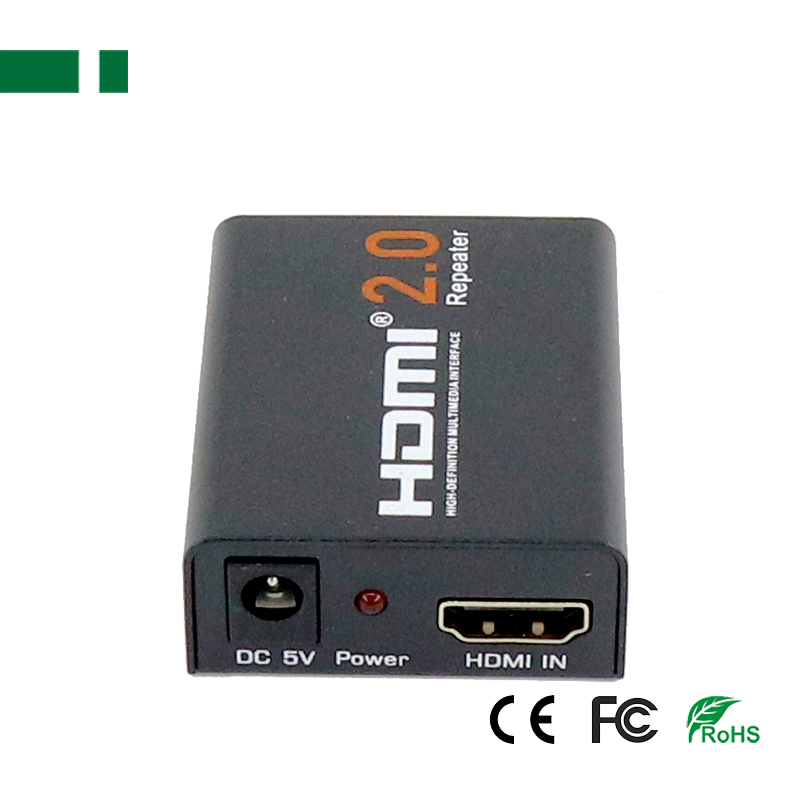

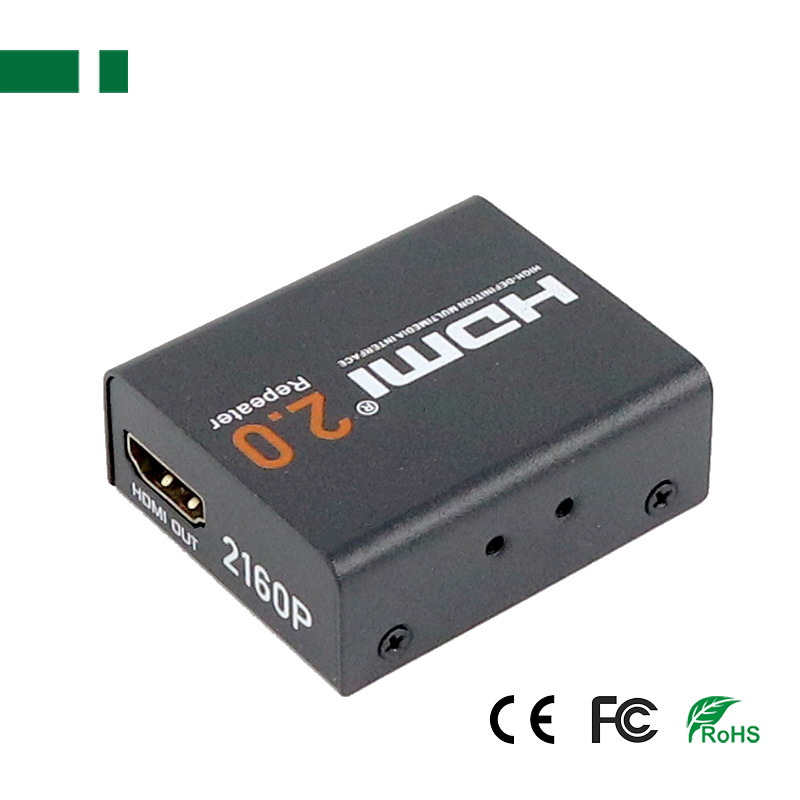

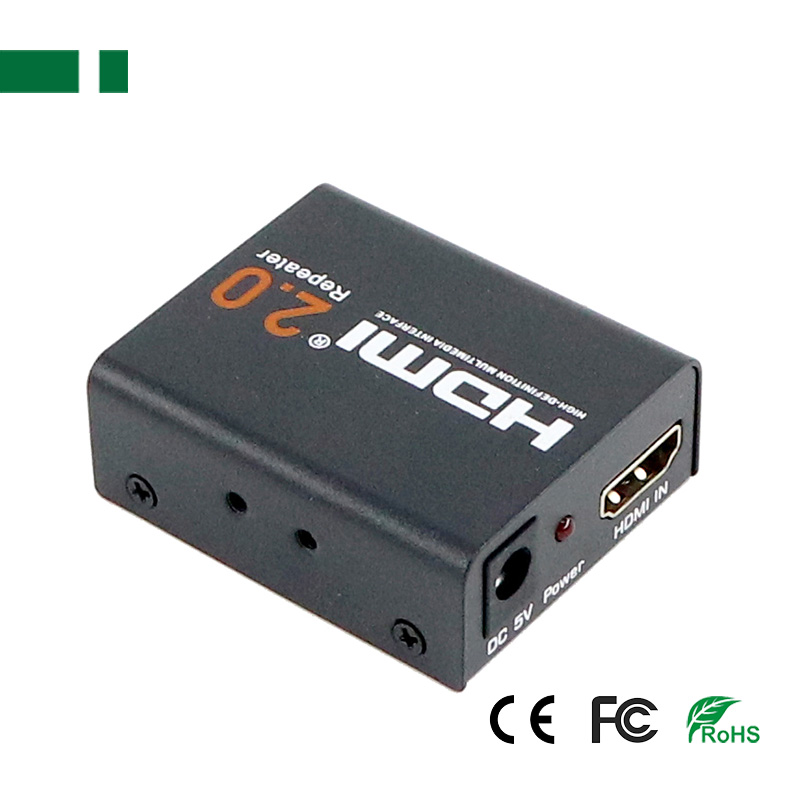

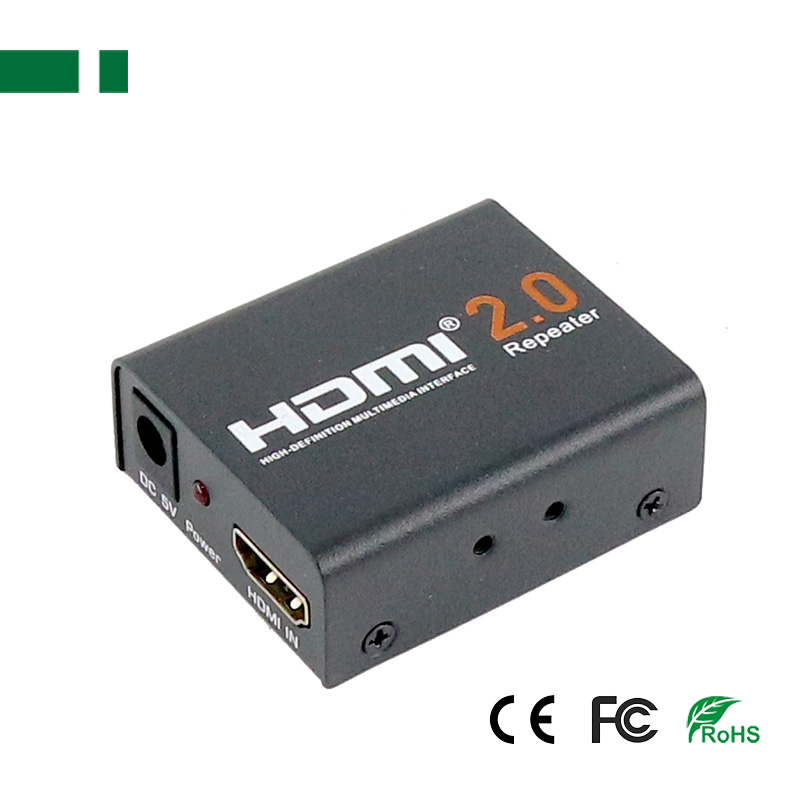

CHM-105-H2 4K@60Hz HDMI Repeater
- 4K@60Hz HDMI Repeater
- Supports HDMI2.0 and downwardly compliant.
- Supports HDCP2.2.
- Product description: HDMI 2.0 Repeater, Designed to decode and recode HDMI signal.. email: info@casview.com
Features:
HDMI 2.0 Repeater
Designed to decode and recode HDMI signal.
Long distance and no-loss signal transmission.
Supports HDMI2.0 and downwardly compliant.
Up to 6.0Gbps data speed, 4K/2K@60Hz resolution.
Supports HDCP2.2.
Supports 3D.
Input resolution is 4K/60Hz, RGB 4:4:4, AWG24 wire, 15m work range.
Input resolution is 4K/30Hz, RGB 4:4:4, or 4K/60Hz RGB 4:2:0. Standard HDMI2.0, AWG24 wire, 20m work range.
Input resolution is 1080P/60Hz, Standard HDMI2.0, AWG24 wire, 30m work range.
No signal loss or delay.
Easy to install.
Specification:
Input Resolution: max 4K/60fps
Supported Color: 24bit/deep color 30bit/36bit
Audio Channel: 32CH
Max Bandwidth: 300MHz
Max Transfer Speed: 18Gbps
Max Work Current: 0.3A
Power Adapter: AC 100V-240V 50/60HZ, DC 5V/1A
Work Temperature: -10°C - 55°C
Storage Temperature: -20°C - 60°C
Work Humidity: 10% - 90% no congeal
Storage Humidity: 5% - 95% no congeal
Static Discharge Protection: ±8kV (air gap discharge), ±4kV (connector discharge)

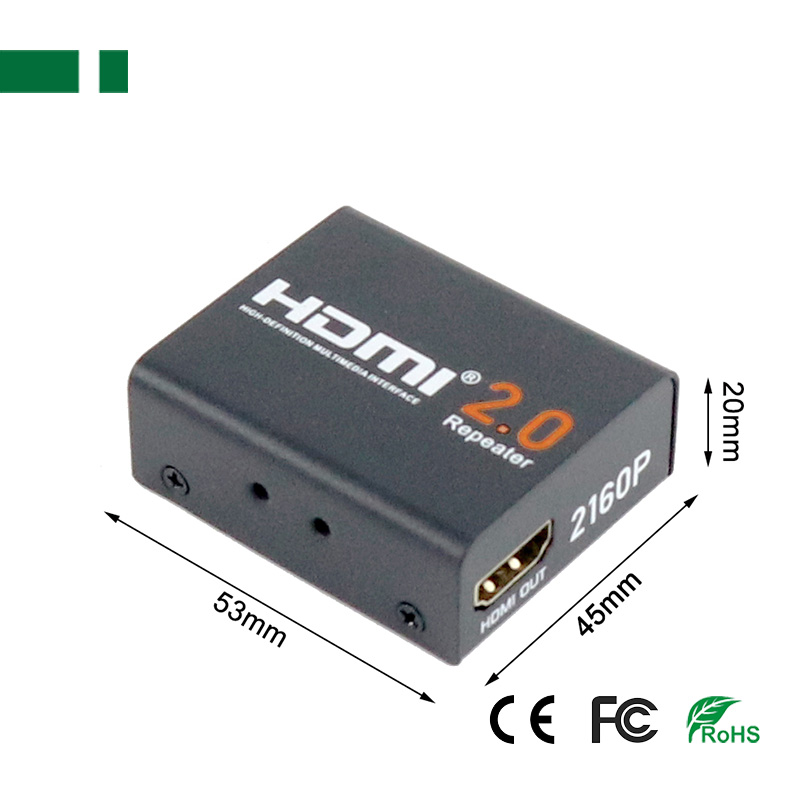

Size: approx. 52.8 x 44.5 X 19.4 mm/2.08 X 1.75 X 0.76 in
Weight: approx. 60 g
HDMI 2.0 Repeater
Designed to decode and recode HDMI signal.
Long distance and no-loss signal transmission.
Supports HDMI2.0 and downwardly compliant.
Up to 6.0Gbps data speed, 4K/2K@60Hz resolution.
Supports HDCP2.2.
Supports 3D.
Input resolution is 4K/60Hz, RGB 4:4:4, AWG24 wire, 15m work range.
Input resolution is 4K/30Hz, RGB 4:4:4, or 4K/60Hz RGB 4:2:0. Standard HDMI2.0, AWG24 wire, 20m work range.
Input resolution is 1080P/60Hz, Standard HDMI2.0, AWG24 wire, 30m work range.
No signal loss or delay.
Easy to install.
Specification:
Input Resolution: max 4K/60fps
Supported Color: 24bit/deep color 30bit/36bit
Audio Channel: 32CH
Max Bandwidth: 300MHz
Max Transfer Speed: 18Gbps
Max Work Current: 0.3A
Power Adapter: AC 100V-240V 50/60HZ, DC 5V/1A
Work Temperature: -10°C - 55°C
Storage Temperature: -20°C - 60°C
Work Humidity: 10% - 90% no congeal
Storage Humidity: 5% - 95% no congeal
Static Discharge Protection: ±8kV (air gap discharge), ±4kV (connector discharge)
Size: approx. 52.8 x 44.5 X 19.4 mm/2.08 X 1.75 X 0.76 in
Weight: approx. 60 g
