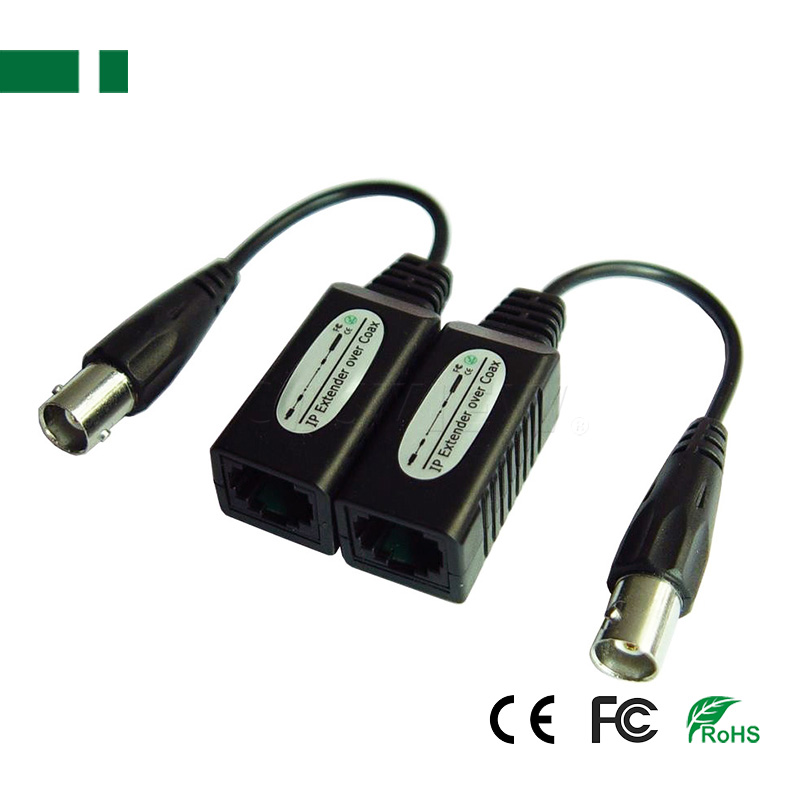

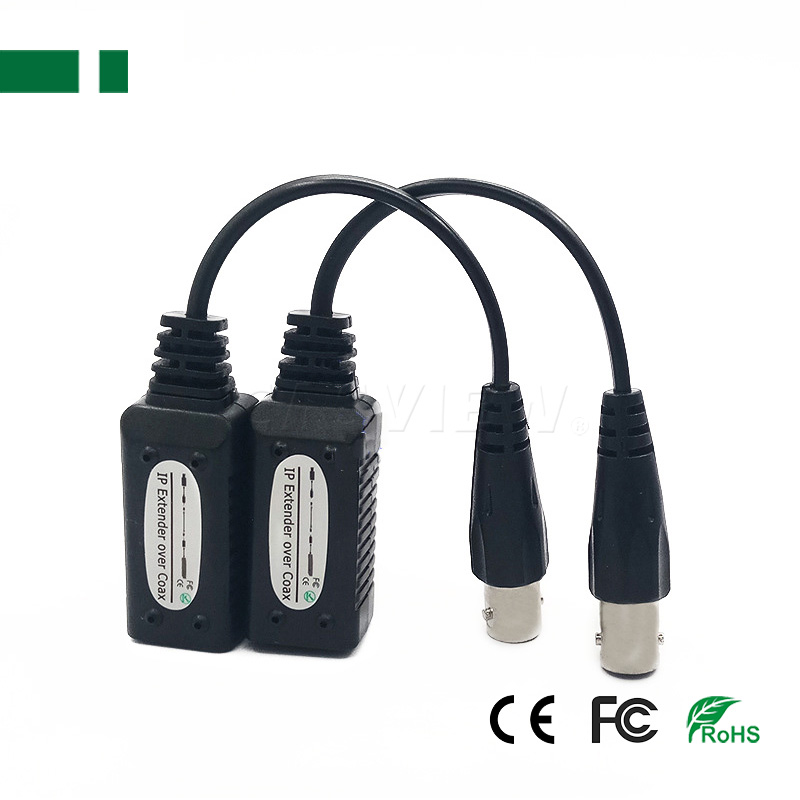

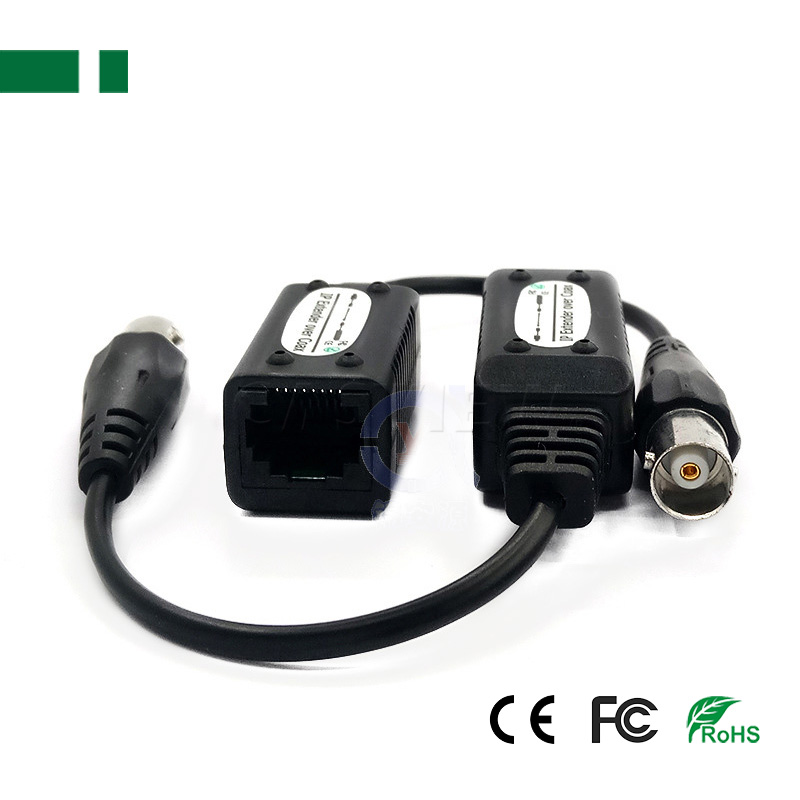

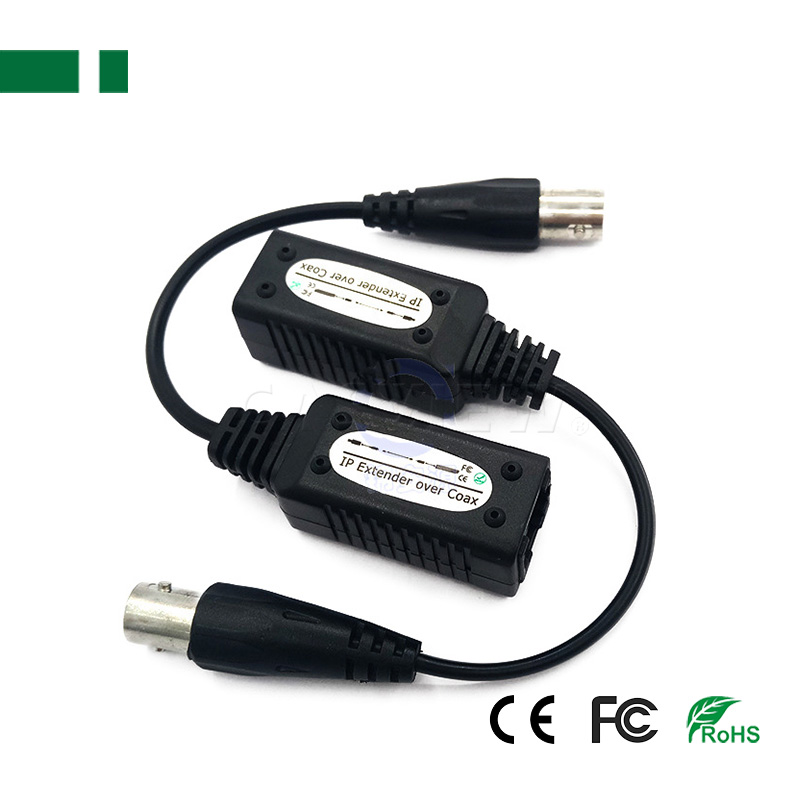

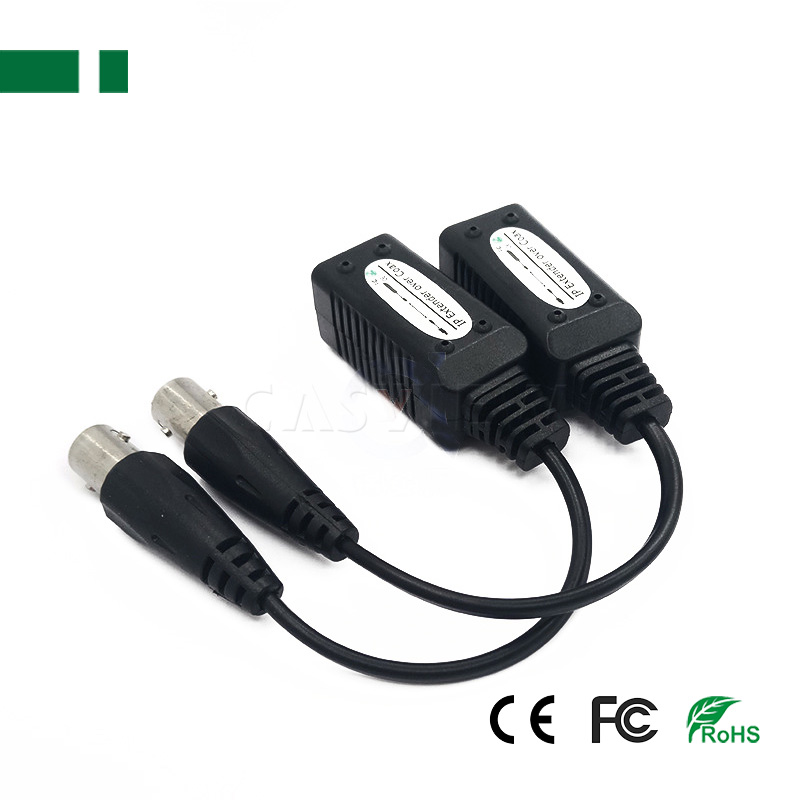

CEOC-05 IP Extender over Coax Cable

Overview
IP EXTENDER is designed to extend IP camera signal over existing Coaxial Cable, used in pairs with RG59 cable to exceed the IEEE 802.3 10 Base TNEX Specification. Transmission distance reachs max up to 220 meters at 10Mbps speed. IP EXTENDER is low cost and easy, simple and speedy migration from Analog to IP Camera’s using existing coax cable.

Features:
1-CH Passive IP Extender Over Coax;
* Transmit IP camera signal Over existing coaxial cable;
* Transmission distance max up to 220m;
* Passive device, no power required;
* Transmission Rate / Bandwidth: 10Mbps * Half duplex Transmissions;
* Built-in Surge Protection;
* High quality and performance;
* Fast and easy to install.

Applications:
* Security Monitoring System;
* Multimedia Network Teaching System;
* Medical Monitoring Display System;
* Industrial Automation Control System;
* Banking, Securities, financial information display system;
* Remote Network Server Monitoring ;
* Department Store Security;
* Casino Security;
* Hospitals, Airports and banks;
* School Campuses.

Specification:

10/100Mbps Ethernet over Coaxial Extender (EOC)
Model	CEOC-01	CEOC-02	CEOC-03	CEOC-04	CEOC-05	CN-601P
Standard	IEEE 802.3 10Base-T
Bandwidth	10/100Mbps
Max. distance	2000M	500M	100M	100M	100M	100M
Connector	BNC Female + RJ45 Female			BNC Female + RJ45 Male	BNC Female + RJ45 Female	BNC Female + RJ45 Male
Cable	RG59 RG6 Coaxial Cable
Power	DC12V 1A	DC5V~DC12V	N/A
Operating temperature	Operating: -20℃~70℃
Relative humidity	0~95%(non condensing)
Storage temperature	Storage: -40℃~150℃
Housing	Metal	Metal	ABS Plastic	ABS Plastic	ABS Plastic	ABS Plastic
Dimensions	108*66*27mm	92*46*28mm	40*20*19mm	50*20*19mm	40*20*19mm	50*25*19mm
Net weight	170G	270G	40G	50G	40G	50G

Package Contents:

1X1-CH Passive IP Extender Over Coax

Note:Depends on the quality of the cable,
If the low quality and old cable is 100 meters(Packaging is marked 100 meters),
High quality and new cable is 220 meters.
