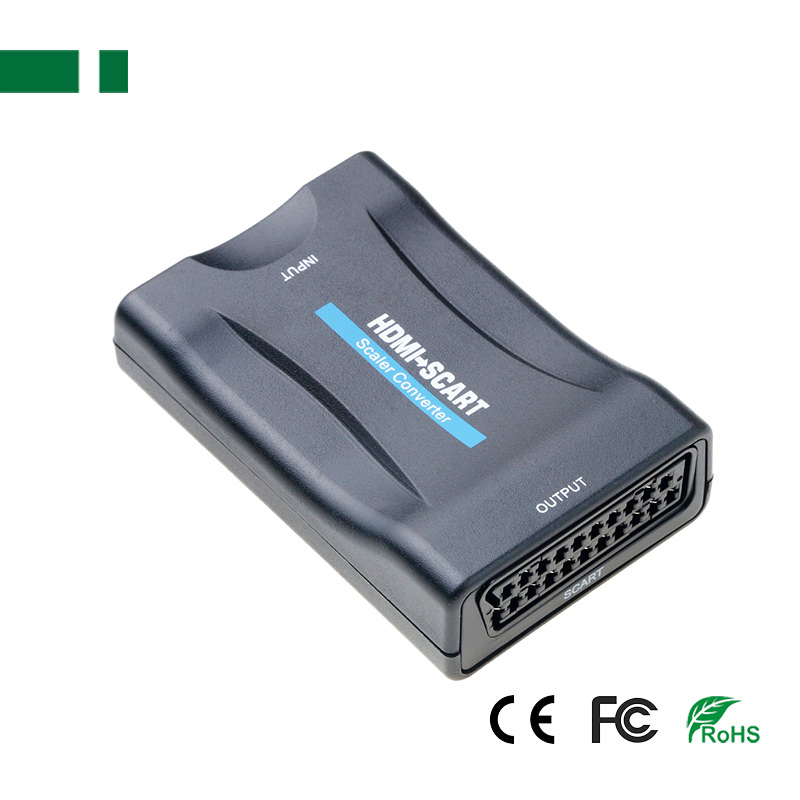

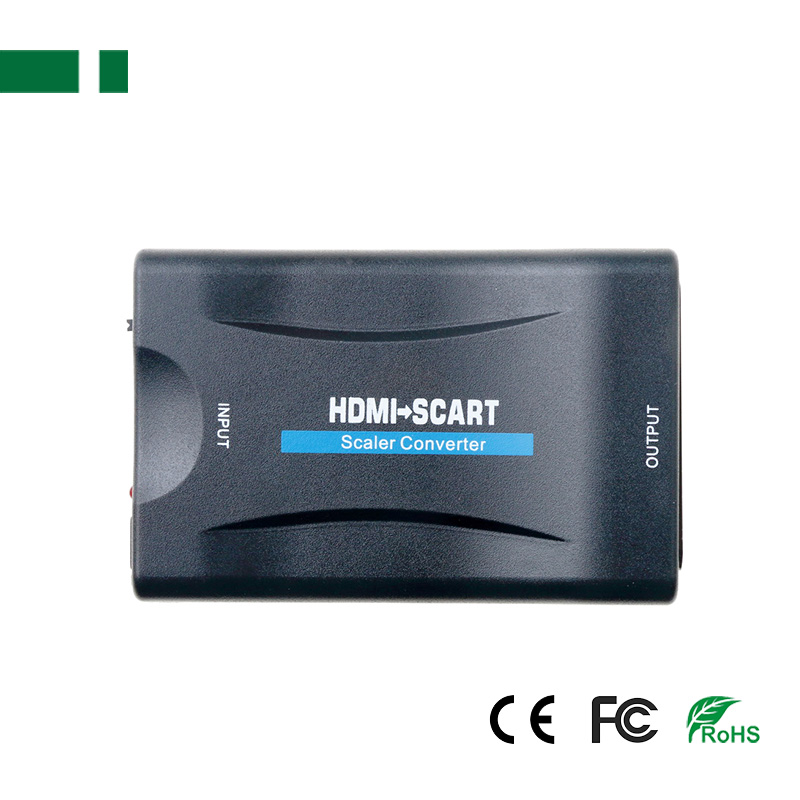

CVA-3025 1080P HDMI to SCART converter
- HDMI to SCART converter
- 1080P HDMI to SCART converter
- Compatible with HDMI1.3
- Input ports: 1xHDMI. Output ports: 1xSCART
- Product description: The HDMI to SCART converter which will convert digital HDMI video and audio signal to composite video signal and the FL / FR stereo audio signal, while support DVI system sideline signals.
Features:
100% Brand new and high quality!
The HDMI to SCART converter which will convert digital HDMI video and audio signal to composite video signal and the FL / FR stereo audio signal, while support DVI system sideline signals.
Help users convert the high quality of the HDMI signal to normal CVBS signal (standard-definition 480i, 576i,).
So that can play on CRT TV, VHS VCR, DVD recorders, etc.
The HDMI to SCART converter support NTSC and PAL TV formats output.
No need to install drivers, portable, flexible, plug and play
High quality scaling technology for input resolutions.
Support NTSC and PAL two standard TV formats output
Compatible with HDMI1.3
Share your smart phone photos, music and movies on the TV
Specifications
Input ports: 1xHDMI.
Output ports: 1xSCART
Dimensions: 88(D)x58(W)x26(H) mm
Input Resolution: 640x480@60Hz,800x600@60Hz,
1024x768@60Hz,1280x720@60Hz,
1280x1024@60Hz,1360x768@60Hz,
1600x1200@60Hz,1920x1080@60Hz,
480i/60Hz, 480p/60Hz, 576i/60Hz, 576p/60Hz,
720p 50/60Hz, 1080i 50/60Hz, 1080p23.97/24/25/50/59.94/60Hz.
CVBS output: PAL, NTSC
Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity: 20 ~ 90% RH (Non-condensing)
Power Consumption (Max):3W

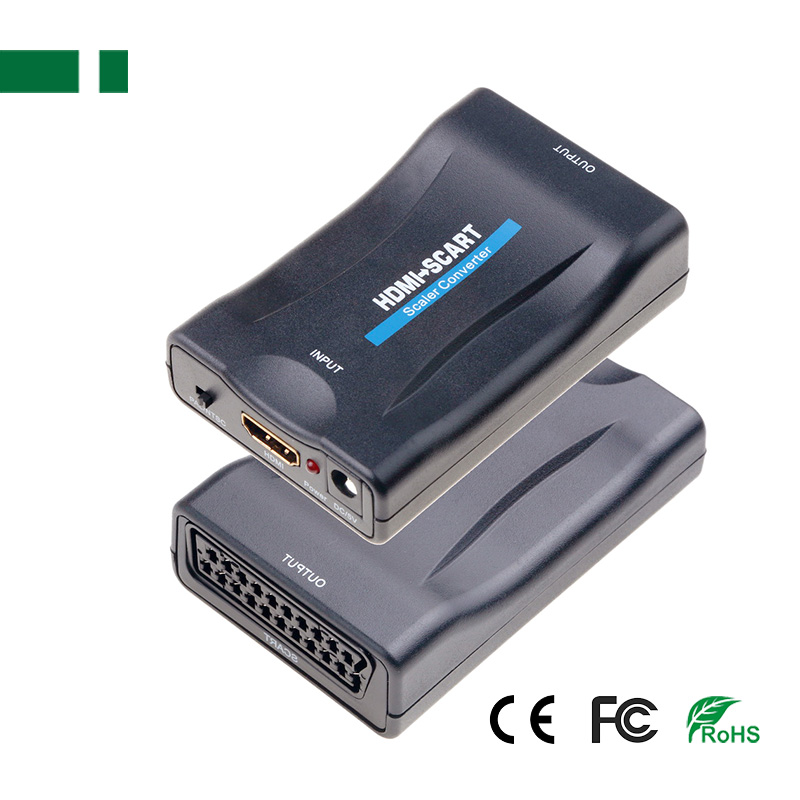

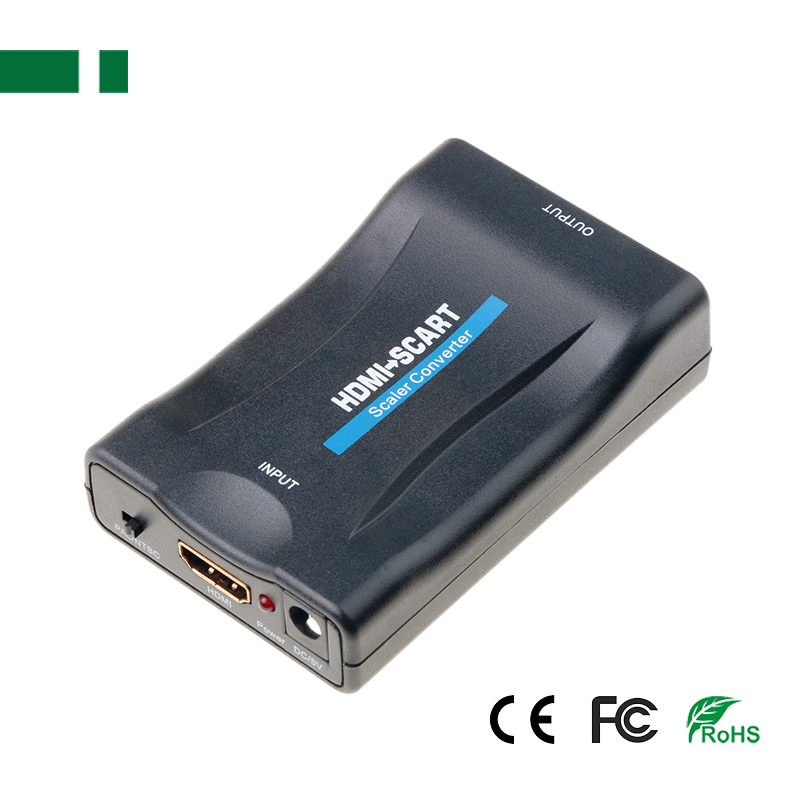

Operation controls and Functions:
1) PAL/NTSC Switch: Switch the CVBS output format.
2) HDMI Input: Connect the HDMI to your source equipment such like DVD/Game console.
3) LED indicator: When the DC5V power on, the indicator will be light.
4) Power: Plug the 5VDC power supply into the unit and connect the adaptor to AC wall outlet.

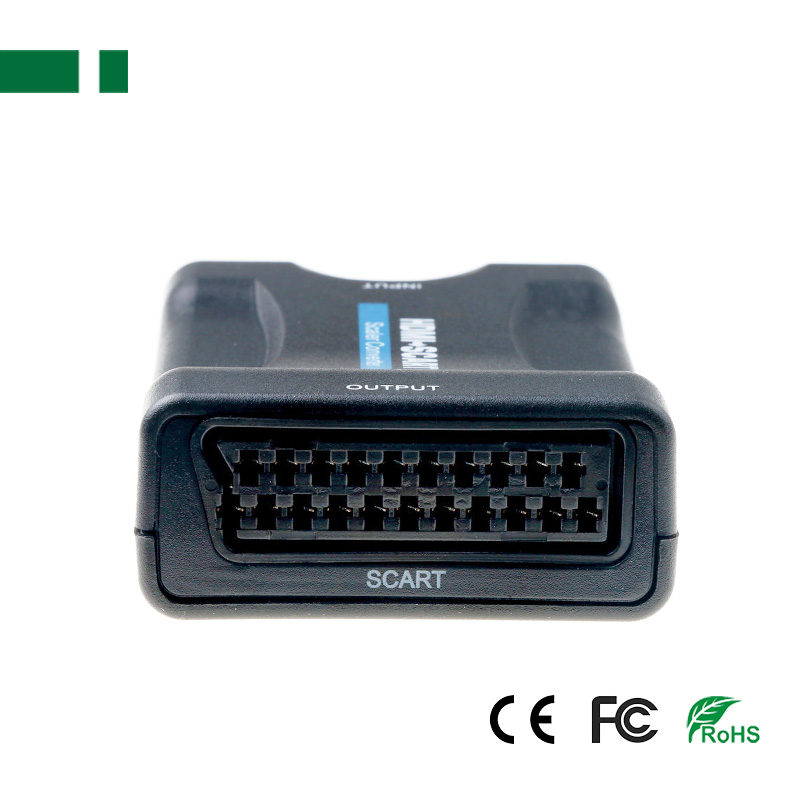

5) SCART output: Connect the SCART output to your display equipment(like TV SET).
Package included :
1 X HDMI to Scart adapter
1 X USB Cable
1 x User Manual
100% Brand new and high quality!
The HDMI to SCART converter which will convert digital HDMI video and audio signal to composite video signal and the FL / FR stereo audio signal, while support DVI system sideline signals.
Help users convert the high quality of the HDMI signal to normal CVBS signal (standard-definition 480i, 576i,).
So that can play on CRT TV, VHS VCR, DVD recorders, etc.
The HDMI to SCART converter support NTSC and PAL TV formats output.
No need to install drivers, portable, flexible, plug and play
High quality scaling technology for input resolutions.
Support NTSC and PAL two standard TV formats output
Compatible with HDMI1.3
Share your smart phone photos, music and movies on the TV
Specifications
Input ports: 1xHDMI.
Output ports: 1xSCART
Dimensions: 88(D)x58(W)x26(H) mm
Input Resolution: 640x480@60Hz,800x600@60Hz,
1024x768@60Hz,1280x720@60Hz,
1280x1024@60Hz,1360x768@60Hz,
1600x1200@60Hz,1920x1080@60Hz,
480i/60Hz, 480p/60Hz, 576i/60Hz, 576p/60Hz,
720p 50/60Hz, 1080i 50/60Hz, 1080p23.97/24/25/50/59.94/60Hz.
CVBS output: PAL, NTSC
Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity: 20 ~ 90% RH (Non-condensing)
Power Consumption (Max):3W
Operation controls and Functions:
1) PAL/NTSC Switch: Switch the CVBS output format.
2) HDMI Input: Connect the HDMI to your source equipment such like DVD/Game console.
3) LED indicator: When the DC5V power on, the indicator will be light.
4) Power: Plug the 5VDC power supply into the unit and connect the adaptor to AC wall outlet.
5) SCART output: Connect the SCART output to your display equipment(like TV SET).
Package included :
1 X HDMI to Scart adapter
1 X USB Cable
1 x User Manual
