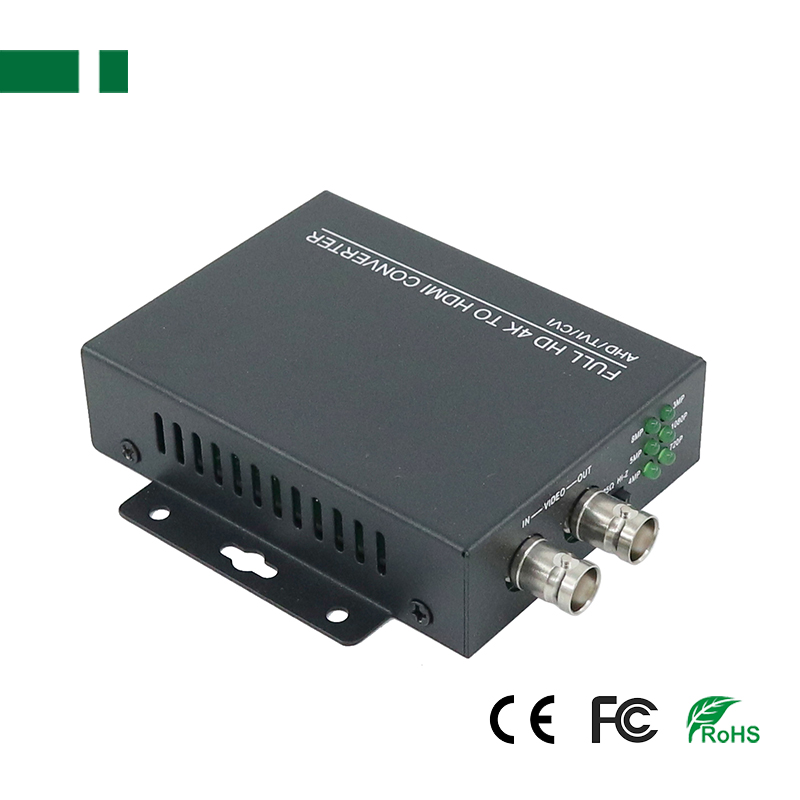

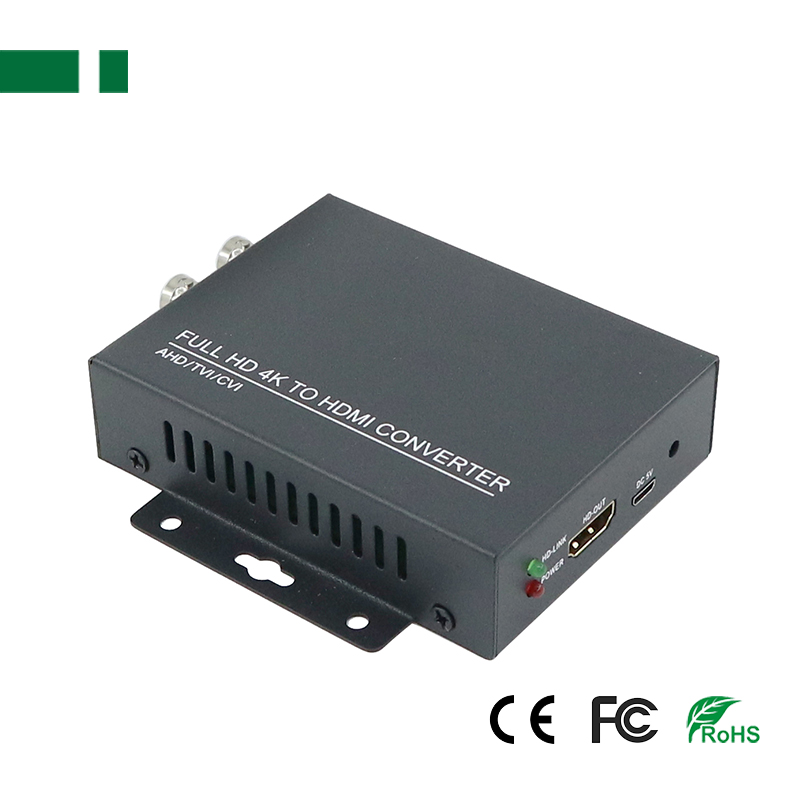

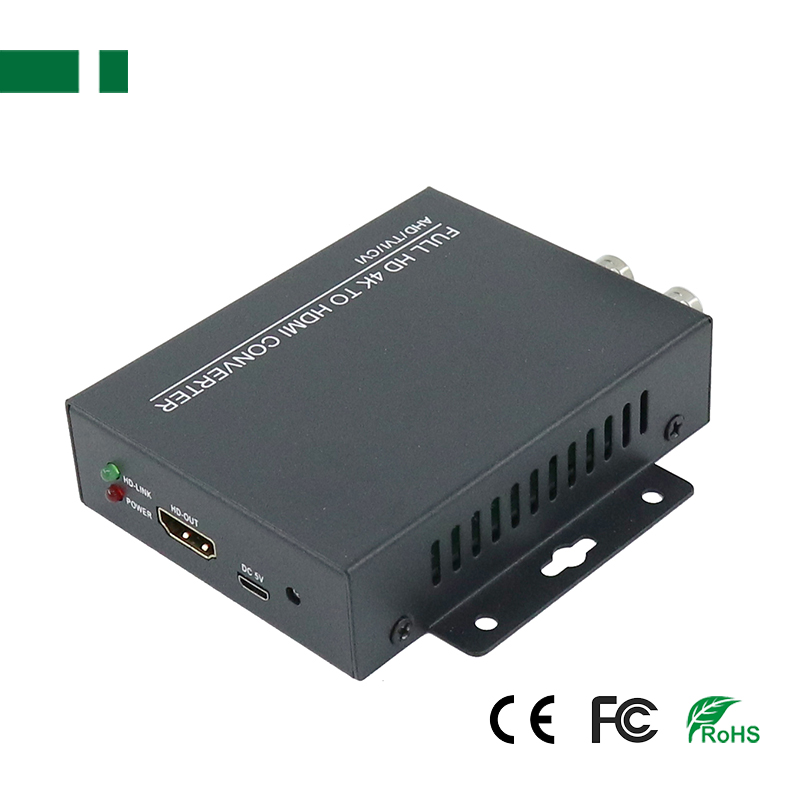

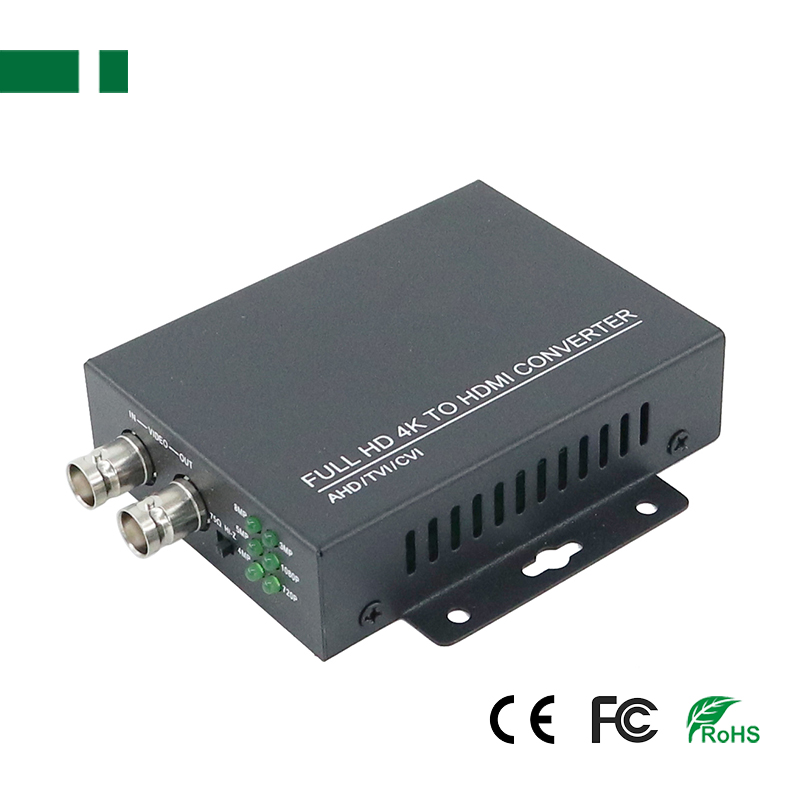

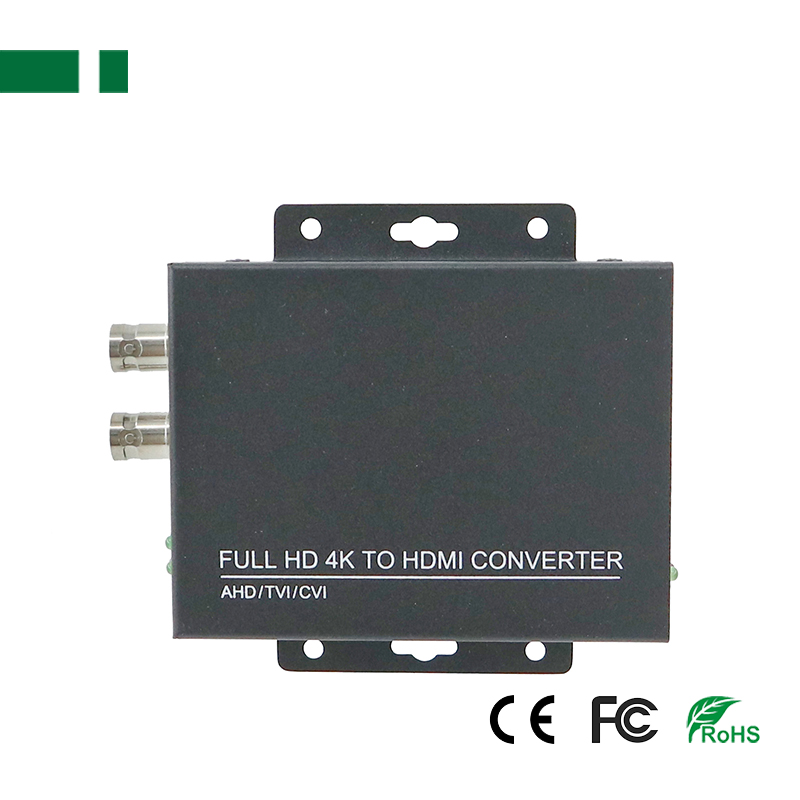

CVA-3022 HD-TVI/AHD/CVI to HDMI Converter
- HD-TVI-AHD-CVI to HDMI Converter
- Auto recognition 720P/1080P/3MP/4MP/5MP/8MP resolution, indicator visual display
- HDMI Output Resolution: 1080p 60Hz, HD-LINK light
- 5V 1A Power Supply
- Product description: HD-TVI/AHD/CVI to HDMI Converter is typically used to connect a TVI security camera to an HDMI monitor to display a live high definition video feed
4K 720P/1080P TVI 8MP AHD 5MP CVI 5MP CVBS to HDMI Converter for Camera CCTV Tester Converter
Product description
HD-TVI/AHD/CVI to HDMI Converter is typically used to connect a TVI security camera to an HDMI monitor to display a live high definition video feed
Product Parameters
Supported HD-TVI Camera Resolutions & Frame Rates:
720p @ 25/30/50/60 FPS
1080p @ 25/30 FPS
3 MP (2048 x 1536) @ 18/25/30 FPS
4 MP 2688 x 1520p @ 15 FP
4 MP 2560 x 1440p @ 12/25/30 FPS
5 MP 2592 x 1944p @ 12.5/20 FPS
4K (8 MP) 3840 x 2160 @ 15 FPS
Supported CVI 4MP, AHD 5MP Camera
Auto recognition 720P/1080P/3MP/4MP/5MP/8MP resolution, indicator visual display
TVI+CVBS to HDMI, HDMI output
HDMI Output Resolution: 1080p 60Hz, HD-LINK light
Support transmission distance up to 300m over Coaxial Cable
5V 1A Power Supply, power indicator light
Operating Temperature: -10°C~60°C / -14°F~140°F
Dimensions: 3.74(L) x 2.83 (W) x 0.94(H) inch
Note

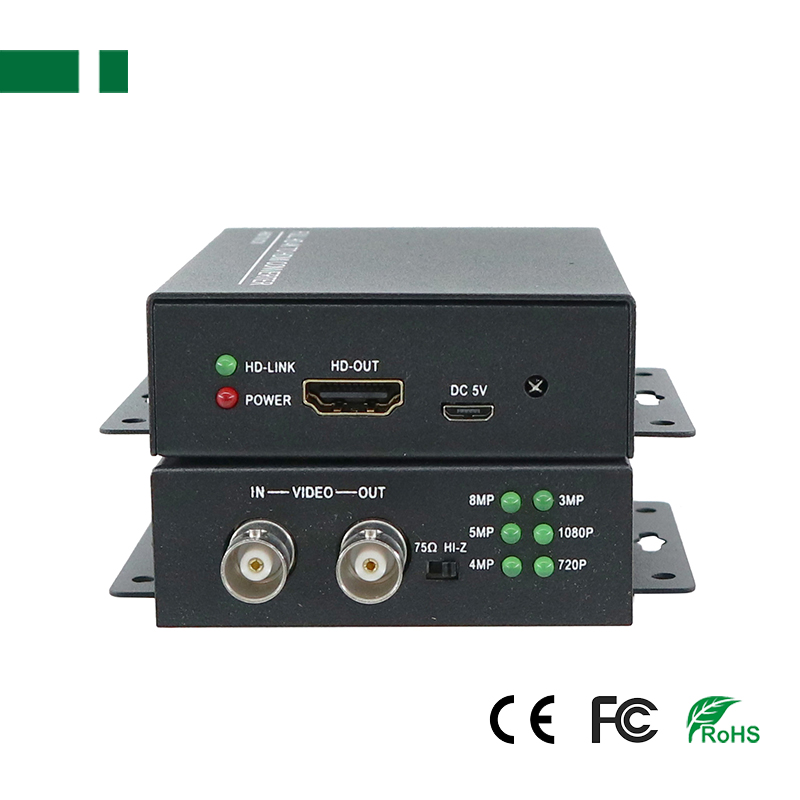

There is a 75Ω/ HI-Z switch. If you are using the BNC loop output (optional), this switch should be set to HI-Z. If you are only using the HDMI output (without the BNC loop), this should be set to the 75Ω setting.
Using the loop output is optional. Some customers only want to view their camera live on a TV and don’t require recording from a DVR. In this case, installers will only use the HDMI output to connect the HD-TVI camera to a TV.
Product description
HD-TVI/AHD/CVI to HDMI Converter is typically used to connect a TVI security camera to an HDMI monitor to display a live high definition video feed
Product Parameters
Supported HD-TVI Camera Resolutions & Frame Rates:
720p @ 25/30/50/60 FPS
1080p @ 25/30 FPS
3 MP (2048 x 1536) @ 18/25/30 FPS
4 MP 2688 x 1520p @ 15 FP
4 MP 2560 x 1440p @ 12/25/30 FPS
5 MP 2592 x 1944p @ 12.5/20 FPS
4K (8 MP) 3840 x 2160 @ 15 FPS
Supported CVI 4MP, AHD 5MP Camera
Auto recognition 720P/1080P/3MP/4MP/5MP/8MP resolution, indicator visual display
TVI+CVBS to HDMI, HDMI output
HDMI Output Resolution: 1080p 60Hz, HD-LINK light
Support transmission distance up to 300m over Coaxial Cable
5V 1A Power Supply, power indicator light
Operating Temperature: -10°C~60°C / -14°F~140°F
Dimensions: 3.74(L) x 2.83 (W) x 0.94(H) inch
Note
There is a 75Ω/ HI-Z switch. If you are using the BNC loop output (optional), this switch should be set to HI-Z. If you are only using the HDMI output (without the BNC loop), this should be set to the 75Ω setting.
Using the loop output is optional. Some customers only want to view their camera live on a TV and don’t require recording from a DVR. In this case, installers will only use the HDMI output to connect the HD-TVI camera to a TV.
