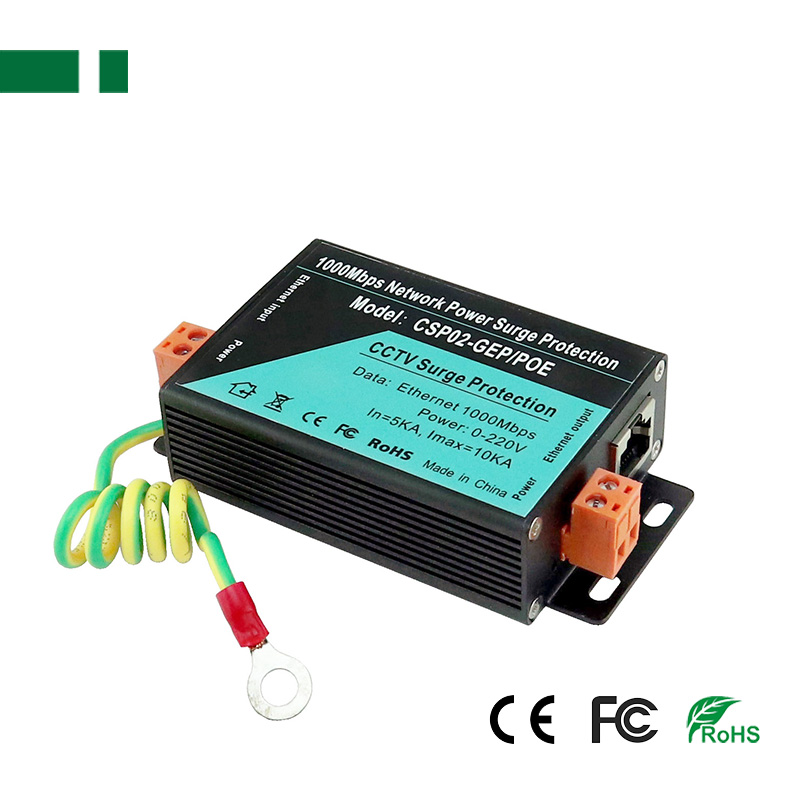

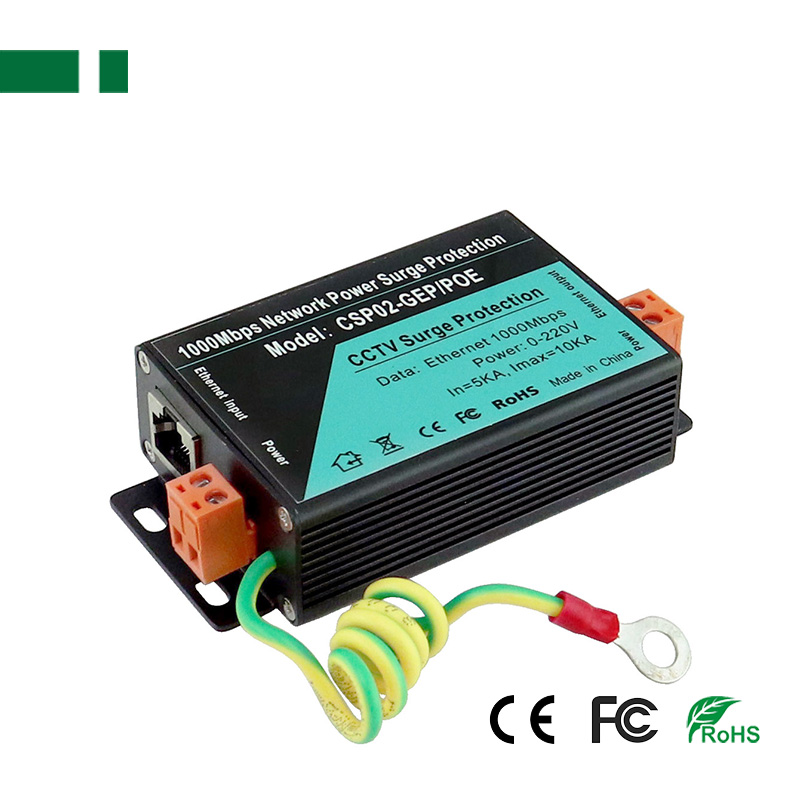

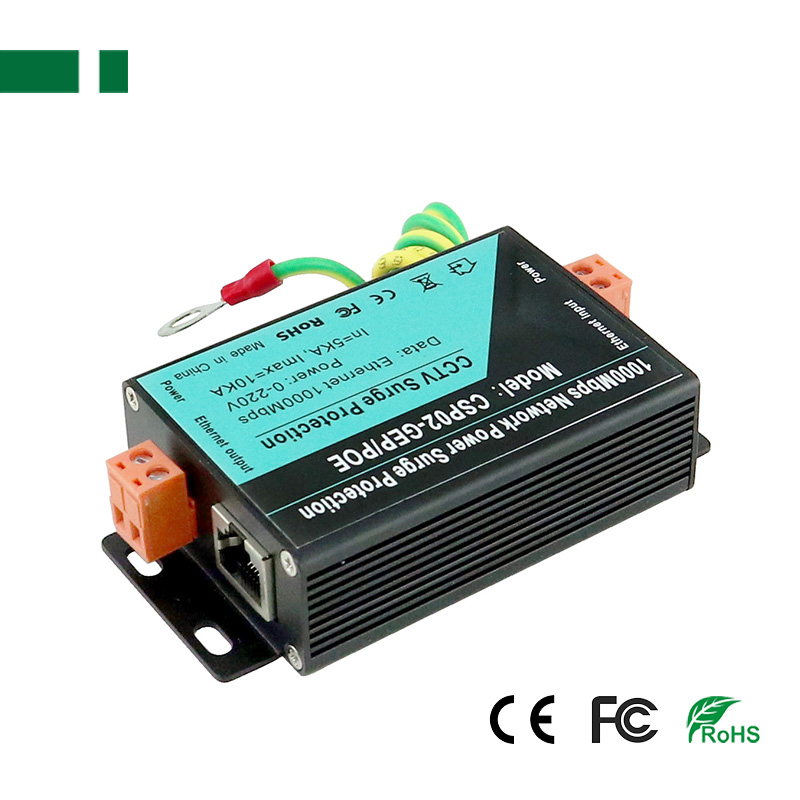

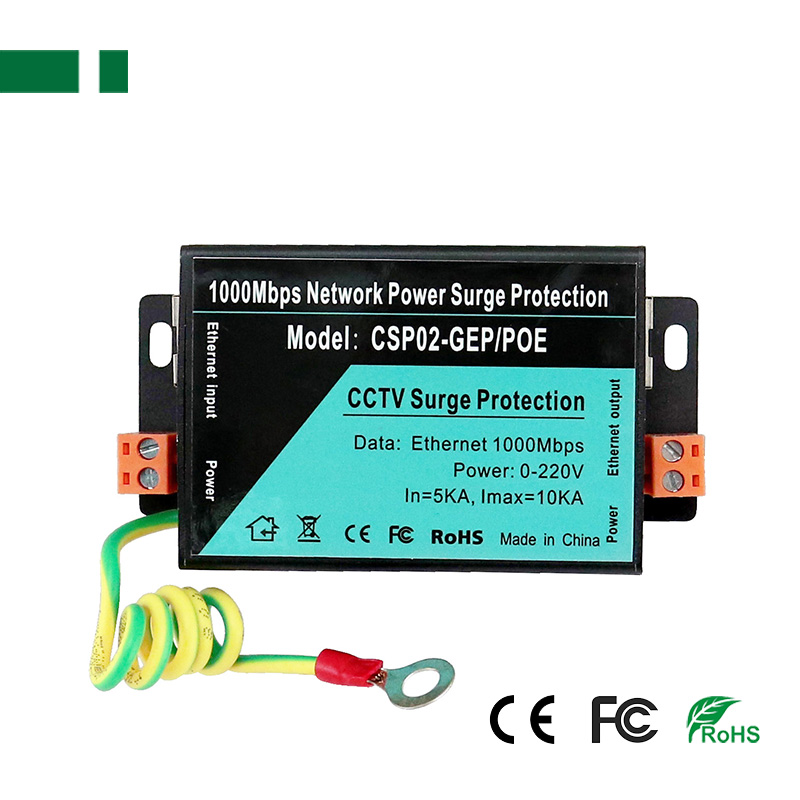

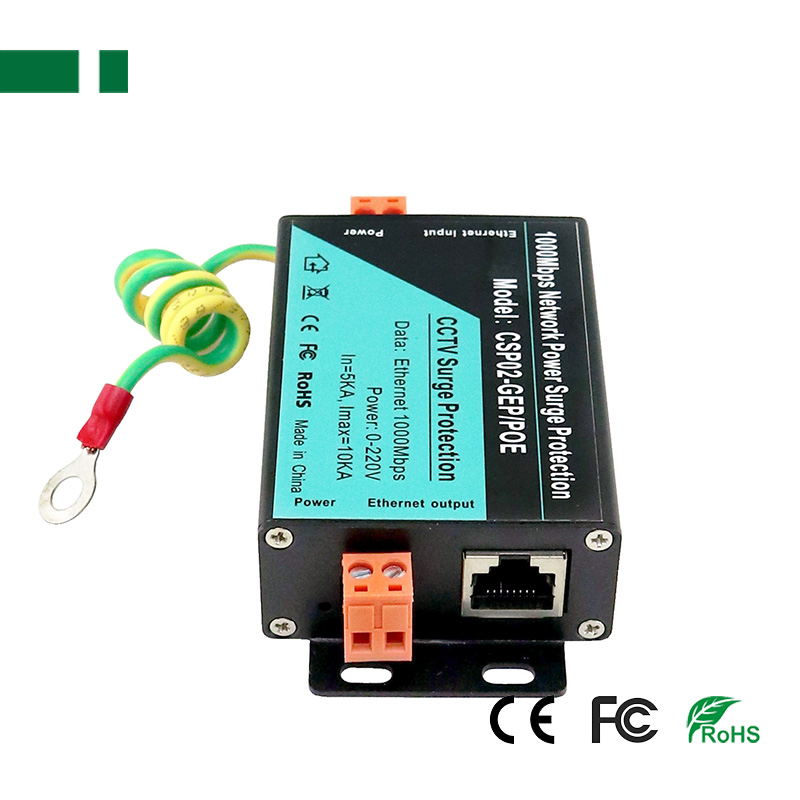

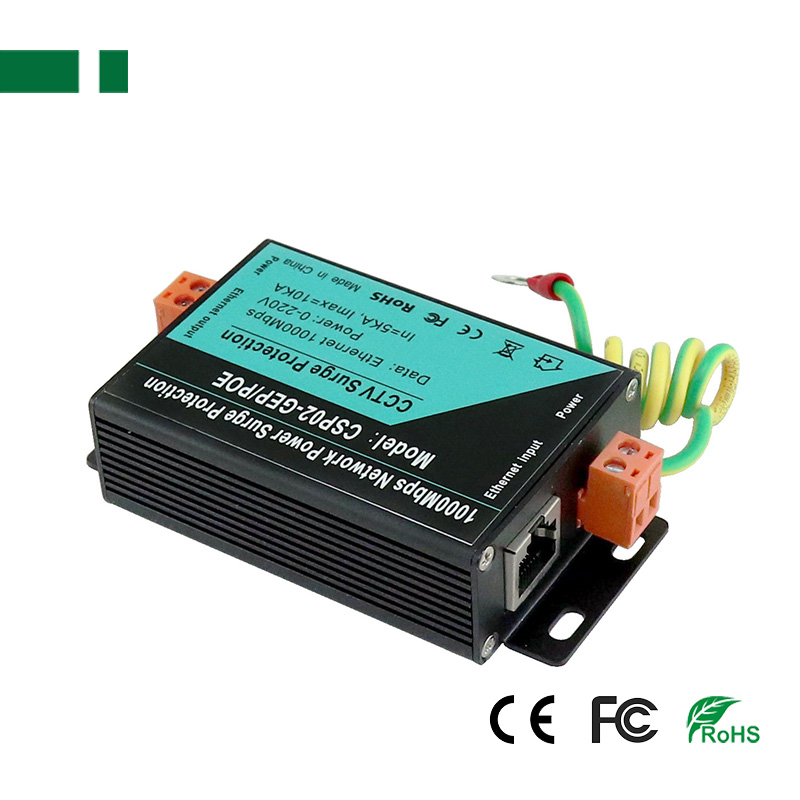

CSP02-GEP/POE POE 1000Mbps POE Network and Power Supply Protector

CSP02-GEP/POE POE 1000Mbps POE Network and Power Supply Protector

1000Mbps POE Network and Power Supply Protector
High transmission rate
Multi-level protection
Larger flow capacity
Product description: Protection POE Ethernet 1000Mbps Network Power SPD and 0-AC220V power supply;
INQUIRY EMAIL

FEATURE:

◆ Protection POE Ethernet 10/100/1000Mbps Network Power SPD and 0-AC220V power supply;
◆ Function Multi-level over voltage protection large capacity discharge current low limiting voltage;
◆ Quick reacting time low inserting loss;
◆ Grounding Mode Extending Line to ground;
◆ Outlook design Clear mark easily recognized;
◆ Aluminum shell delicate size simple installation;
◆ IN=5KA, Imax=10KA

Specification:

	Model	CSP02-EP/POE	CSP02-GEP/POE
Network	Rated operation voltage	DC48V
	Max continuous operating voltage	DC56V
	Nominal discharge current in(8/20μs)	5KA
	Max discharge current(8/20μs)	10KA
	Voltage protection level(10/700μs)	<56V
	Reacting time	≤1ns
	Inserting loss	≤0.2dB
	Data transmission rate Vs	10/100Mbps	10/100/1000Mbps
	Signal Bandwidth	10MHz
Power	Nominal working voltage	AC220V
	Max continuous operating voltage	DC470V
	Nominal discharge current(8/20μs)	5KA
	Max discharge current (8/20μs)	10KA
	RLA	≤10A
	Leakage Current	≤5μA
	Reacting Time	≤25ns
	Connector type	RJ45 & Grip
Environment	Working temperature	-20°C to +50°C
	Storage Temperature	-40°C to +70°C
	Humidity	0 to 95%
	MTBF	>30000hrs
Other	Dimension	1206528mm, 140g
	Test standard	IEC61643-21 : 2000
