Surge Protector

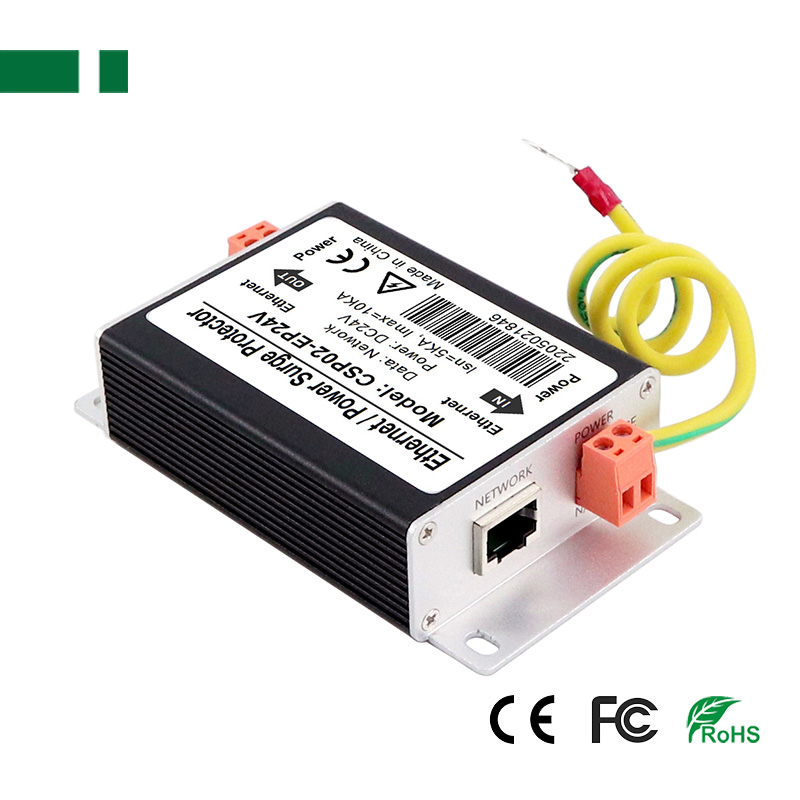

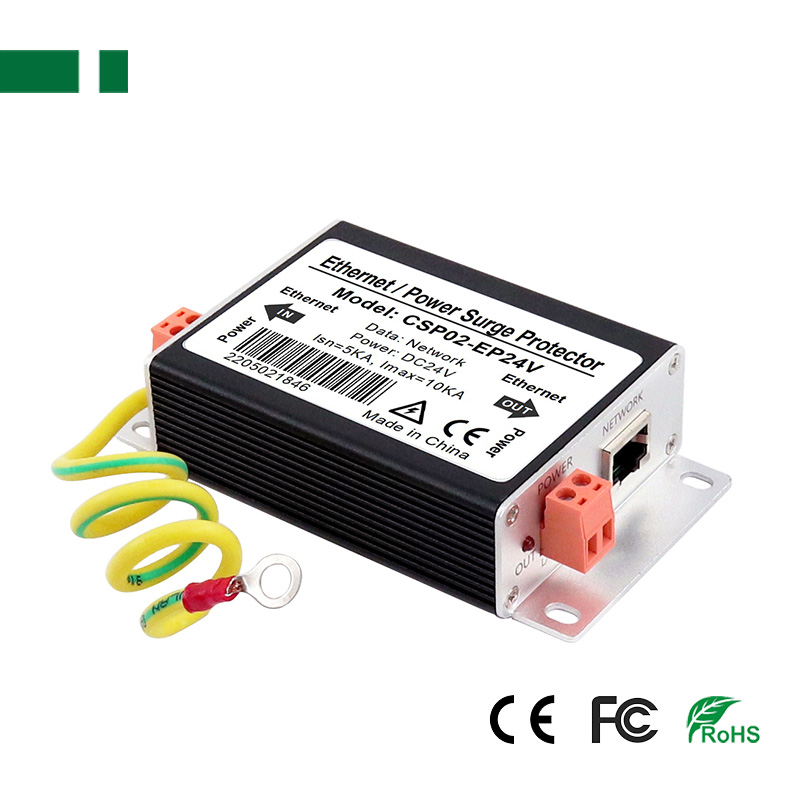

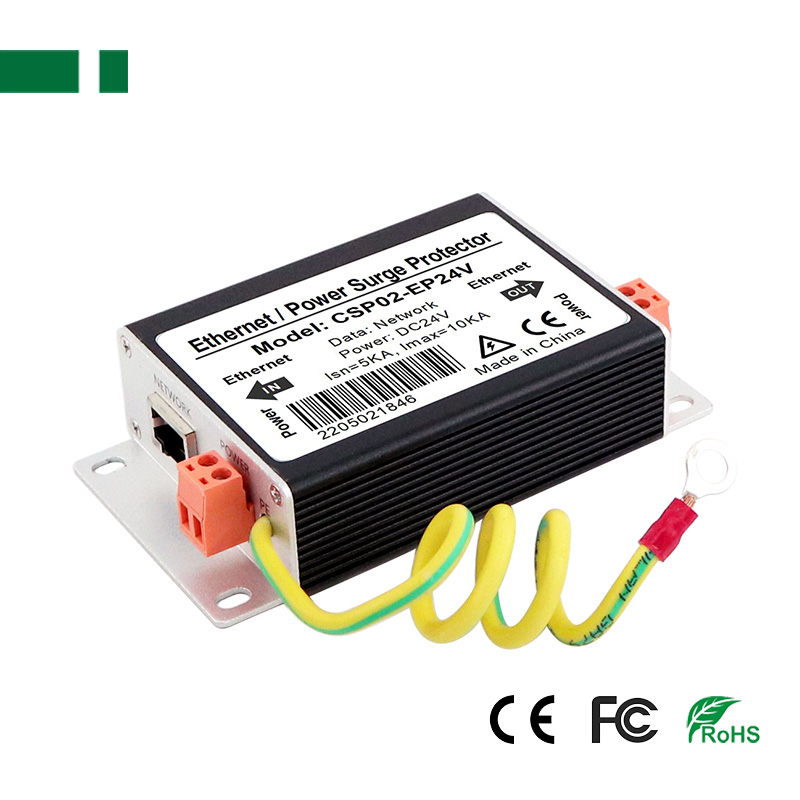

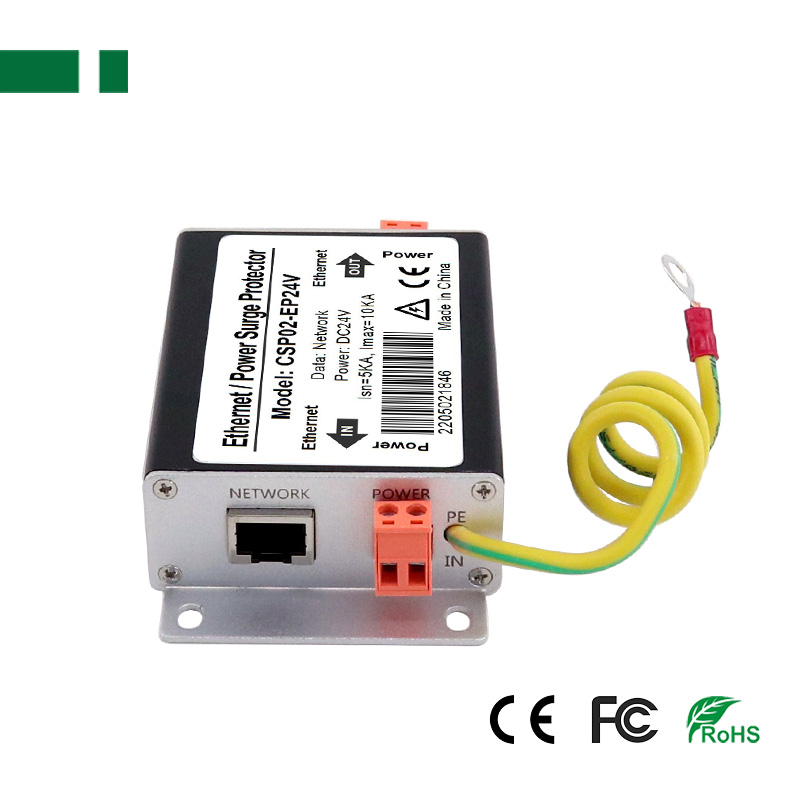

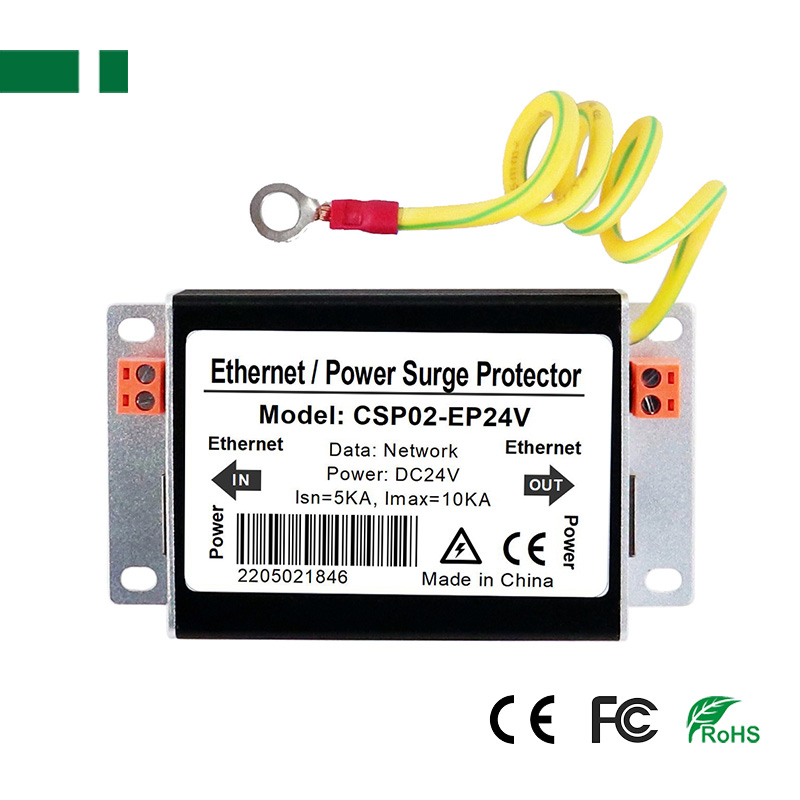

CSP02-EP24V Ethernet and DC24V Power Supply Surge Protector

Ethernet and DC24V Power Supply Surge Protector
High transmission rate
Multi-level protection
Larger flow capacity
Product description: A surge protector is a special component that curbs these sudden, high voltages. As the power starts to spike, the protector kicks in, and any excessive charge is routed through the ground connection
INQUIRY EMAIL

A Surge Protector is a special component that curbs these sudden, high voltages. As the power starts to spike, the protector kicks in, and any excessive charge is routed through the ground connection so it never has chance to cause damage. Each surge protector has a pre-set level that is deemed to be the maximum voltage allowed.

Feature:
● Protection Ethernet signal and DC12V/ DC(AC)24V/ AC220V power supply;
● Function Multi-level over voltage protection, large capacity discharge current, low limiting voltage, quick reacting time, low inserting loss;
● Grounding Mode Extending Line to ground;
● Outlook design Clear mark, easily recognized, aluminum shell, delicate size, simple installation.

Specification:

	Model	CSP02-EP12V	CSP02-EP24V	CSP02-EP220V
Video parameters	Rated operation voltage	DC5V
	Max continuous operating voltage	DC6V
	Nominal discharge current in(8/20μs)	3KA
	Max discharge current(8/20μs)	5KA
	Voltage protection level(10/700μs)	<15V
	Reacting time	≤1ns
	Inserting loss	≤0.2dB
	Data transmission rate Vs	100Mbps
	Signal Bandwidth	10MHz
Power parameters	Nominal working voltage	DC12V	DC/ AC 24V	AC220V
	Max continuous operating voltage	DC18V	DC/ AC47V	DC470V
	Nominal discharge current(8/20μs)	5KA
	Max discharge current (8/20μs)	10KA
	RLA	≤10A
	Leakage Current	≤5μA
	Reacting Time	≤25ns
	Connector type	RJ45 & Grip
Environment parameters	Working temperature	-20°C to +50°C
	Storage Temperature	-40°C to +70°C
	Humidity	0 to 95%
	MTBF	>30000hrs

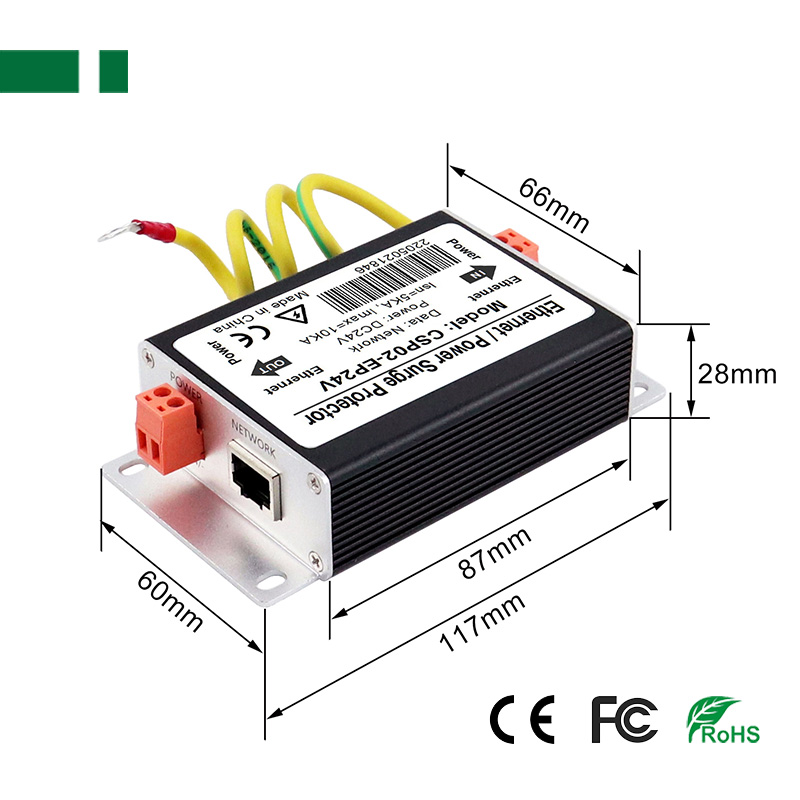

Other parameters	Dimension	1206528mm, 140g
	Test standard	IEC61643-21 : 2000
