Surge Protector

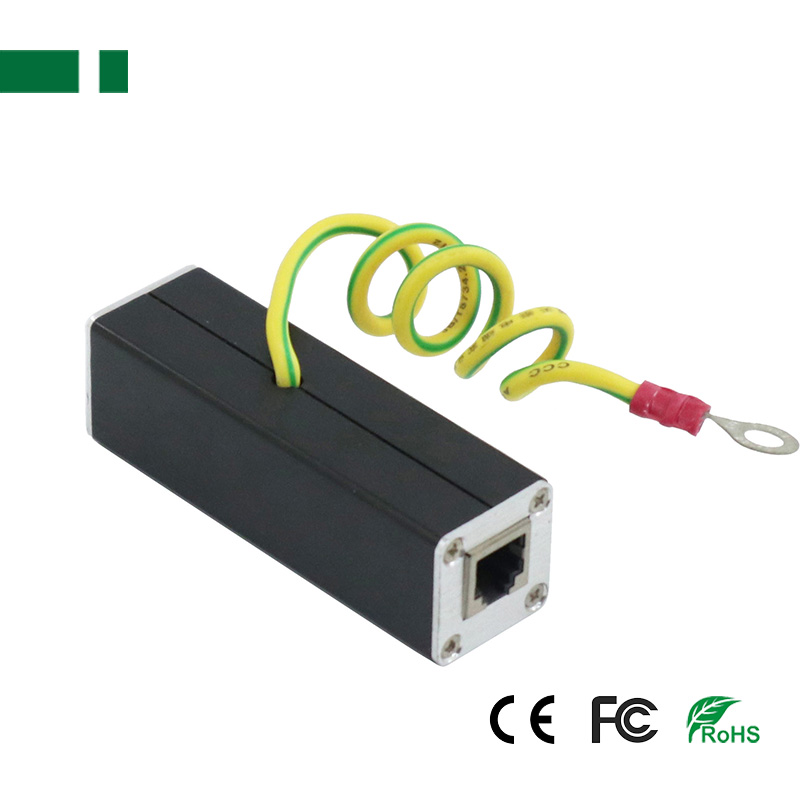

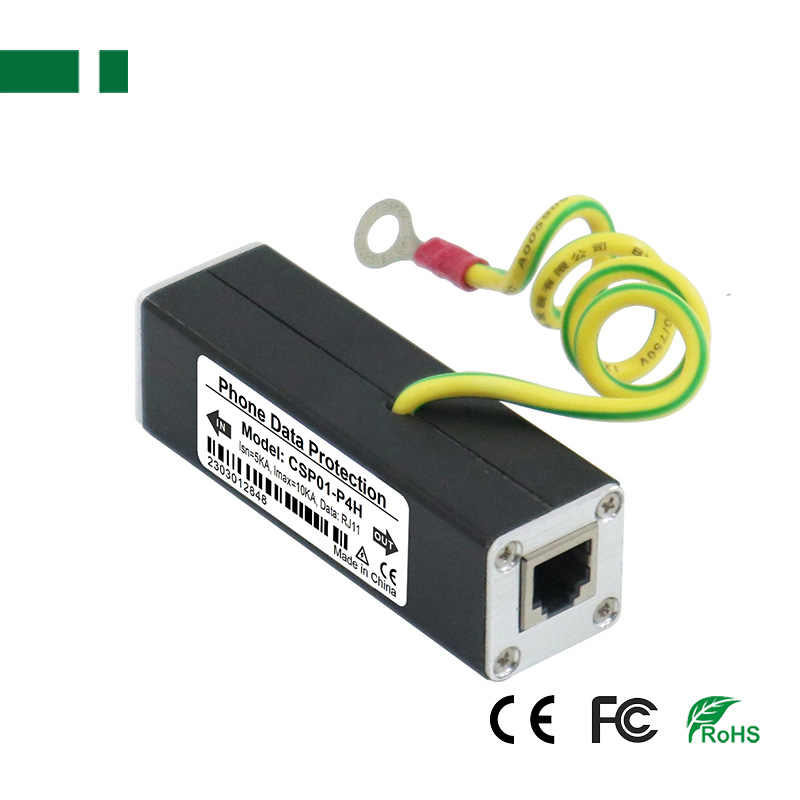

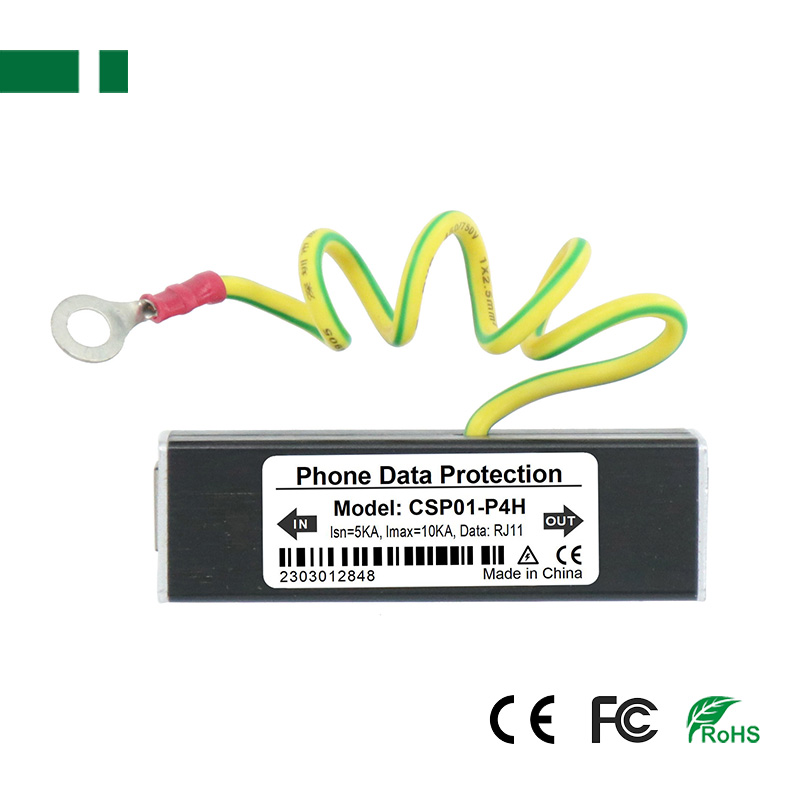

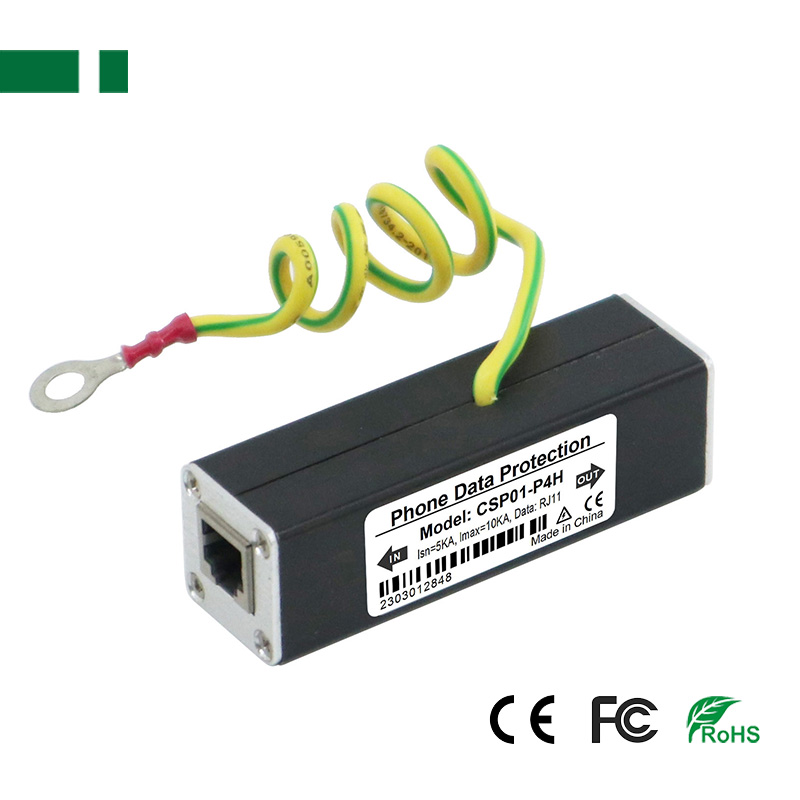

CSP01-P4H RJ11 Telephone signal Protection

CSP01-P4H RJ11 Telephone signal Protection

RJ11 Telephone signal Protection
High transmission rate
Multi-level protection
Larger flow capacity
Product description: Surge Protective Devices are designed to protect against transient surge conditions. Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or i
INQUIRY EMAIL

Surge Protective Devices are designed to protect against transient surge conditions. Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or intermittent equipment failure. However, lightning and utility power anomalies only account for 20% of transient surges. The remaining 80% of surge activity is produced internally. Although these surges may be smaller in magnitude, they occur more frequently and with continuous exposure can degrade sensitive electronic equipment within the facility.

Features:
1. Protection RJ11 Telephone signal,
2. Function Multi-level over voltage protection, large capacity discharge current, low limiting voltage, quick reacting time, low inserting loss，
3. Grounding Mode Extending Line to ground，
4. Outlook design Clear mark, easily recognized, aluminum shell, delicate size, simple installation；

Specification:

Single Channel RJ11 Telephone signal Protection
Model	CSP01-P4H
Rated work voltage	DC5V
Max. work voltage	Max. DC6V
Nominal current	3KA ( 8/20µs )
Max. current	5KA ( 8/20µs )
Limit voltage up	15V
Reacting time	≤1ns
Inserting loss	≤0.2dB
Data transmit rate vs	10/100Mbps
Connector type	RJ11

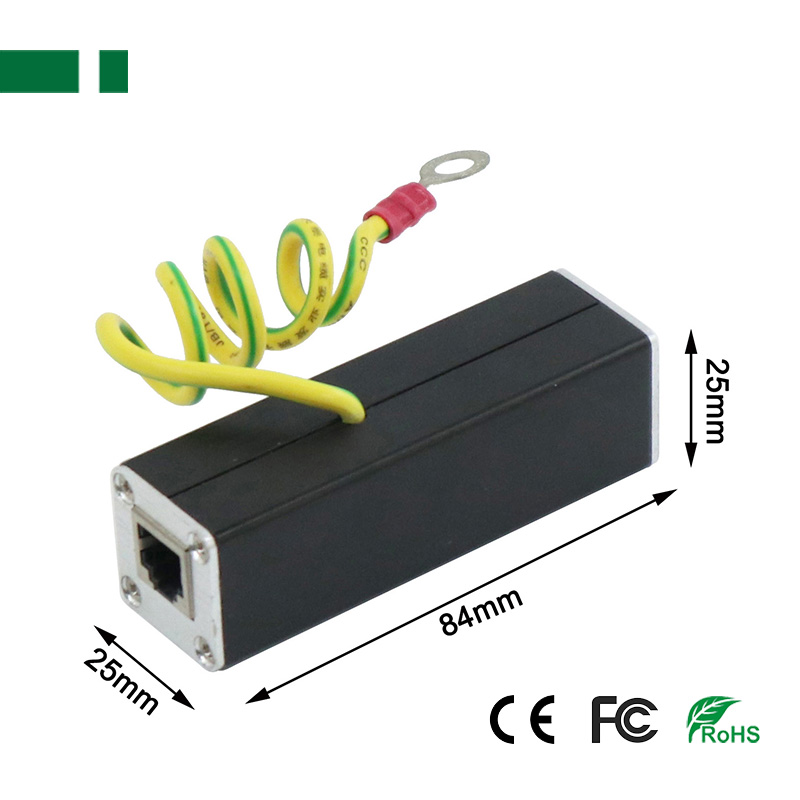

Dimension	852525mm
Weight	80g
Test standard	IEC61643-21: 2000
