Surge Protector

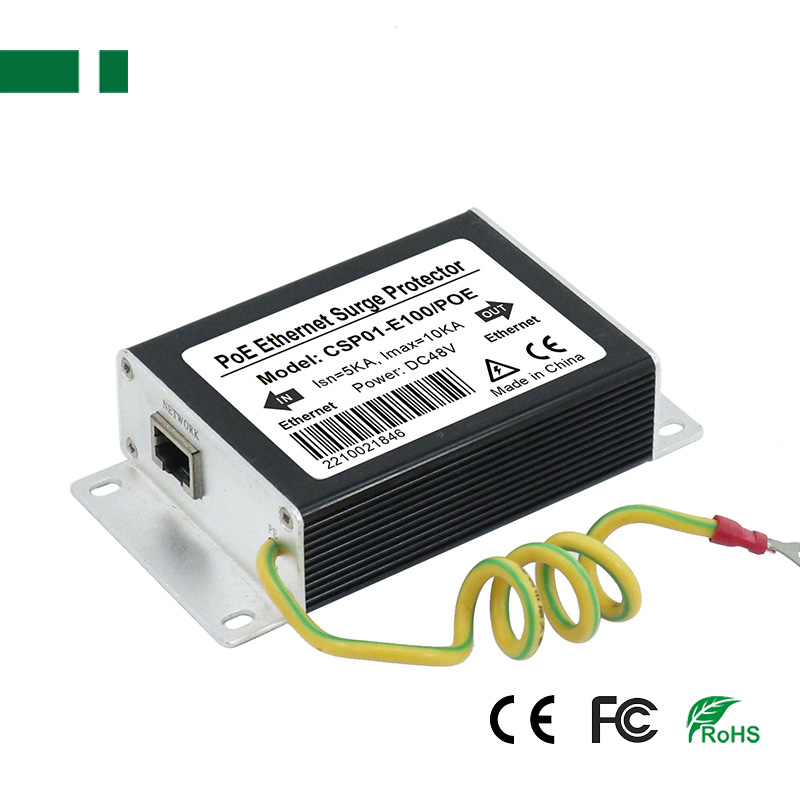

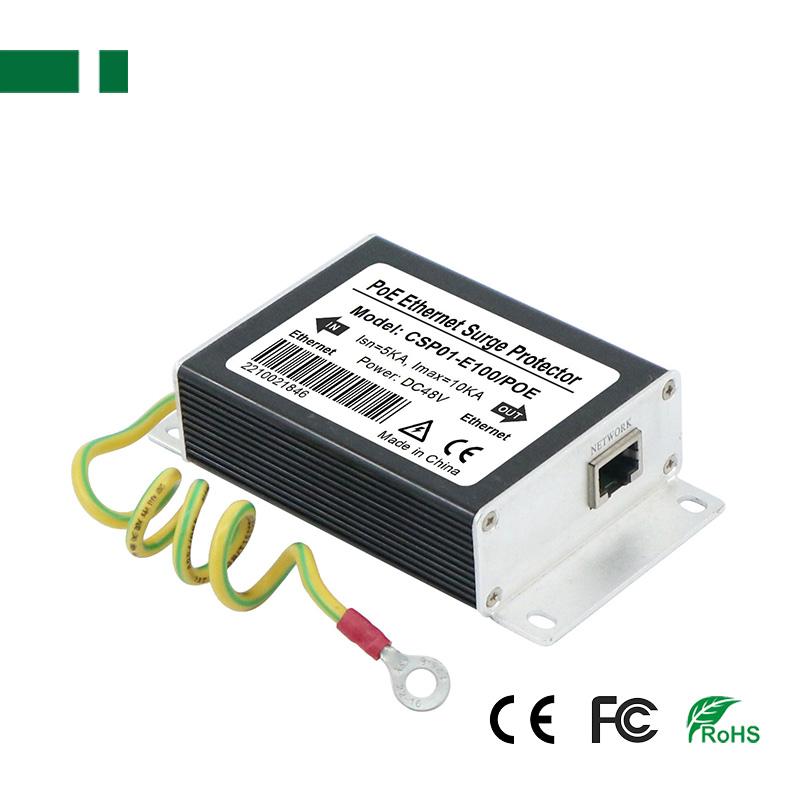

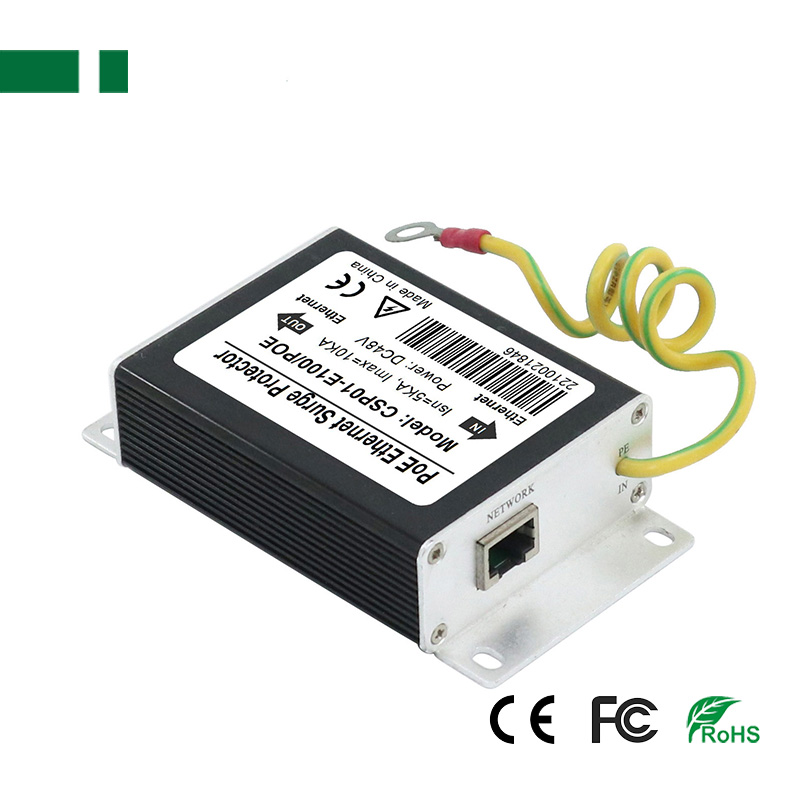

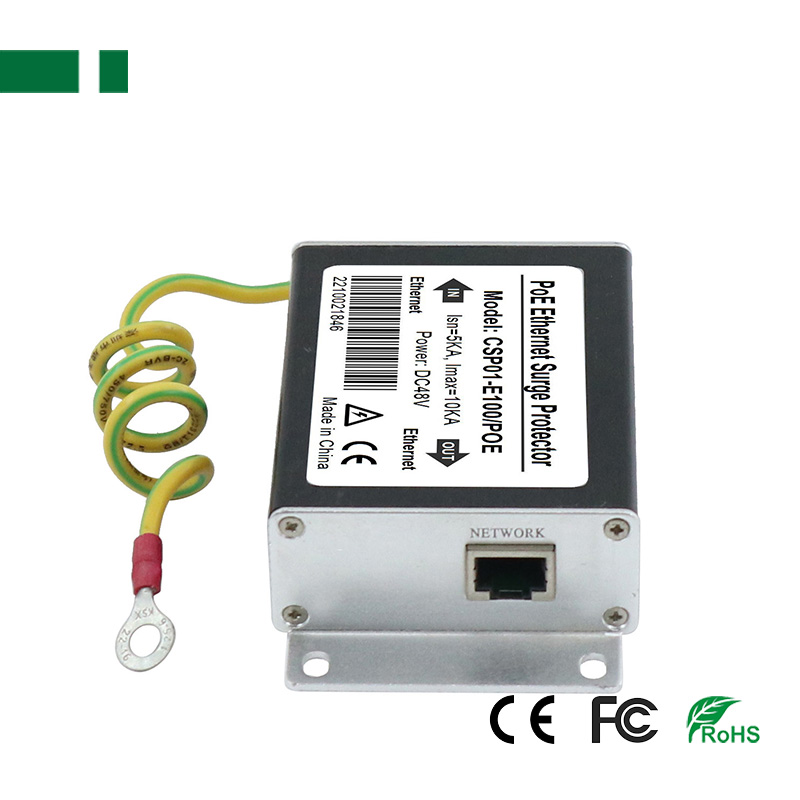

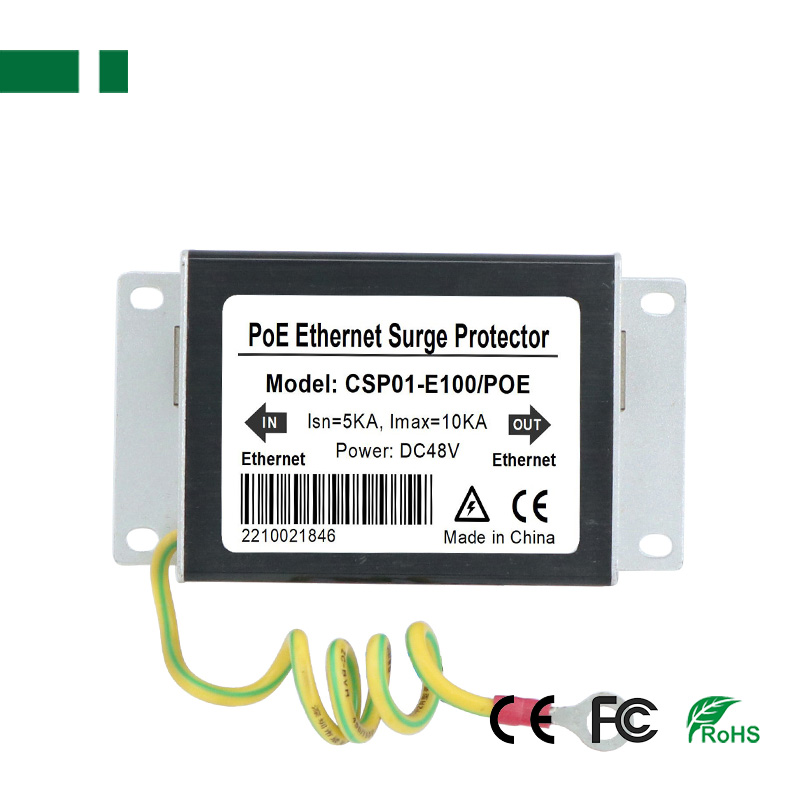

CSP01-E100/POE 10/100Mbps PoE Ethernet Surge Protector

Video Surge Protector
High transmission rate
Multi-level protection
Larger flow capacity
Product description: The surge protectors use advanced technology and superior surge protection lightning protection devices carefully made to provide energy conservation and low-energy primary surveillance cameras fine p
INQUIRY EMAIL

Surge Protective Devices are designed to protect against transient surge conditions. Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or intermittent equipment failure. However, lightning and utility power anomalies only account for 20% of transient surges. The remaining 80% of surge activity is produced internally. Although these surges may be smaller in magnitude, they occur more frequently and with continuous exposure can degrade sensitive electronic equipment within the facility.

Features:
1. Protection 10/100Mbps POE Network signal,
2. Function Multi-level over voltage protection, large capacity discharge current, low limiting voltage, quick reacting time, low inserting loss，
3. Grounding Mode Extending Line to ground，
4. Outlook design Clear mark, easily recognized, aluminum shell, delicate size, simple installation；

Specification:

10/100Mbps PoE Ethernet Surge Protector.
Model		CSP01-E100/POE	CSP01-E1000/POE
Port		RJ45
Rated operational voltage		48V
Max continuous operating voltage		56V
Max Discharge Current (8/20μs)	1, 2	0.3KA
	3, 6	0.3KA
	1, 2, 3, 6-PE	2KA
Impulse limiting voltage (10/700μs)	1, 2	<20V
	3, 6	<20V
Insulation resistance		≥0.4MΩ
Inserting Loss		≤0.5dB
Standing Wave Ratio		≤1.2
Transmission Bandwidth		10/100Mbps	10/100/1000Mbps
Reacting Time		≤1ns
Working Temperature		-20~55°C
Storage Temperature		-40~70°C
Humidity (non-condense)		0~95%
MTBF		>30000hrs

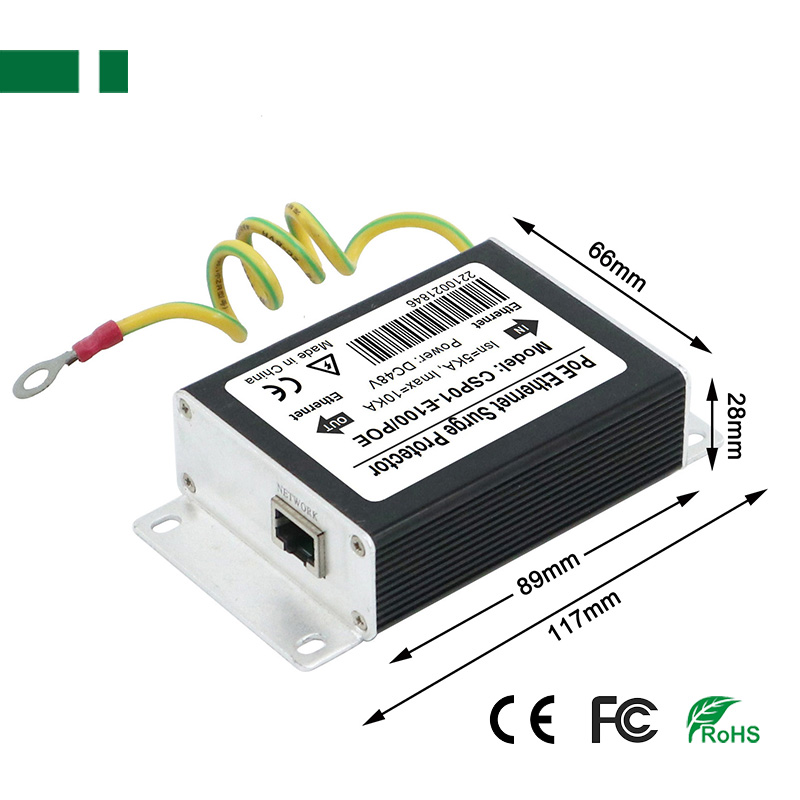

Dimension		1176628mm	852525mm
Weight		138g	80g
Test standard		IEC61643-21: 2000
