Surge Protector

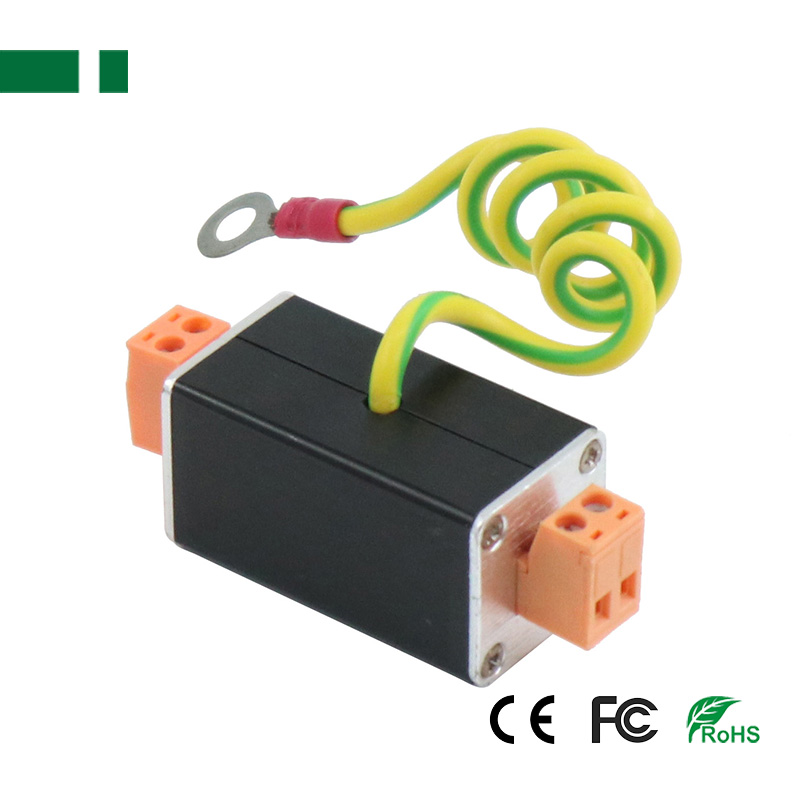

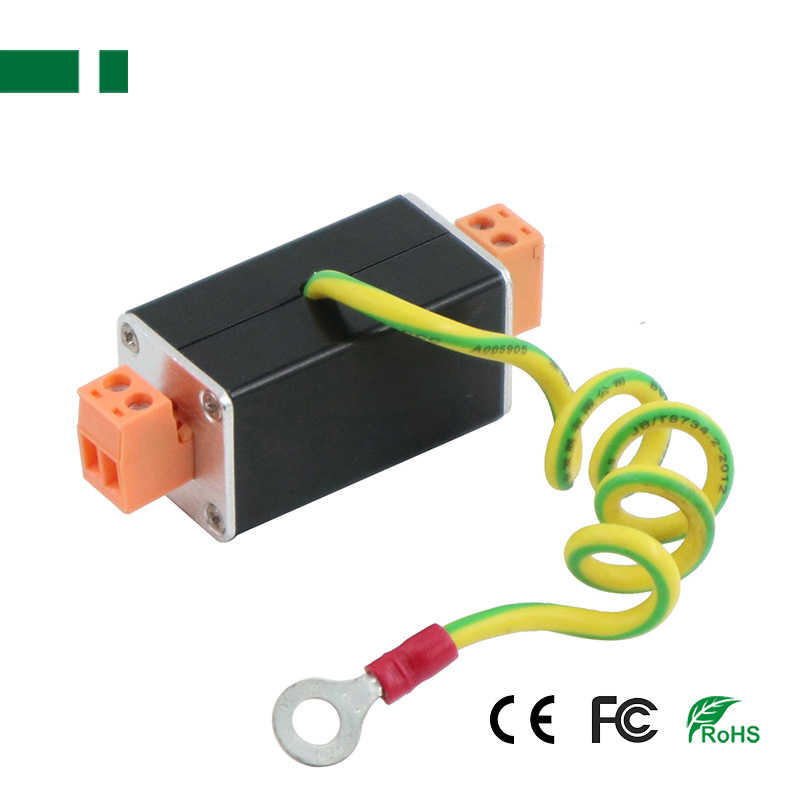

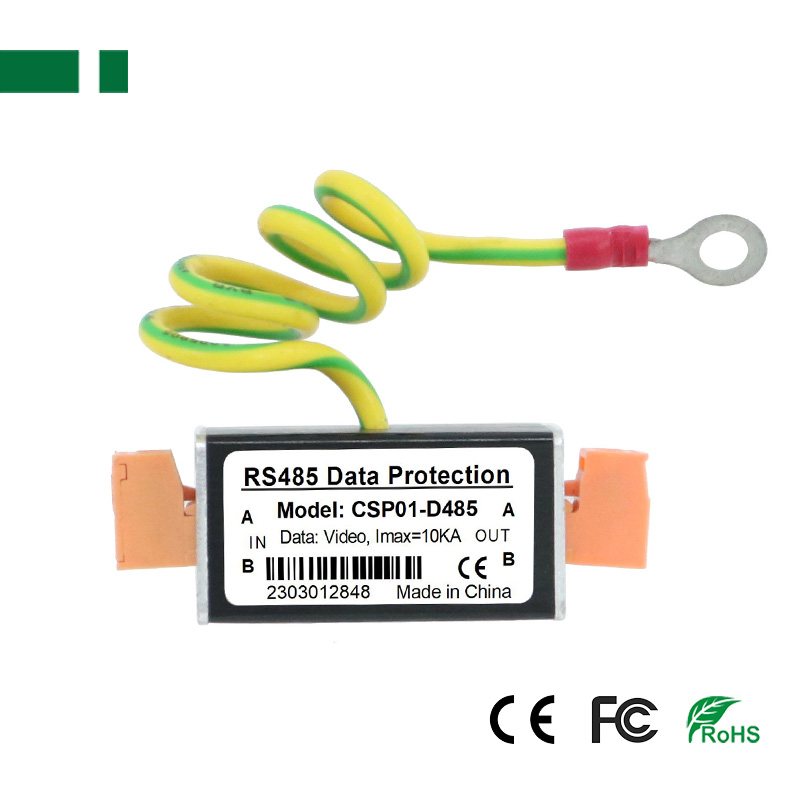

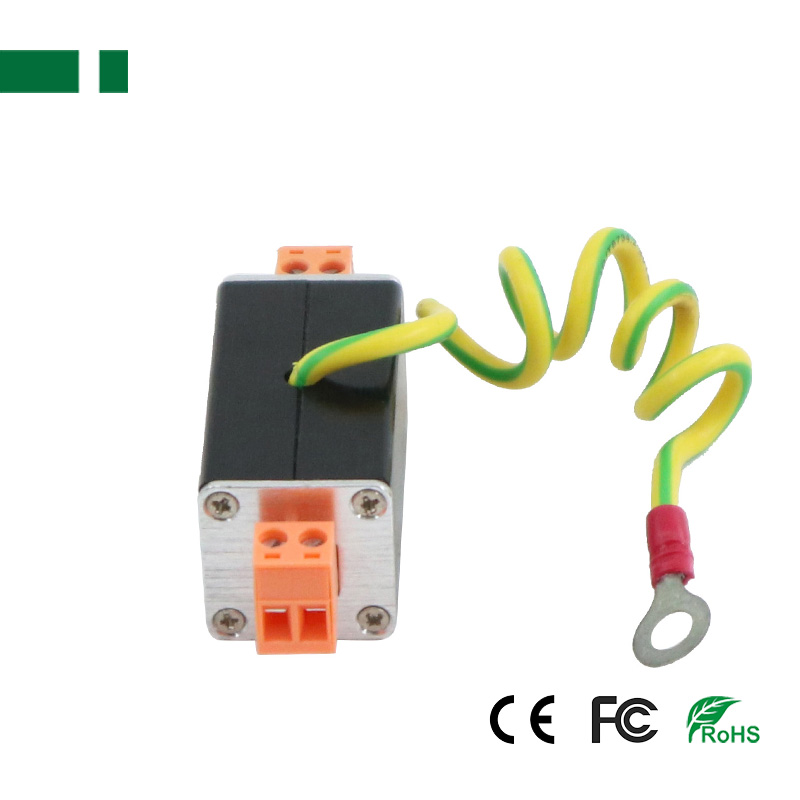

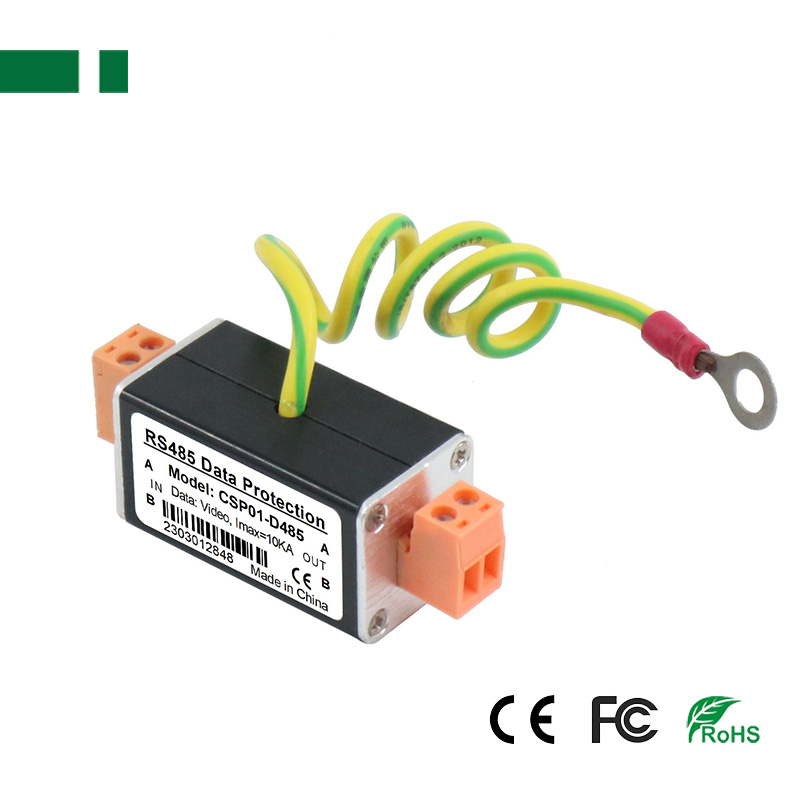

CSP01-D485 RS485 Signal Surge Protector

RS485 Signal Surge Protector
High transmission rate
Multi-level protection
Larger flow capacity
Product description: Surge Protective Devices are designed to protect against transient surge conditions. Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or i
INQUIRY EMAIL

Surge Protective Devices are designed to protect against transient surge conditions. Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or intermittent equipment failure. However, lightning and utility power anomalies only account for 20% of transient surges. The remaining 80% of surge activity is produced internally. Although these surges may be smaller in magnitude, they occur more frequently and with continuous exposure can degrade sensitive electronic equipment within the facility.

Features:
1. Protection RS485 signal;
2. Function Multi-level over voltage protection
3. Large capacity discharge current low limiting voltage;
4. Quick reacting time low inserting loss;
5. Grounding Mode Extending Line to ground;
6. Outlook design Clear mark easily recognized;
7. Aluminum shell delicate size simple installation;

Specification:

Single Channel RS485 Data Protection
Model	CSP01-D485
Rated work voltage	DC5V
Max. work voltage	Max. DC8.8V
Nominal current	5KA ( 8/20µs )
Max. current	10KA ( 8/20µs )
Signal Bandwidth	20MHz
Reacting time	≤1ns
Data transmit rate vs	10Mbps
Leakage current	≤0.5A
Connector type	Grip

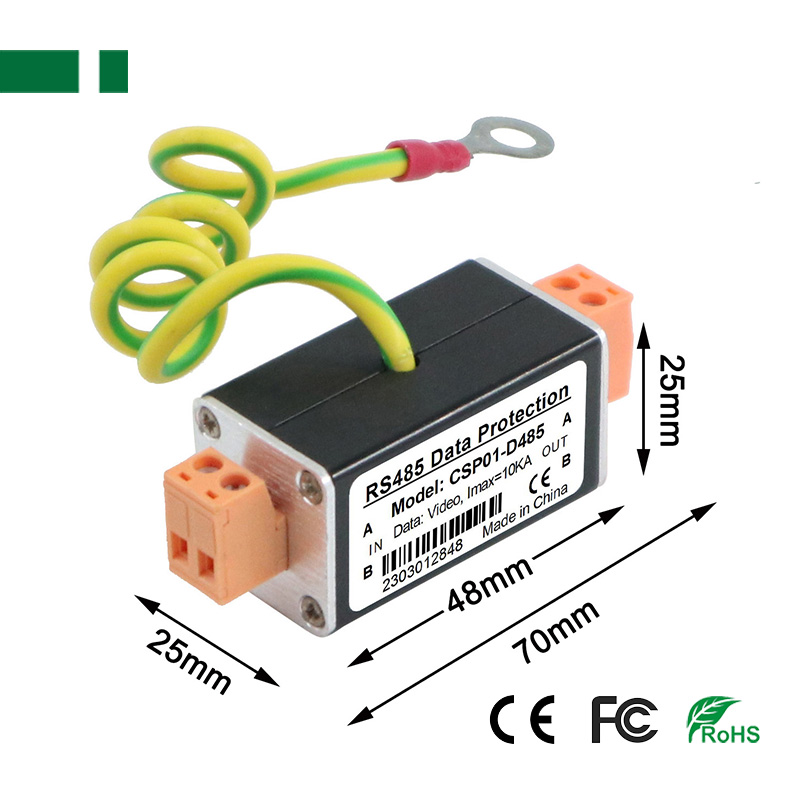

Dimension	702525mm
Weight	75g
Test standard	IEC61643-21: 2000
