Surge Protector

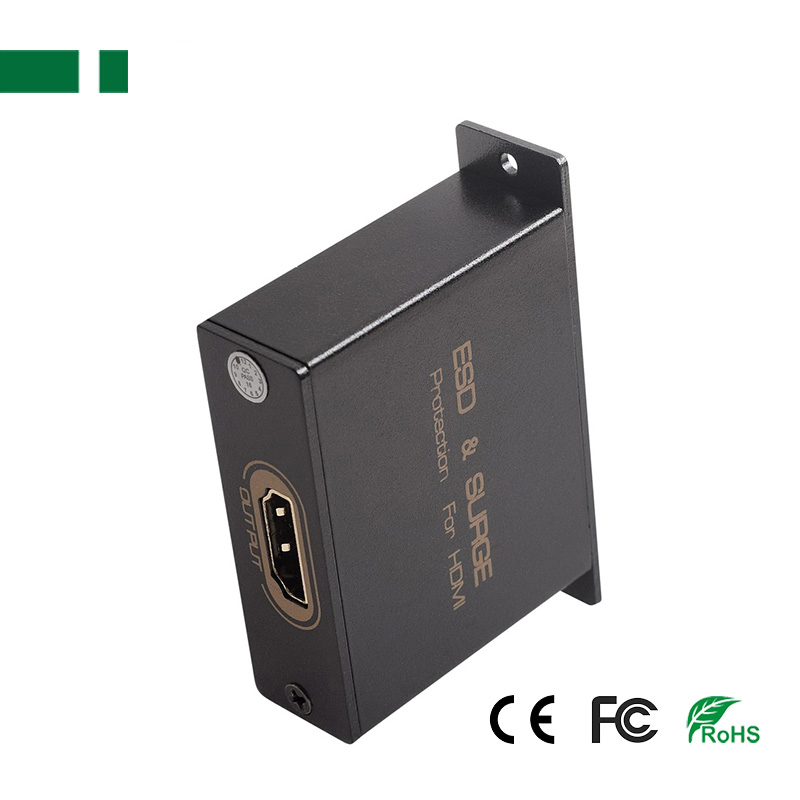

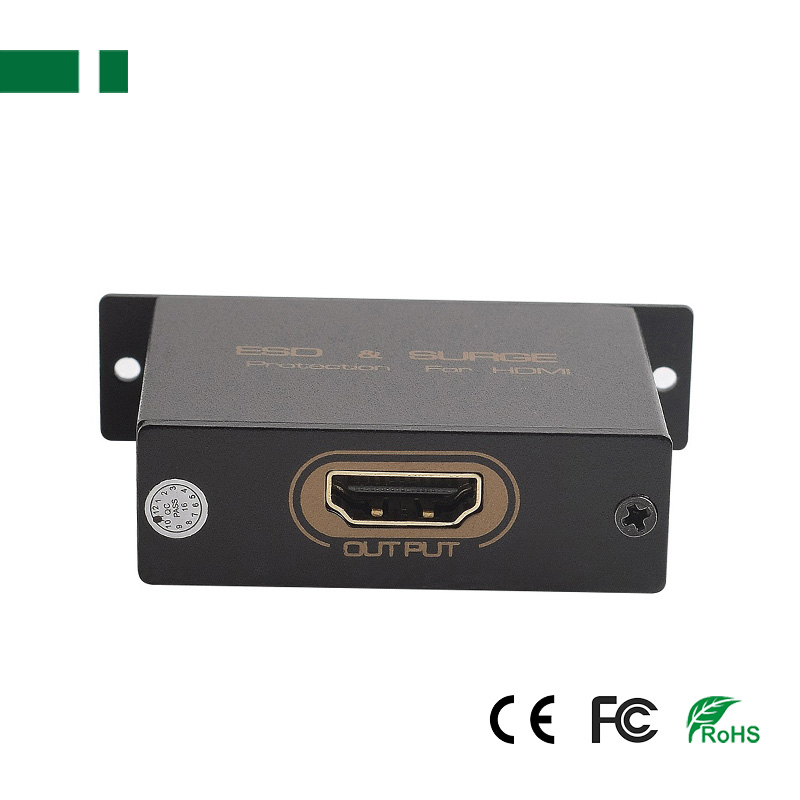

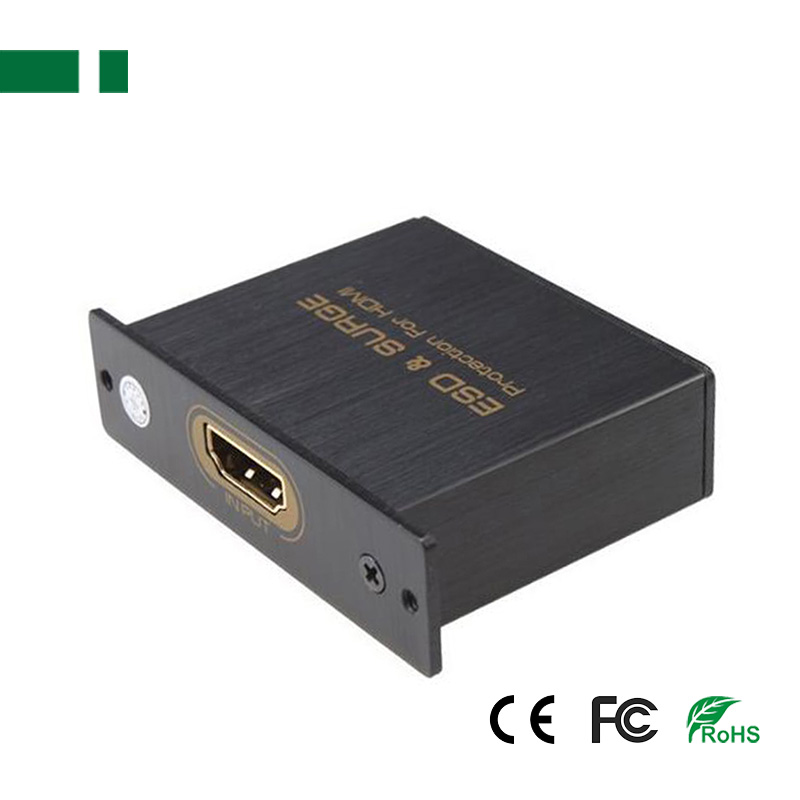

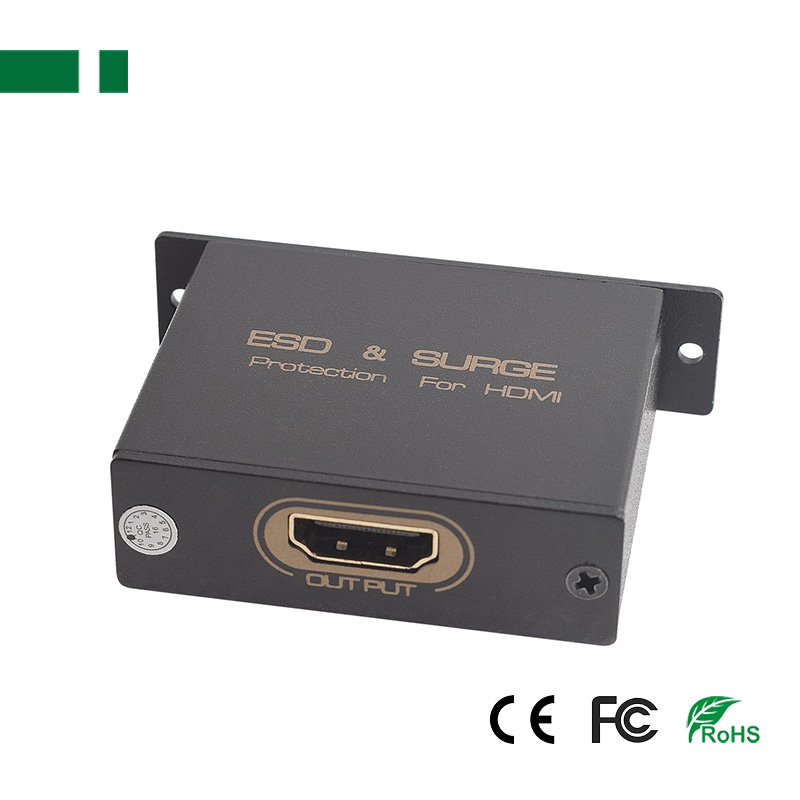

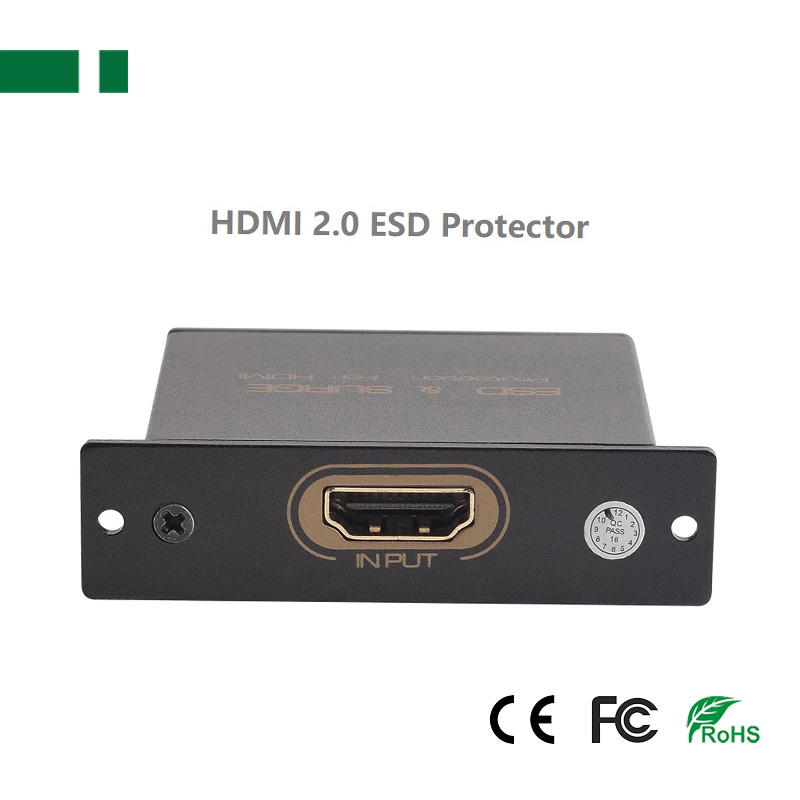

CSP-HD-01 4K@60Hz HDMI ESD Surge EFT Lighting Protector
- 4K@60Hz HDMI ESD Surge EFT Lighting Protector
- Support HDMI-compatible 1.4 with 3D,4KX2K and HEAC.
- Solid-state silicon-avalanche technology.
- Support HDCP
- Product description: The HDMI-compatible surge protector is designed for protect the HDMI-compatible device that against with the static discharge, lighting surge, electrical fast transient burst.
HDMI 2060p ESD Protector 4K@60Hz HDMI ESD Surge EFT Lighting Protector Support 4K 3D Full HD Anti-Static Thunderstrike Surge
The HDMI-compatible Surge Protector is designed for protect the HDMI-compatible device that against with the static discharge, lighting surge, electrical fast transient burst. It is all active at all TMDS/DDC/HPD and CEC channels of connected HDMI-compatible signals and it can do final defense for ESD and Lighting Surge.
Features:
1. Protect HDMI-compatible input and output for ESD and Lightning Surge
2. Meet IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact).
3. Meet IEC 61000-4-4 (EFT) 40A (5/50ns).
4. Meet IEC 61000-4-5 (Lightning) 5A (8/20µs).
5. Support HDMI-compatible 1.4 with 3D,4KX2K and HEAC.
6. Solid-state silicon-avalanche technology.
7. Support HDCP
8. No loss of quality
9. Installs in minutes
l0. No Need Power Adaptor
Packing list：
1. HDMI-compatible Surge Protector * 1PC
2. Manual * 1PC
3. Ground Wire * 1PC
4. Ground Screw * 2PCS
Specifications:
HDMI-compatible version ----------------------------------------HDMI-compatible 1.4 with 3D、4Kx2K、HEAC
HDMI-compatible resolution ------------------------------24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format ------------------------------------------24bit/deep color 30bit,36bit, 48bit
Support audio format -------------------------------DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth ------------------------------------------------------------------------------------340MHz
Maxbaudrate ------------------------------------------------------------------------------------10.2Gbps
Input/Output TMDS signal -----------------------------------------------------------0.5~1.5Volts p-p(TTL)
Input/Output DDC signal -----------------------------------------------------------------5Volts p-p (TTL)
Max working current --------------------------------------------------------------------------------50mA
Operating Temperature range -------------------------------------------------------------- -15℃ to +55℃
Operating Humidity range ----------------------------------------------------5 to 90%RH (No Condensation)

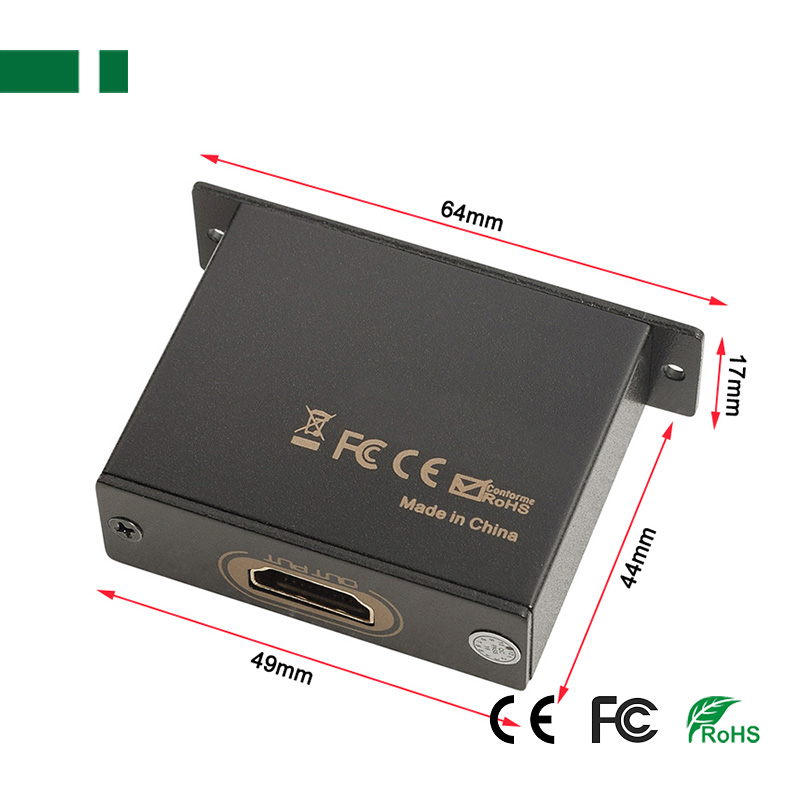

Dimension (L x W x H) --------------------------------------------------------------------43.5*64*16.5mm
Weight ----------------------------------------------------------------------------------------------40g
The HDMI-compatible Surge Protector is designed for protect the HDMI-compatible device that against with the static discharge, lighting surge, electrical fast transient burst. It is all active at all TMDS/DDC/HPD and CEC channels of connected HDMI-compatible signals and it can do final defense for ESD and Lighting Surge.
Features:
1. Protect HDMI-compatible input and output for ESD and Lightning Surge
2. Meet IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact).
3. Meet IEC 61000-4-4 (EFT) 40A (5/50ns).
4. Meet IEC 61000-4-5 (Lightning) 5A (8/20µs).
5. Support HDMI-compatible 1.4 with 3D,4KX2K and HEAC.
6. Solid-state silicon-avalanche technology.
7. Support HDCP
8. No loss of quality
9. Installs in minutes
l0. No Need Power Adaptor
Packing list：
1. HDMI-compatible Surge Protector * 1PC
2. Manual * 1PC
3. Ground Wire * 1PC
4. Ground Screw * 2PCS
Specifications:
HDMI-compatible version ----------------------------------------HDMI-compatible 1.4 with 3D、4Kx2K、HEAC
HDMI-compatible resolution ------------------------------24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format ------------------------------------------24bit/deep color 30bit,36bit, 48bit
Support audio format -------------------------------DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth ------------------------------------------------------------------------------------340MHz
Maxbaudrate ------------------------------------------------------------------------------------10.2Gbps
Input/Output TMDS signal -----------------------------------------------------------0.5~1.5Volts p-p(TTL)
Input/Output DDC signal -----------------------------------------------------------------5Volts p-p (TTL)
Max working current --------------------------------------------------------------------------------50mA
Operating Temperature range -------------------------------------------------------------- -15℃ to +55℃
Operating Humidity range ----------------------------------------------------5 to 90%RH (No Condensation)
Dimension (L x W x H) --------------------------------------------------------------------43.5*64*16.5mm
Weight ----------------------------------------------------------------------------------------------40g
