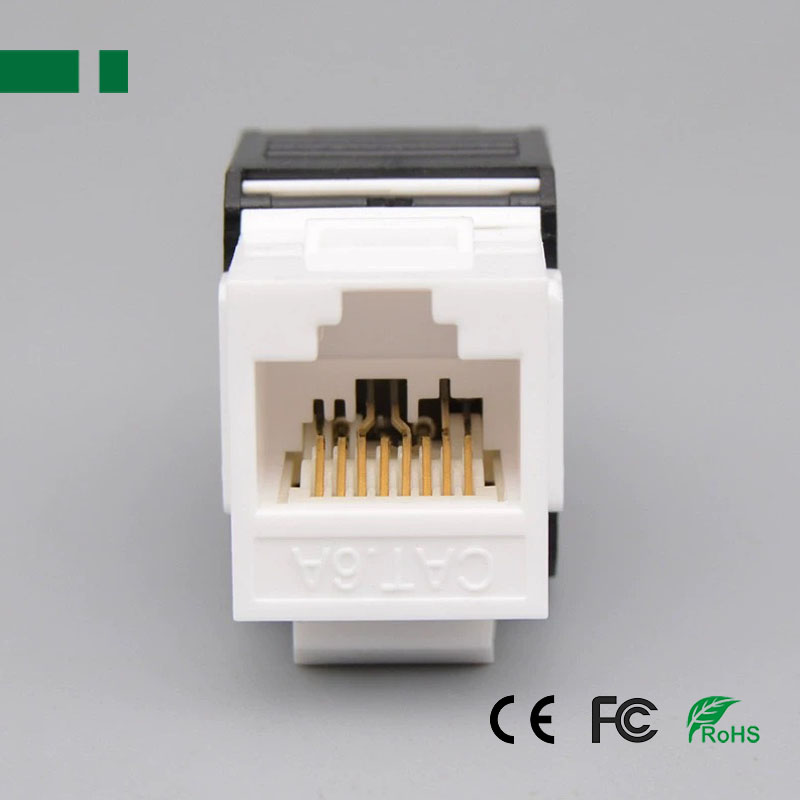

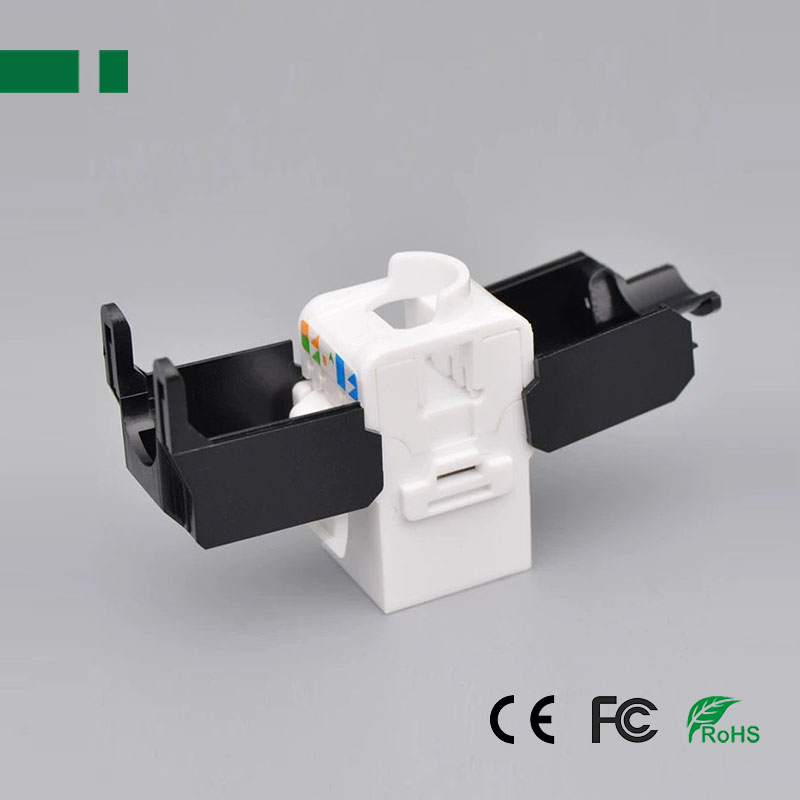

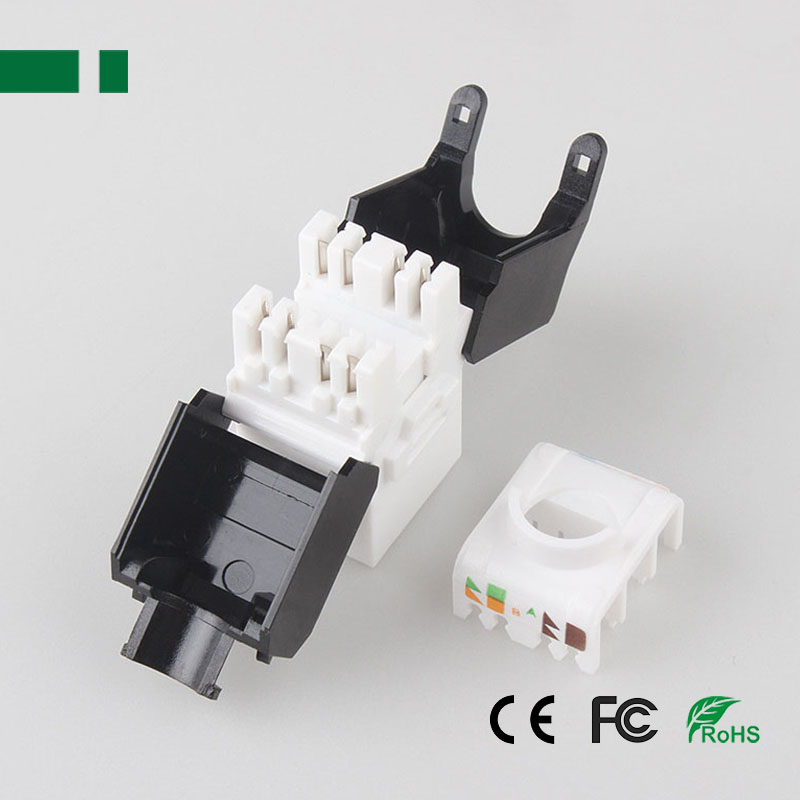

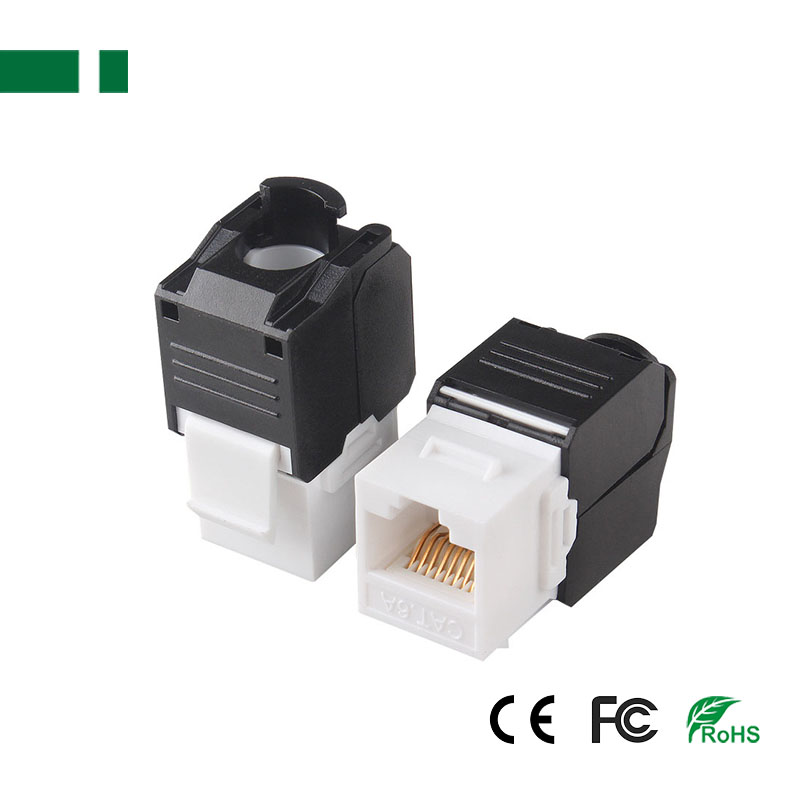

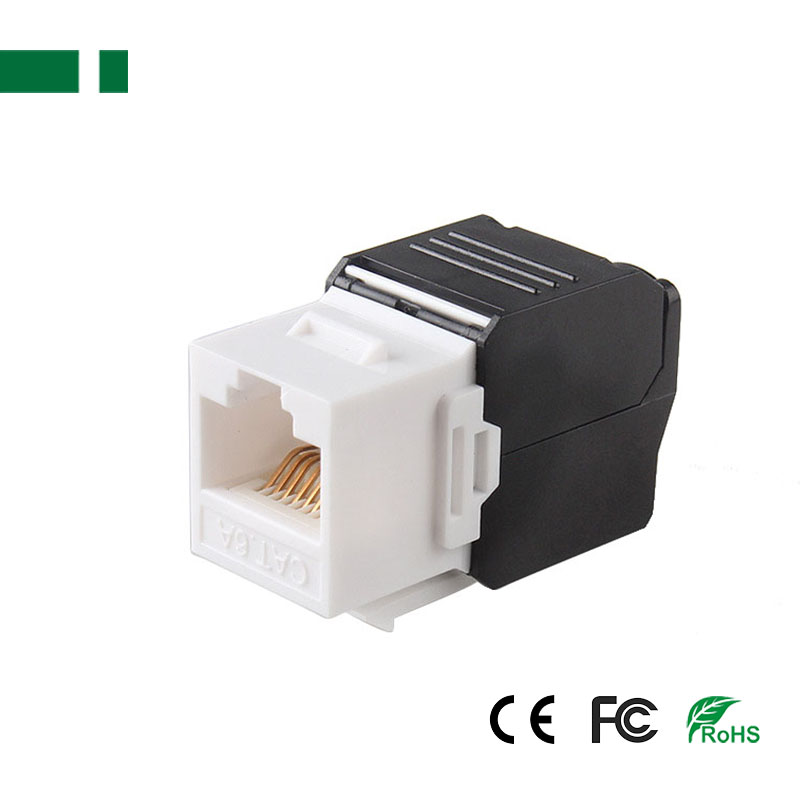

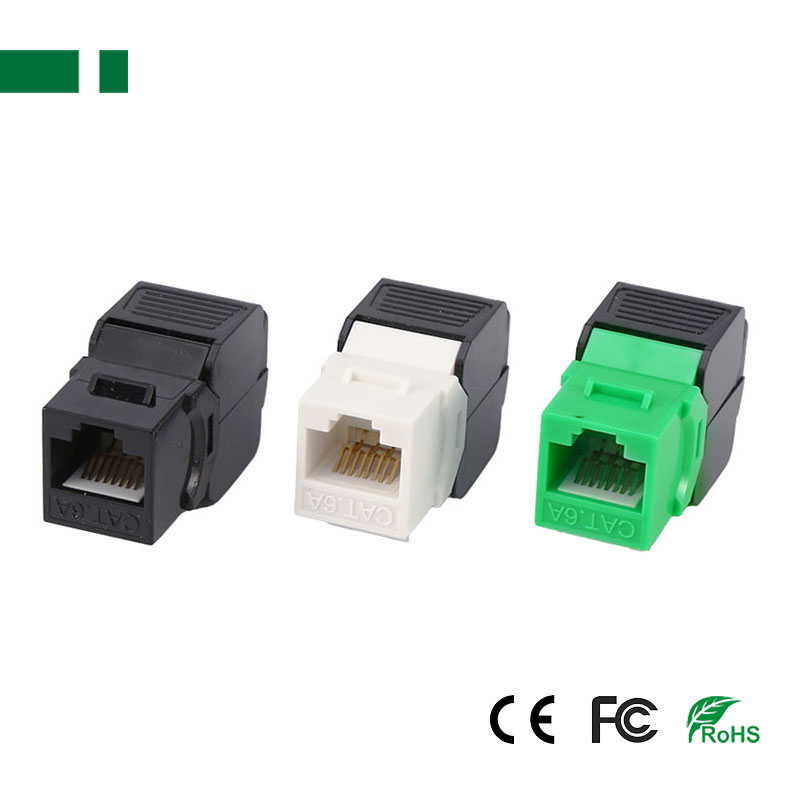

CRJ-6A03 Tool-free CAT6A UTP network module Keystone Jack

Network Cat6A UTP RJ45 Keystone Jack Ethernet Connection Cable Adapter White And Black Color Tool-less Category 6A Module Jack

Description:
This CAT6A Punch Down Keystone Jack are designed to provide excellent performance which exceeds the industry standard 568-B/A standard making these jacks perfect for use in today's high speed networks while remaining completely backwards compatible with all previous standards.

Feature:
1. Type: Cat6A Tool free RJ45 Network keystone jack;
2. Contact material : Phosphor Bronze with 15u" gold-plated;
3. Panel-type unshielded RJ45 (8P8C) keystone jack;
4. Meets or exceeds industry standard Category 6/Class E according to TIA/EIA 568B/A 2.1 and ISO 11801 2nd edition;
5. Balances signal transmission of isertion loss and crosstalk;
6. Plastics : PC/ABS, UL 94V-2, ROHS compliant;
7. Repeatable install times >250 times;
8. Mating cycles with plug >1500 times;
9. Suitable for install it on faceplate or blank patch panel;
10. Accepts solid or stranded cables diameter AWG23-AWG26 0.4-0.6mm;
11. IDC terminal : Phosphor Bronze with Nickel plated - Toolless termination, no need punch down tool.

Specification:

Type	Tool free RJ45 Network Keystone Jack
Model	CRJ-KP5e	CRJ-KP6	CRJ-6A03	CRJ-K5E	CRJ-K6	CRJ-K6A
Category	Cat5E	Cat6	Cat6A	Cat5E	Cat6	Cat6A
Bandwidth	100MHz	250MHz	500MHz	100MHz	250MHz	500MHz
Speed	100Mbps	1.0Gbps	10Gbps	100Mbps	1.0Gbps	10Gbps
Connectors	RJ45 Female
Shielding Type	UTP Unshielded			FTP Shielded
Termination Type	Toolless
Wiring Scheme	T568A/T568B
Wire Gauge	22-26AWG
Housing Material	ABS Plastic			Metal
Voltage Rating	125 VAC RMS
Current Rating	1.5 AMP
Storage Temp	T: -40℃-+85 ℃
Operation Temp	T: -10℃-+70 ℃
Jack Life	750 Times Min
IDC Life	200 Times Min
Packing	1pcs/PE bag
Dimension	14.5*16*38mm
