RJ45 Network Connector

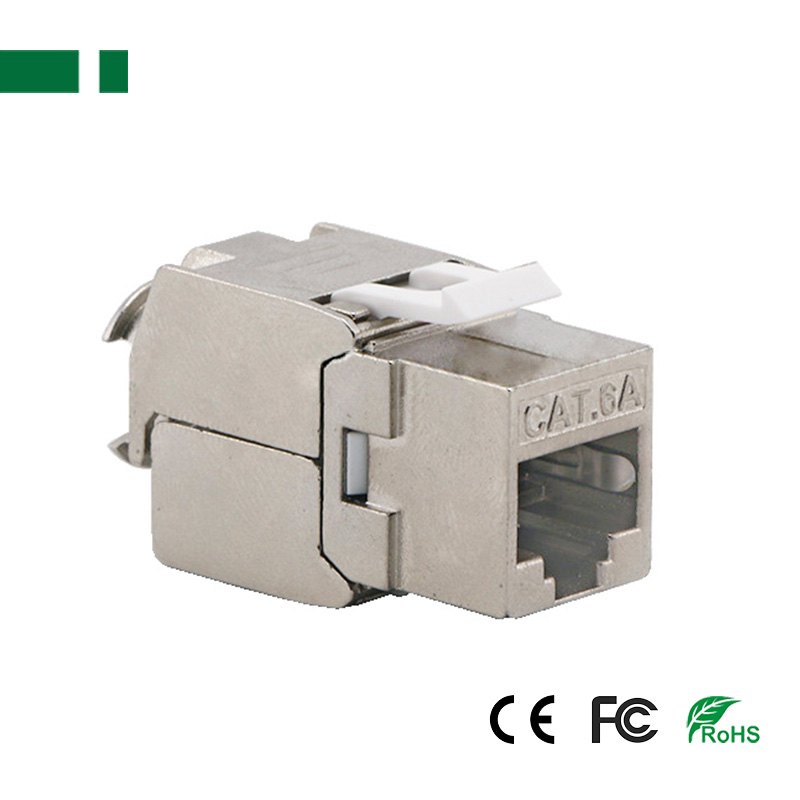

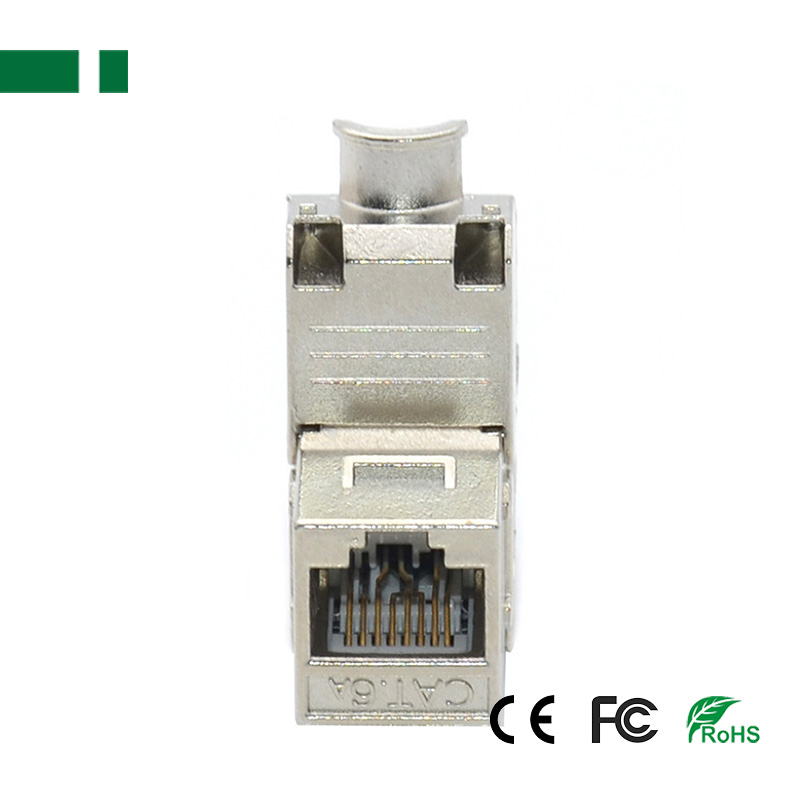

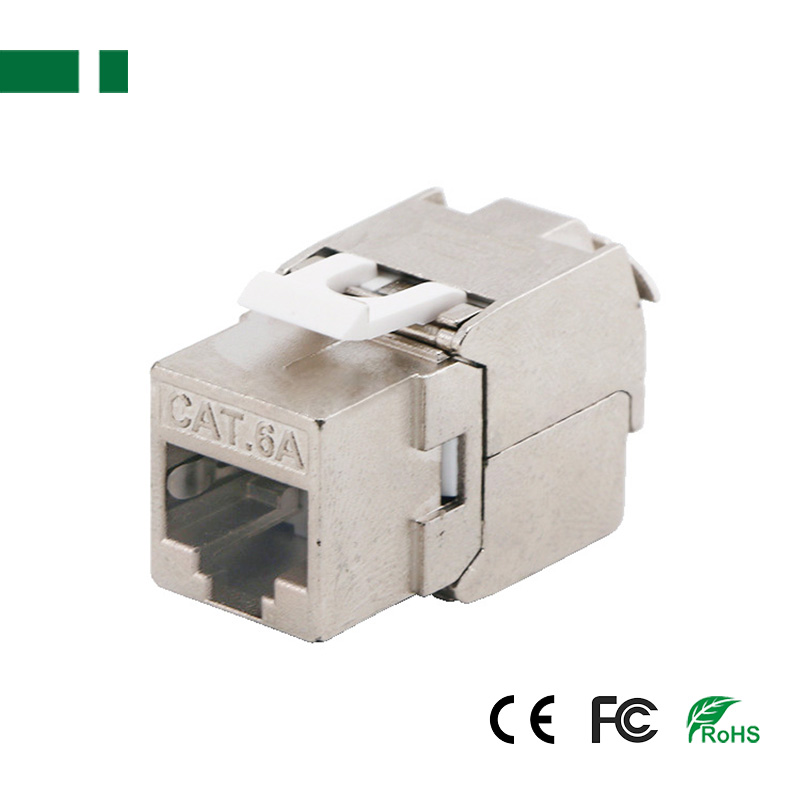

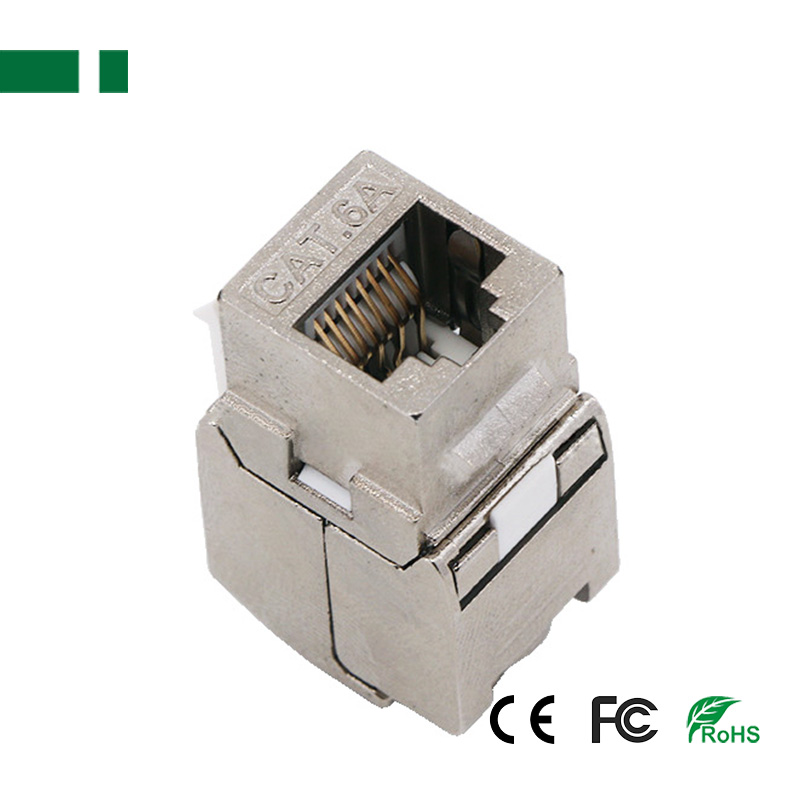

CRJ-K6A Cat6A Toolless FTP RJ45 Keystone Jack
- Cat6A Toolless FTP RJ45 Keystone Jack
- Module: Cat6A
- Port: RJ45
- Nickle Pin:50U Gold-Plated
- Product description: Network Cat6A FTP Full Shielded RJ45 Keystone Jack Ethernet Connection Cable Adapter Tool-less Category 6A Module
Network Cat6A FTP Full Shielded RJ45 Keystone Jack Ethernet Connection Cable Adapter Tool-less Category 6A Module Jack
Description:
This CAT6A Punch Down Keystone Jack are designed to provide excellent performance which exceeds the industry standard 568-B/A standard making these jacks perfect for use in today's high speed networks while remaining completely backwards compatible with all previous standards.
Feature:
1. Type: Cat6A FTP Full Shielded Tool free RJ45 Network keystone jack;
2. Contact material : Phosphor Bronze with 50u" gold-plated;
3. Panel-type unshielded RJ45 (8P8C) keystone jack;
4. Meets or exceeds industry standard Category 6/Class E according to TIA/EIA 568B/A 2.1 and ISO 11801 2nd edition;
5. Balances signal transmission of isertion loss and crosstalk;
6. Plastics : PC/ABS, UL 94V-2, ROHS compliant;
7. Repeatable install times >250 times;
8. Mating cycles with plug >1500 times;
9. Suitable for install it on faceplate or blank patch panel;
10. Accepts solid or stranded cables diameter AWG23-AWG26 0.4-0.6mm;

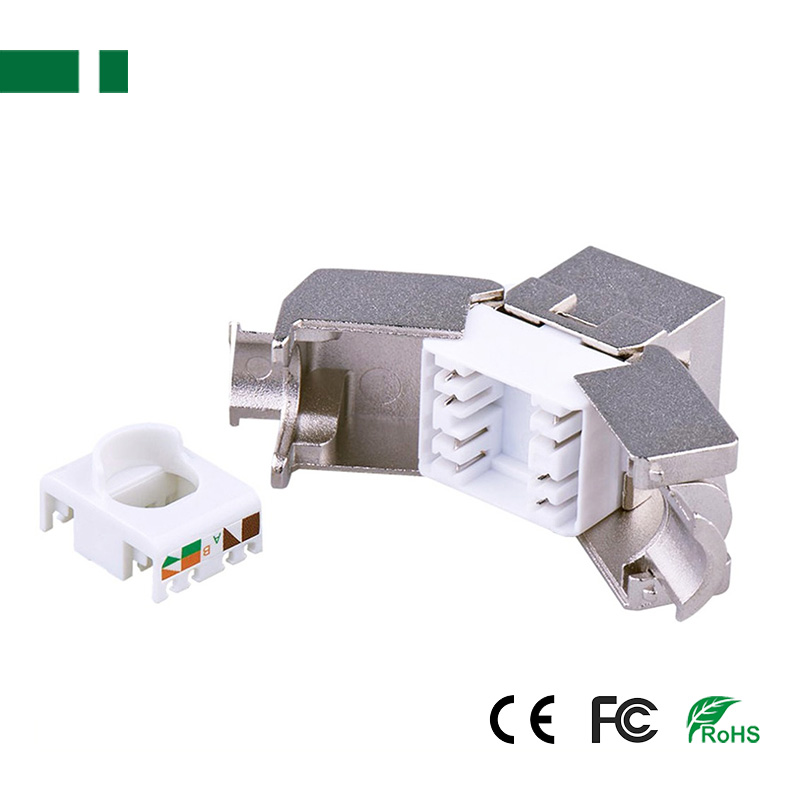

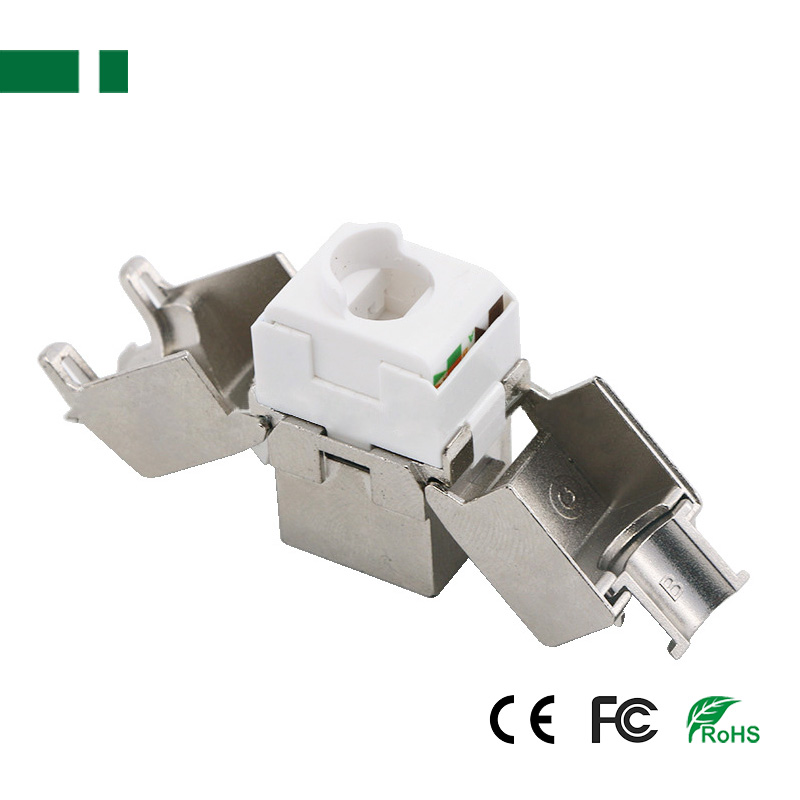

11. IDC terminal : Phosphor Bronze with Nickel plated - Toolless termination, no need punch down tool.
Specification:
Description:
This CAT6A Punch Down Keystone Jack are designed to provide excellent performance which exceeds the industry standard 568-B/A standard making these jacks perfect for use in today's high speed networks while remaining completely backwards compatible with all previous standards.
Feature:
1. Type: Cat6A FTP Full Shielded Tool free RJ45 Network keystone jack;
2. Contact material : Phosphor Bronze with 50u" gold-plated;
3. Panel-type unshielded RJ45 (8P8C) keystone jack;
4. Meets or exceeds industry standard Category 6/Class E according to TIA/EIA 568B/A 2.1 and ISO 11801 2nd edition;
5. Balances signal transmission of isertion loss and crosstalk;
6. Plastics : PC/ABS, UL 94V-2, ROHS compliant;
7. Repeatable install times >250 times;
8. Mating cycles with plug >1500 times;
9. Suitable for install it on faceplate or blank patch panel;
10. Accepts solid or stranded cables diameter AWG23-AWG26 0.4-0.6mm;
11. IDC terminal : Phosphor Bronze with Nickel plated - Toolless termination, no need punch down tool.
Specification:
| Type | Tool free RJ45 Network Keystone Jack | |||||
| Model | CRJ-KP5e | CRJ-KP6 | CRJ-6A03 | CRJ-K5E | CRJ-K6 | CRJ-K6A |
| Category | Cat5E | Cat6 | Cat6A | Cat5E | Cat6 | Cat6A |
| Bandwidth | 100MHz | 250MHz | 500MHz | 100MHz | 250MHz | 500MHz |
| Speed | 100Mbps | 1.0Gbps | 10Gbps | 100Mbps | 1.0Gbps | 10Gbps |
| Connectors | RJ45 Female | |||||
| Shielding Type | UTP Unshielded | FTP Shielded | ||||
| Termination Type | Toolless | |||||
| Wiring Scheme | T568A/T568B | |||||
| Wire Gauge | 22-26AWG | |||||
| Housing Material | ABS Plastic | Metal | ||||
| Voltage Rating | 125 VAC RMS | |||||
| Current Rating | 1.5 AMP | |||||
| Storage Temp | T: -40℃-+85 ℃ | |||||
| Operation Temp | T: -10℃-+70 ℃ | |||||
| Jack Life | 750 Times Min | |||||
| IDC Life | 200 Times Min | |||||
| Packing | 1pcs/PE bag | |||||
| Dimension | 14.5*16*38mm | |||||
