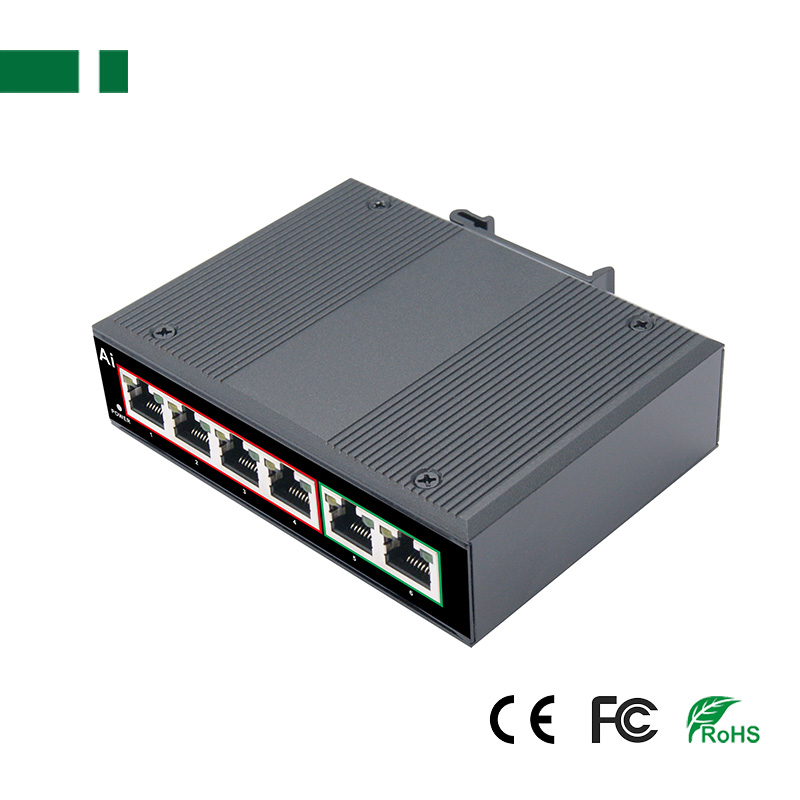

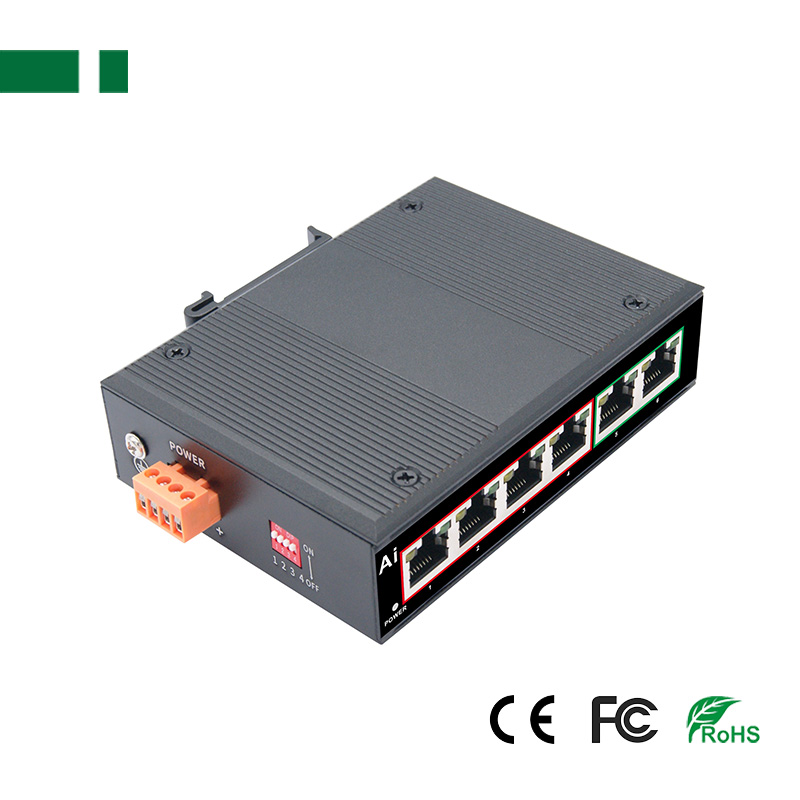

CPE-0402 4*100Mbps Industrial POE Switch with Uplink Port

  • 4 Ports 100Mbps Industrial POE switch
  • Support 2* 10/100Mbps Uplink Port
  • Support IEEE 802.3, IEEE 802.3u, IEEE802.3x
  • DC44V-55V Dual Power input
  • Product description: The Industrial POE switch can be widely used in Broadband private network: suitable for financial, government, oil, railway, electric power, public security, transportation, education and other indust
  • INQUIRY   EMAIL
Description:
The Industrial Ethernet POE Switch can be widely used in wind, electricity, assembly automation, subway PIS, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries, is a eco-friendly low power industrial Ethernet Switch.

Features:

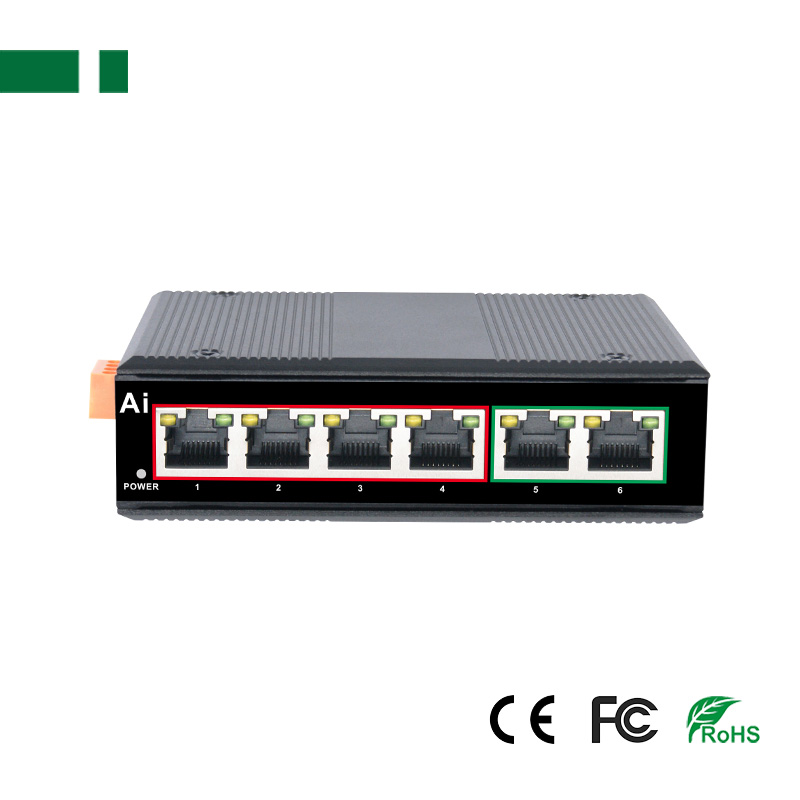

1. Support 4*10/100Mbps POE ports and 2* 10/100Mbps Uplinkport;
2. The 1-2 ports support extend to 250 meters;
3. Ethernet port supports 10/100Mbps self-adaptation;
4. Compatible with both IEEE802.3at(30W) and IEEE802.3af(15.4w);
5. Support IEEE 802.3, IEEE 802.3u, IEEE802.3x Standard;
6. Support ring network and network storm protection;
7. Support the AI watchdog
8. DC44V-55V Dual Power input.
9. Surge Protection: General 6KV, Differential 2KV; ESD 15KV(Air), 8KV (Contact);

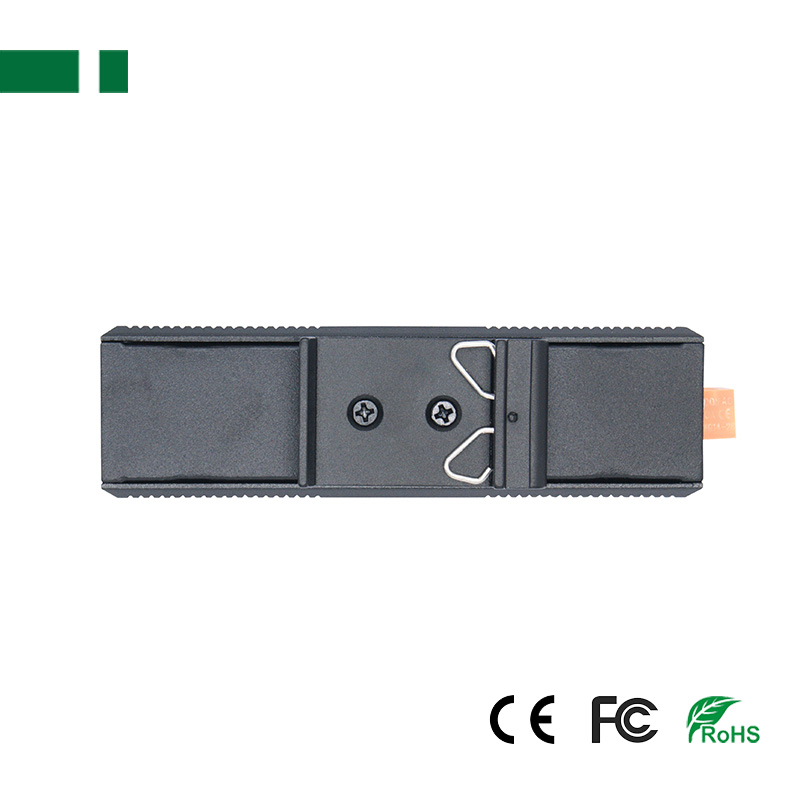

10. High strength iron shell, DIN35 Rail installation

Specification:
Model CPE-0402 CPE-G0402 CES-0402 CES-G0402
Network Ports POE Ethernet Port 4*10/100Mbps POE Ports 4*10/100/1000Mbps POE Ports N/A N/A
Ethernet Port N/A N/A 4*10/100Mbps RJ45 4*10/100/1000Mbps RJ45
Uplink Port 2* 10/100MbpsRJ45 2* 10/100/1000Mbps RJ45 2* 10/100Mbps RJ45 2* 10/100/1000Mbps RJ45
SFP Port N/A
SC Port N/A
Standard Network Protocol IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3x (Flow Control)
POE Protocol IEEE802.3af (15.4W), IEEE802.3at (30W) N/A
POE Feature All ports support MDI/ MDIX N/A
Forwarding Mode Store-and-Forward
Bandwidth 1.2Gbps 12Gbps 1.2Gbps 12Gbps
MTBF 100,000 hours
General Power Input DC44V-55V Dual Power input DC12V-55V Dual Power input

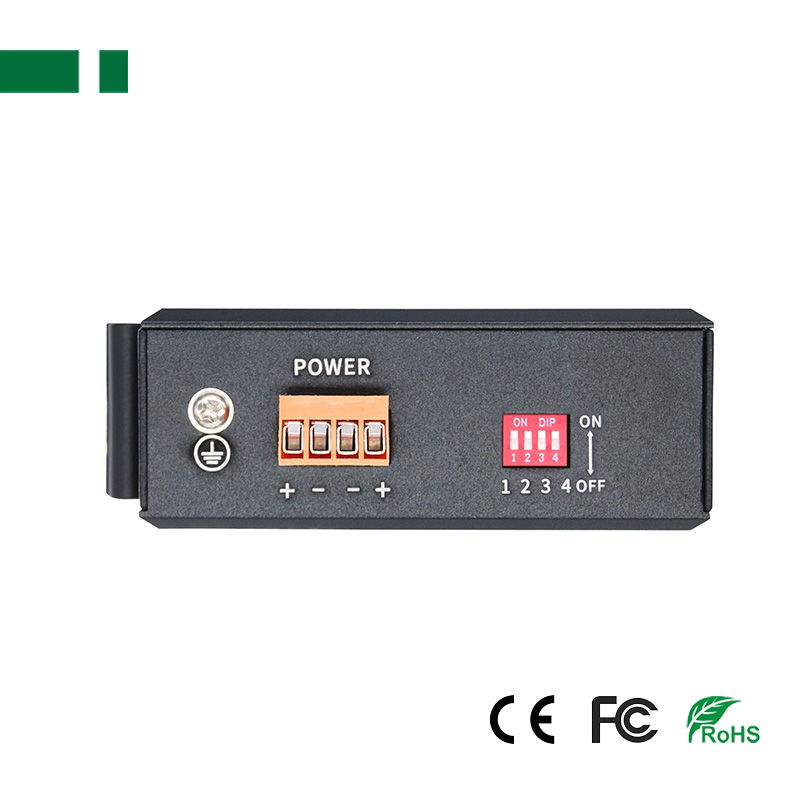

Type of input 4-Pin Industrial Terminal (Block V1+, V1-,  V2+,  V2-)
Network Medium Cat5E/ 6/ 7/ 8 standardNetwork Cable
Data Pin 1/2: +;3/6: - 1/2/4/5: +; 3/6/7/8: - 1/2: +; 3/6: - 1/2/4/5: +; 3/6/7/8: -
Power Pin 1/2: +; 3/6: - 1/2: +; 3/6: - N/A
Transmission Distance 1-2 Port: 250m/10Mbps 1st Port: 250m/10Mbps 1-2 Port: 250m/10Mbps 1st Port: 250m/10Mbps
ESD Air discharge: 15KV, Contact discharge: 8KV
Anti-Thunder Level Commonmode: 6KV, Differential mode: 2KV
Industrial Standard EMI: FCC Part 15 CISPR (EN55032) class A, EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge)
Humidity Working: 10%~90%,Storage: 5%~90%,non-condensing
Temperature Working: -40~80°C, Storage:-40~85°C

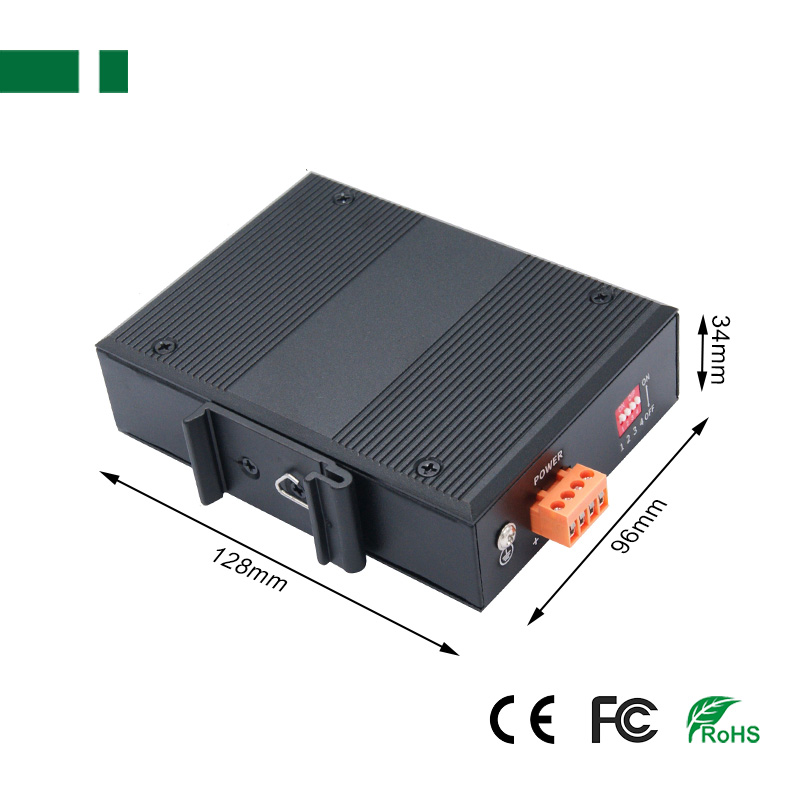

Dimension 128*96*34 mm (L×W×H), 0.385kg

Application:
1. Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.;
2. Broadband private network: suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries;
3. Multimedia transmission: integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications;
4. Real-time monitoring: simultaneous transmission of real-time control signals, images and data;
5. Resistant to harsh environments: suitable for networking in harsh environments with strong electromagnetic interference and long distances.

Packing list:
Industrial Switch: *1pc;
User Manual: *1pc;
Certification: *1pc;
Pull-arm: *1pc.
