Optic Fiber Protection Box

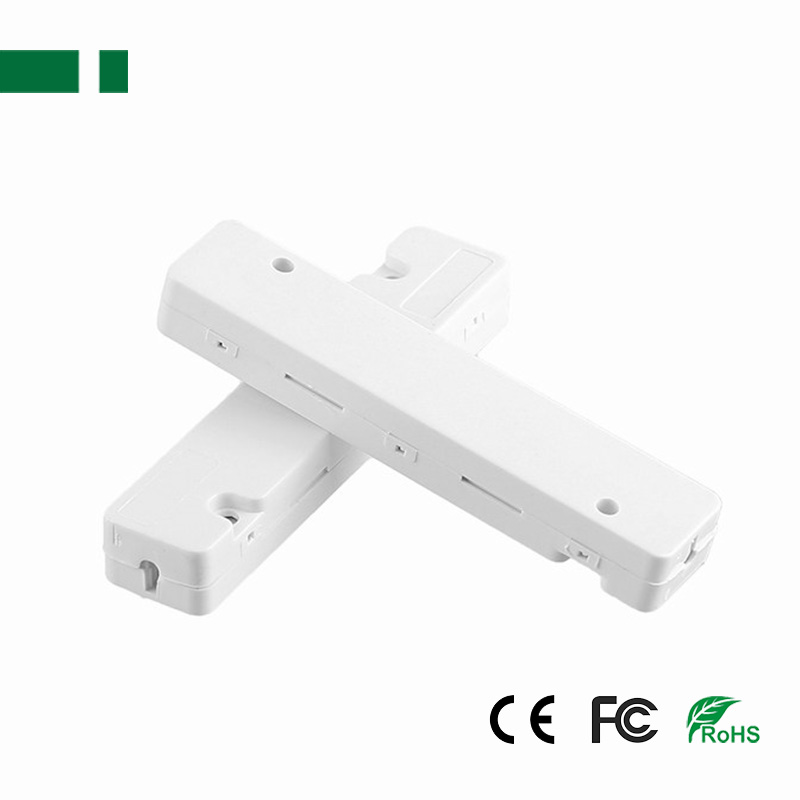

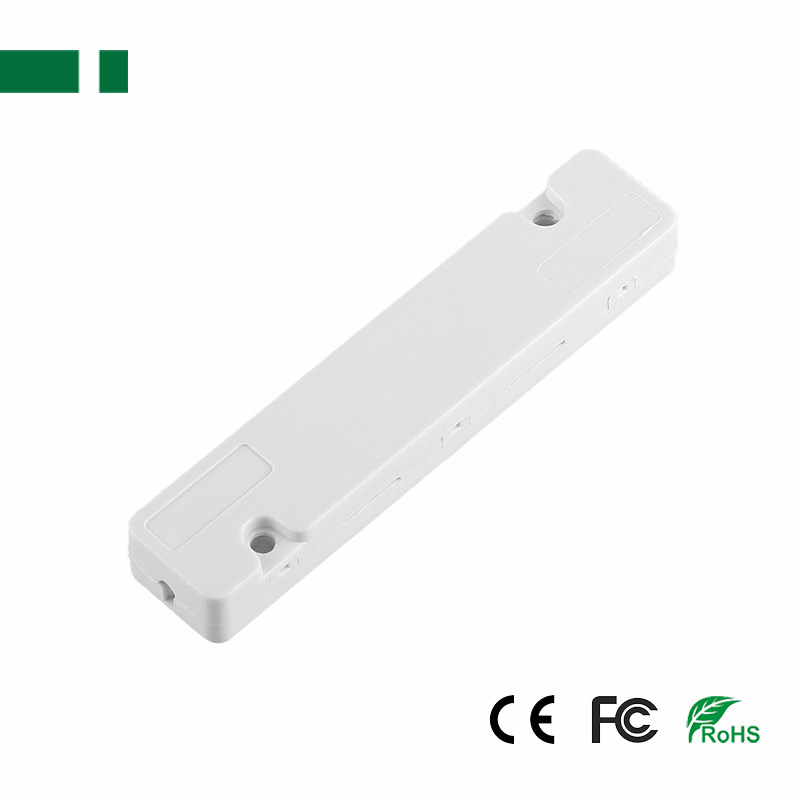

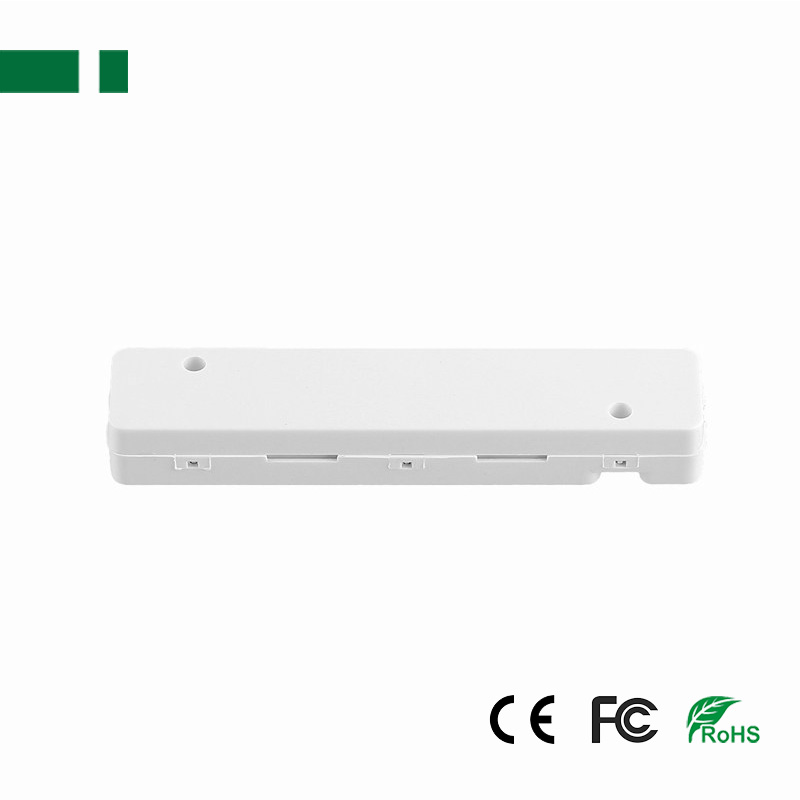

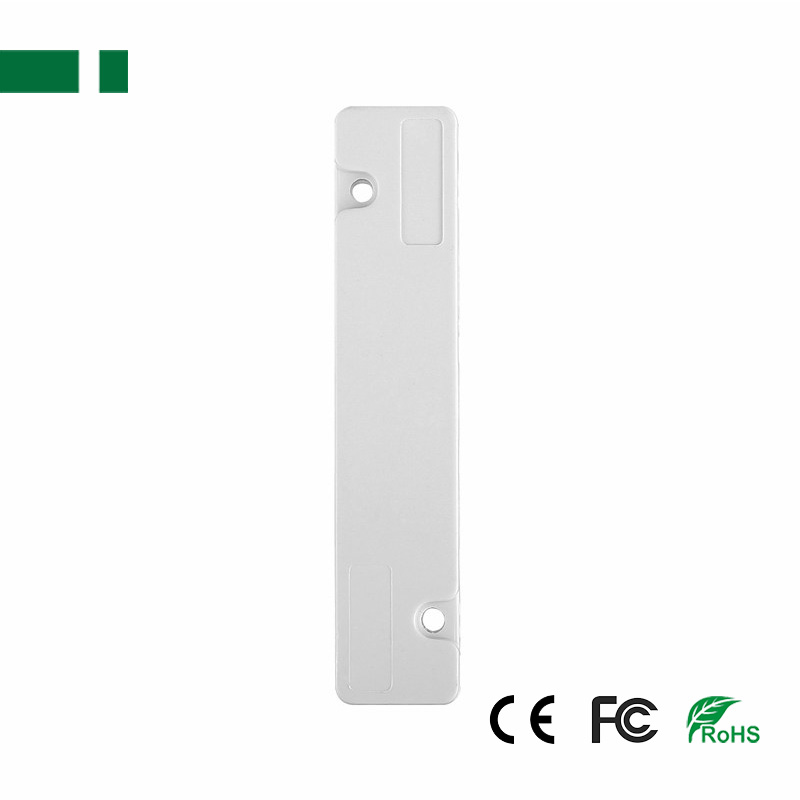

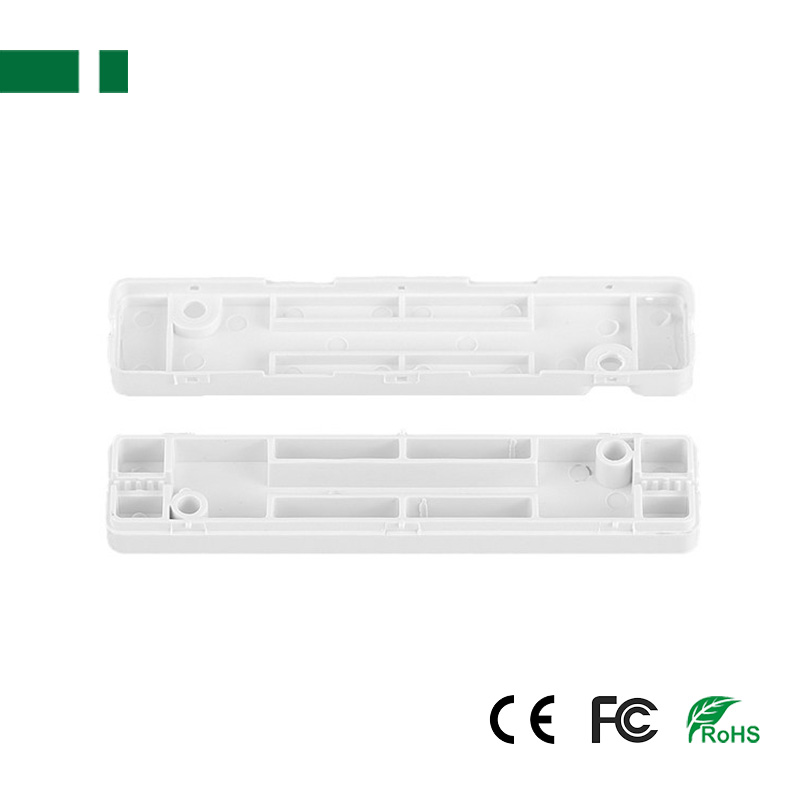

CNP-04 Square Type Optical Fiber Protection Box

CNP-04 Square Type Optical Fiber Protection Box

Square Type Optical Fiber Protection Box
Protective box for sheath cable
Size: 80*15*10mm
Material: PP
Product description: FTTH Fiber-to-home Leather cable protection box protective box for connecting point of leather cable and optical cable.
INQUIRY EMAIL

Square Type Optical Fiber Protection Box

Feature:
1. Leather wire heat shrinkable tube protection box.
It is made of high-quality plastic, strong and neat joint.

2. Processing with new materials.
It ha high corrosion resistance, strong aging resistance and tensile resistance.

3. Widely used in FTTH fiber to the home.
White and smooth, long service life, not suitable for deformation, not easy to yellow.

4. Scope of application.
Protection of heat shrinkable sleeve after welding of leather cord and tail fiber.
45mm-60mm heat shrink tubing.

5. Usage method.

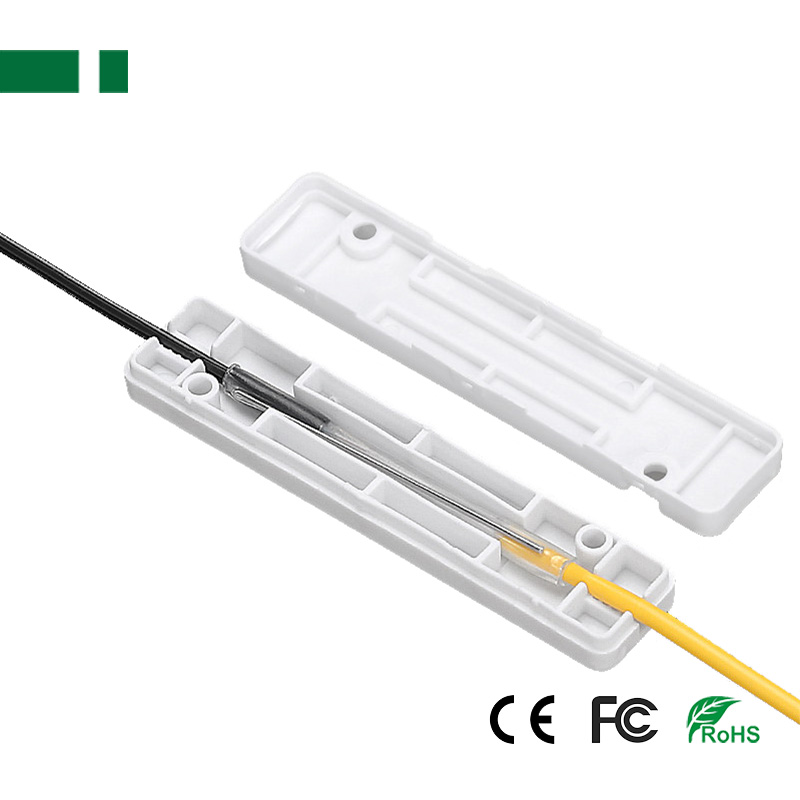

Fix the heat shrinkable tube in the protective box and tighten the round protective cover.

Specification:
Name： Protective box for sheath cable.
Scope of application: 45mm-60mm Heat shrinkable sleeve.
Size: 80*15*10mm.
Material: PP.
Product use: FTTH Fiber-to-home Leather cable protection box protective box for connecting point of leather cable and optical cable.

Optical Fiber Protection Box
Model	CNP-02	CNP-03	CNP-04	CNP-05W
Type	Enclosed round Type	Open Circular Type	Open Square Type	Outdoor Waterproof Type
Material	PP
Size	Φ9*82mm	Φ13*100mm	801510mm	1604516mm
Weight	2g	4g	8g	37g
Applicable	3.1*2.0mm, 0.9mm, 0.25mm optical fibers
Scope of application	45mm-60mm Heat shrinkable sleeve
Color	White
Package	100pcs/pack
