Inquiry:
Optic Fiber Protection Box

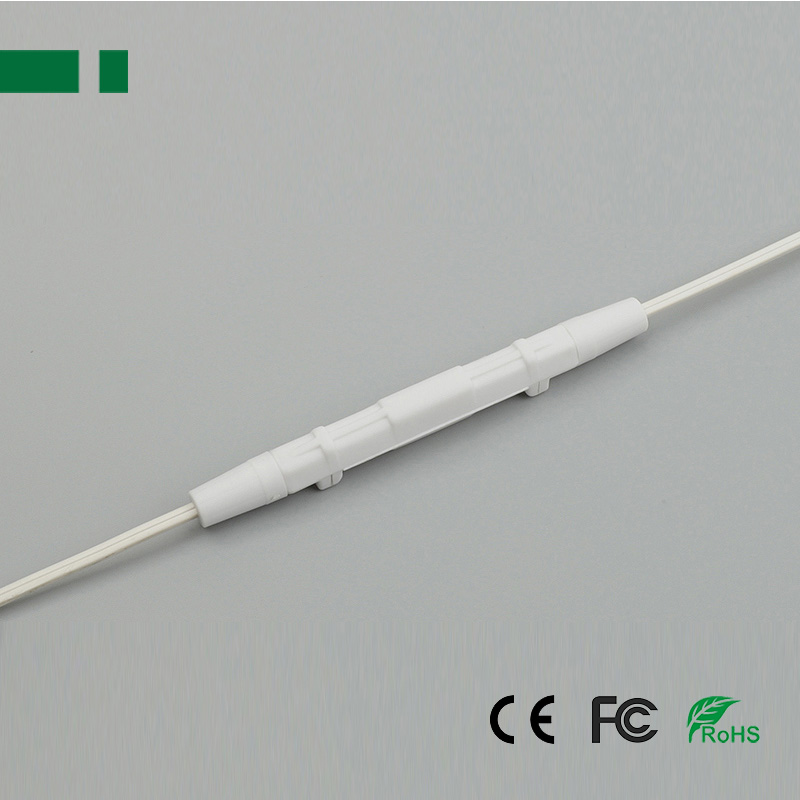

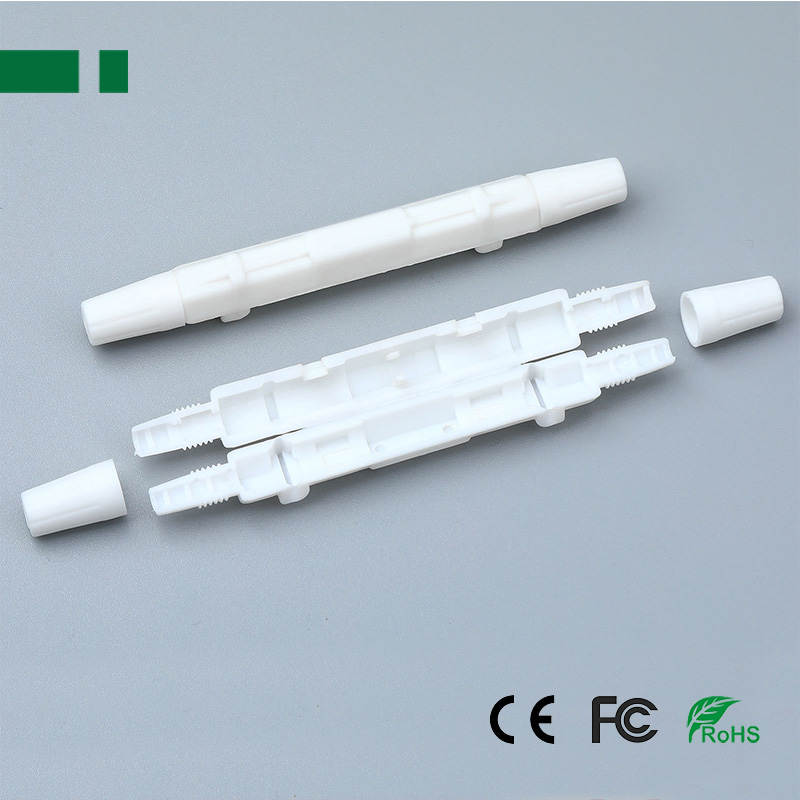

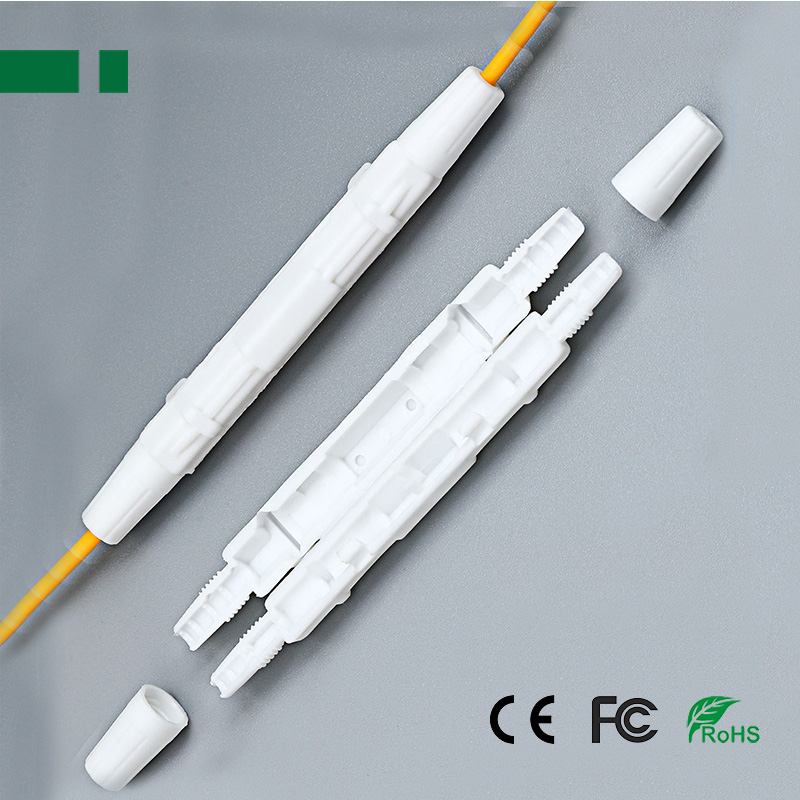

CNP-03 Open Type Circular Optical Fiber Protection Box
- Open Type Circular Optical Fiber Protection Box
- Protective box for sheath cable
- Size: 100*13*13mm
- Material: PP.
- Product description: FTTH Fiber-to-home Leather cable protection box protective box for connecting point of leather cable and optical cable.
Open Type Circular Optical Fiber Protection Box
Feature:
1. Leather wire heat shrinkable tube protection box.
It is made of high-quality plastic, strong and neat joint.
2. Processing with new materials.
It ha high corrosion resistance, strong aging resistance and tensile resistance.
3. Widely used in FTTH fiber to the home.
White and smooth, long service life, not suitable for deformation, not easy to yellow.
4. Scope of application.
Protection of heat shrinkable sleeve after welding of leather cord and tail fiber.
45mm-60mm heat shrink tubing.
5. Usage method.

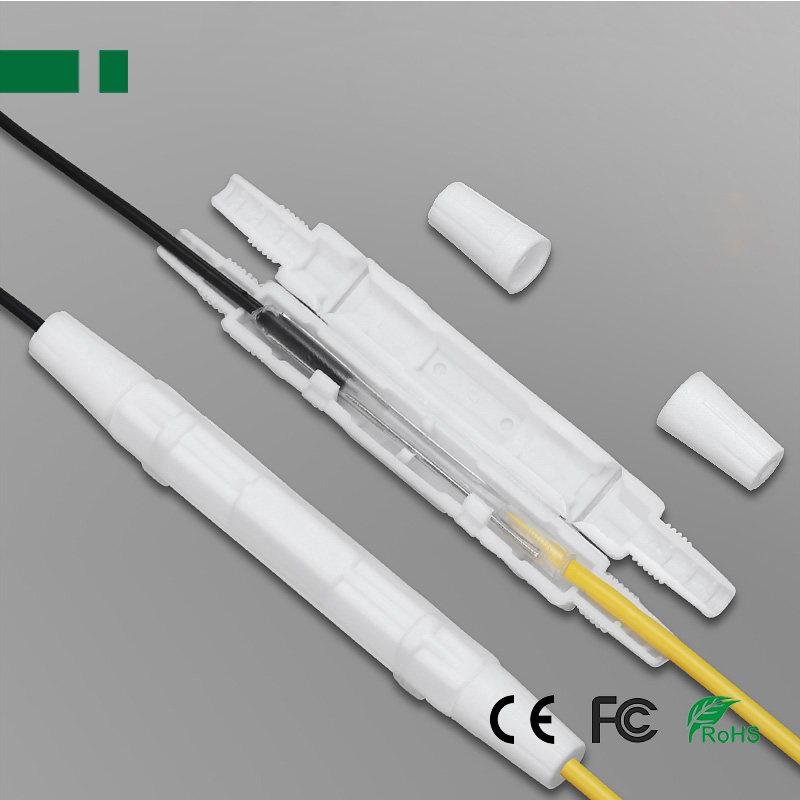

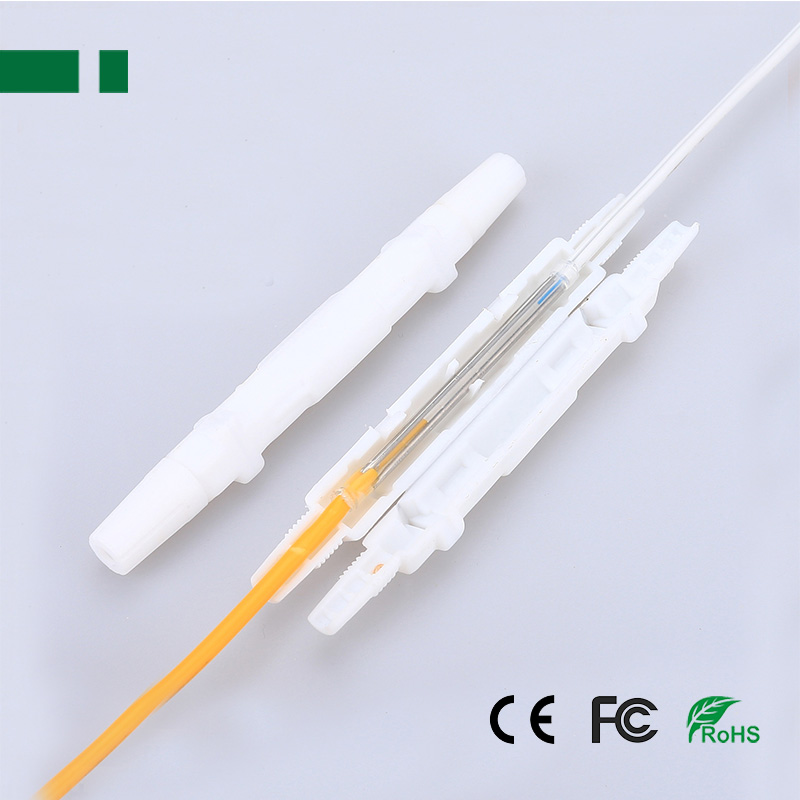

Fix the heat shrinkable tube in the protective box and tighten the round protective cover.
Specification:
Name： Protective box for sheath cable.
Scope of application: 45mm-60mm Heat shrinkable sleeve.
Size: 100*13*13mm.
Material: PP.
Product use: FTTH Fiber-to-home Leather cable protection box protective box for connecting point of leather cable and optical cable.
Feature:
1. Leather wire heat shrinkable tube protection box.
It is made of high-quality plastic, strong and neat joint.
2. Processing with new materials.
It ha high corrosion resistance, strong aging resistance and tensile resistance.
3. Widely used in FTTH fiber to the home.
White and smooth, long service life, not suitable for deformation, not easy to yellow.
4. Scope of application.
Protection of heat shrinkable sleeve after welding of leather cord and tail fiber.
45mm-60mm heat shrink tubing.
5. Usage method.
Fix the heat shrinkable tube in the protective box and tighten the round protective cover.
Specification:
Name： Protective box for sheath cable.
Scope of application: 45mm-60mm Heat shrinkable sleeve.
Size: 100*13*13mm.
Material: PP.
Product use: FTTH Fiber-to-home Leather cable protection box protective box for connecting point of leather cable and optical cable.

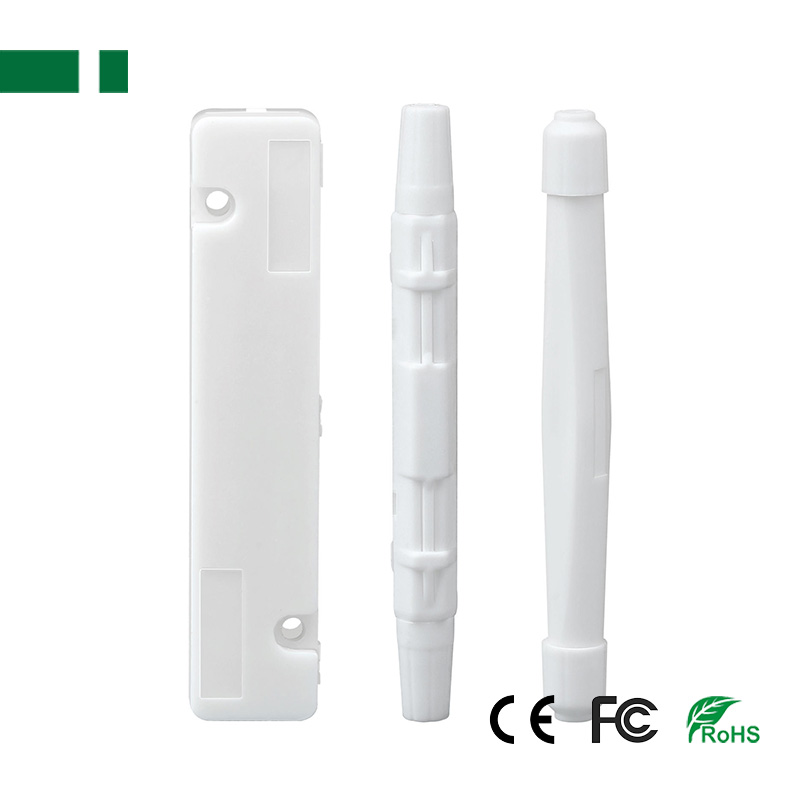

| Optical Fiber Protection Box | ||||
| Model | CNP-02 | CNP-03 | CNP-04 | CNP-05W |
| Type | Enclosed round Type | Open Circular Type | Open Square Type | Outdoor Waterproof Type |
| Material | PP | |||
| Size | Φ9*82mm | Φ13*100mm | 80*15*10mm | 160*45*16mm |
| Weight | 2g | 4g | 8g | 37g |
| Applicable | 3.1*2.0mm, 0.9mm, 0.25mm optical fibers | |||
| Scope of application | 45mm-60mm Heat shrinkable sleeve | |||
| Color | White | |||
| Package | 100pcs/pack | |||
