Water-Proof Power Supply

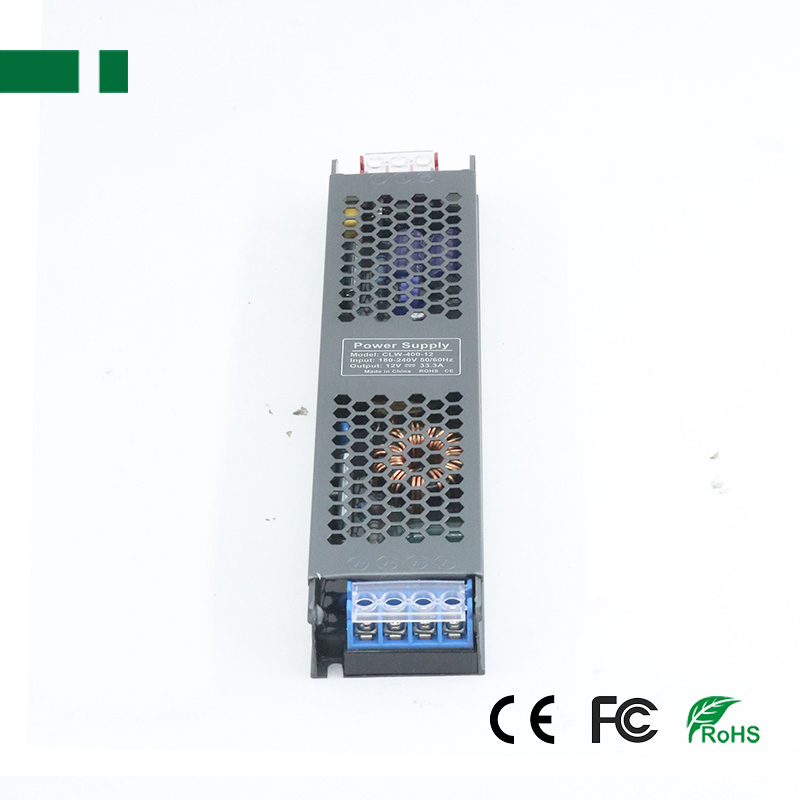

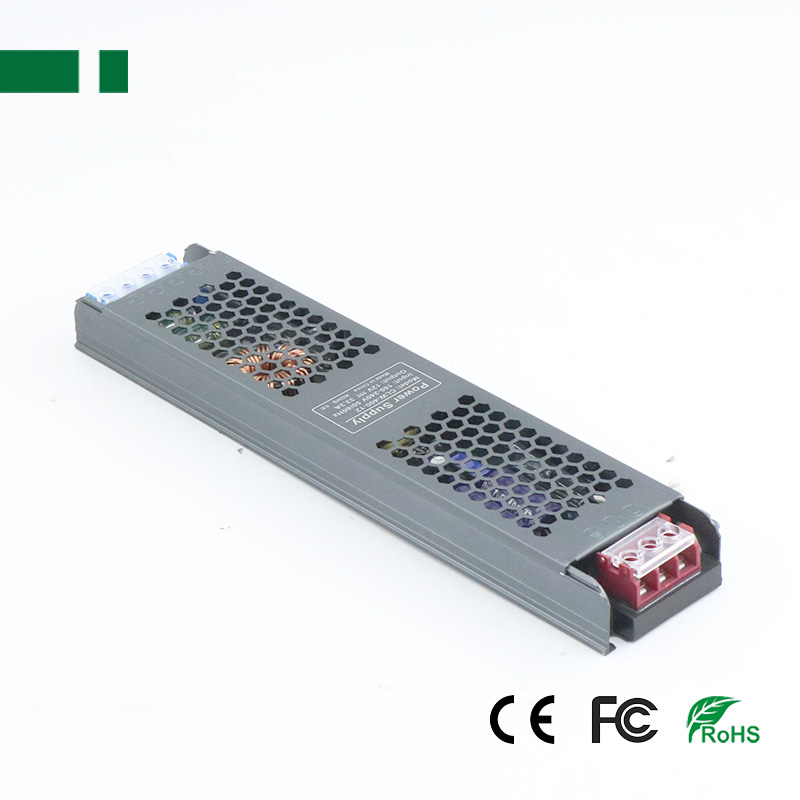

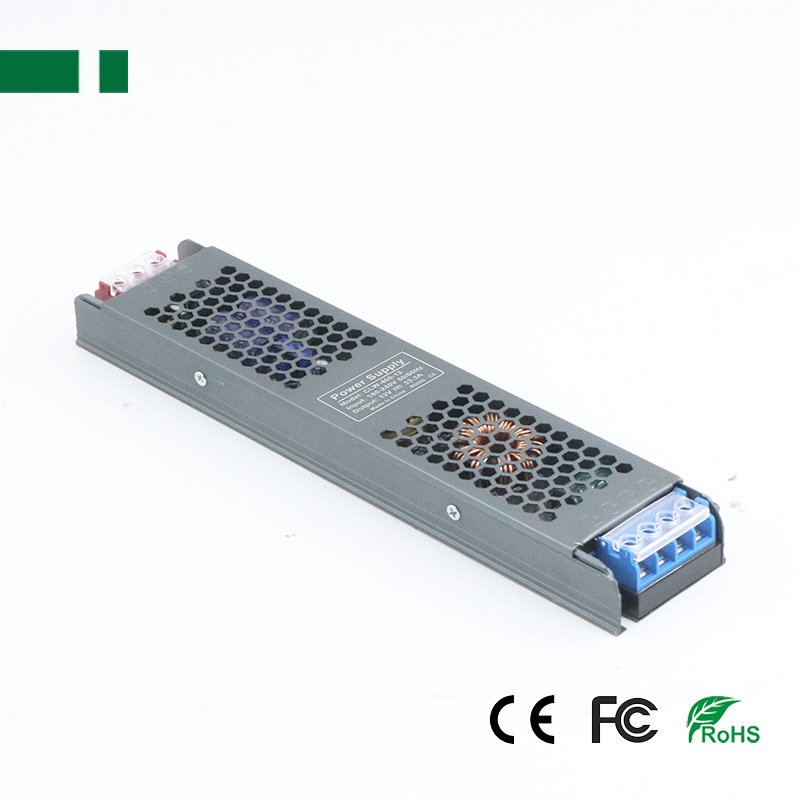

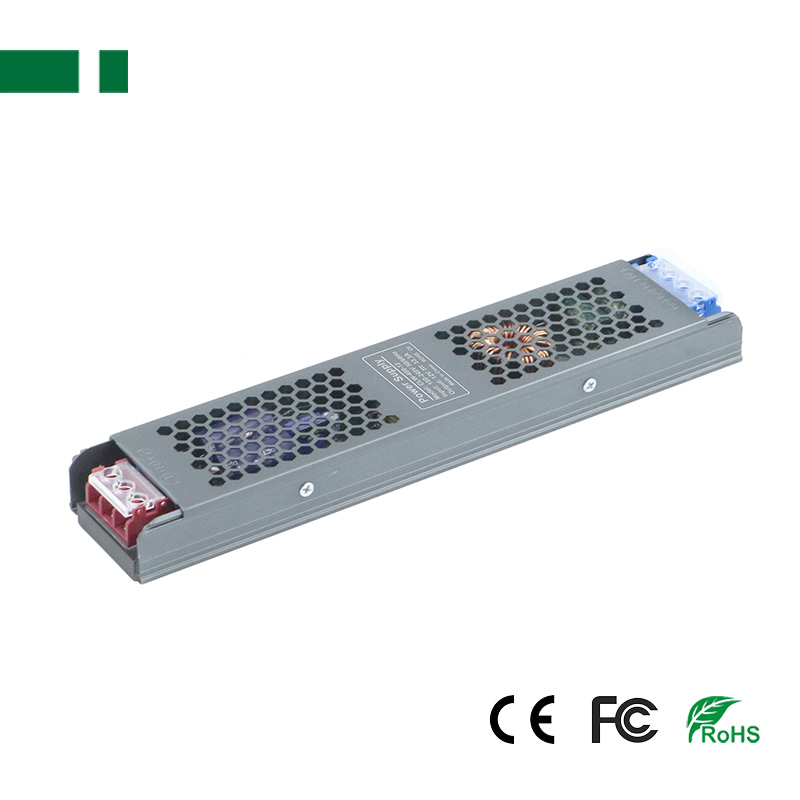

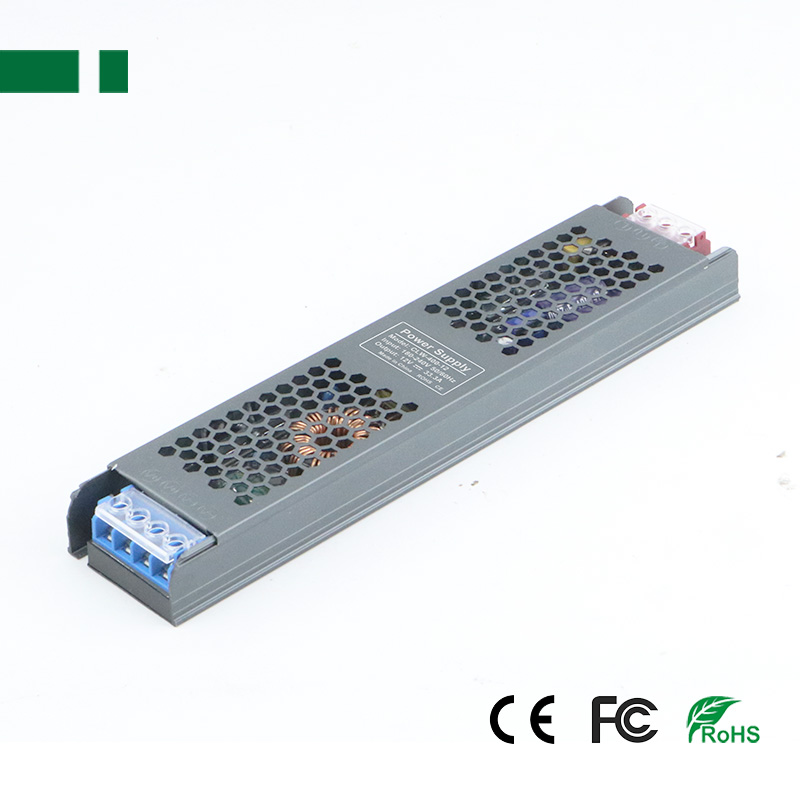

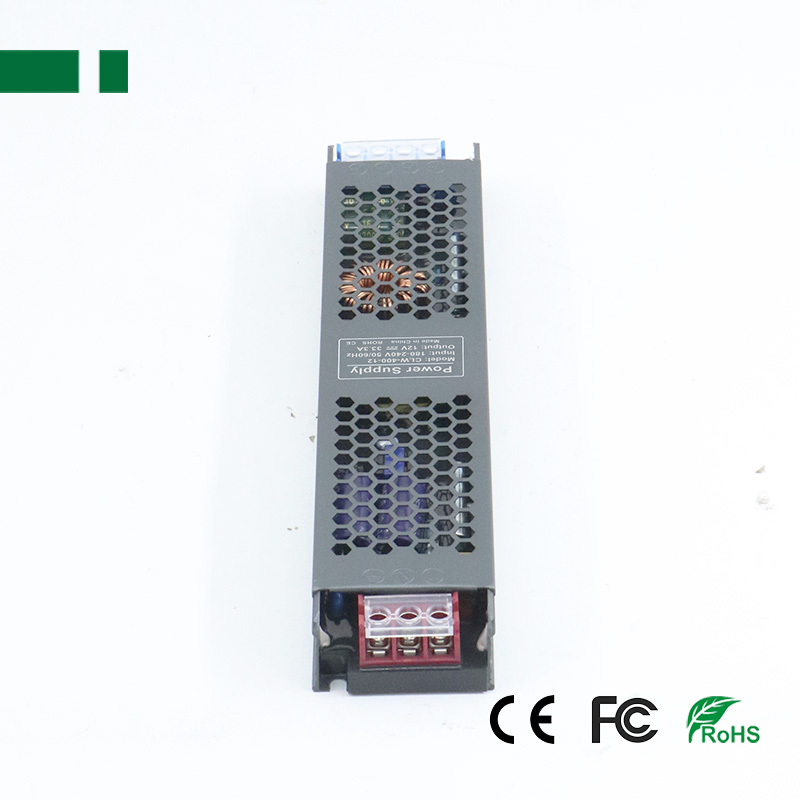

CLW-400-12 400W Water-proof Power Supply

400W Water proof Power Supply
Input voltage range: 180~240VAC
Waterproof grade IP65 or IP67
DC12V and DC24V optional
Product description: Waterproof AC-DC power supply is available in many configurable power variations, including Waterproof 12V AC-DC power supply, waterproof 24V AC-DC power supply, and waterproof grade IP65 or IP67.
INQUIRY EMAIL

Waterproof AC-DC power supply is available in many configurable power variations, including Waterproof 12V AC-DC power supply, waterproof 24V AC-DC power supply, and waterproof grade IP65 or IP67.

Power Supply with a wide range of options available to suit your design parameters such as variable AC Input Voltage, DC output voltage variations, connectorization options to match system needs, connectors, and custom chassis options available upon request.

Features:

1. 400W Single Output Water-proof Power Supply
2. Output voltage & current: DC12V 33.3A
3. Input voltage range: 180~240VAC
4. Built in EMI filter with tiny ripple
5. 100% full load burn-in test
6. Air Cooling
7. Protection: Short circuit/ Overload/ Over voltage/ Over temperature
8. Built-in constant current limiting circuit (C.C.+C.V.mode);

Specification:

Model		CLW-400-12	CLW-400-24
Output	DC output Voltage	12V±5%	24V±5%
	Output Current Range	0-33.3A	0-16.7A
	Wave and Noise	120mVp-p
	DC output Power	400W
	Efficiency	0.85
	DC Voltage Adjustable Scope	（at full load）≦0.5%
Input	Voltage Range	180~240VAC 47-63Hz
	Input Current	1.8A/230V
	Leakage Current	<1mA/ 240VAC
	Inrush Current	Cold start 36A/230VAC
Protection	Over-load	105%~135%, Protection type: Constant current limiting, recovers automatically after fault condition is removed
	Over-voltage	105%---150% Rated Voltage, Protection type: Shut off
	High-temperature	RTH3>=65°C FANON<=55°C FAN OFF>=80°C Cut off output(5~15V)
Environment	Working temperature and humidity	-10°C~+50°C, 20~90%RH
	Store temperature and humidity	-20°C~+85°C, 10~95%RH
	Temperature coefficient	±0.03%°C(0~50°C)
	Vibration	10~500Hz,2G 10min./1cycle, Period for 60min, EACH AXES
Safety	Withstand voltage	I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC
	Isolation resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
Standard	CE EMC Standard	EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013
	CE LVD Standard	EN61347-2-13:2014+A1:2017, EB61347-1:2015
	ROHS Standard	IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc.
Other	Dimension	2557636mm (LWH)
	Weight	1.22kg
Notes	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. I/P-O/P: Input and output interval, I/P-FG: Input and enclosure, O/P-FG: Output and enclosure
