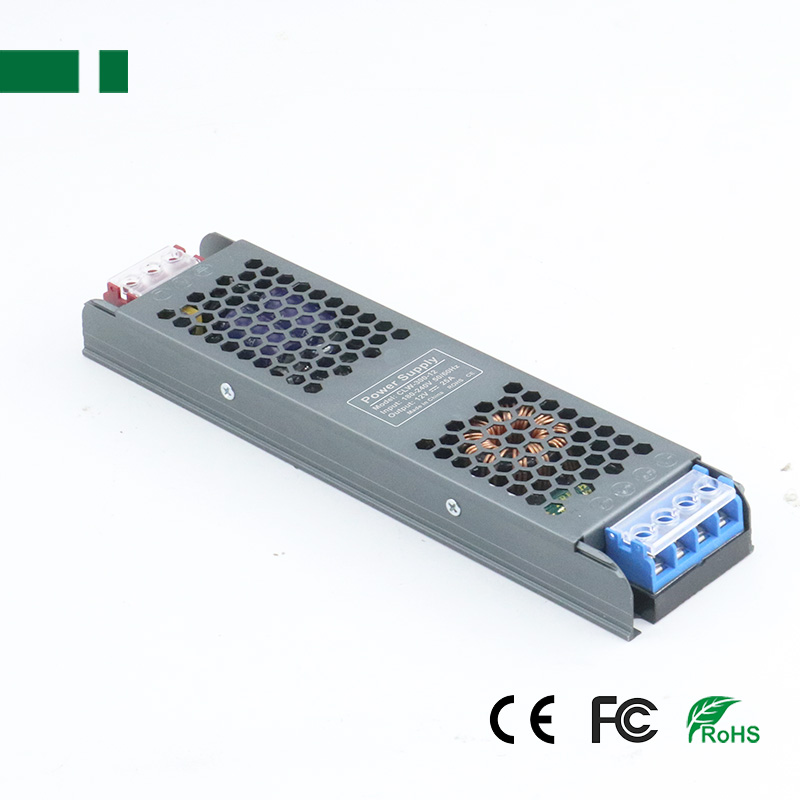

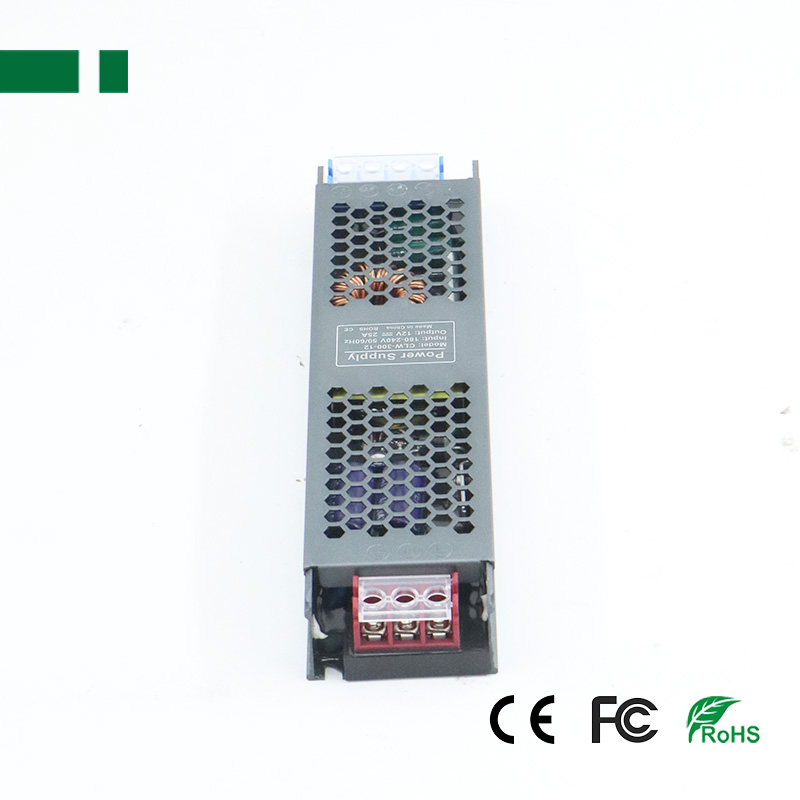

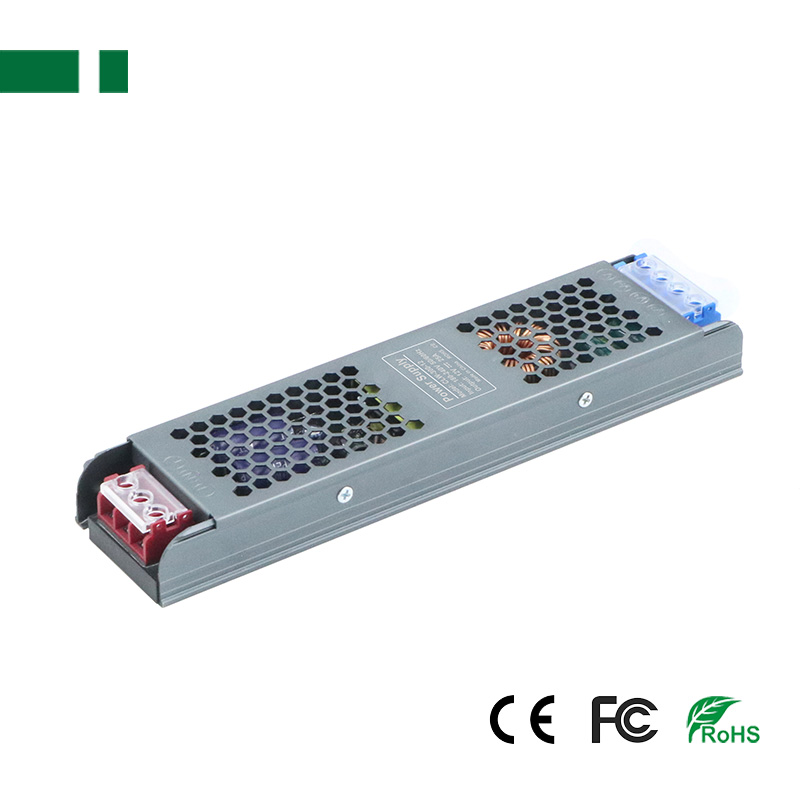

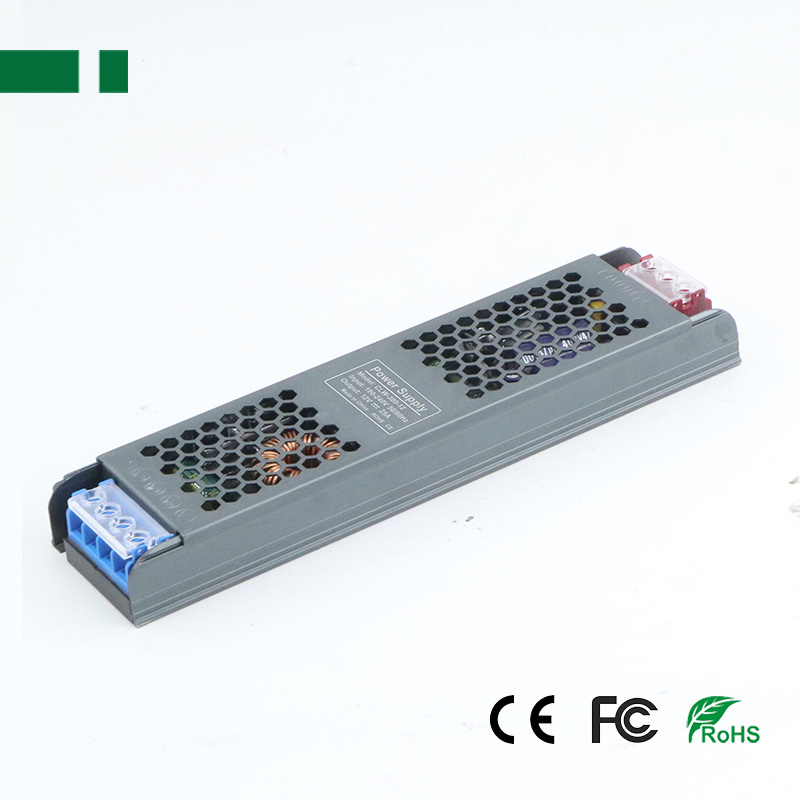

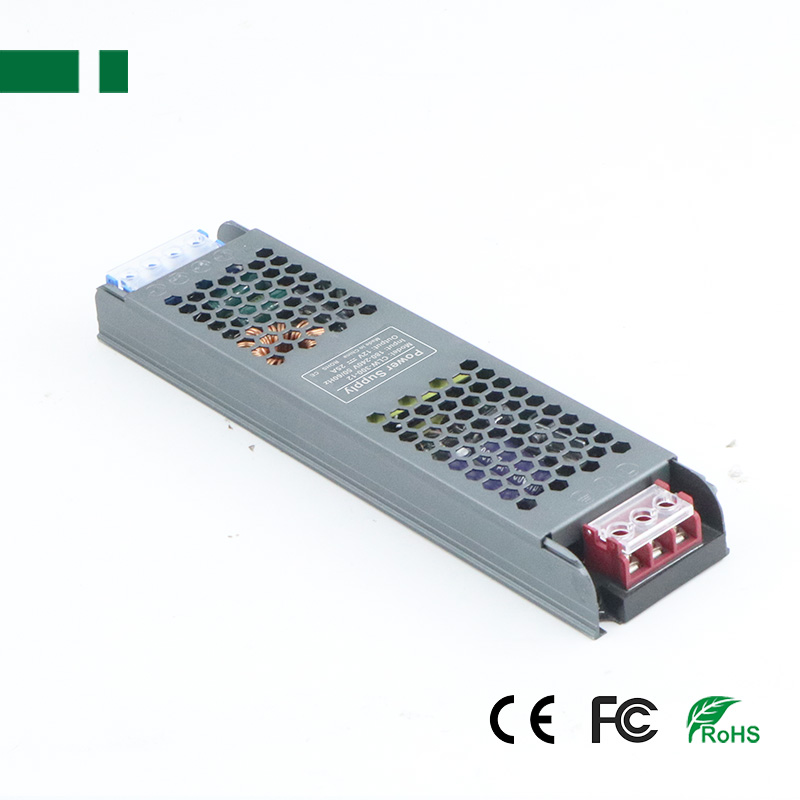

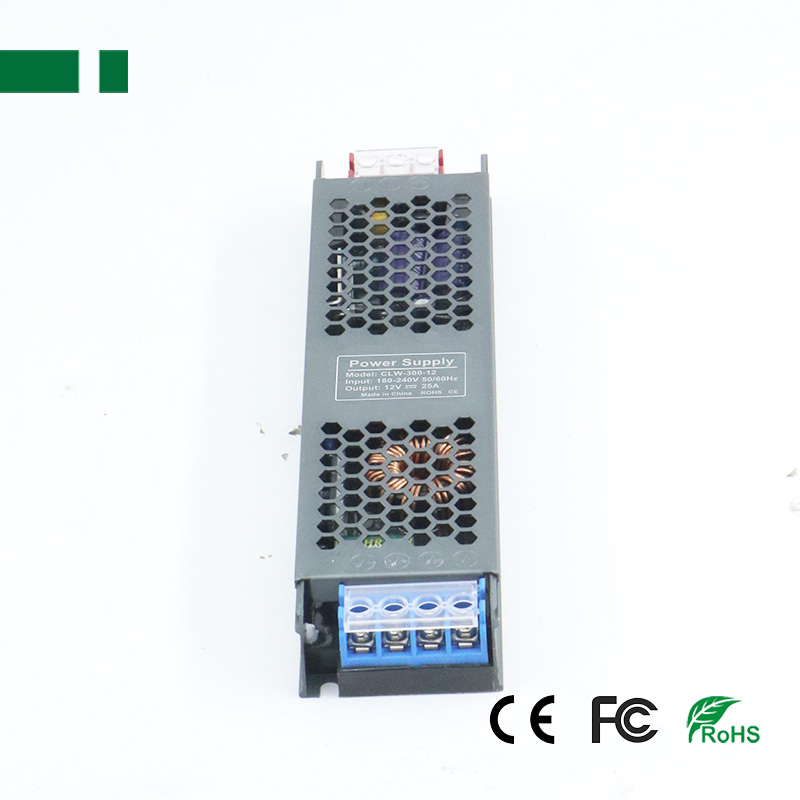

CLW-300-12 300W Water-proof Power Supply

  • 300W Water proof Power Supply
  • Input voltage range: 180~240VAC
  • Waterproof grade IP65 or IP67
  • DC12V and DC24V optional
  • Product description: Waterproof AC-DC power supply is available in many configurable power variations, including Waterproof 12V AC-DC power supply, waterproof 24V AC-DC power supply, and waterproof grade IP65 or IP67.
  • INQUIRY   EMAIL

Waterproof AC-DC power supply is available in many configurable power variations, including Waterproof 12V AC-DC power supply, waterproof 24V AC-DC power supply, and waterproof grade IP65 or IP67.

Power Supply with a wide range of options available to suit your design parameters such as variable AC Input Voltage, DC output voltage variations, connectorization options to match system needs, connectors, and custom chassis options available upon request.

Features:

1. 300W Single Output Water-proof Power Supply
2. Output voltage & current: DC12V  25A
3. Input voltage range: 180~240VAC
4. Built in EMI filter with tiny ripple
5. 100% full load burn-in test
6. Air Cooling
7. Protection: Short circuit/ Overload/ Over voltage/ Over temperature
8. Built-in constant current limiting circuit (C.C.+C.V.mode);


Specification:

Model CLW-300-12 CLW-300-24
Output DC output Voltage 12V±5% 24V±5%
Output Current Range 0-25A 0-12.5A
Wave and Noise 120mVp-p
DC output Power 300W
Efficiency 0.85
DC Voltage Adjustable Scope at full load)≦0.5%
Input Voltage Range 180~240VAC      47-63Hz
Input Current 1.1A/230V
Leakage Current <1mA/ 240VAC
Inrush Current Cold start 36A/ 230VAC
Protection Over-load 105%~135%, Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over-voltage 105%---150% Rated Voltage, Protection type: Shut off
High-temperature RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C Cut off output(5~15V)
Environment Working temperature and humidity -10°C~+50°C,   20~90%RH
Store temperature and humidity -20°C~+85°C,   10~95%RH
Temperature coefficient ±0.03%°C(0~50°C)
Vibration 10~500Hz,2G 10min./1cycle, Period for 60min, EACH AXES
Safety Withstand voltage I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC
Isolation resistance I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
Standard CE EMC Standard EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013
CE LVD Standard EN61347-2-13:2014+A1:2017, EB61347-1:2015
ROHS Standard IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc.
Other Dimension 235*76*36mm (L*W*H)
Weight 1.05kg
Notes 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
4. I/P-O/P: Input and output interval, I/P-FG: Input and enclosure, O/P-FG: Output and enclosure
